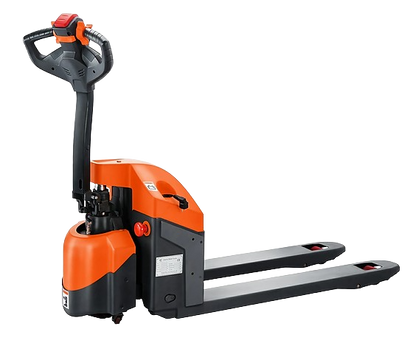

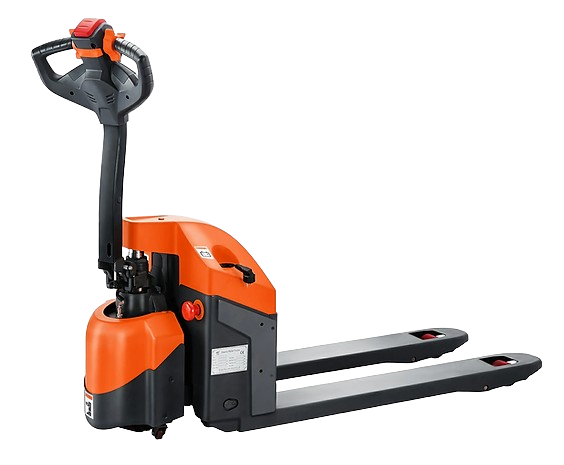

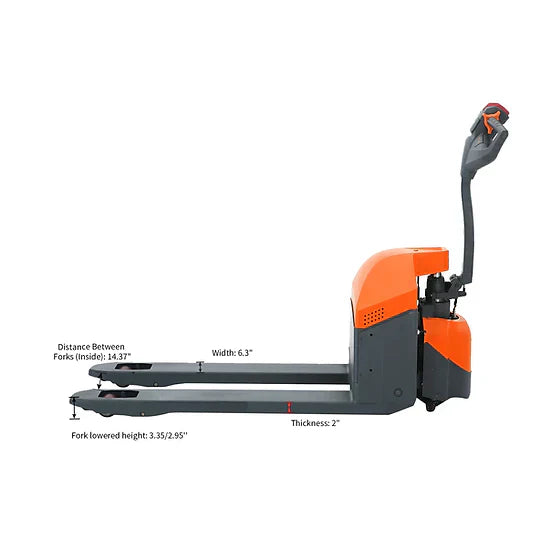

Tory Carrier Full Electric Walkie Pallet Jack Truck 3300 lbs. 48" x 27" Fork New - EPJ33W-E-19
Tory Carrier Mini Electric Walkie Pallet Truck is widely used in narrow aisle workshop, supermarket & cargo containers. This electric pallet jack adopts floating balance wheel, which can prevent the side swing of the truck when travelling.
For distribution, general manufacturing and warehousing, the electric walkie pallet truck is an ideal choice. The electric pallet truck is rated for 3300lbs.
Features
- The rock arm mechanism integral structure improves the structure strength effectively, meanwhile, share and adjust the even force from the fork. Reduce the obvious deflection in fork height after long use and when loading.
- The drive wheel adopts a horizontal type structure which makes the layout position of the motor higher than the ground to prevent the water, dust and greasy dirt gluing on the motor effectively and improve the working condition of the motor.
- Equipped with a height limit switch

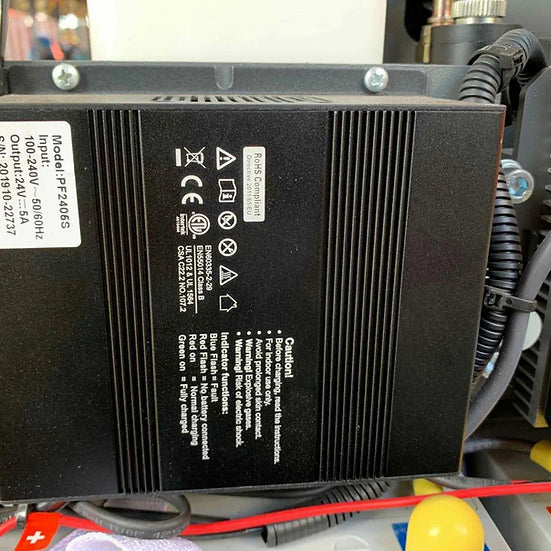

- In-build charger, 5hrs service time per charge
- The mini type electric pallet jack with the same size as the hand pallet truck is widely used in narrow aisle workshops, supermarkets & cargo containers
Specifications
Turning Radius |
57.1 inch |
Battery type |
GEL |
Battery Capacity |
24/20 V/Ah |
Service Weight |
451LBS |
Model Name |
EPJ33W-E-19 |
Load Capacity |
3300 LBS |
Load center distance |
23.6 inch |
Height, Mast Lowered |
3 inch |
Lifting height |
7 inch |

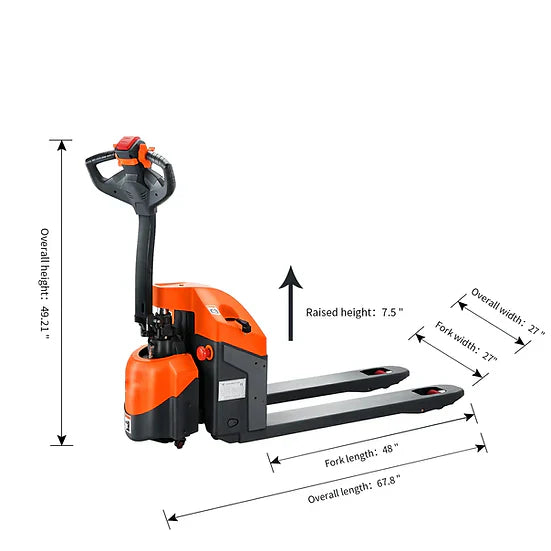

Fork Dimensions |
48 x 27 x 7 inch |
Lifting Speed(Laden/Unladen) |
2.67/2.8 inch/s |
Travel Speed (Laden/Unladen) |
2.67/2.8 miles/h |
Wheel Diameter |
7.7 inch |
Package Contents |
What Our Experts Think
-
3300 lbs. Capacity – Handles heavy-duty loads with ease, ideal for industrial environments and warehouses.
-
Electric Walkie Operation – Provides effortless lifting and transportation, reducing manual effort and increasing efficiency.
-
48" x 27" Fork – Spacious fork size fits most standard pallets, improving versatility for various tasks.
-
Compact & Maneuverable – Designed for easy navigation in tight spaces, enhancing workplace efficiency.
-
Durable Construction – Built for heavy-duty, long-lasting use in demanding environments.
-

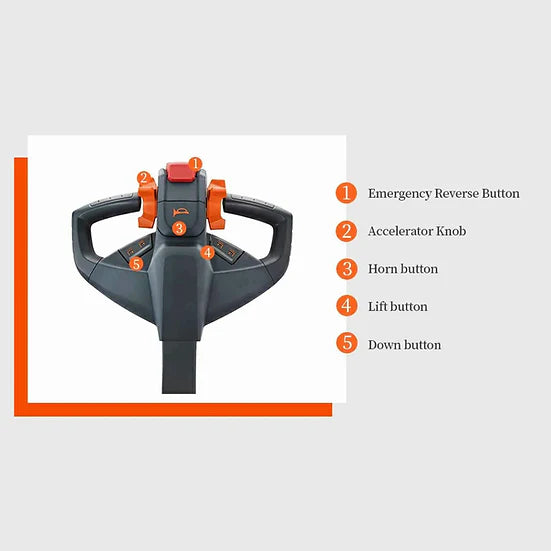

User-Friendly Controls – Simple and intuitive electric controls for smooth operation and safety.
Q&A
Q: What is the weight capacity of this electric pallet jack?
A: It can lift up to 3300 lbs, perfect for heavy-duty tasks in commercial settings.
Q: What are the fork dimensions?
A: The forks are 48" long and 27" wide, suitable for standard pallet sizes.
Q: Is it easy to operate?
A: Yes, it features a walkie-style design with simple controls for easy maneuvering.
Q: Can it be used in tight spaces?
A: Yes, its compact design allows for maneuverability in narrow aisles and tight spaces.
Maintenance Tips
-
Clean Regularly – Wipe down the forks, frame, and control panel to remove debris and prevent buildup.
-
Charge the Battery Properly – Ensure the battery is charged fully before use and regularly check for any signs of wear or corrosion on the battery terminals.
-
Inspect Wheels & Forks – Check the wheels for wear and the forks for any cracks or damage, and replace them if necessary.
-
Lubricate Moving Parts – Apply lubricant to the moving parts, such as the steering mechanism and joints, to maintain smooth operation.
-
Check Hydraulic System – Monitor the hydraulic system for leaks and ensure the lifting mechanism operates smoothly.
-
Tighten Bolts & Fasteners – Ensure all bolts and fasteners are securely tightened to maintain the stability and safety of the truck.
-
Test the Electrical Components – Regularly test the controls and electrical components to ensure they are functioning properly.
