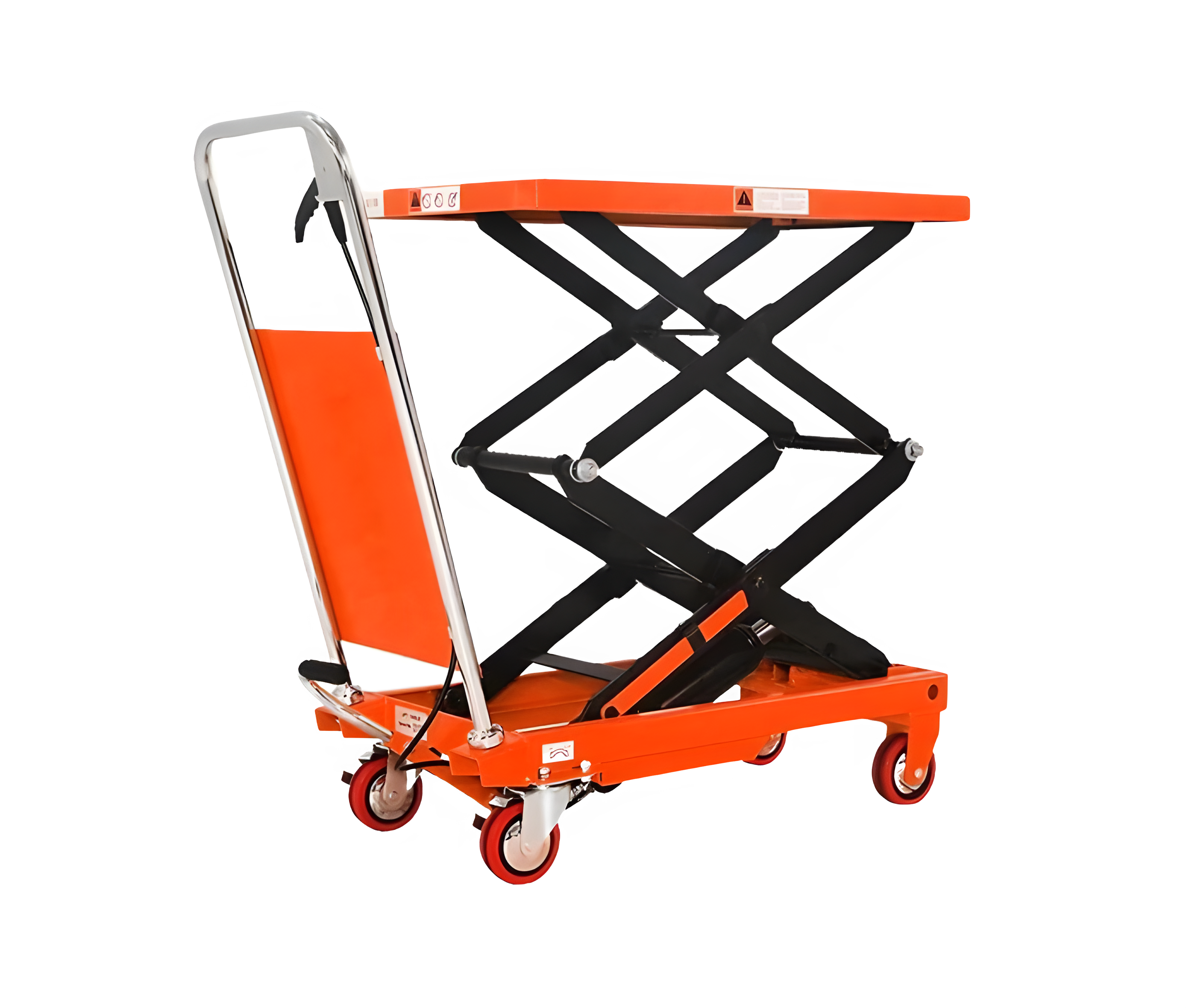

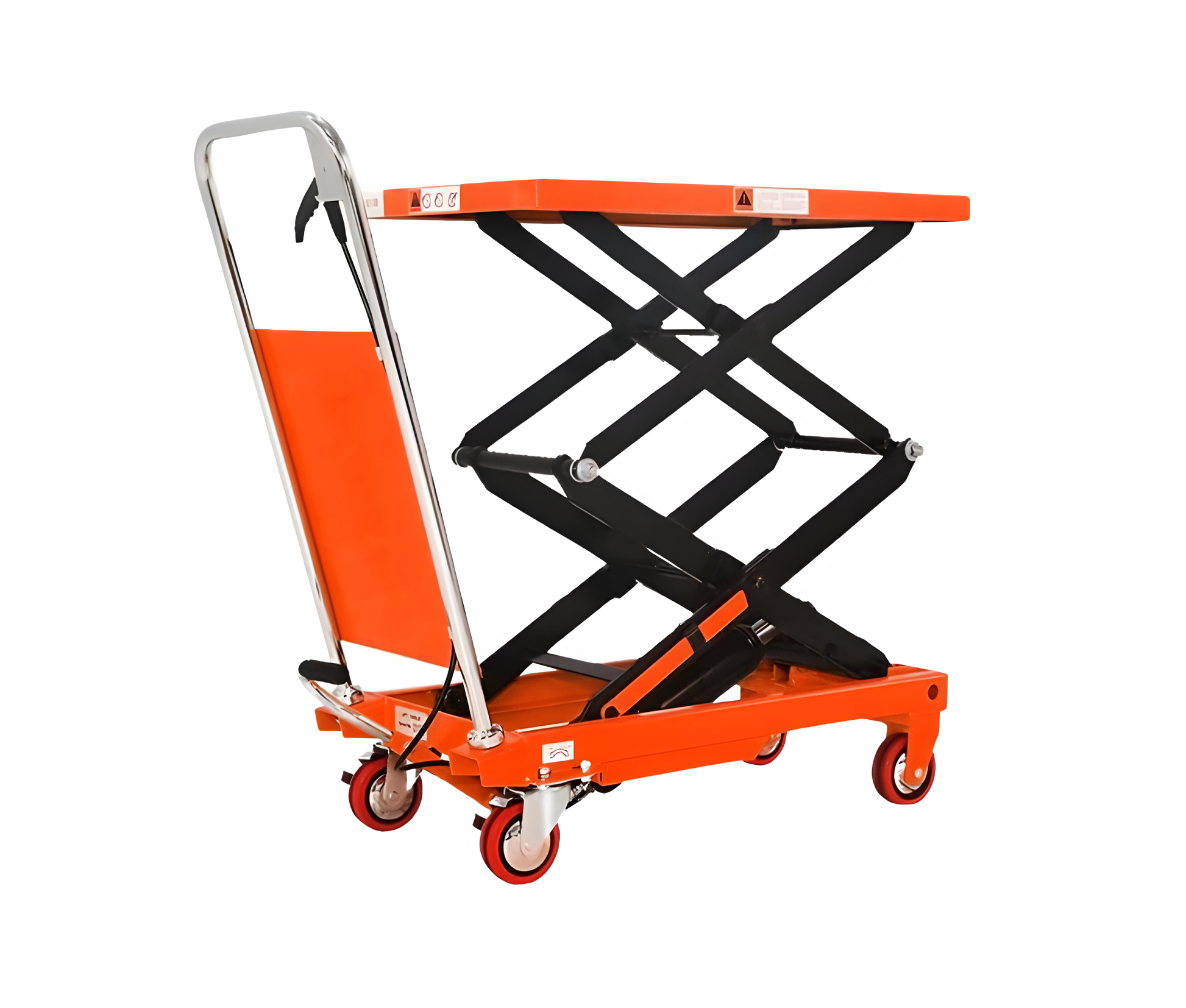

Tory Carrier Double Scissor Lift Table Cart 330 lbs Capacity 43.3" Lifting Height New - LTD330
The Tory Carrier Double Scissor Lift Table includes lifting design with manual hydraulic table pump to boom up and down. This lift table lift and lower loads. Handle plate provides protection from falling down, which makes it safe.Β
Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.
Features

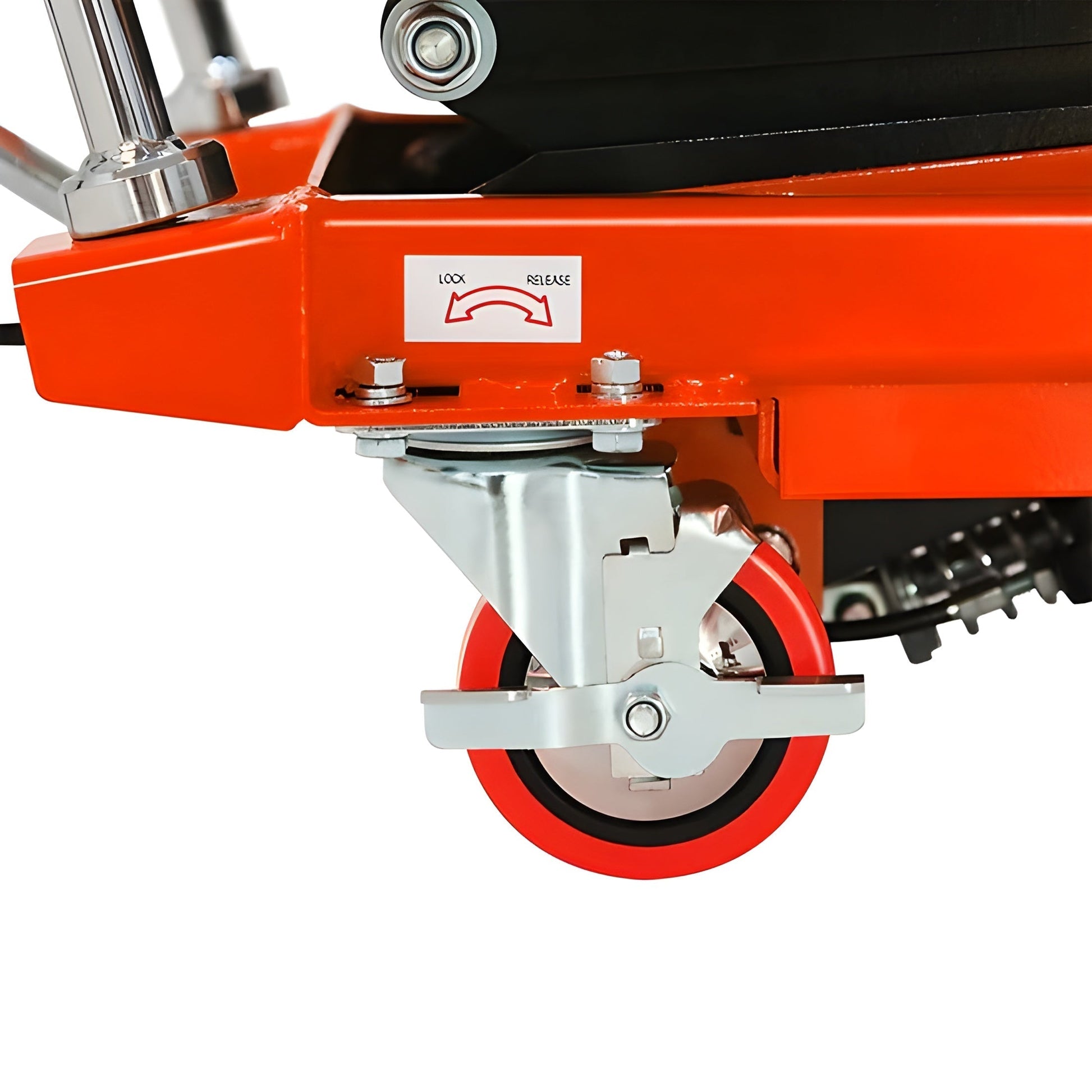

- Convenient finger release smoothly lowers even heavy loads
- With over load by pass valve to protect operator and pump
- Durable hydraulic pump ensures a long service life
Specifications
| Service Weight |
| 140.8 LBS |
| Model Name |
| LTD330 |
| Load Capacity |
| 330 LBS |
| Height, Mast Lowered |
| 11.9 inch |
| Lifting height |
| 43.3 inch |
| Table size |
| 27.5 x 17.7 x 1.4 inch |
| Wheel Diameter |
| 3.93 inch |
What Our Experts Think
-
330 lbs. Capacity β Ideal for light to medium-duty lifting tasks.
-
43.3" Lifting Height β Double scissor mechanism allows for extended reach and ergonomic positioning.
-
Hydraulic Lift System β Smooth and controlled elevation for precise material handling.
-
Compact & Maneuverable β Easy to transport and operate in tight spaces.
-
Durable Steel Frame β Ensures stability and long-term reliability.
-
Manual Operation β No electrical power needed, reducing maintenance costs.
Q&A
Q: What is the weight capacity of this lift table?
A: It can lift up to 330 lbs.
Q: What is the maximum lifting height?
A: The table lifts loads up to 43.3 inches.
Q: What makes this a "double scissor" lift table?
A: It features a dual scissor mechanism for increased lift height and stability.
Q: What type of lifting mechanism does it use?
A: It uses a hydraulic foot pump for precise and controlled elevation.
Q: Is it easy to move?
A: Yes, it has smooth-rolling casters and an ergonomic handle for effortless maneuverability.
Q: Where is this lift table best used?
A: Ideal for warehouses, workshops, repair shops, and material handling applications.
Maintenance Tips
-
Keep Clean β Regularly wipe down the platform, scissor arms, and hydraulic system to prevent dirt buildup.
-
Inspect Hydraulic System β Check for leaks, ensure smooth lifting/lowering, and refill hydraulic fluid as needed.
-
Lubricate Moving Parts β Apply grease to pivot points and scissor joints for smooth operation.
-
Check Platform & Frame β Ensure the platform is stable, securely attached, and free from damage.
-
Monitor Wheels & Casters β Inspect for wear, clean regularly, and replace if necessary for smooth mobility.
-
Test the Lift Mechanism β Operate the lift to confirm smooth motion without resistance or sudden drops.
-
Secure Bolts & Fasteners β Tighten all screws and fasteners to maintain stability and safety.
