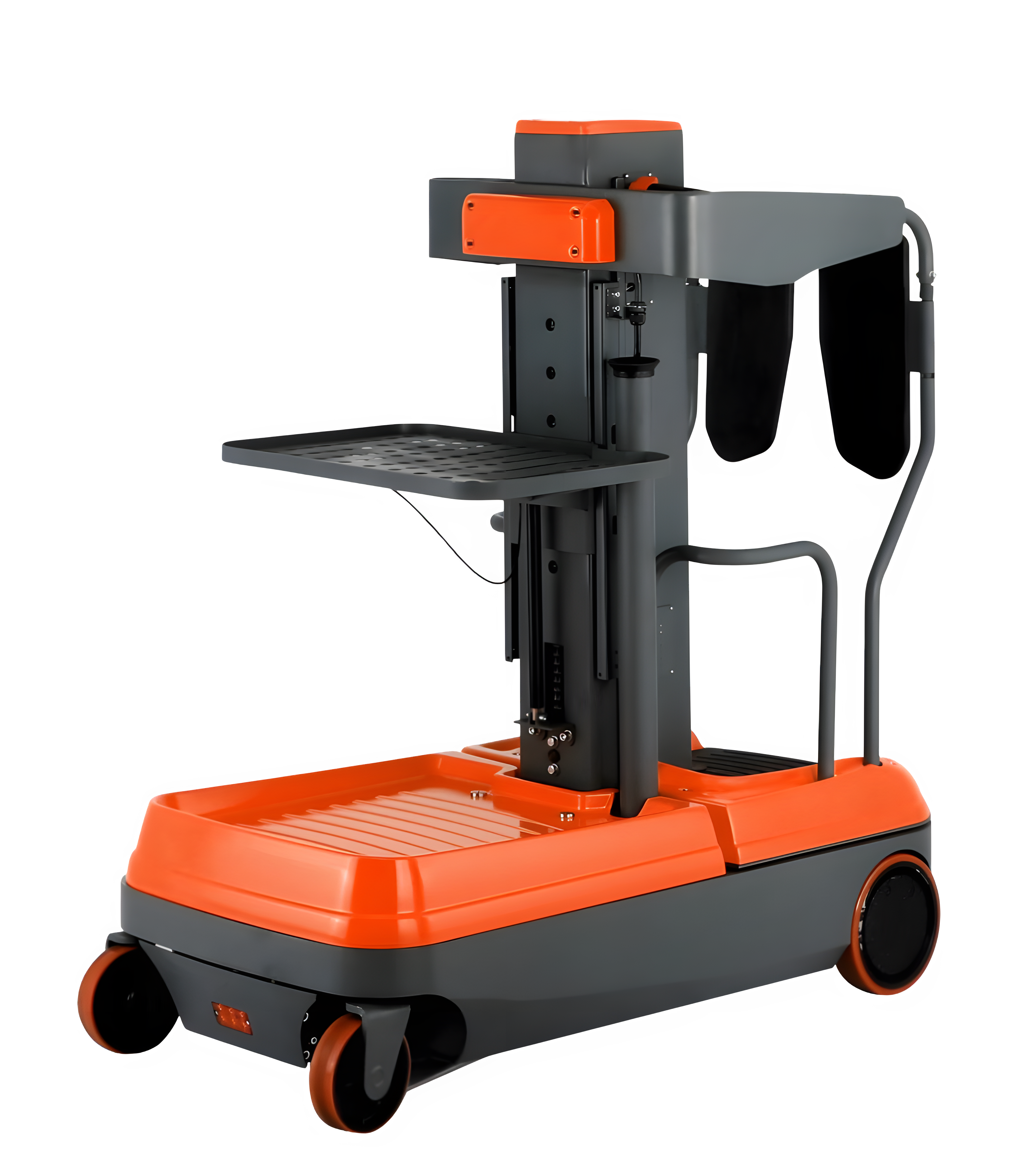

Tory Carrier High-Powered Stand Driving Mini Picker 330 lbs. Capacity New - MOP

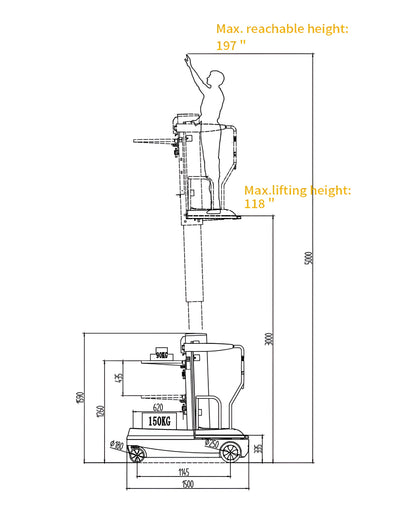

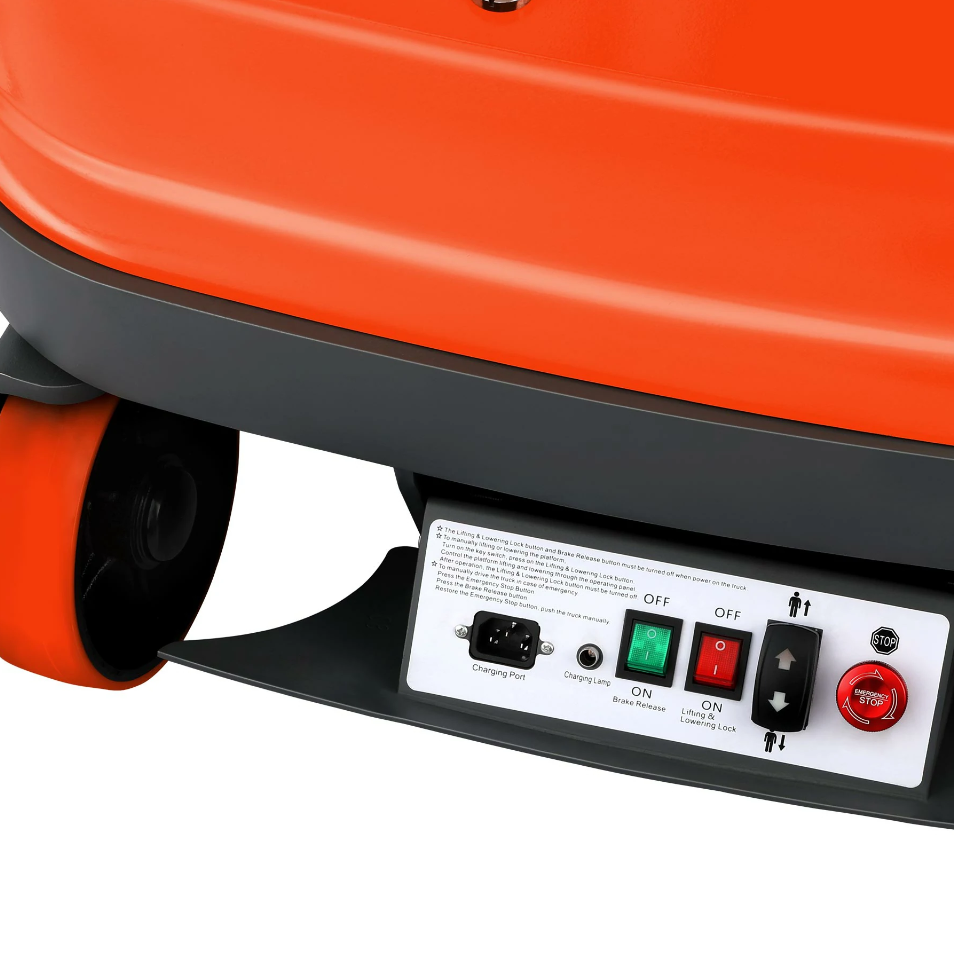

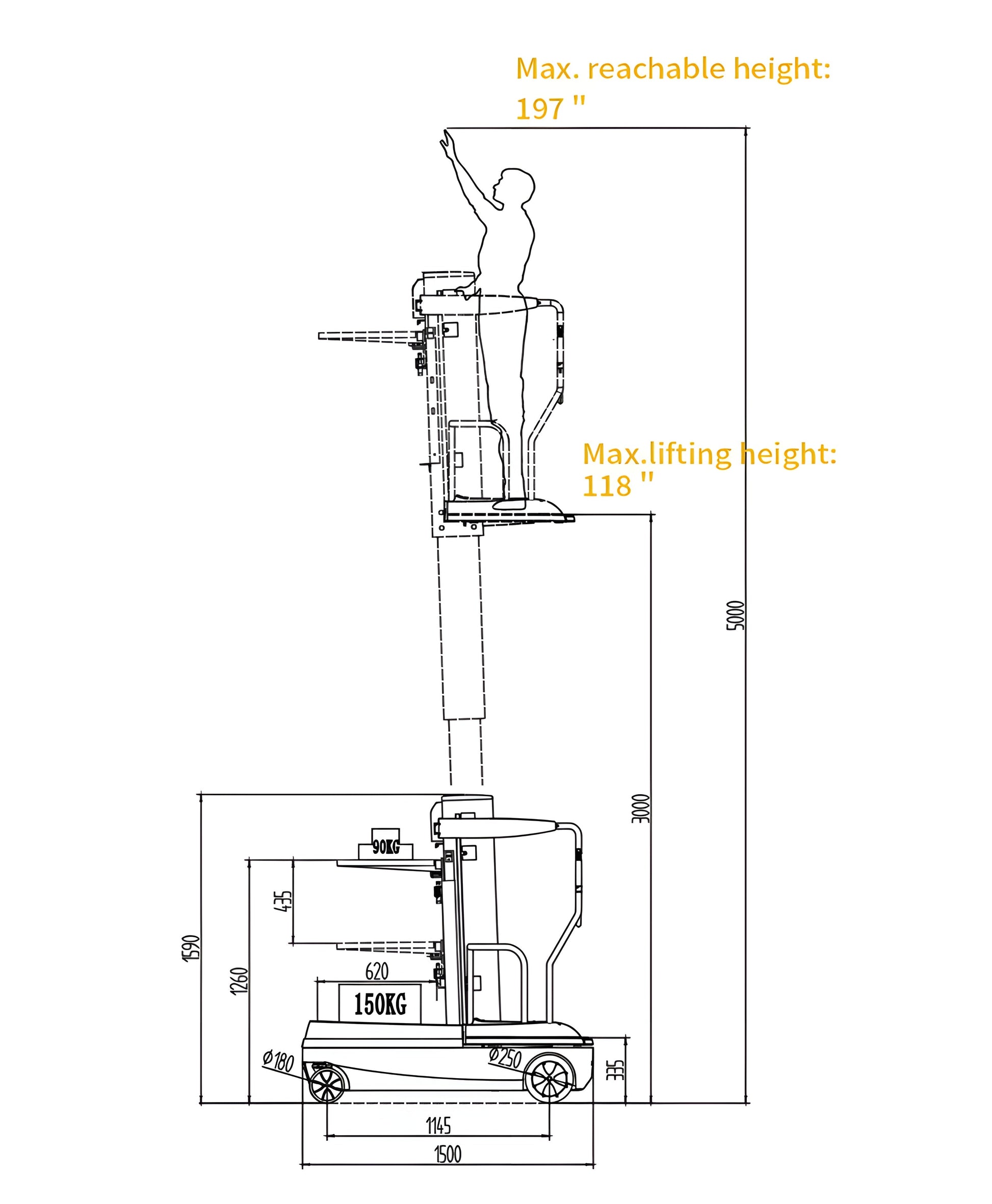

Experience efficient and safe high-altitude picking operations with our Tory Carrier Order Picker with a reachable height of 197 inches and a maximum lifting height of 118 inches. Built to handle heavy loads, this order picker has a sturdy load capacity of 330 lbs. The multi-function console of this order picker is designed to provide convenience and ease of use. It features fingertip controls, including accelerator, lifting and lowering, turtle speed, and emergency stop buttons. These controls make it effortless to navigate narrow aisles and perform high-altitude picking operations.
Features

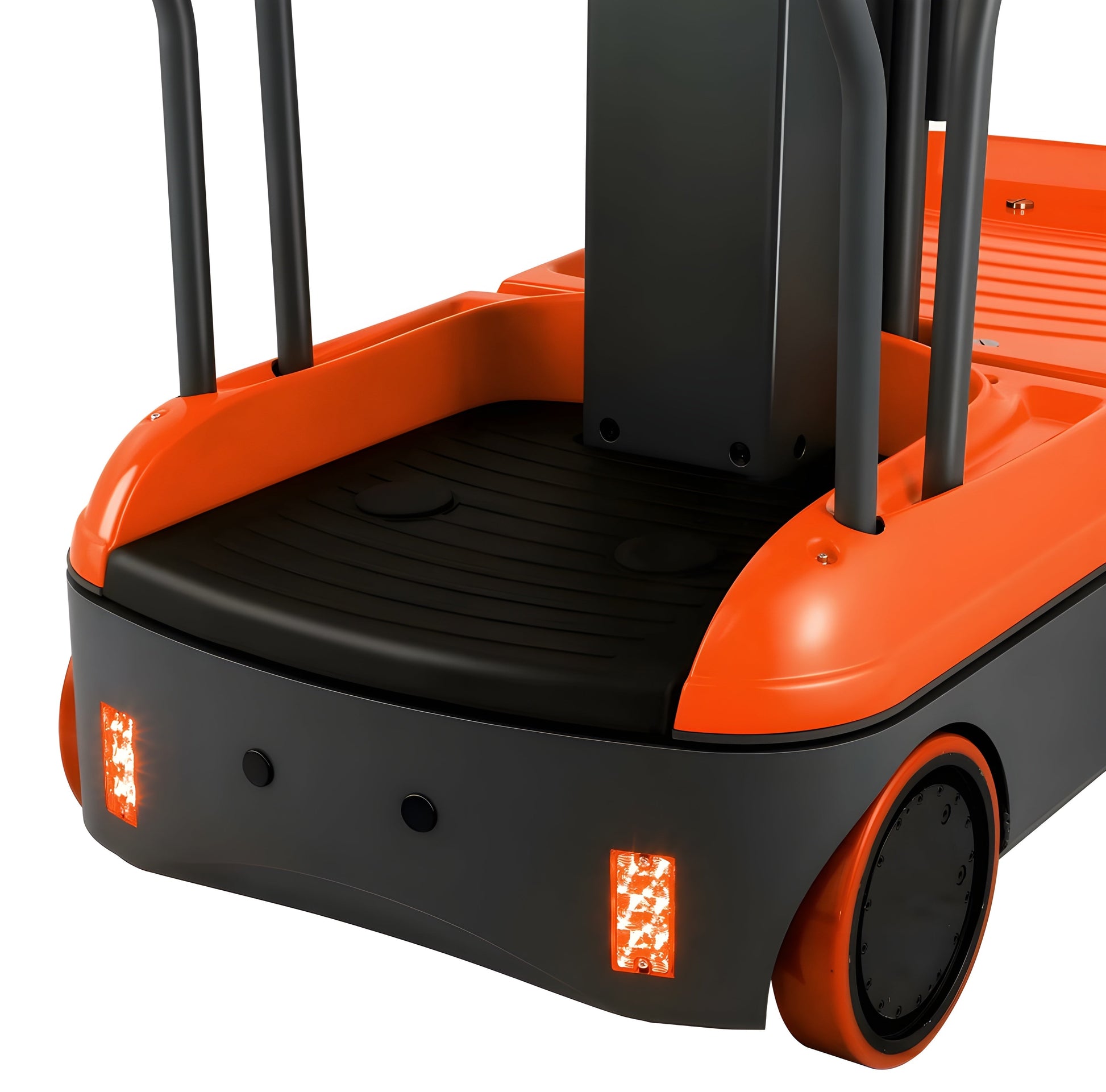

- Dual foot sensors will detect if the operator has both feet properly positioned on the platform
- Compact structure of 29.5 inch width and the low stand height
- The lifting speed will decelerate for safety concern
- Fingertip control, easy steering in tight space
- With hand sensor on the control handle to start travel, lift and lower
- Tactor tow device helps to pull trailers when needed
Specifications
| Model Name |
| MOP |
| Load Capacity |
| 330 LBS |
| Operation type |
| stand driving |

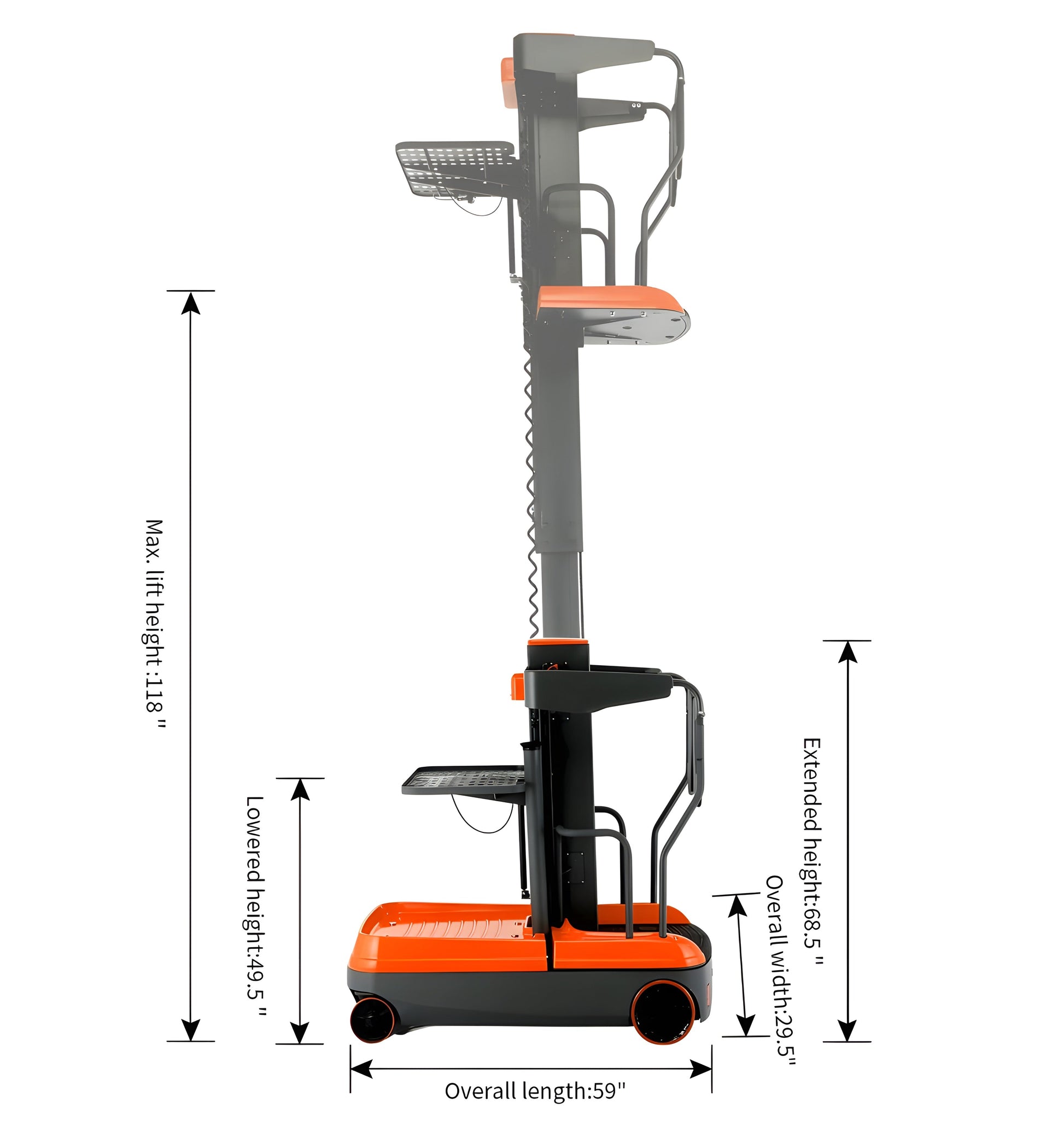

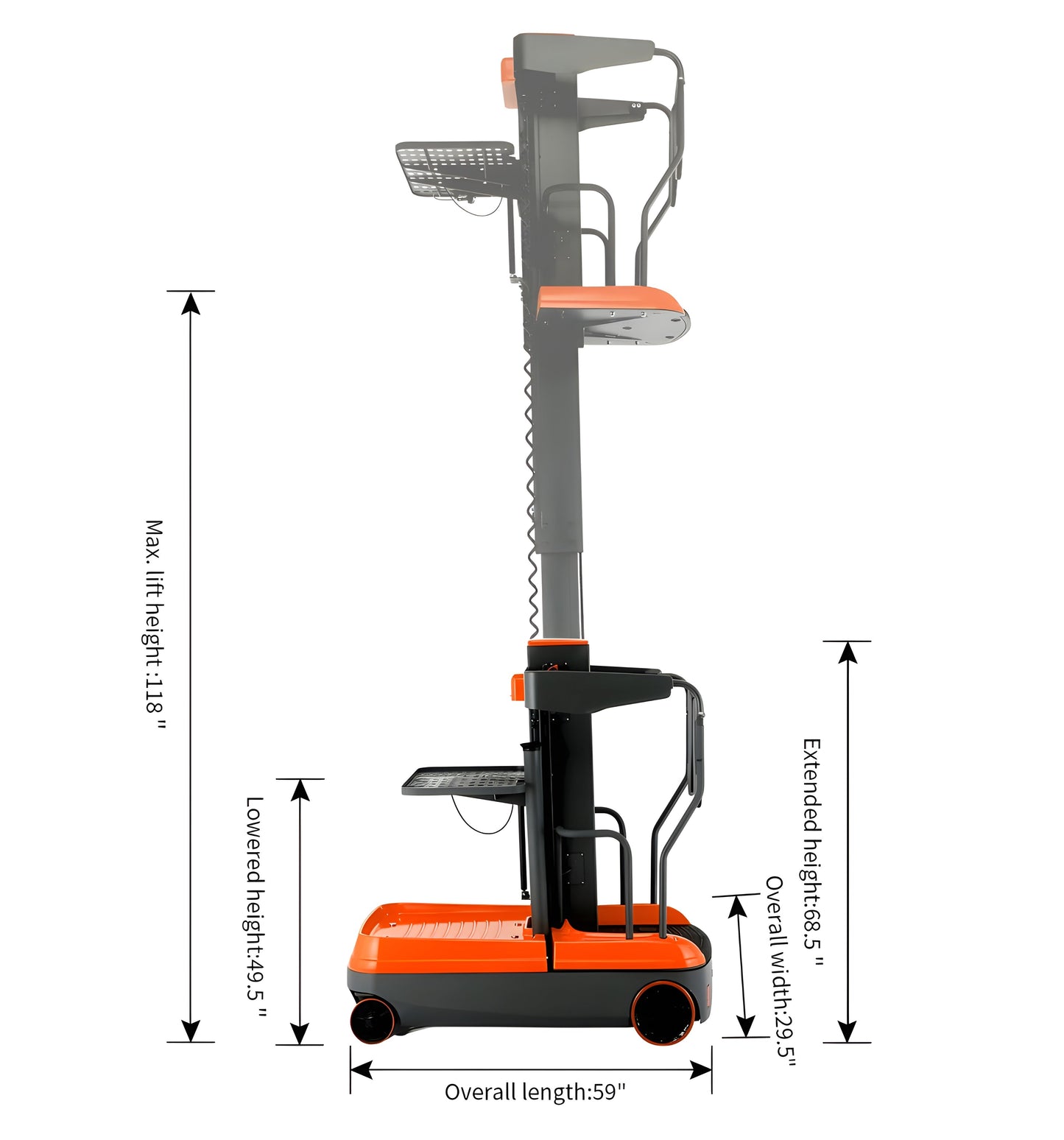

| Height, Mast Lowered |
| 49.5 inch |
| Max lifting height |
| 118 inch |
| Lifting Speed(Laden/Unladen) |
| 5.5/5.5 inch/s |
| Travel Speed (Laden/Unladen) |
| 2.8/2.8 miles/h |
| Wheel Diameter |
| 7.1 inch |
| Turning Radius |
| 51.2 inch |
| Battery type |
| GEL |
| Battery Capacity |
| 24/105 V/Ah |
| Service Weight |
| 1650 LBS |
What Our Experts Think
-
330 lbs. Capacity – Perfect for light-duty picking and stocking tasks in warehouses, retail stores, and distribution centers.
-
High-Powered Electric Operation – Provides smooth, effortless lifting and movement, reducing manual effort.
-
Stand-Driving Design – Enhances operator comfort and efficiency for extended use.
-
Compact & Maneuverable – Ideal for navigating tight aisles and confined spaces.
-
Durable Construction – Built for long-term reliability with minimal maintenance.
-
Versatile Applications – Great for order picking, inventory management, and light material handling.
Q&A
Q: What is the weight capacity of this mini picker?
A: It can lift up to 330 lbs.
Q: What type of driving system does it have?
A: It features a stand-driving design for easy maneuverability.
Q: Is this mini picker electric-powered?
A: Yes, it operates on an electric power system for smooth and efficient lifting.
Q: Where is this mini picker best used?
A: Ideal for warehouses, retail stockrooms, and maintenance tasks in compact spaces.
Maintenance Tips
-
Clean Regularly – Wipe down the platform, controls, and lifting mechanism to remove dust and debris.
-
Check Battery & Charging System – Fully charge the battery before use, inspect for corrosion, and avoid deep discharges.
-
Inspect the Lifting Mechanism – Ensure smooth lifting and lowering, checking for any hydraulic or mechanical issues.
-
Lubricate Moving Parts – Apply grease to hinges, joints, and rollers to maintain efficient operation.
-
Monitor Wheels & Casters – Check for wear or obstructions that could affect mobility.
-
Test Safety Features – Ensure the emergency stop, brakes, and other safety functions operate correctly.
-
Tighten Bolts & Fasteners – Secure all connections to maintain stability and prevent malfunctions.
