Tory Carrier Manual Pallet Stacker with Straddle legs 1100 lbs. 63" Lifting Height New - MSSL1163

Tory Carrier Manual Pallet Stacker with Straddle legs 1100 lbs. 63" Lifting Height New - MSSL1163

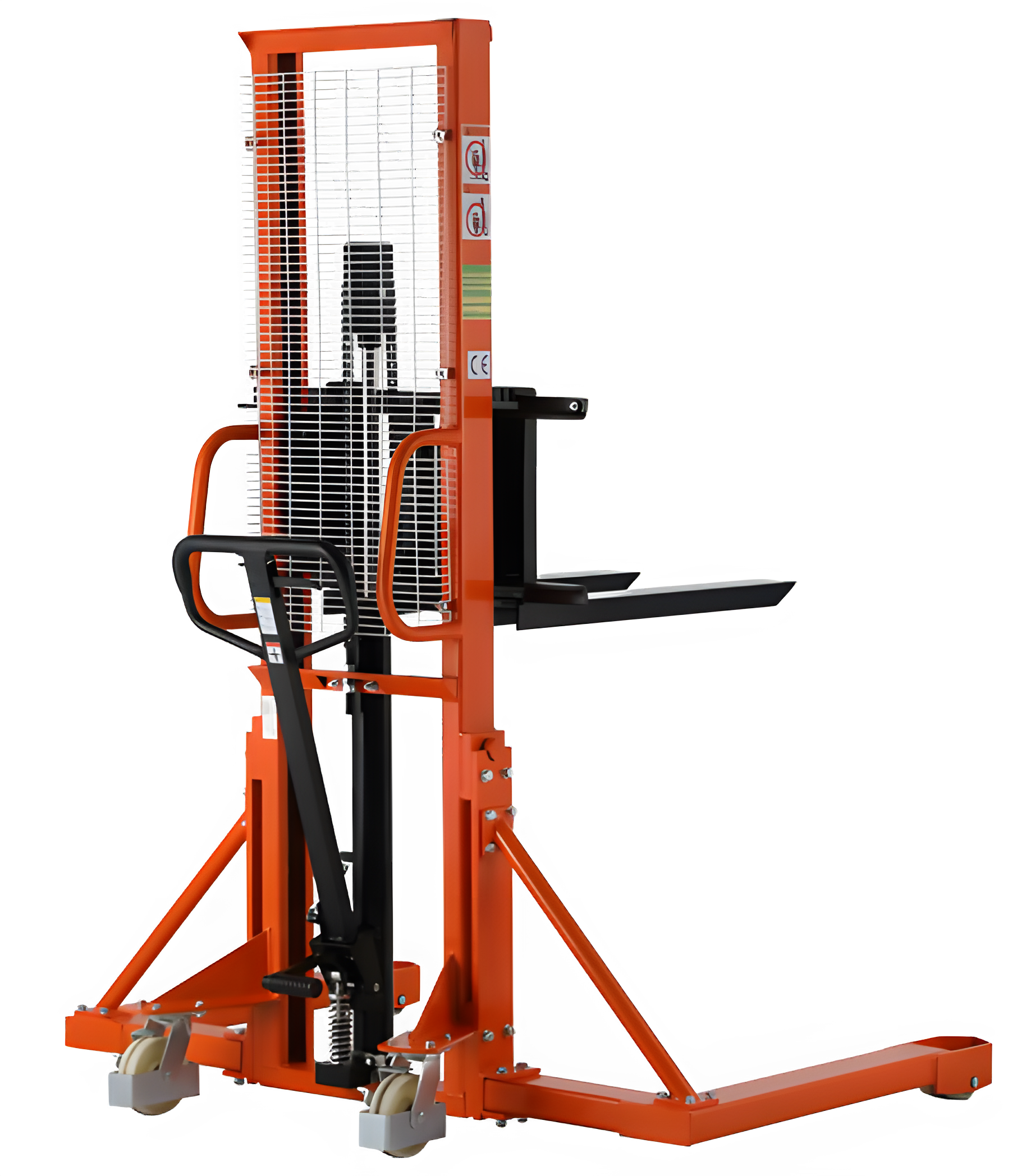

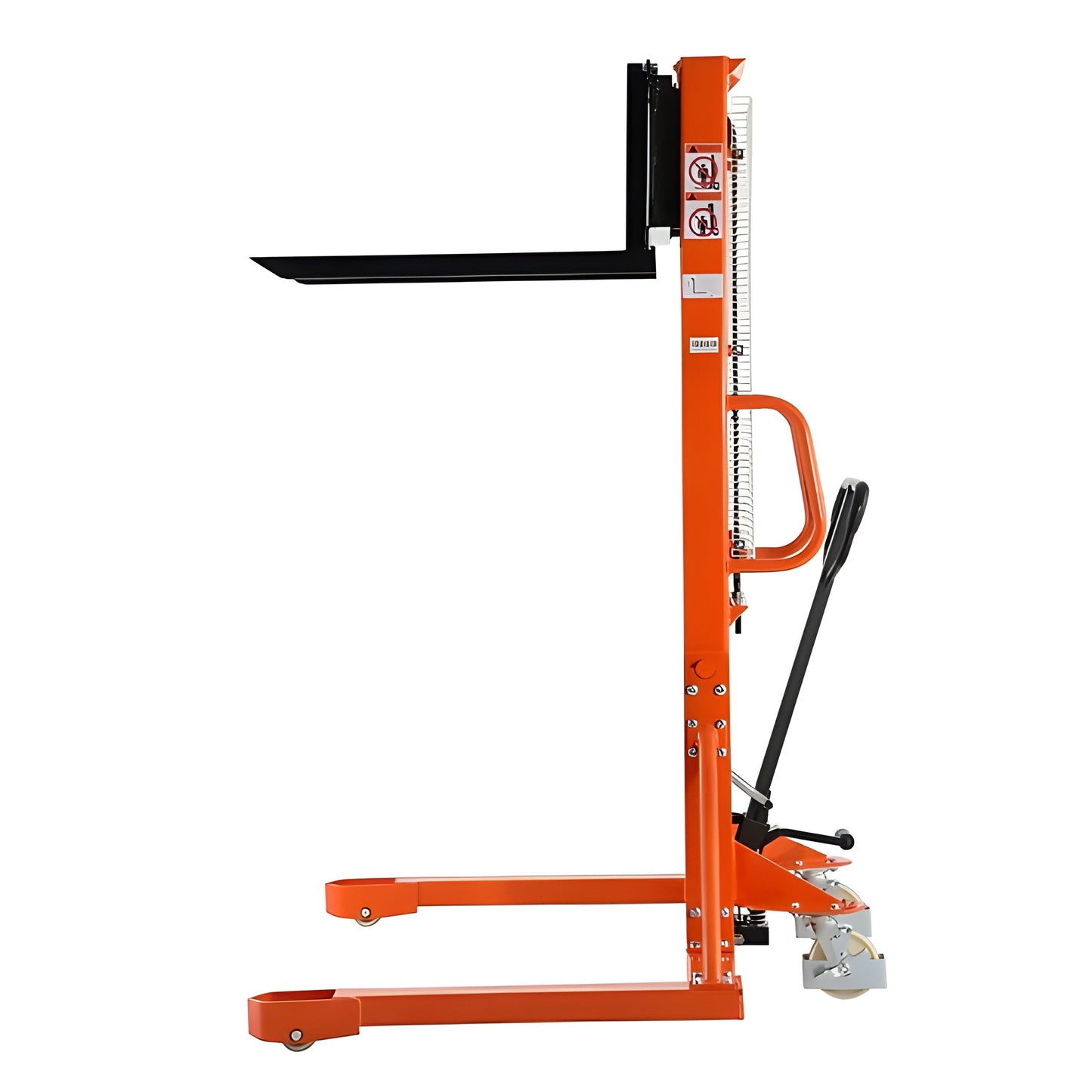

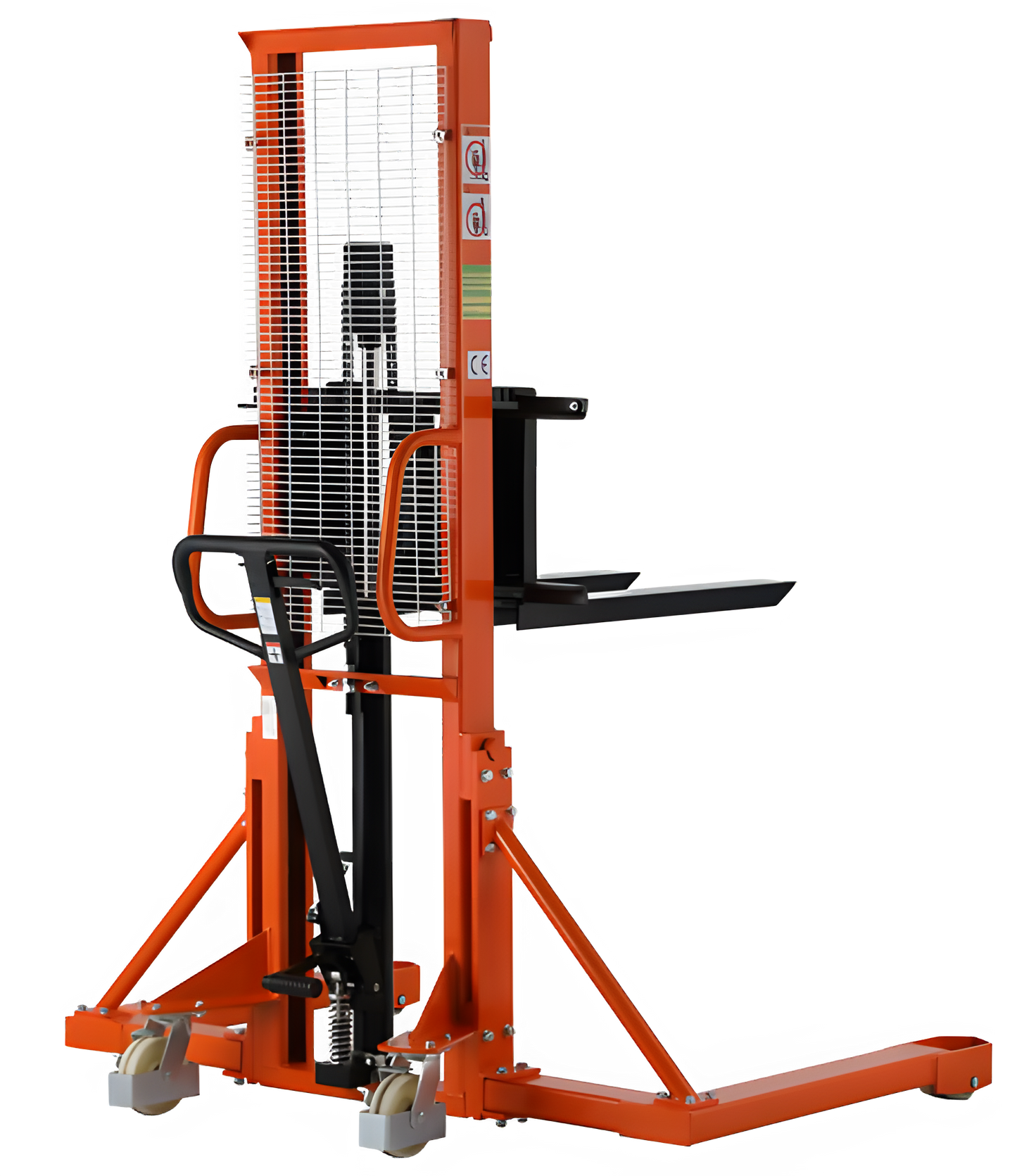

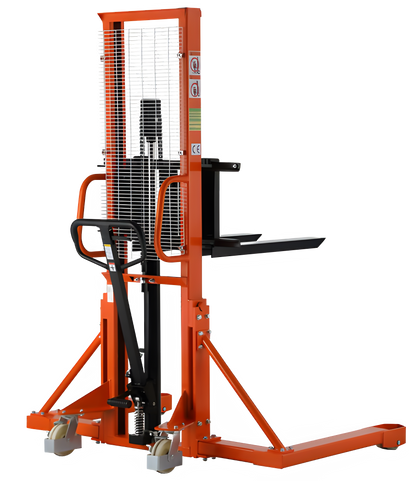

The Tory Carrier Manual Stacker is designed with straddle legs and adjustable forged forks. Foot and hand controlled lifting function allows the operator to work without having to perform extreme body movements. The manual stacker is rated for 1,100lbs and the lifting height is 63".

Features

Specifications

What Our Experts Think

• 1100 lbs. Capacity – Ideal for lighter-duty lifting and stacking in warehouses, retail, and workshops.

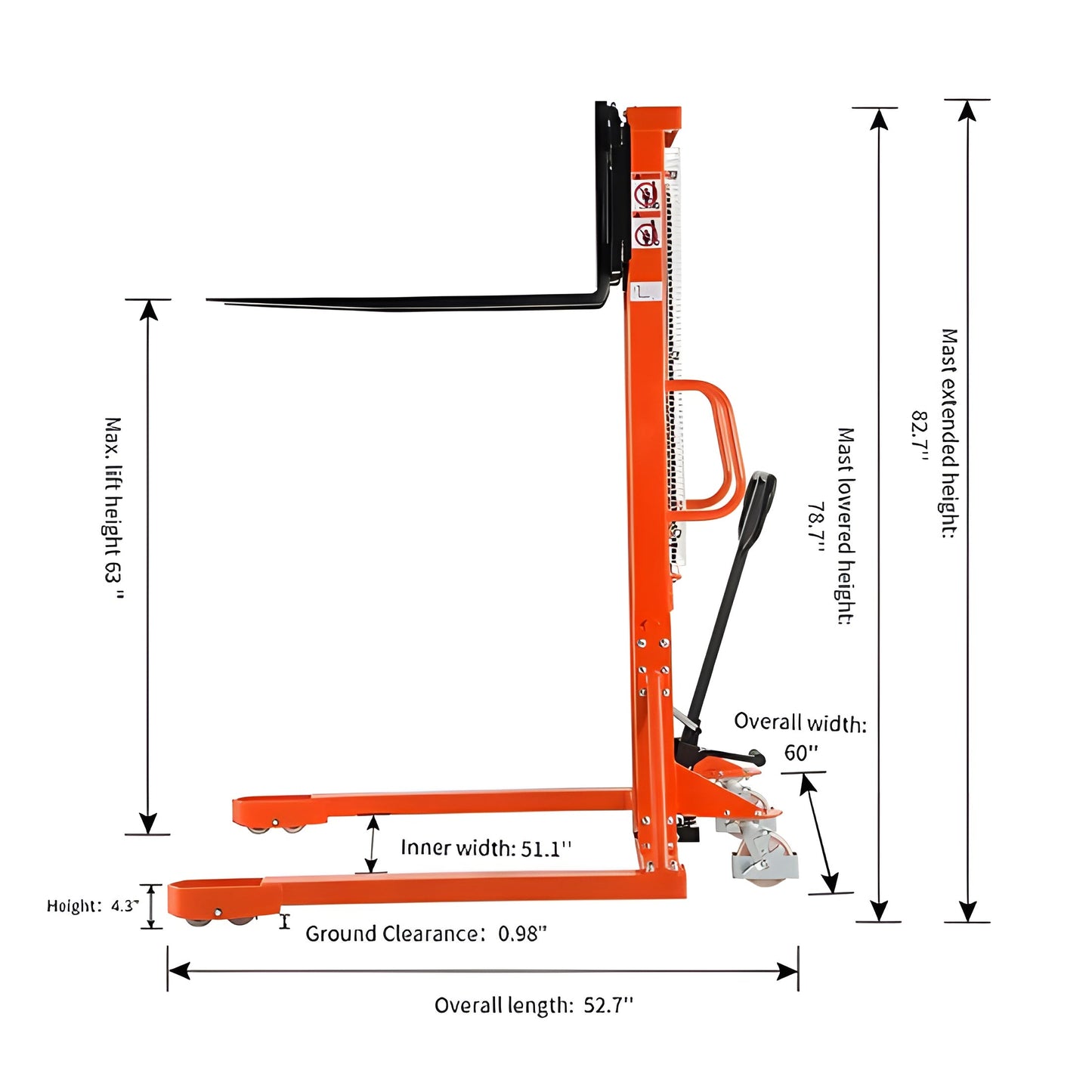

• 63" Lifting Height – Provides sufficient reach for efficient material handling and storage.

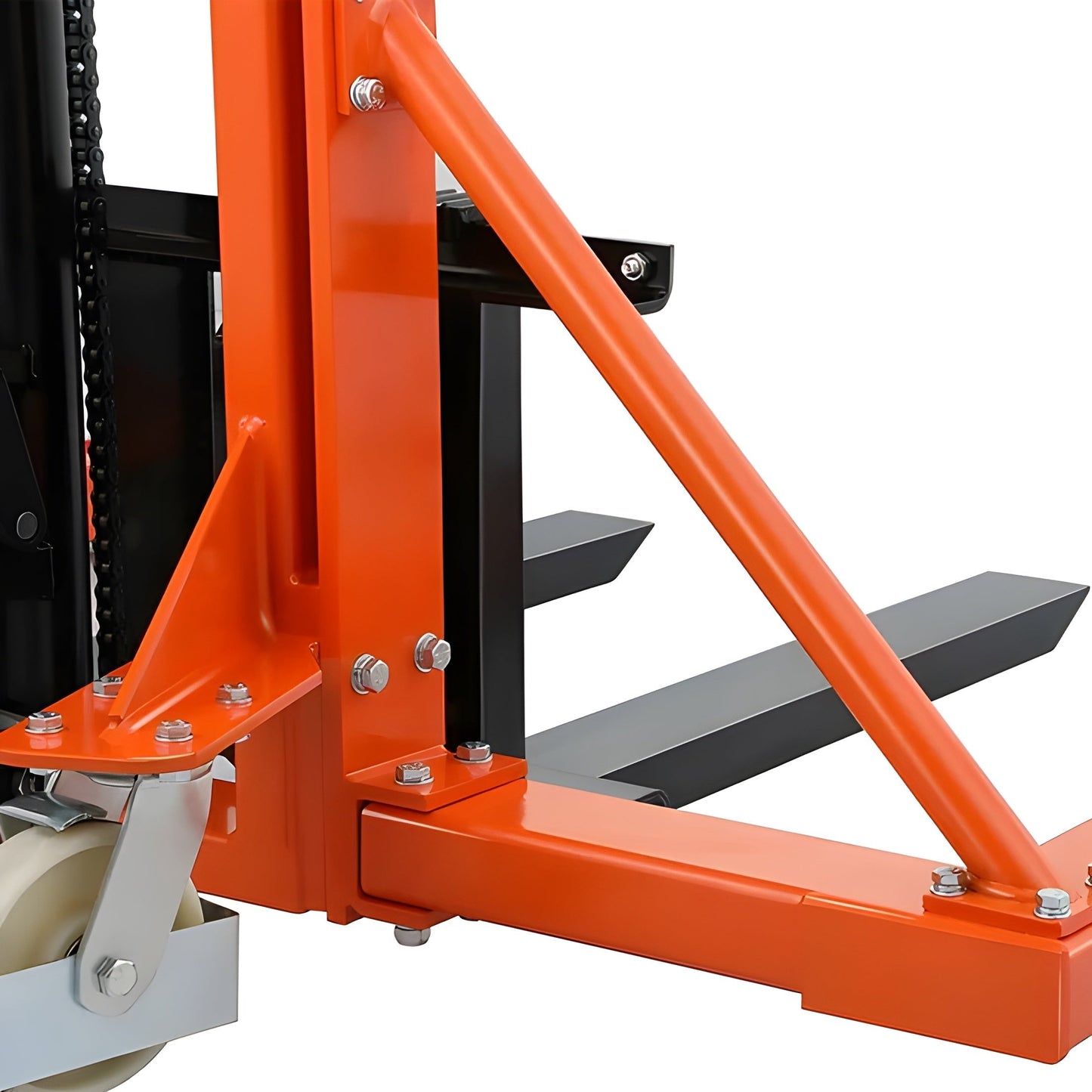

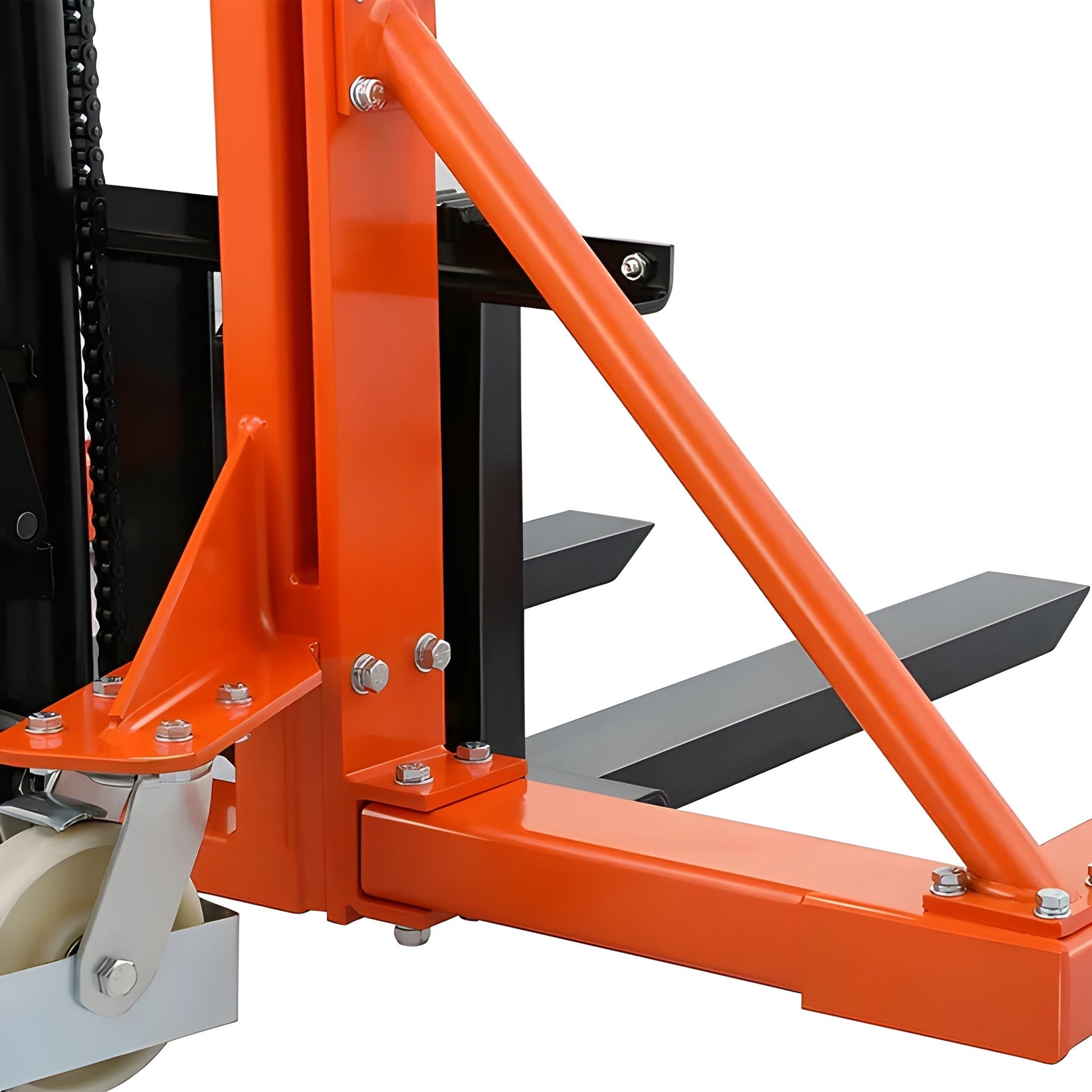

• Straddle Legs for Stability – Ensures secure lifting, even with irregularly shaped loads.

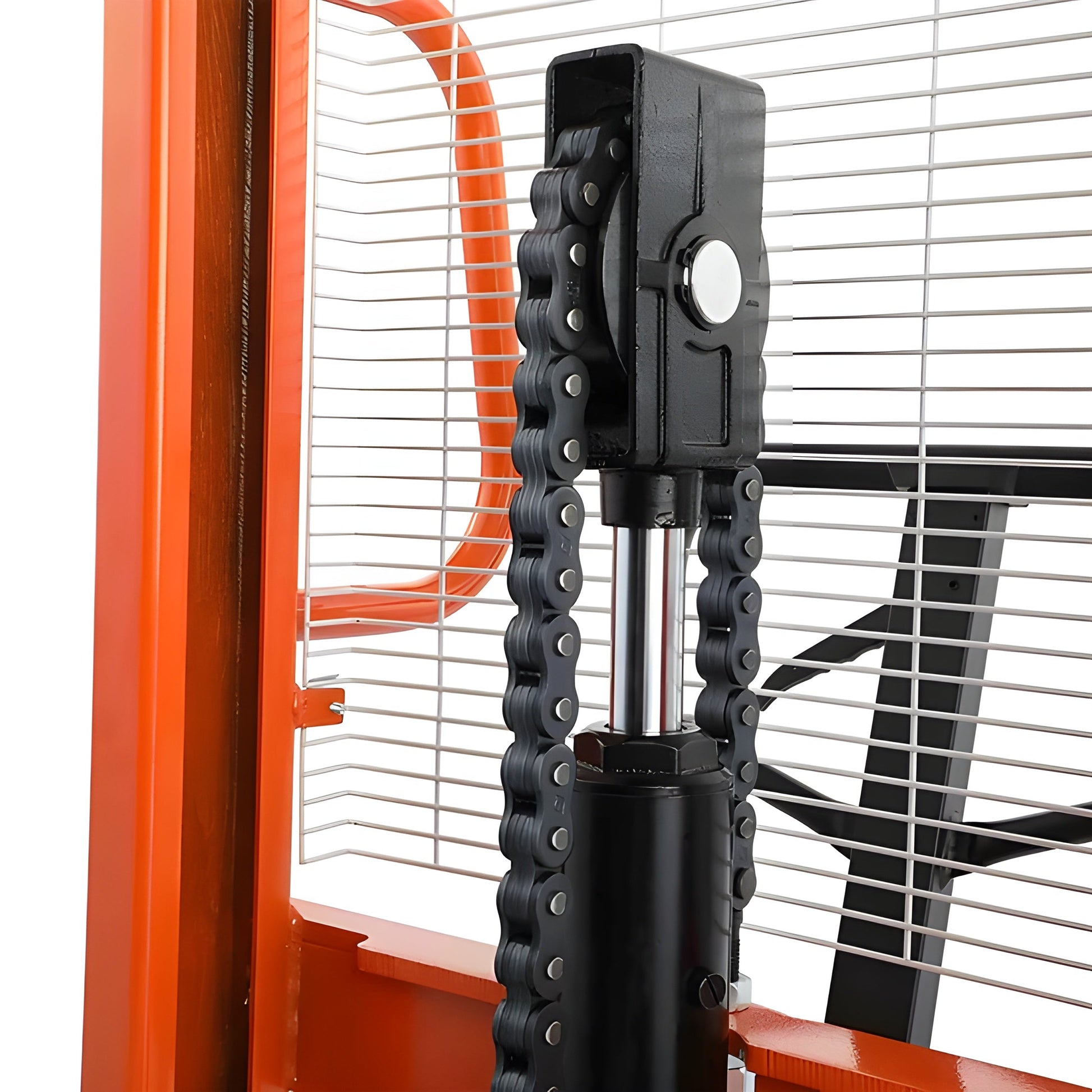

• Manual Hydraulic Operation – No need for electricity, making it cost-effective and easy to maintain.
• Adjustable Forks – Offers versatility to accommodate different pallet sizes.
• Compact & Maneuverable – Designed for easy navigation in tight spaces.

Q&A

Q: What is the weight capacity of this pallet stacker?
A: It can lift up to 1,100 lbs.

Q: What is the maximum lifting height?
A: The stacker lifts loads up to 63 inches.

Q: Does it have straddle legs?
A: Yes, the straddle legs provide enhanced stability and accommodate various pallet sizes.

Q: What type of lifting mechanism does it use?
A: It features a manual hydraulic system for controlled lifting and lowering.

Q: Where is this pallet stacker best used?
A: Ideal for warehouses, retail stockrooms, and light industrial environments.

Maintenance Tips

• Clean Regularly – Wipe down the forks, mast, and hydraulic system to prevent dust buildup.
• Inspect Hydraulic System – Check for leaks and ensure smooth, controlled lifting and lowering.
• Lubricate Moving Parts – Apply grease to the mast, chains, and pivot points for seamless operation.
• Check Forks & Straddle Legs – Ensure forks are straight and undamaged, and verify straddle legs provide stable support.
• Monitor Wheels & Casters – Check for wear and debris, cleaning or replacing as needed for smooth movement.
• Test Lift Mechanism – Operate manually to ensure smooth lifting without excessive force or resistance.
• Tighten Bolts & Fasteners – Secure all connections to maintain stability and prevent structural issues.
