Total Gym GTS Classic - 5200-02

Benefits

Benefits for the individual exerciser:

• Short, efficient, full-body workout producing fast, observable, body-changing results
• Body sculpting – recruits core abdominal and back muscles in every exercise
• Increased strength and endurance
• Improved coordination and balance
• Weight and inch loss, improved BMI
• Increased metabolism
• Enhanced functional performance of daily activities and athleticism
• Cardio-endurance gains during resistance training
• Low impact, safe, complete back support.

Training applications and biomechanics:

• Closed-chain partial loading of the joints
• Work in all three cardinal planes plus multi-plane (3-D) movement
• Unrestricted range of motion
• Adjust cable-pulley force angles based on client size, girth, and training objective
• Train prime stabilizers & proprioception
• Activity-specific work hardening, including sports-specific movement
• Explosive plyometric training for upper & lower extremities
• Full body support, joint-friendly, non-compressive
• Over 200 exercises & variations
• Pilates evolved training & education
• Reliable tool for assessing lower body strength
• Full-spectrum of training DVDs available.

Features

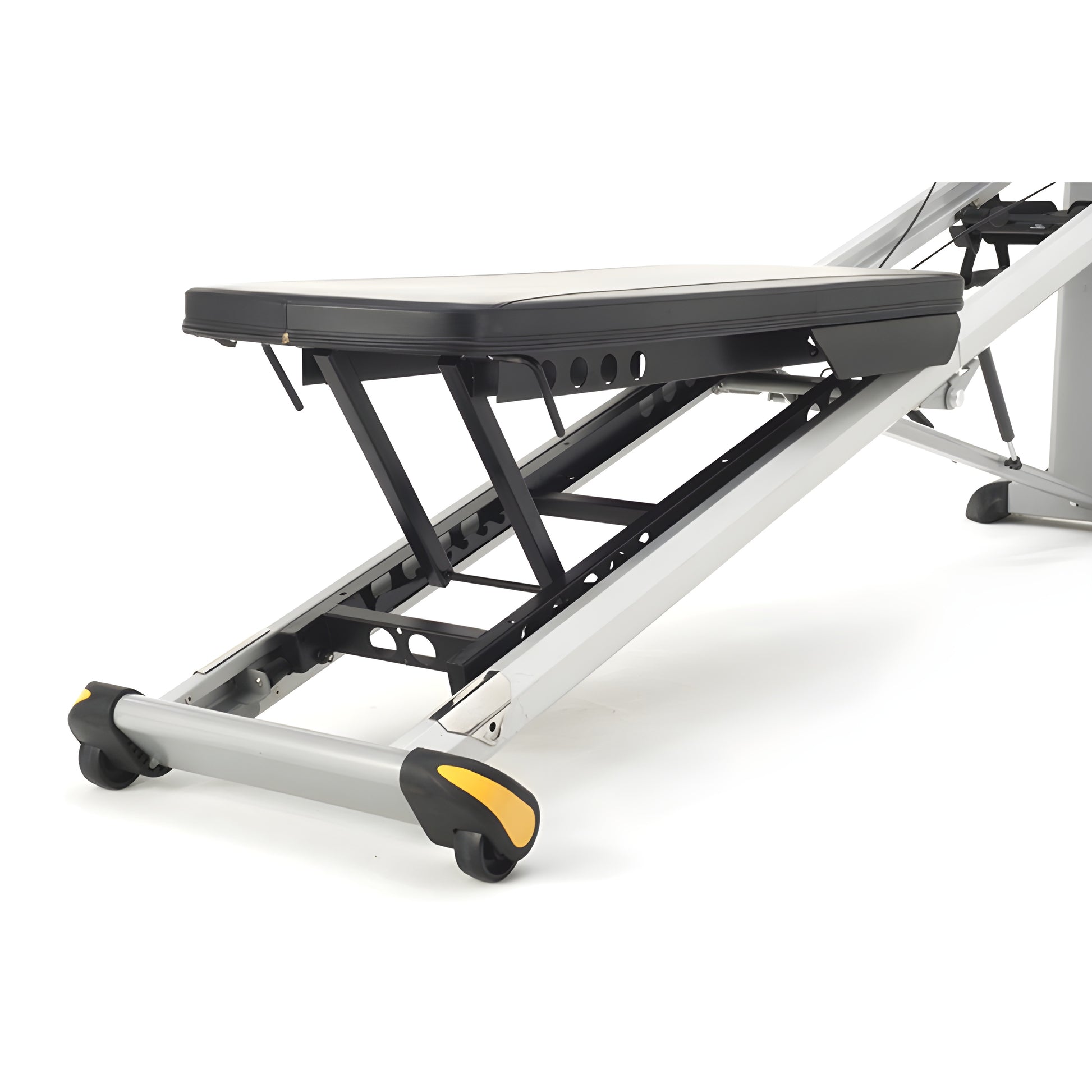

• Adjustable glideboard promotes optimal spinal alignment during transverse movements and allows for new additional training variations.
• Automatic rail locks allow for explosive plyometric jumping.
• Hydraulic rail lift assists level changes and easy two-step folding.
• Multiple center-pulley attachment points, double arm-cable load and increased lower extremity ROM.
• LAT bars promote line-of-pull specificity for arm-cable exercises.
• Includes workout DVD.
• More than 250 exercises and variations from resistance training to Pilates.
• Resistance—1% to 62% of bodyweight.

Key Specs

• Unfolded: 106” x 38’ x 57” [L/W/H] (2.69 m x 0.96 m x 1.45 m)
• Folded: 20” x 38” x 57” [L/W/H] (0.51 m x 0.96 m x 1.45 m)
• Tubing: 1.7" x 3.2" Aluminum Extrusion (4.4cm x 8.1cm)
• Tower is all reinforced steel, silver powder coating with internal level locking mechanism
• User Weight: Rated to 350 lbs. body weight. (159 kg)
• Maximum Load Capacity: 500 lbs. (295 kg) Inclusive of glideboard
• User Height Limit: 6' 5" (2.0 meters)
• Glideboard: 16" x 48" (41 cm x 122 cm). 7 position Adjustable angles
• Rollers: Better Sealed precision ball bearings
• Pulleys: ABS plastic protective shield over a steel frame, Nylon roller with precision ball bearings
• Cables: 2000 lb. test (907.2 kg) nylon 12 coated steel aircraft cable
• Handles: Soft synthetic rubber Padded Handles with ABS swivel handle and nylon webbing for hammer grip action
• Frame & Rail Construction: Anodized Aluminum Rails with all connections reinforce by steel or forged aluminum
• Unit Weight: 180 lbs (82 Kg)
• Electrical: N/A
• Board Upholstery: Glideboard - Heavy-duty, Two-tone design, box stitched, tear-resistant vinyl
• Foam Padding: 1 1/2" (4 cm) high rebound, high density foam.
• Resistance Levels: 22 calibrated incline levels, with release lever to lock rails into place. 1% - 62% bodyweight

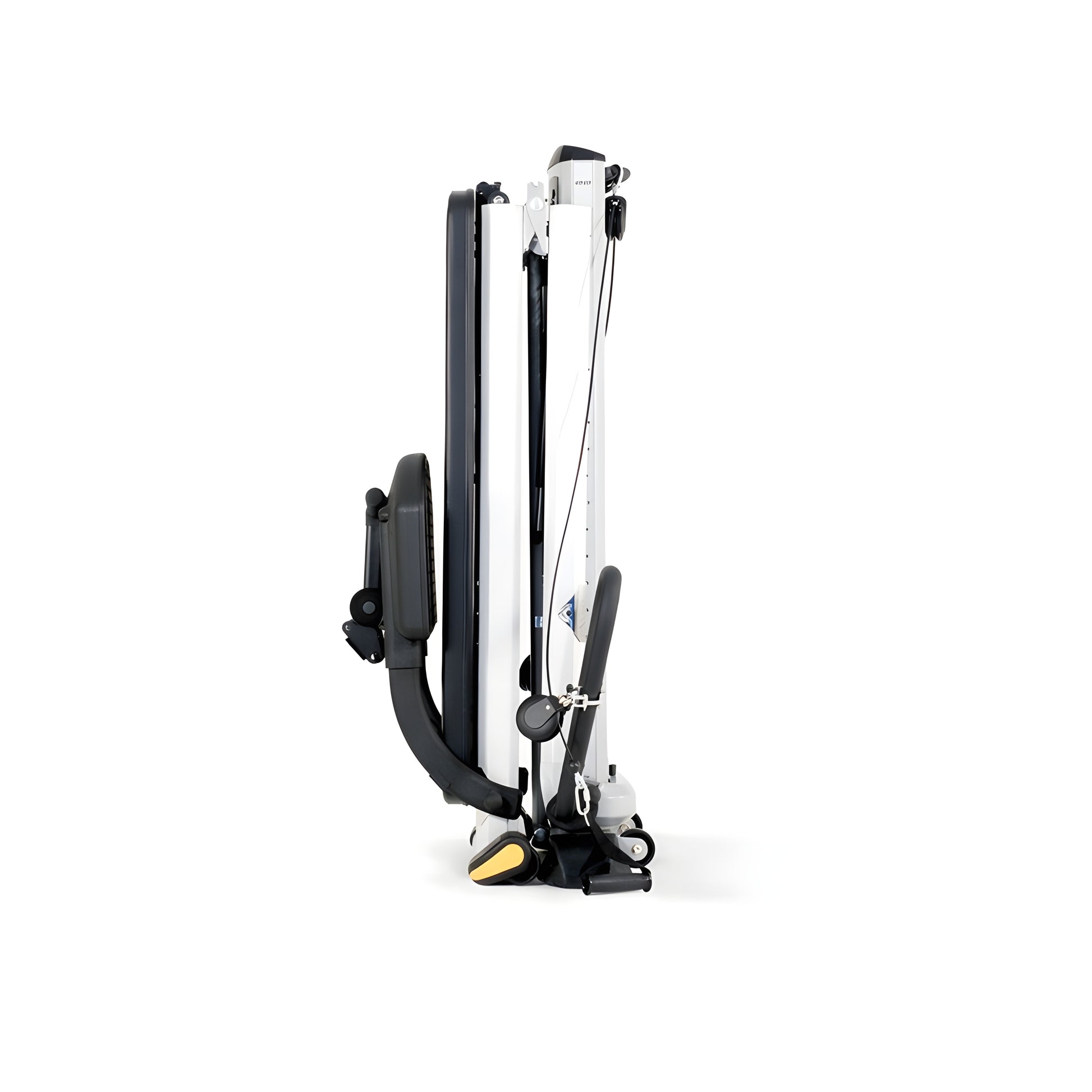

• Storage Capabilities: Hydraulic lift assists in folding. Folds and stores upright. Rolls in hand-truck fashion.
• Included Equipment: 7 position Adjustable Glideboard; Dynamic [unilateral/bilateral] Pulley System; Multi-point pulley attachment to tower; soft-grip LAT Bars with 7 pulley positions; Folding Foot Holder; Telescoping Squat Stand with 3 height positions and folding platform
• Rolling Range: 40" (1.0 meters)

Downloads

Owner's Guide

Resistance Chart

Product Sheet

What Our Experts Think

• A flagship model in the Total Gym lineup, trusted in professional fitness facilities worldwide

• Exceptionally versatile — great for strength, flexibility, and rehab training

• Smooth glideboard and adjustable incline levels allow scalable intensity

• Durable construction ensures long-term use in high-demand environments

Q&A

Q: How many exercises can be performed on the GTS Classic?
A: Over 200 exercises targeting every major muscle group.

Q: Is this model suitable for rehab training?
A: Yes, its adjustable incline and controlled bodyweight resistance make it ideal for rehabilitation and physical therapy.

Q: How much weight can it support?
A: The GTS Classic has a user weight capacity of up to 650 lbs.

Q: Can it be used at home?
A: While designed for commercial use, it can absolutely be set up in a home gym for advanced training.

Maintenance Tips

• Regularly wipe down glideboard and pulleys after use

• Inspect cables, pulleys, and handles for signs of wear

• Keep track and wheels clean for smooth gliding

• Tighten bolts and hardware periodically for safety

• Store in a dry, clean space when not in use
