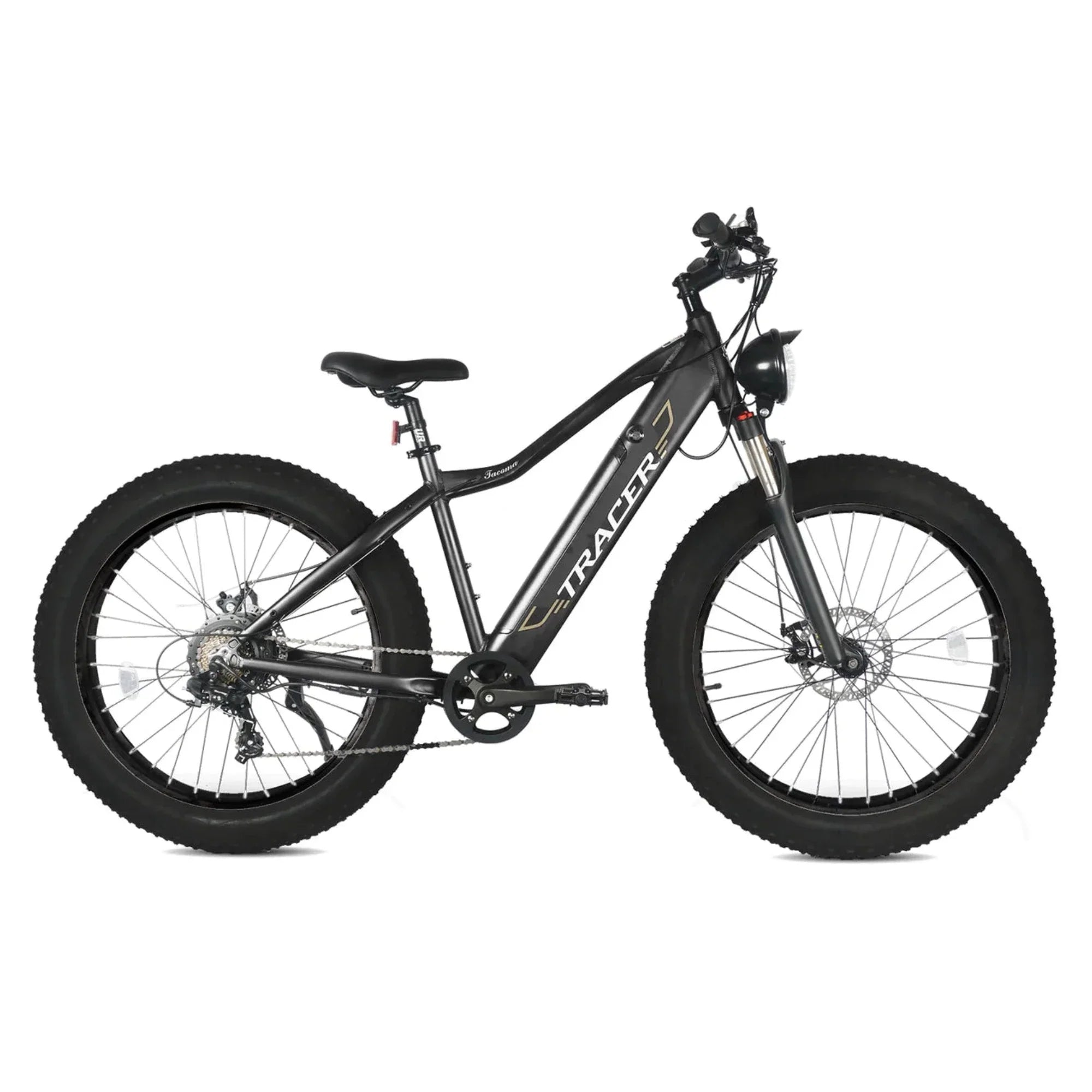

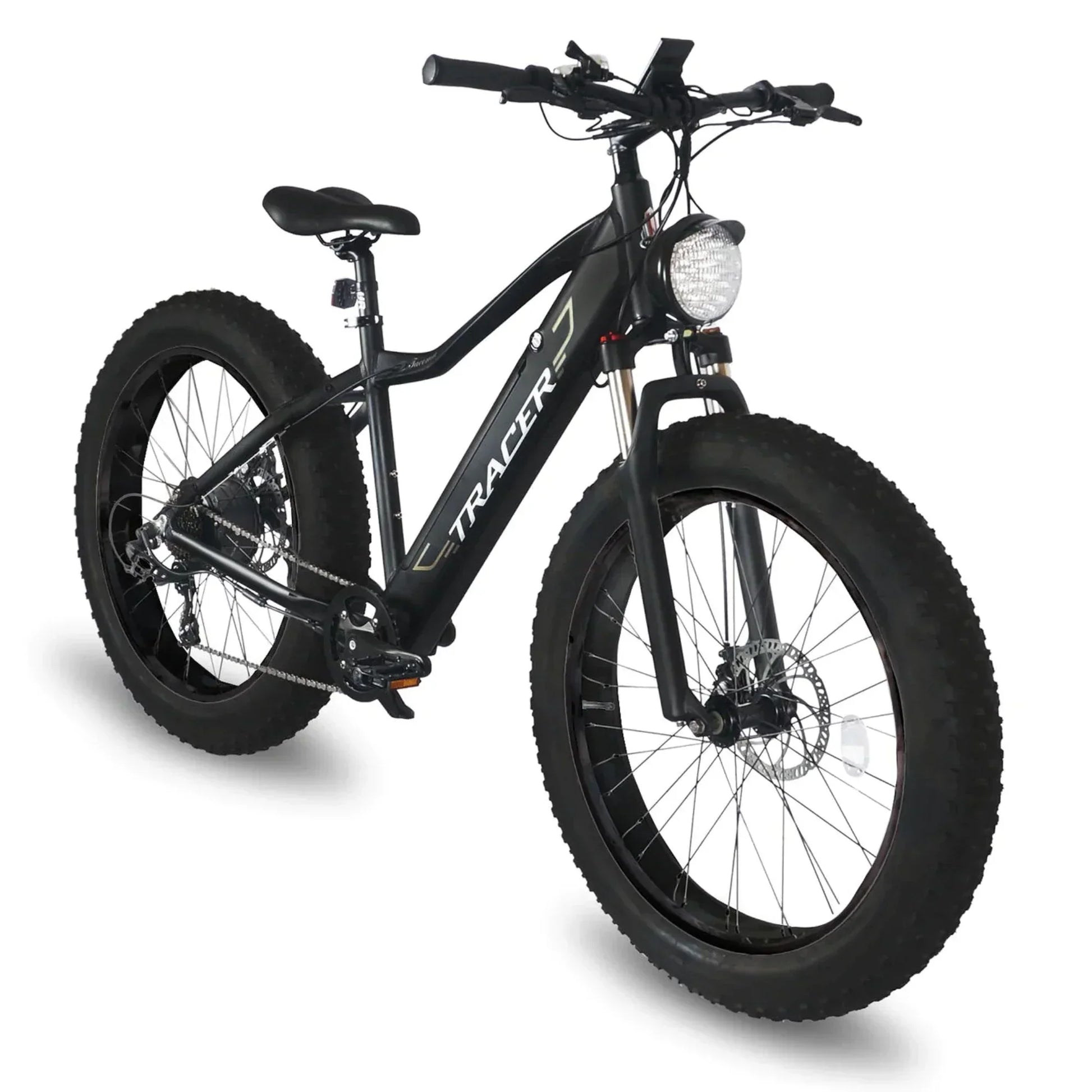

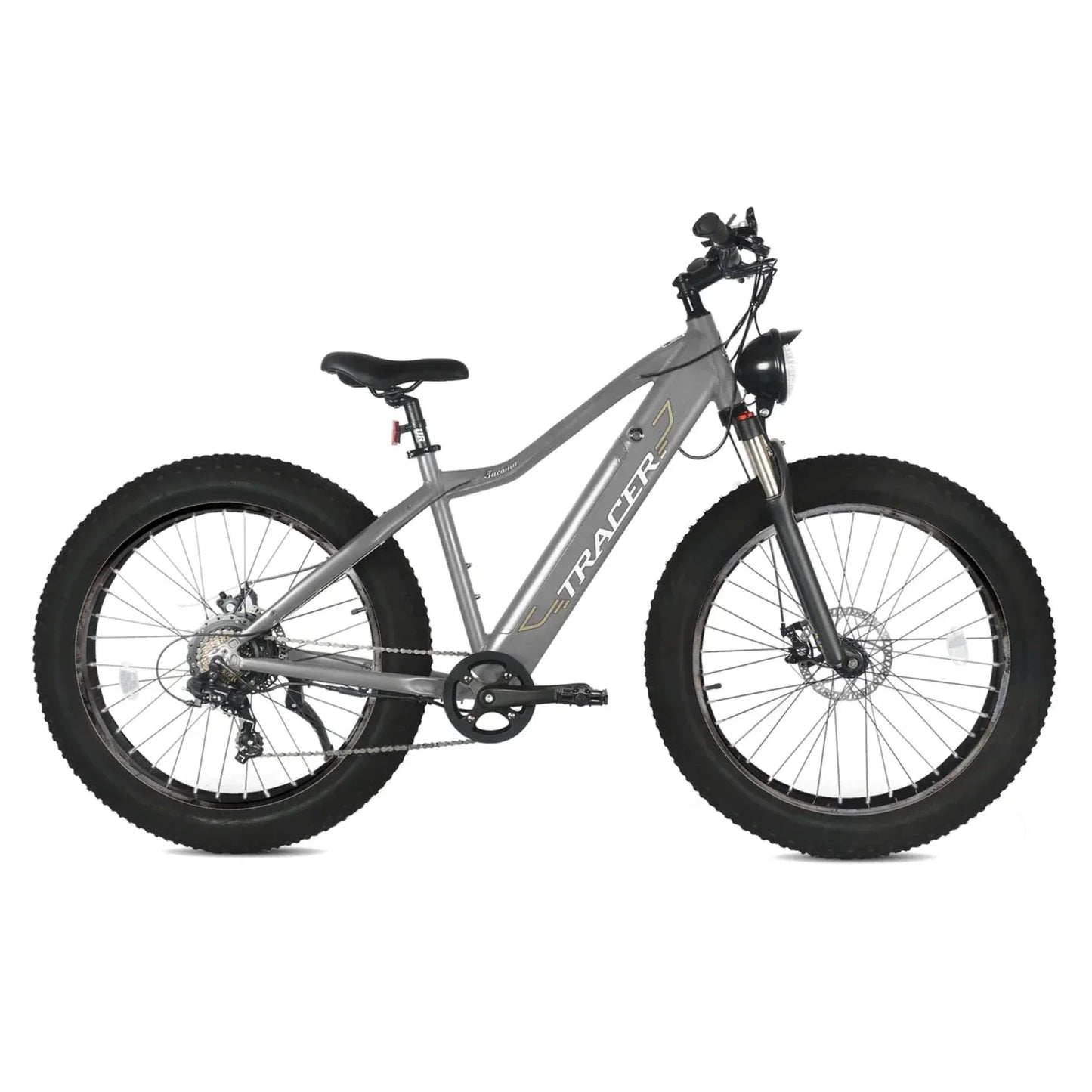

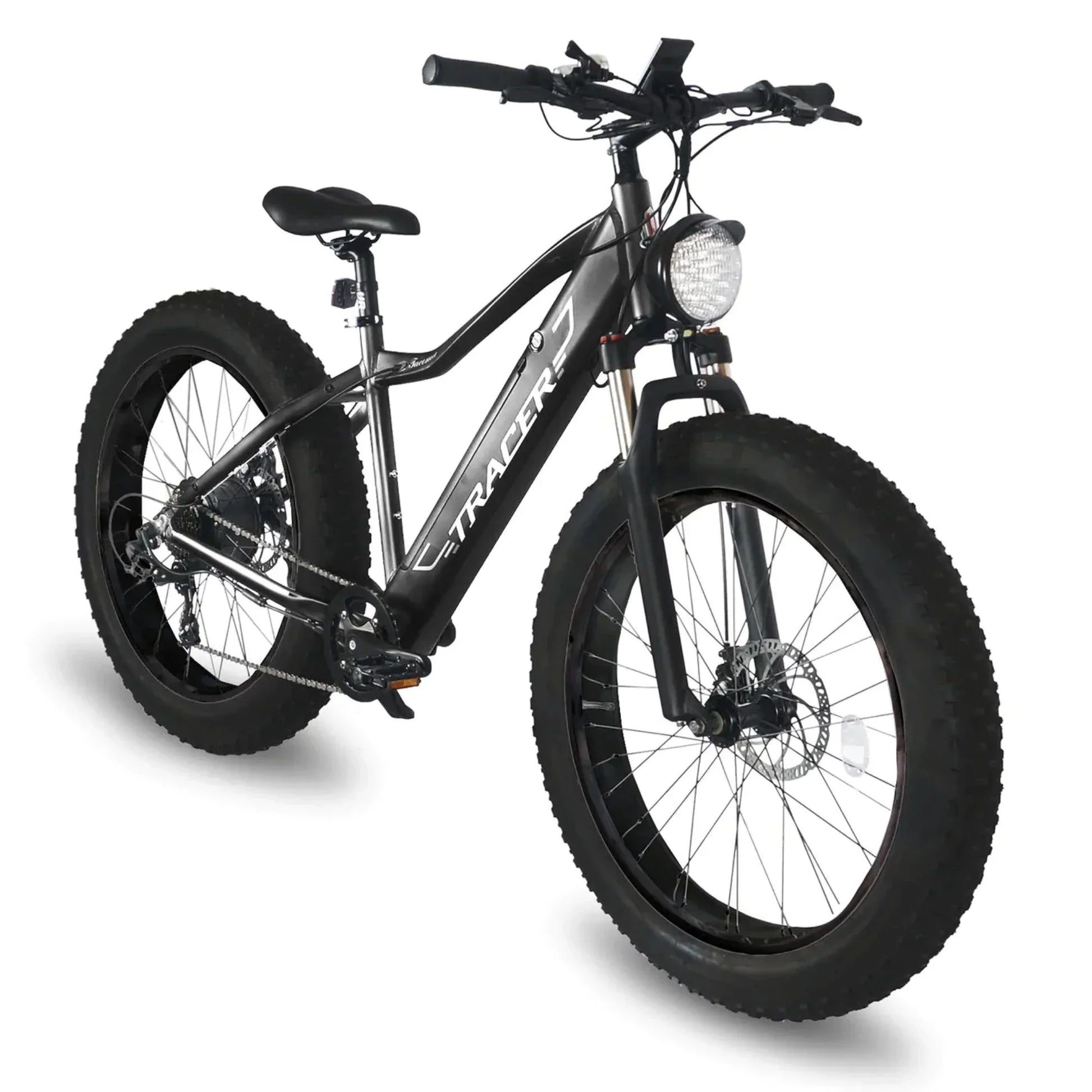

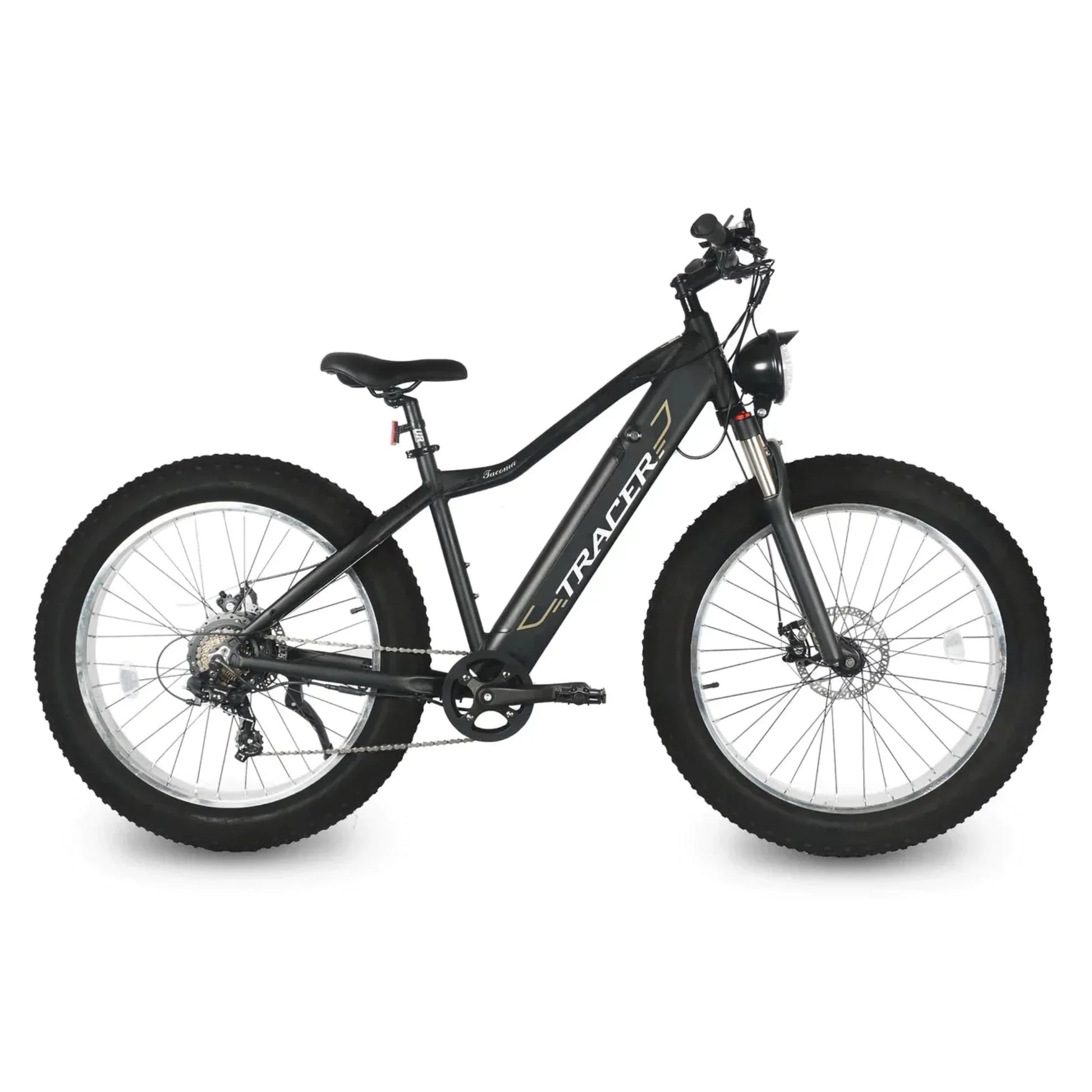

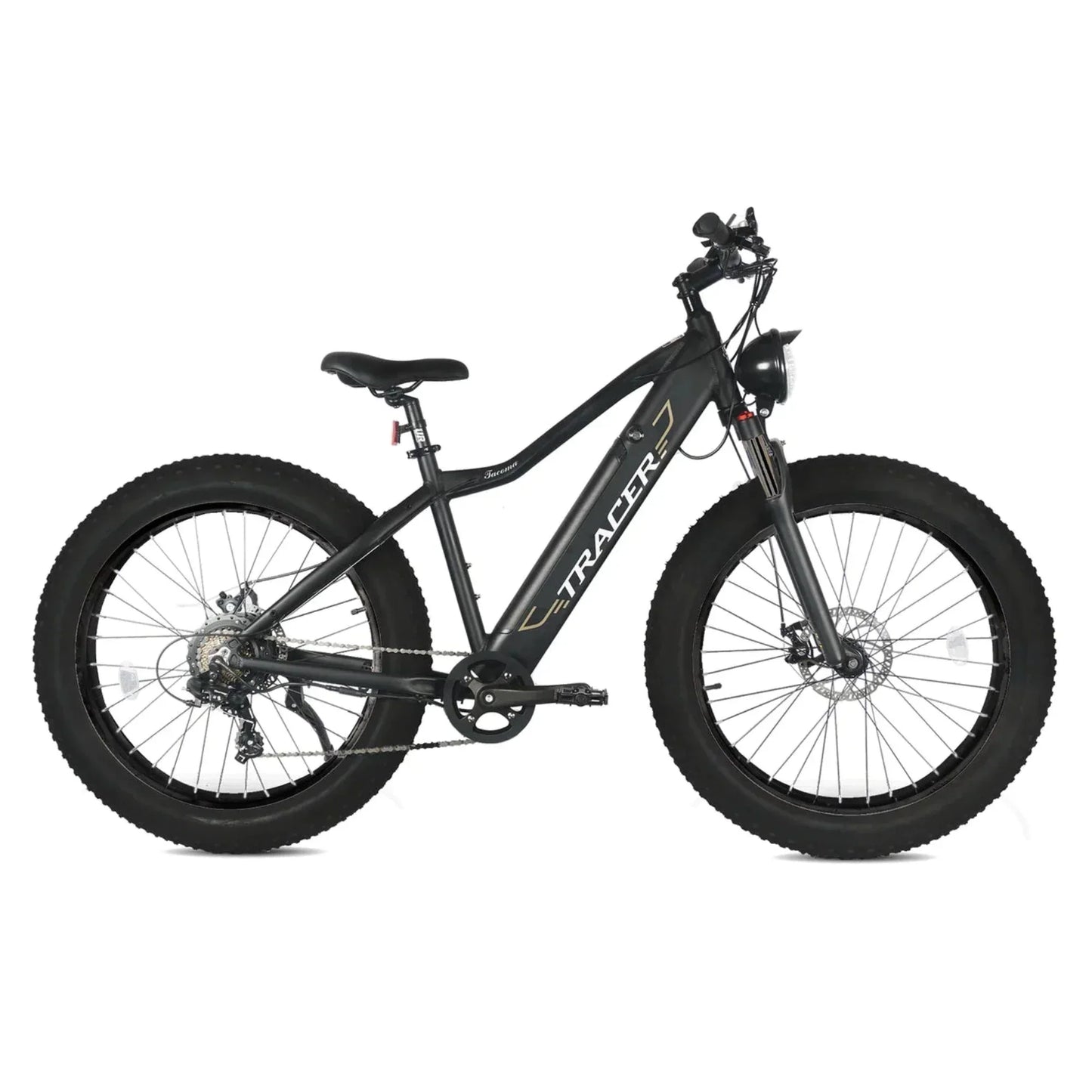

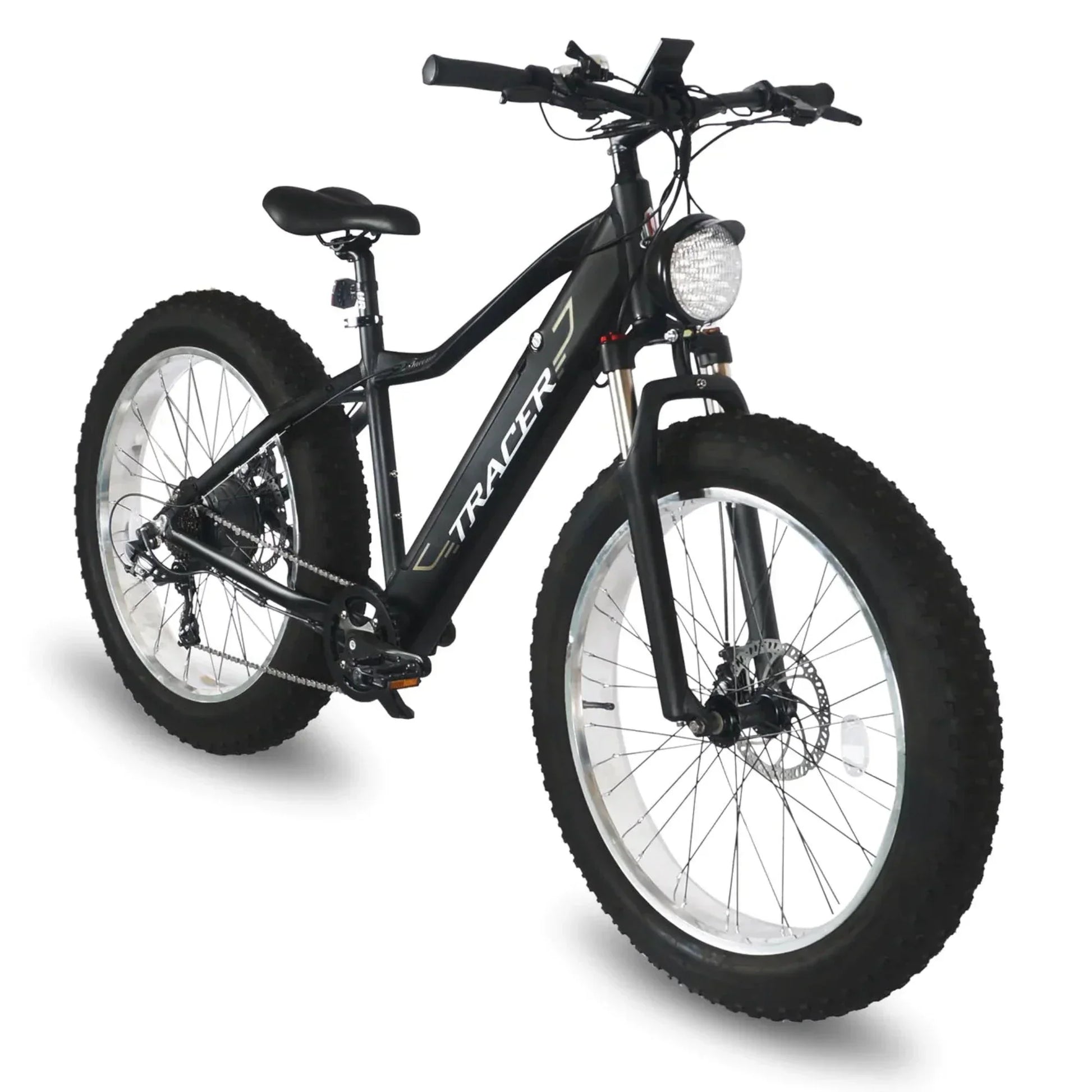

Tracer 800W 26" Tacoma Fat Tire Electric Bike - MB-EB-TACOMA-BK/PLS

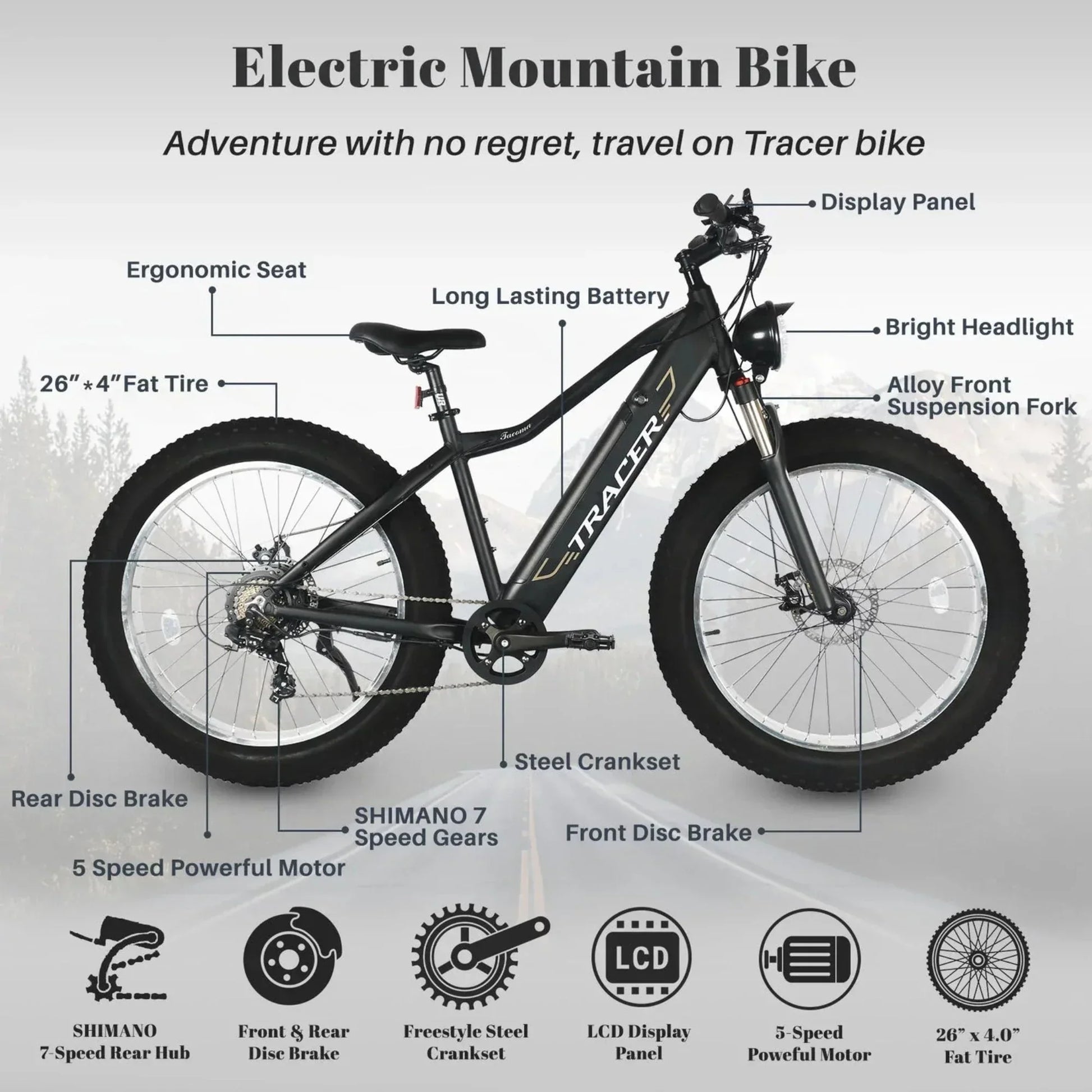

Get into the adventure spirit with this Tacoma electric fat tire bike. Powered with a long-lasting battery, this electric bike is perfect for cruising around and have fun. The ergonomic speed, coupled with bright headlight, a stunning display panel and good brake grip make this bike the most fantastic ride ever. Switch between 7 speed powerful modes and enjoy a swift ride.

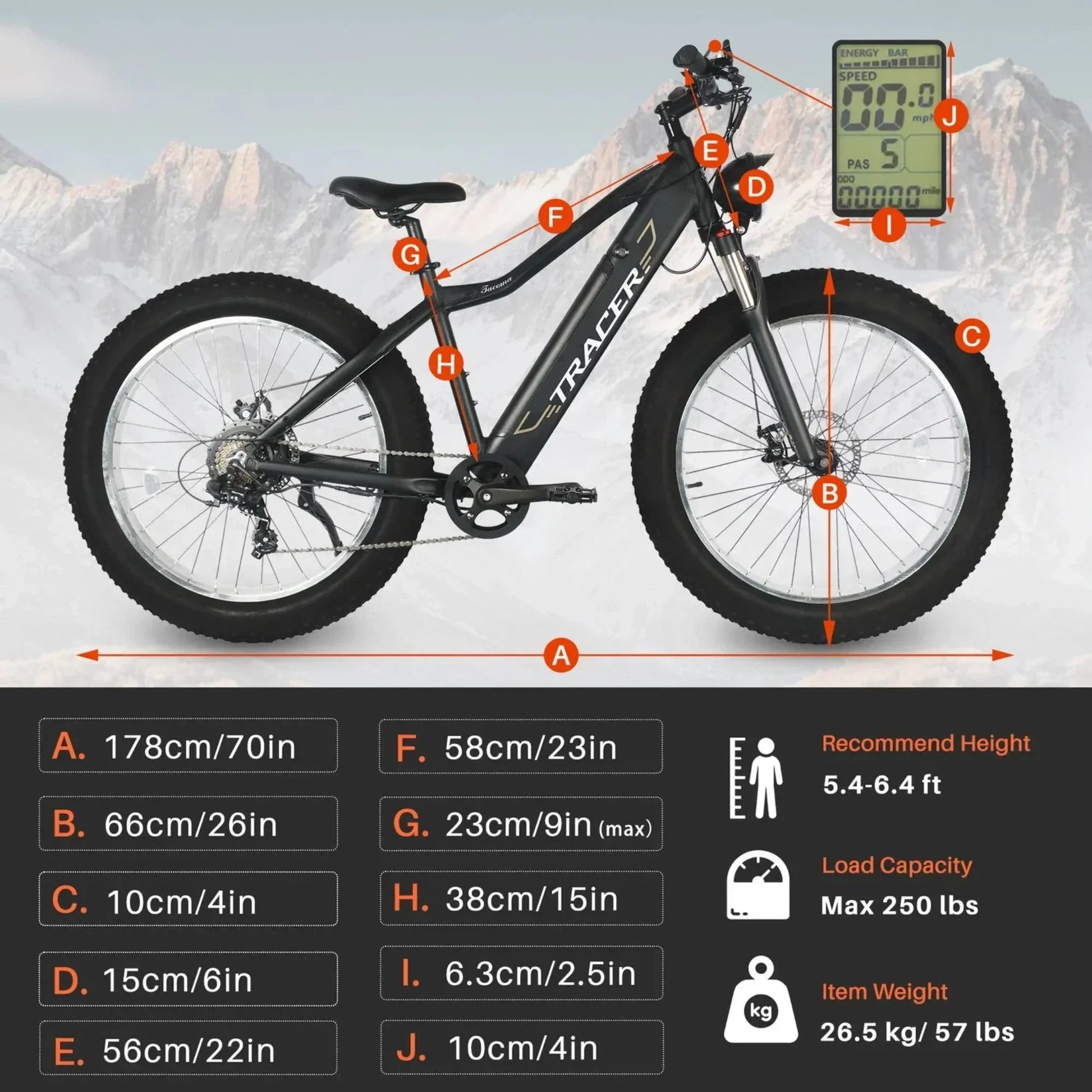

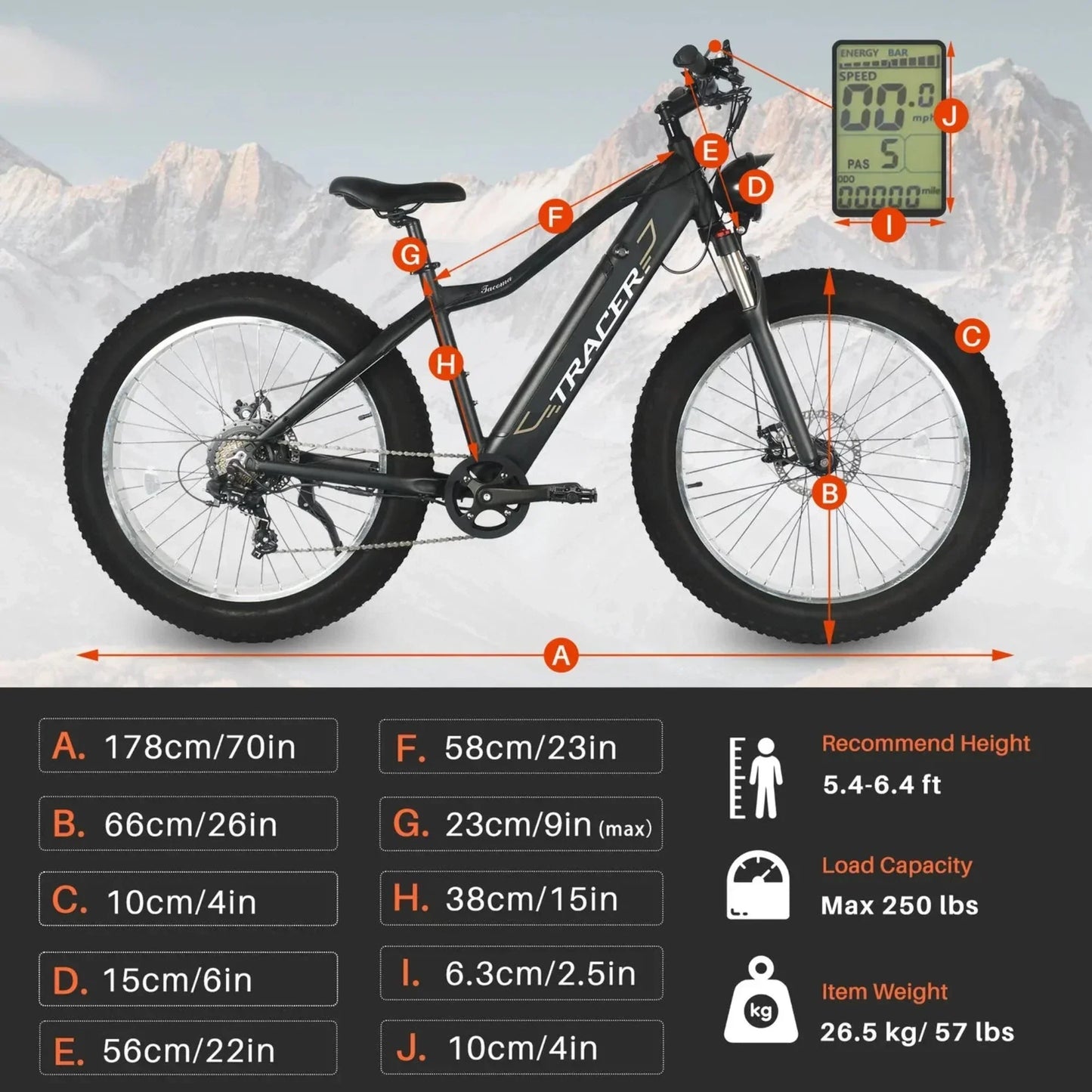

Specifications
| Size |
26” |
| Frame |
Aluminum Alloy, Hidden Battery Design, Control Freak Internal Routing |
| Fork |
Alloy Suspension with Lockout & Preload Adjustment |
| Handlebar |
Tracer Alloy 680mm x 31.8mm |
| Stem |
Alloy 1 1/8" Chunk Threadless |
| Headset |
Alloy 28.6 x 31.8 x 90mm Heavy Duty |
| Seatpost |
Steel 28.6 x 44 x 30H2mm |
| Saddle |
Extra Padding & Wide Shell for Maximum Comfort |
| Pedals |
One-Piece PP |
| Shifters |
Shimano Finger Controller Plus – 7-Speed |
| Rear Derailleur |
Shimano TX300 – 7-Speed |
| Brakes |
Disc Brakes: Front 160mm / Rear 160mm |
| Brake Levers |
Alloy |
| Cassette |
Shimano TZ500 – 14-28T, 7-Speed |
| Chain |
KMC Z7 1/2” x 3/32” x 118L |
| Crankset |
Alloy/Steel 38T, Crank Arm Length: 170mm |
| Bottom Bracket |
Cartridge Steel with Speed Sensors |
| Rims |
FAT Alloy Wide 80mm – 26” x 36H x 13G Spoke Wheelset |
| Front Hub |
Alloy 3/8” x 13G x 36H (135 x 175mm) |

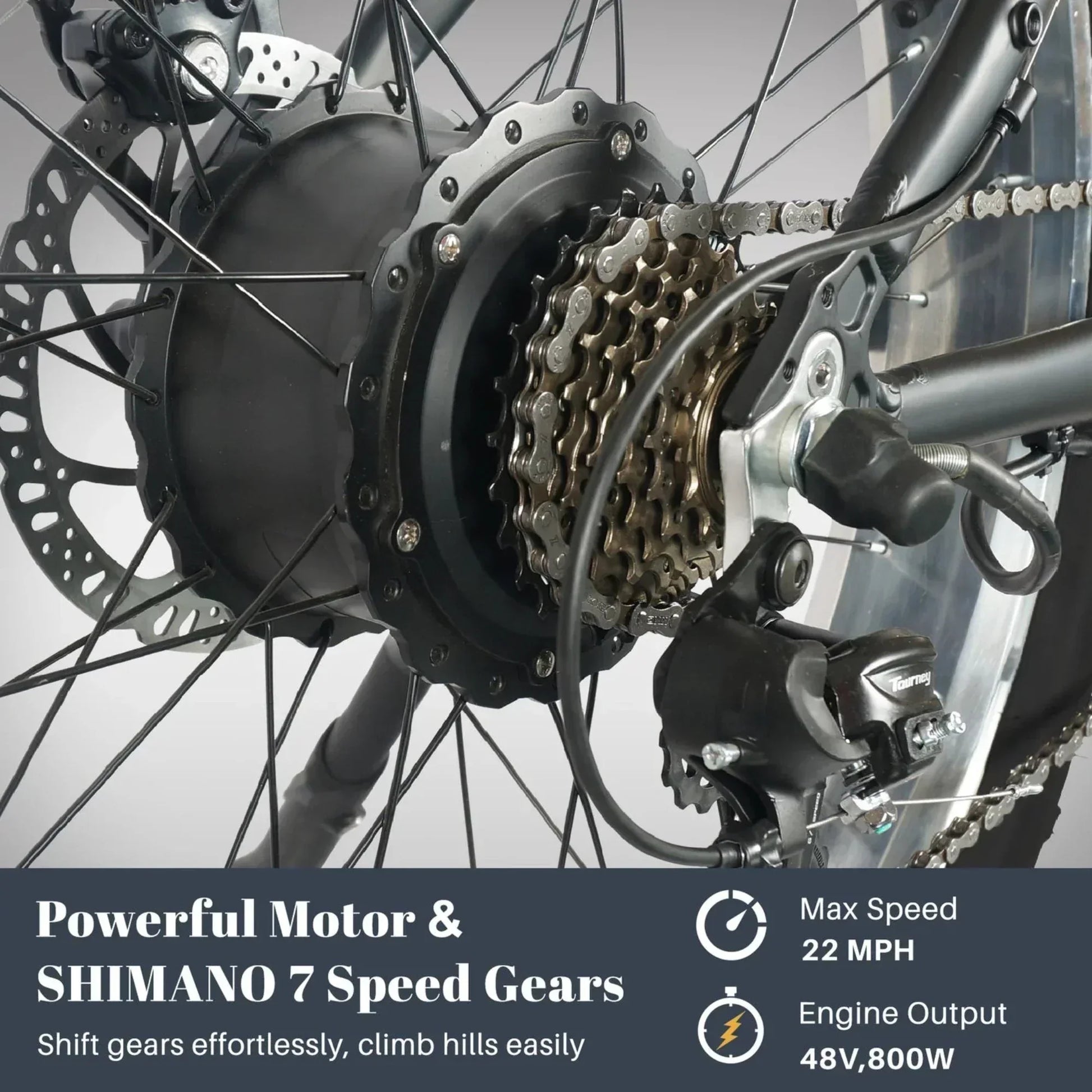

| Rear Hub Motor |
Alloy 3/8” x 13G x 36H x 170mm – 48V 800W Brushless Motor |
| Sensor |
Torque Speed Sensor |
| Battery |

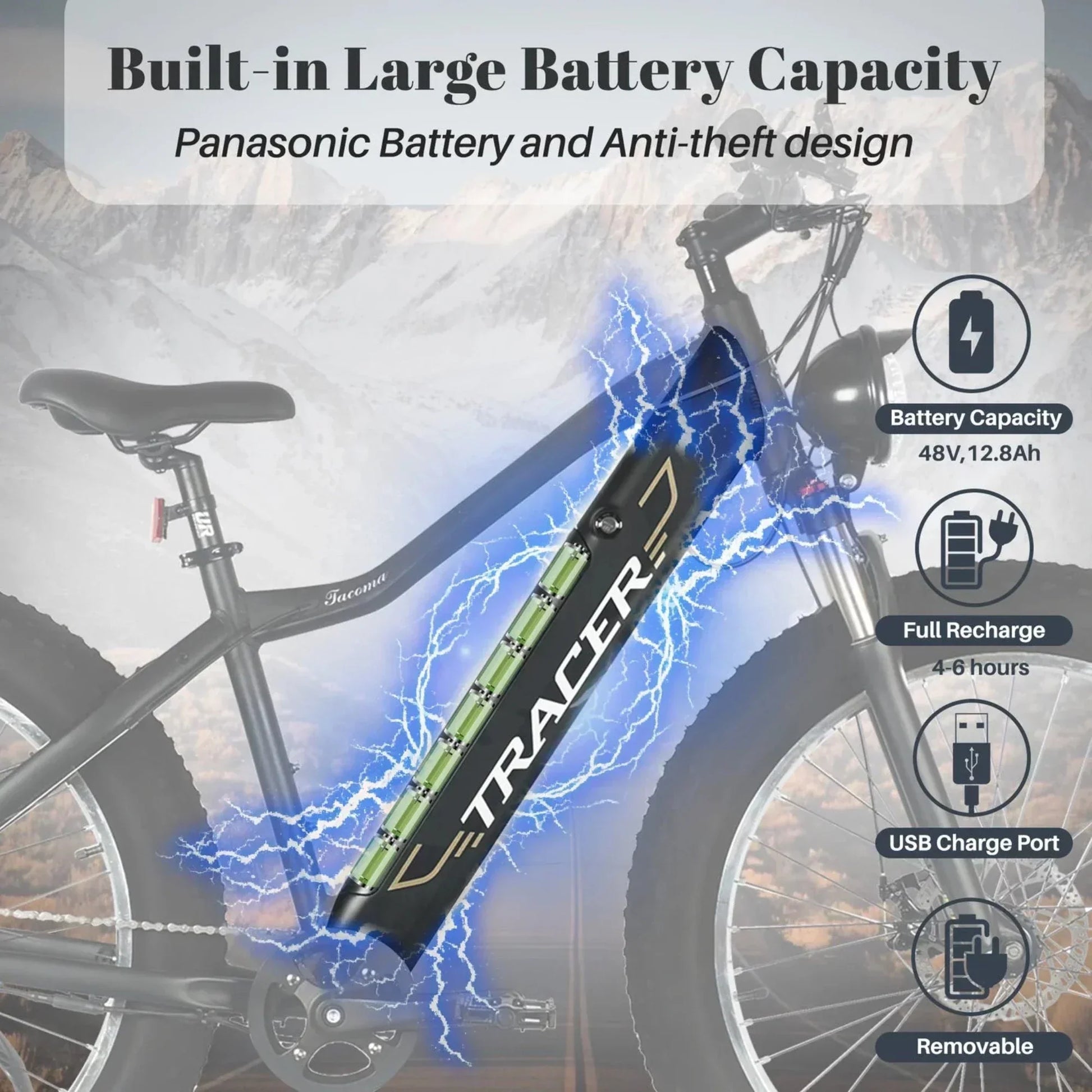

Panasonic 48V / 12.8Ah Lithium-ion |
| Charging Time |
4–6 Hours |
| Max Speed |
22 mph (35 km/h) |
| Travel Range |
25–30 miles (40–48 km) – Pure Electric Mode |

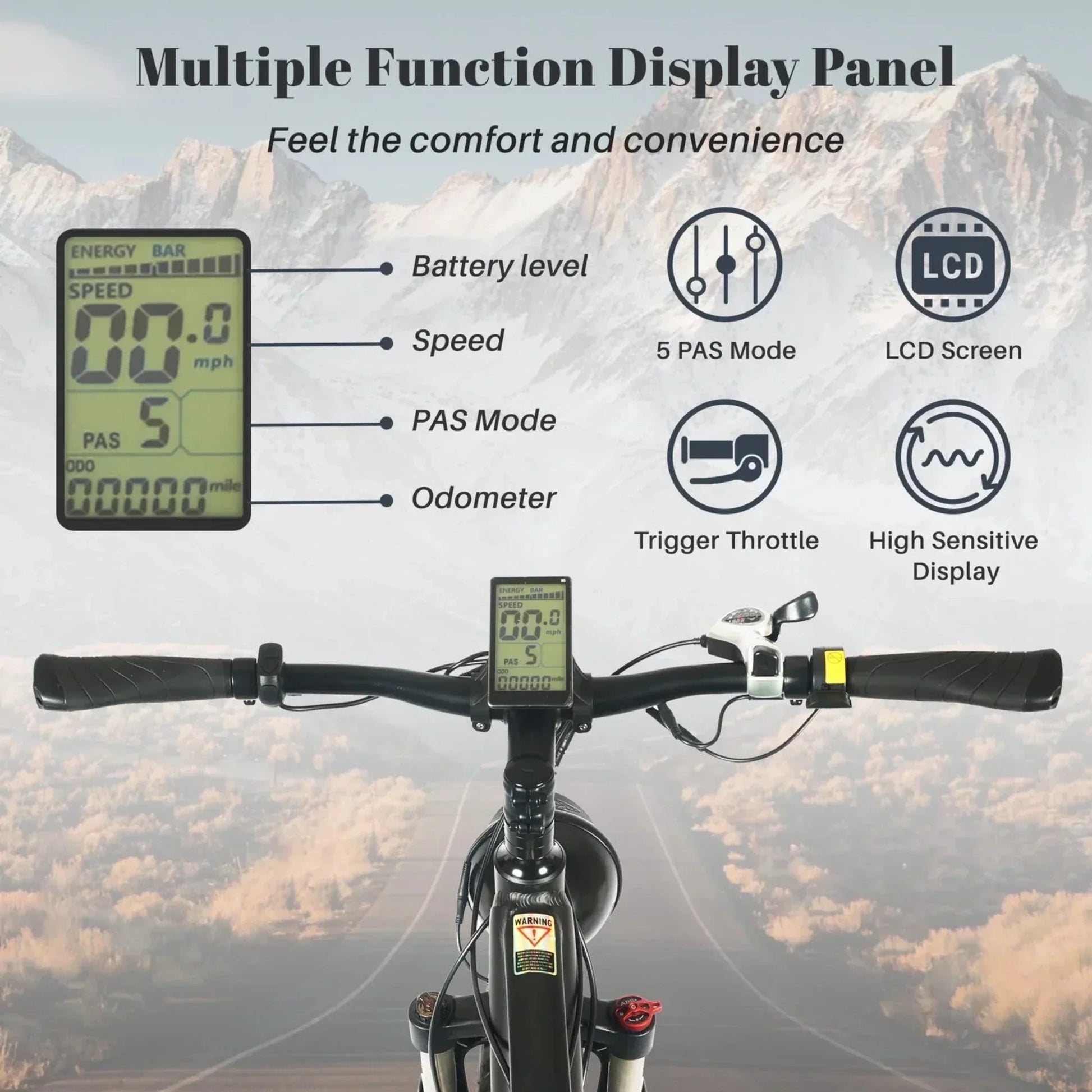

| Display |
OLED Display |
| Spokes |
13-Gauge Steel |
| Tires |

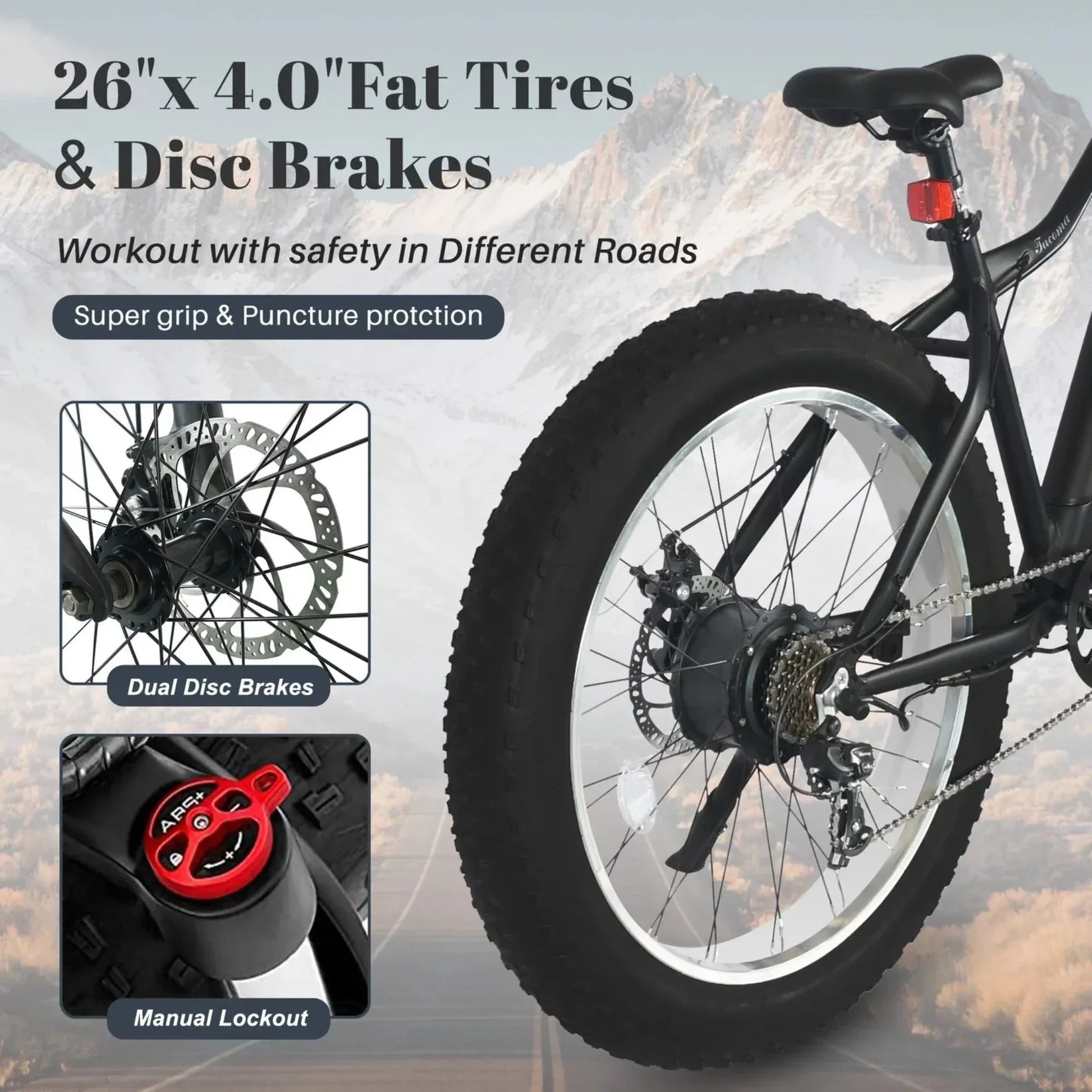

FAT Black – 26” x 4.0” |
| Weight |
[Not Specified – can be added] |
What our Experts Think
-
Power Meets Versatility: The Tracer 800W Tacoma Fat Tire Electric Bike brings serious power with its 800-watt rear hub motor, giving you smooth acceleration and enough torque to handle hills, sand, snow, or city streets with ease.
-
All-Terrain Fat Tires: Outfitted with 26" x 4" wide tires, this e-bike delivers superior traction and shock absorption, perfect for off-road adventures or everyday commuting in any weather.
-
Long-Range Battery: The integrated 48V lithium-ion battery offers impressive mileage on a single charge—ideal for longer rides without the worry of recharging mid-trip.
-
Comfort & Control: Features like a front suspension fork, adjustable handlebars, and a wide padded saddle ensure a smooth and ergonomic ride, even on rugged terrain.
-
Sleek Meets Functional: The Tacoma’s design balances a rugged build with clean lines and a stealthy black/platinum finish—built to perform and turn heads while doing it.
Q&A
Q: What is the Tracer 800W 26" Tacoma Fat Tire Electric Bike?
The Tracer Tacoma is a powerful 800W fat tire electric bike with 26" wheels, built for comfort, versatility, and all-terrain cruising. It combines electric assist with a rugged frame for efficient commuting or adventurous rides.
Q: What is the estimated range and speed?
Speeds up to ~28 MPH and range varies from 25–45 miles per charge depending on conditions and rider input.
Q: Who is this e-bike best suited for?
Ideal for adults seeking a powerful, comfortable electric cruiser for daily commuting or recreational off-road rides.
Q: Is assembly required?
Yes, partial assembly is required. Professional setup is recommended for optimal safety and performance.
Maintenance Tips
-
Battery Care: Charge the battery after each ride and avoid letting it fully drain. Store indoors at room temperature to extend battery life. Unplug once fully charged.
-
Tire Maintenance: Check fat tire pressure regularly and inspect for punctures or wear. Keep tires inflated to the recommended PSI for optimal performance and comfort.
-
Motor & Electronics: Avoid high-pressure water when cleaning. Gently wipe down motor housing and display. Periodically inspect wiring for wear or loose connections.
-
Chain & Drivetrain: Clean and lubricate the chain often to ensure smooth pedaling and prevent rust. Keep the drivetrain free from debris buildup.
-
Brake System: Check brake responsiveness regularly. Adjust or replace pads and cables as needed to maintain safe stopping power.
