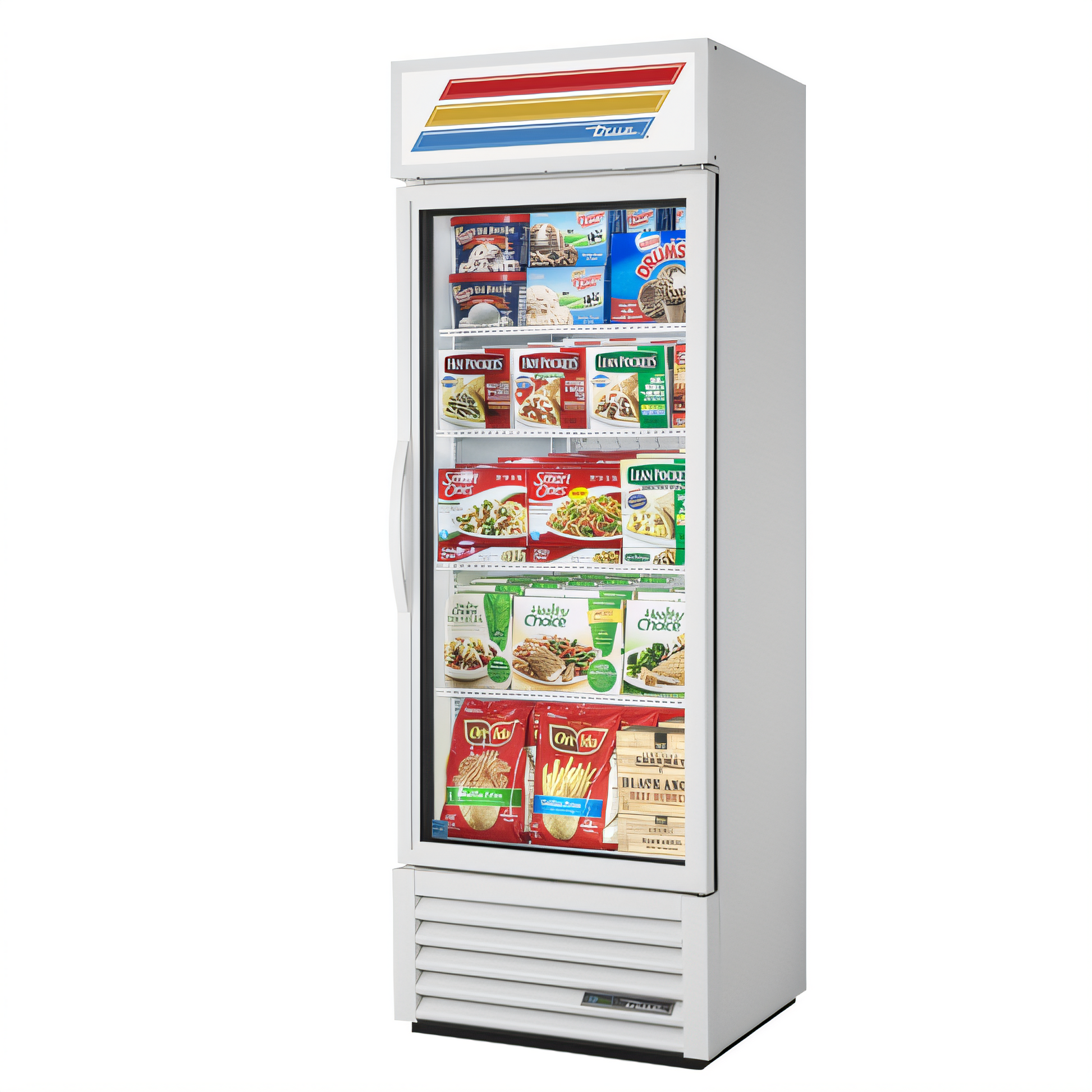

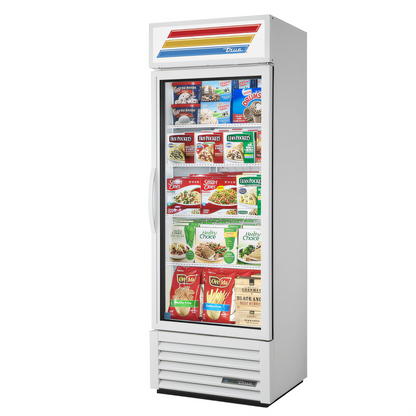

True Mfg. - General Foodservice GDM-19T-F-HC~TSL01 Glass Door Merchandisers
Freezer Merchandiser, one-section, bottom mounted self-contained refrigeration, True standard look version 01, (4) shelves, (1) Low-E thermal glass hinged door, LED interior lights, powder coated exterior, white interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1 HP, 115v/60/1-ph, 8.7 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA
Documents
Specifications
| Manufacturer |
True Mfg. – General Foodservice |
| Model Type |
Freezer Merchandiser, One-Section, True Standard Look Version 01 |
| Temperature Range |
Not specified (Freezer range typical -10°F) |
| Number of Sections |
1 |
| Shelves |
4 |
| Door Type |
Low-E thermal glass hinged door |
| Lighting |
LED interior lighting |
| Exterior Finish |
Powder-coated steel, white |
| Interior Finish |
White liner with stainless steel floor |
| Refrigeration Type |
Self-contained, bottom mounted |
| Refrigerant |
R290 Hydrocarbon refrigerant |
| Compressor HP |
1 HP |
| Electrical Requirements |
115v / 60Hz / 1-ph, 8.7 amps |
| Plug Type |
NEMA 5-15P |
| Energy Efficiency |
Not ENERGY STAR® listed |
| Certifications |
cULus, UL EPH Classified, Made in USA |
| Height |
78.63 inches |
| Width |
27.00 inches |
| Depth |
24.88 inches (depth excludes 1" for rear bumpers if applicable) |
| Depth (front to back) |
Standard |
| Shipping Weight |
325.0 lbs |
What our Experts Think
-
Sleek Display: Features energy-efficient LED lighting and a clear, thermal-insulated glass door that enhances product visibility while minimizing heat loss.
-
Robust Commercial Design: Constructed with a non-peel laminated vinyl exterior and aluminum interior for durability and easy cleaning in high-use environments.
-
Eco-Friendly Cooling: Uses R290 hydrocarbon refrigerant, offering improved energy efficiency and a reduced environmental footprint.
-
Flexible Storage Options: Equipped with four adjustable, heavy-duty, PVC-coated wire shelves to organize frozen products efficiently.
-
Bottom-Mounted Condensing Unit: Increases interior space and simplifies maintenance by placing the unit at the bottom for better accessibility.
-
Reliable Freezing: Consistently maintains freezing temperatures, ideal for showcasing frozen food products with a self-closing door for added energy savings.
Q&A
Q: What is the True GDM-19T-F-HC~TSL01?
A: The True GDM-19T-F-HC~TSL01 is a 19 cu. ft. commercial glass door freezer designed for displaying frozen foods and ice cream in retail and foodservice settings.
Q: What are the key of this freezer?
A: This model features a triple-pane thermal insulated glass door with a self-closing mechanism, four adjustable wire shelves, LED interior lighting, and a bottom-mounted refrigeration system for improved product visibility.
Q: How energy efficient is this unit?
A: The GDM-19T-F-HC~TSL01 is ENERGY STAR® certified and uses eco-friendly R290 refrigerant, which is low in global warming potential and ozone depletion.
Maintenance Tips
-
Clean Condenser Regularly – Vacuum or brush the condenser coil monthly to prevent dust buildup and maintain cooling efficiency.
-
Inspect Door Gaskets – Clean and check the door gaskets frequently to ensure a tight seal, minimizing energy loss.
-
Defrost When Needed – Keep an eye on frost accumulation and perform manual defrosting as required to ensure proper airflow.
-
Monitor Temperature Settings – Verify that the thermostat is set according to manufacturer guidelines for food safety and efficiency.
-
Check Interior Fans – Ensure fans are operating properly and are not obstructed to maintain consistent temperature.
-
Clean Interior Surfaces – Wipe down shelves and walls with a mild soap solution to keep the interior clean.
-
Ensure Unit is Level – Regularly check that the unit is level to prevent door misalignment and ensure proper compressor function.
