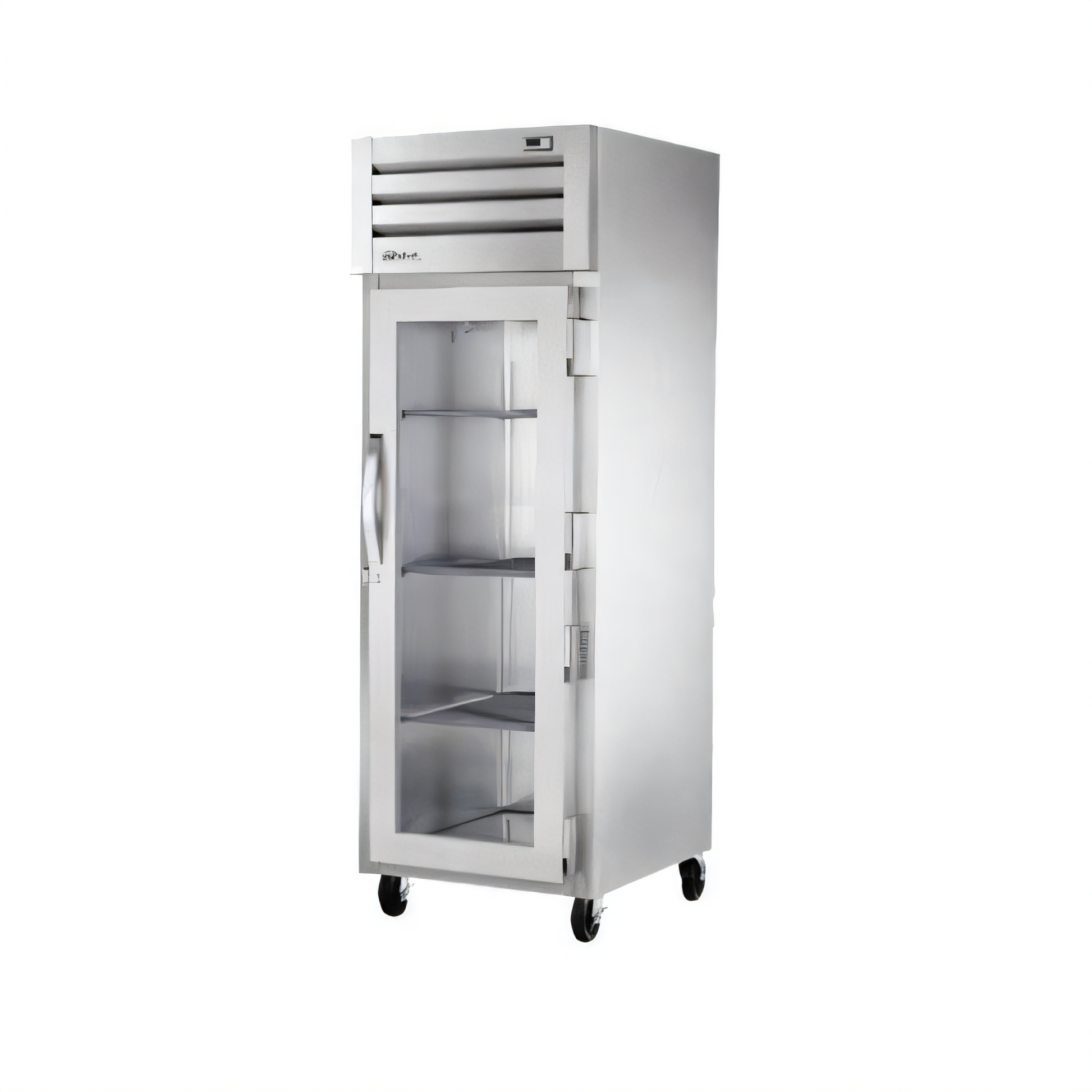

SPEC SERIES Freezer, reach-in, -10°F, one-section, (1) glass door with lock, cam-lift hinges, digital temperature control, (3) chrome shelves, LED interior lights, stainless steel front & sides, aluminum interior, 5" castors, R290 Hydrocarbon refrigerant, 1 HP, 115v/60/1-ph, 8.9 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA

Drawings

• Qf_true_sta1f-1g-hc.zip
• Aqsl_true_sta1f-1g-hc_p.dwg
• Aqsl_true_sta1f-1g-hc_e.dwg
• Aqsl_true_sta1f-1g-hc_s.dwg

Documents

• Cutsheet
• Installation manual

Specifications

What our Experts Think

• Built to Last: Heavy-duty stainless steel exterior and aluminum interior ensure durability in high-volume kitchens.

• Superior Cooling: Factory-engineered, self-contained capillary tube system uses eco-friendly R290 hydrocarbon refrigerant for efficient, consistent freezing.

• Energy Efficient: High-density polyurethane insulation and LED interior lighting cut energy costs without compromising performance.

• Glass Door Advantage: Double-pane, thermal-insulated glass door offers visibility and temperature retention — ideal for frequent access.

• Precision Temperature Control: Maintains -10°F, perfect for frozen food and ice cream storage.

• Easy Maintenance: Bottom-mounted compressor for easy cleaning and raised floor for better airflow.

Q&A

Q: What is the True STA1F-1G-HC SPEC SERIES Reach-In Freezer?
A: A high-performance, single-section commercial freezer with a full-length glass door, engineered for premium frozen storage and product visibility.

Q: What is its storage capacity?
A: Offers 27 cu. ft. of storage space with three adjustable heavy-duty wire shelves and a corrosion-resistant aluminum interior.

Q: Is it energy efficient?
A: Yes, it’s ENERGY STAR certified and designed with high-density polyurethane insulation to optimize performance and reduce energy costs.

Q: Where is it best used?
A: Ideal for commercial kitchens, institutional foodservice, and high-end restaurants requiring reliable, visible frozen product storage.

Maintenance Tips

• Disconnect the unit by unplugging the power cord.

• Remove the grill assembly by unscrewing the top screws on the louver grill with a Phillips screwdriver. Some True models have a door light switch with wiring in this area. Make sure you don’t pinch the wires during this step.

• Access the condenser assembly and loosen the bolts anchoring it to the frame rails. Carefully slide out the assembly to access the condenser coil.

• Brush off dust and dirt using a stiff bristle brush. You can also use an air or CO₂ tank to blow out any large buildup.

• Clean condenser fan blade by lifting the cardboard cover above the fan and using the stiff bristle brush or compressed air to clean off dust from the fan blades.

• Vacuum the surrounding area to remove any remaining debris.

• Reassemble by sliding the condenser assembly back into place and securing the grill. Reconnect the unit and ensure the condenser is running properly.
