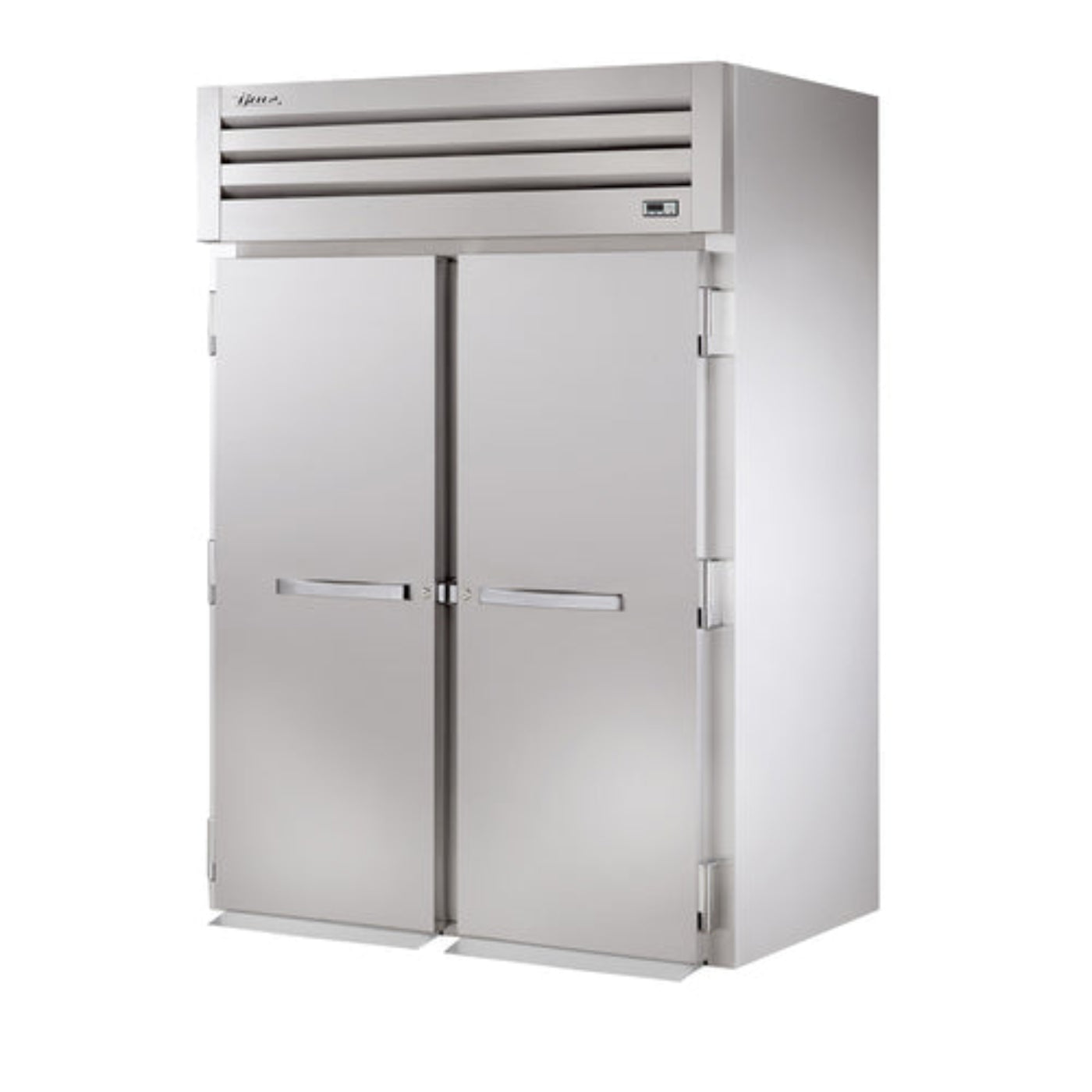

True Mfg. - General Foodservice STG2FRI-2S SPEC SERIES Reach-In Refrigerators & Freezers
SPEC SERIES Freezer, roll-in, two-section, (2) stainless steel doors, locks, cam-lift hinges, digital temperature control, incandescent interior lighting, stainless steel ramps, stainless steel front, aluminum sides, aluminum interior, 1-1/5 HP, 115/208-230v/60/1-ph, 8.0 amps, NEMA 14-20P (accommodates 27"W x 29"D x 66"H carts, NOT included), cULus, UL EPH Classified, Made in USA
Drawings
Documents
Specifications
| Manufacturer |
True Mfg. – General Foodservice |
| Brand Name |
SPEC SERIES® |
| Model Type |
Freezer, Roll-In, Two-Section |
| Certifications |
cULus, UL EPH Classified, Made in USA |
| Height |
83.75 in |
| Width |
68.0 in |
| Depth |
34.75 in |
| Shipping Weight |
690 lbs |
| Compressor HP |
1-1/5 HP |
| Size |
2 Section |
| Exterior Finish |
Stainless steel front, aluminum sides |
| Interior Finish |
All aluminum interior |
| Door Type |
Hinged doors with locks |
| Refrigeration |
Self-contained refrigeration |
| Mobility |
Stainless steel ramps |
| Power Requirement |
1-1/5 HP, 115/208-230v/60/1-ph, 8.0 amps, NEMA 14-20P (accommodates 27"W x 29"D x 66"H carts, NOT included) |
What our Experts Think
-
Dual Access for Easy Efficiency
Features 2 solid doors for each compartment, allowing separate, easy access to refrigerated and frozen items. Perfect for busy kitchens with high-volume needs.
-
Reliable Temperature Control
-
Freezer section maintains a steady -10°F, ideal for frozen foods.
-
Refrigerator section keeps items at 34°F to 38°F, ensuring safe and optimal cold storage.
-
Durable, Long-Lasting Build
-
Stainless steel front and anodized aluminum interior provide durability, resistance to scratches, and easy cleaning.
-
Self-closing doors with magnetic gaskets help maintain temperature integrity and energy efficiency.
-
Energy-Efficient Design
Uses R290 hydrocarbon refrigerant and high-density foam insulation, reducing environmental impact while lowering operating costs.
-
Flexible and Adjustable Shelving
Includes adjustable wire shelves, which can be customized to fit various food containers and maximize storage space.
Q&A
Q: What is the True STG2FRI-2S SPEC SERIES Reach-In Refrigerator & Freezer?
A: It’s a two-section, dual-temperature reach-in unit featuring solid stainless steel doors, designed for both refrigeration and freezing, offering versatile cold storage for commercial kitchens.
Q: What temperature ranges does it maintain?
A: The refrigerator section maintains temperatures between 33°F to 38°F (0.5°C to 3.3°C), while the freezer section operates between -10°F to 0°F (-23.3°C to -17.8°C), ensuring safe storage for both perishable and frozen foods.
Q: Is it energy efficient and durable?
A: Yes, it is ENERGY STAR® certified with energy-efficient components and robust construction, providing long-term reliability while helping to reduce energy consumption.
Q: Where is it best used?
A: Perfect for high-demand foodservice operations like restaurants, delis, and catering businesses that need dual-temperature storage in a compact, efficient design.
Maintenance Tips
-
Disconnect the unit by unplugging the power cord.
-
Remove the grill assembly by unfastening the top screws on the louver grill with a Phillips screwdriver
-
table wrench, loosen the bolts anchoring the condenser assembly to the frame rails. Carefully slide out the assembly to access the condenser coil.
-
Remove any accumulated dust on the assembly and coil using a stiff bristle brush. You can also use an air or COâ‚‚ tank to blow out any large buildup.
-
Clean the condenser fan blade by lifting the cardboard cover above the fan and using the stiff bristle brush or compressed air to clean off dust from the fan blades.
-
Vacuum the surrounding area using a vacuum cleaner or shop vac to pick up any dirt or dust by the coil and on the interior floor.
-
Place the cardboard cover back over the condenser fan, slide the assembly back into its regular position, and anchor bolts back into the frame rails.
