Tuttnauer TIVA2 Thermal High Disinfector Washer - TTN-TIVA2-D

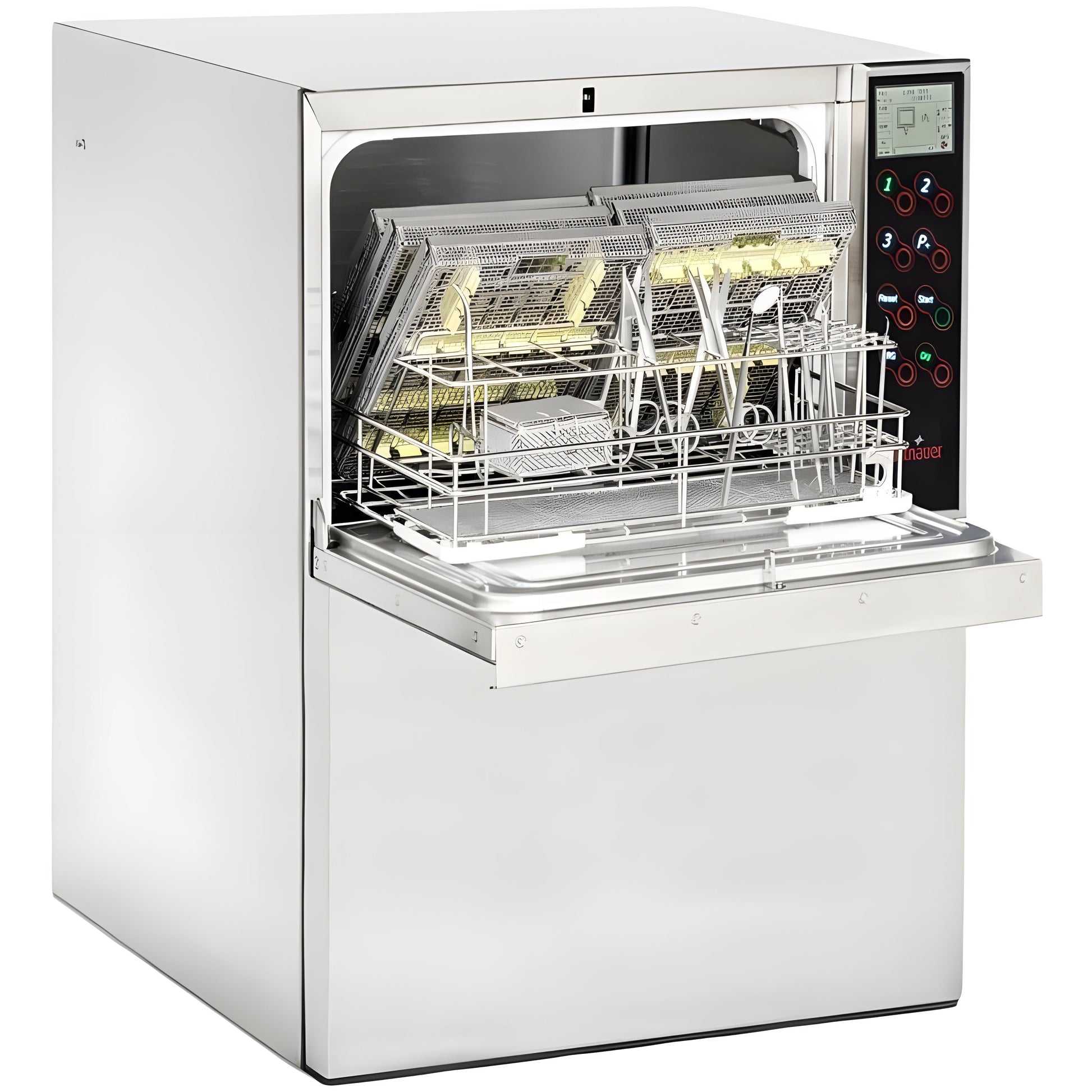

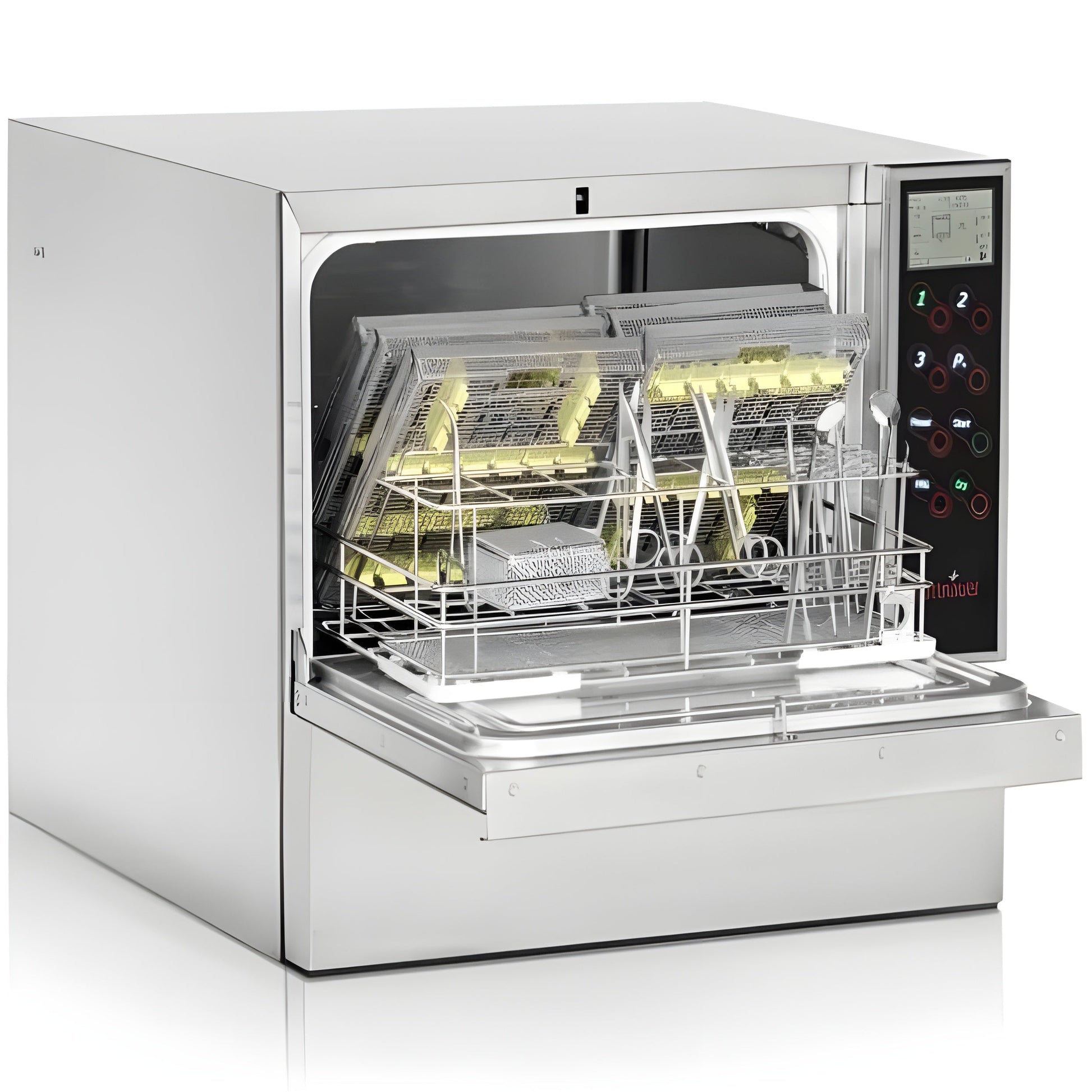

The Tuttnauer TIVA2 Thermal High Disinfector Washer is best used for dental and medical practices in need of strict cleaning, disinfection, and sterilization of instruments before they can be used on patients.

This unit can safely kill bacteria and viruses on delicate instruments using > 194° moist heat for a minimum of five minutes. During the sequence, it rinses the tools, cleans with demineralized water, rinses again with warm water, then undergoes a thermal disinfection. After this, the instruments are thoroughly dried with hot air.

Features
  • Can be used for both dental and medical instruments.
  • Touch panel, color graphic display, and real-time monitoring.
  • A total of 40 programs: Preset and programmable cycles.
  • Air drying prefilter and HEPA H14 filter.
  • Integrated water softener and steam condenser.
  • Two dosing pumps with flowmeter for alkaline detergent and neutralizer (additional pump optional for TIVA2H TD).
  • USB/printer for data documentation.
  • Provides complete and total evacuation of previous water (ETS).
  • Manual Glass Door: The slim design allows it to be placed in a small space, maximizing the load capacity.
  • 316 L high quality AISI washing chamber.
  • Can be loaded with different types of loads.
  • Three heating elements.
  • Short Cycles: Preheated tank to reduce the cycle time.
Specifications

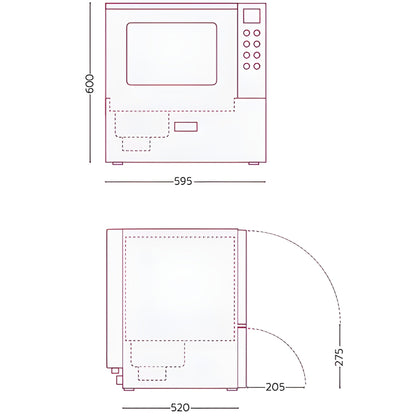

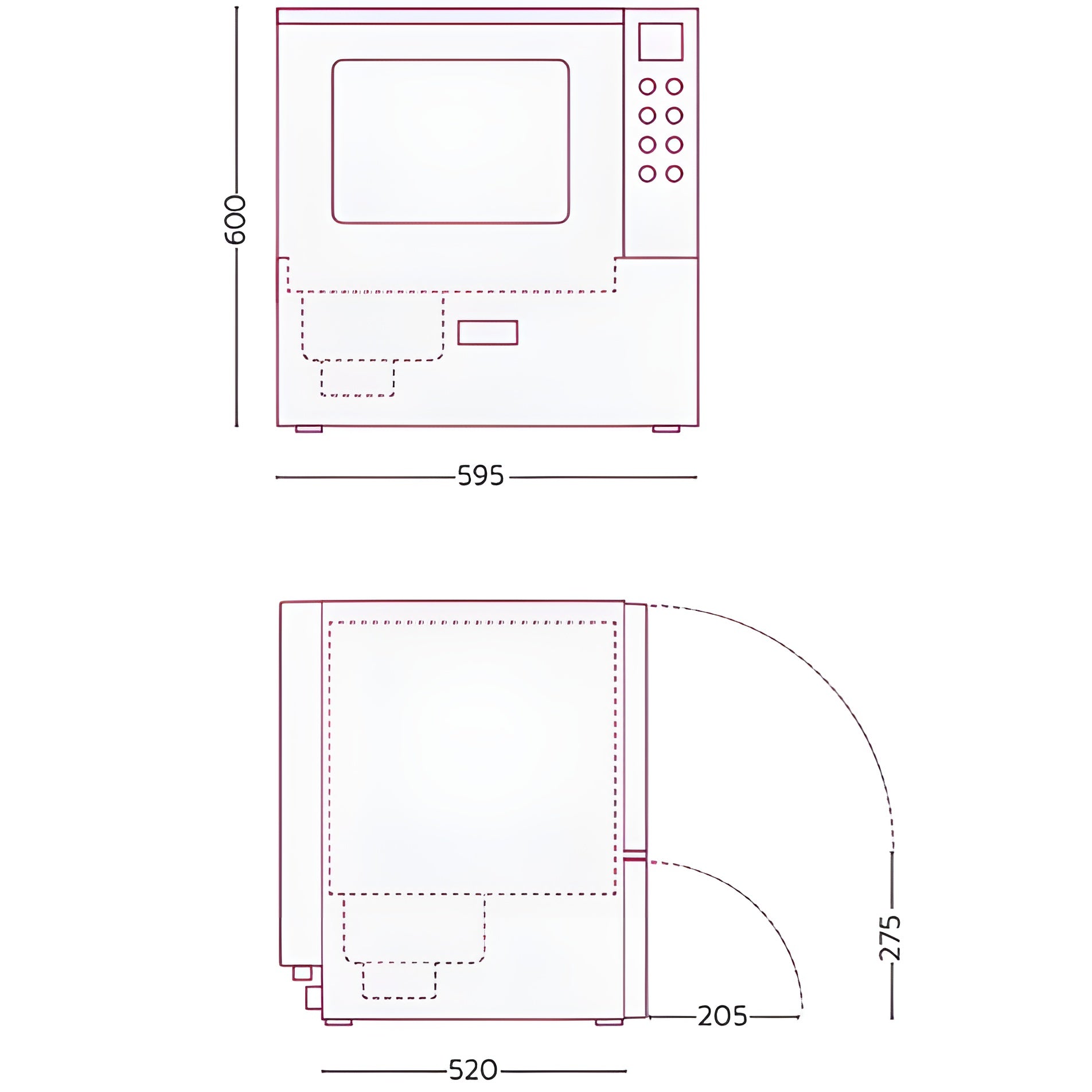

Usable Chamber Volume 65 L
Depth 21.3" (520 mm)
Width 23.4" (595 mm)
Height (Counter-Top Models) 23.6" (600 mm)

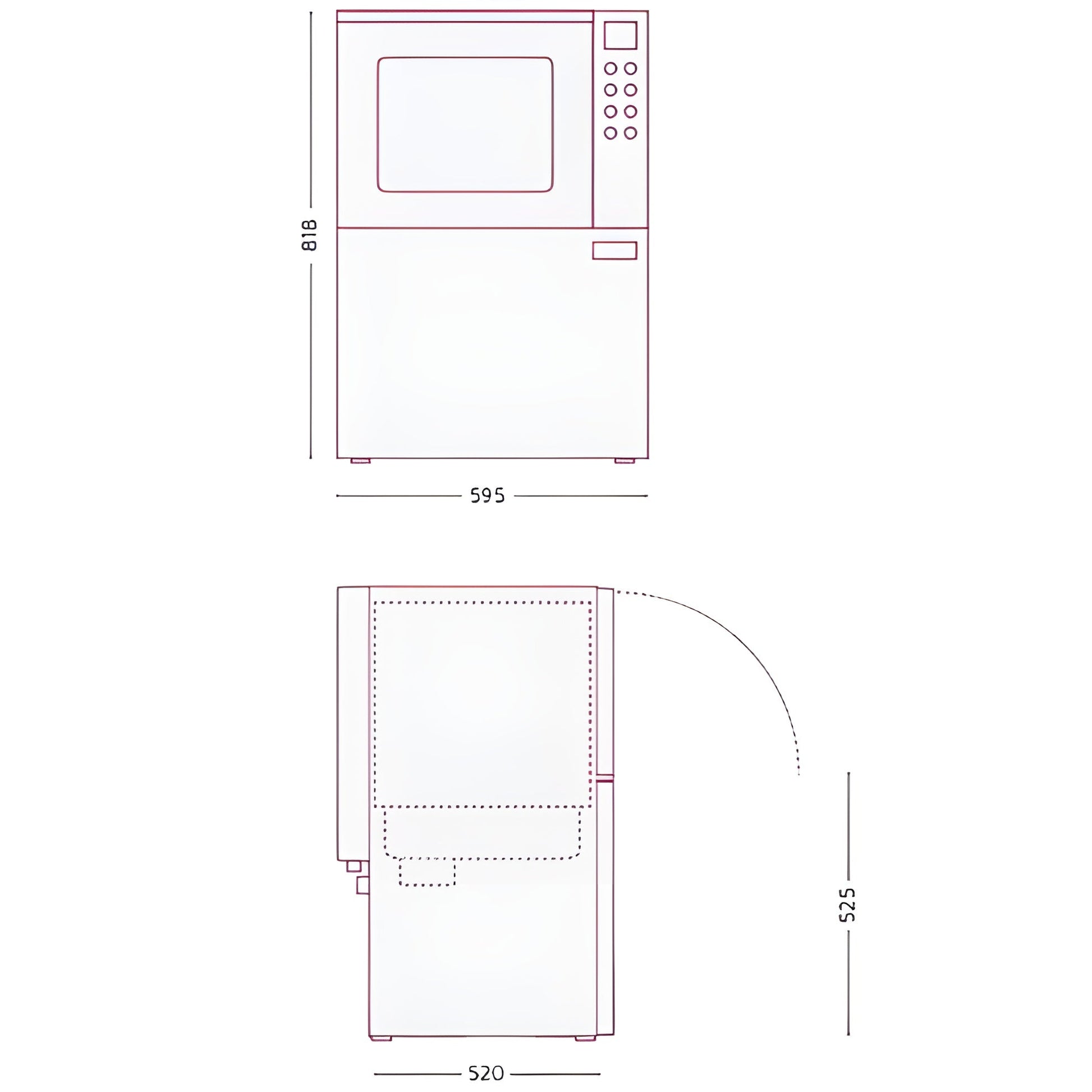

Height (Under-Counter Models) 32.2" (818 mm)
Flow Rate of the Chamber Wash Pump 100 L/min
Flow Rate of Drying Fan (with HEPA filter) 18 m³/h
Absorbed Power 2.9 kW
Internal Detergent Tank (Counter-Top Models) 0.6 L
Internal Detergent Tank (Under-Counter Models) 0.5 L
Voltage 220/230 V
Electrical Connections 208 + 240 V 1 phase 60 Hz
Water Connections Cold water connection (default), Connection for demineralized water, Integrated Water Softener with Salt Box
Required R.O. Water System Required
    Configurations
    • #TIVA2-D: Counter-Top - For Dental Practices.
    • #TIVA2-M: Counter-Top - For Medical Practices.
    • #TIVA2H-D: Under-Counter - For Dental Practices.
    • #TIVA2H-M: Under-Counter - For Medical Practices.
    Literature

    Tuttnauer TIVA2 Washers Thermal High Disinfector Line Brochure

    What Our Experts Think
    • Efficient Thermal Disinfection – Uses high temperatures for superior pathogen elimination.
    • Automated Multi-Stage Cleaning – Ensures thorough washing, rinsing, and drying for optimal instrument hygiene.
    • User-Friendly Digital Control Panel – Simplifies operation with customizable cycle options.
    • Compact & Space-Saving Design – Ideal for clinics, hospitals, and labs with limited space.
    • High-Capacity Chamber – Handles multiple instruments efficiently in a single cycle.
    • Eco-Friendly & Water-Efficient – Reduces resource consumption while maintaining top-tier cleaning performance.
    • Meets International Disinfection Standards – Ensures compliance with medical sterilization regulations.
    Q&A

    Q: What is this product?
    A: The Tuttnauer TIVA2 is a high-performance thermal disinfector washer designed for thorough cleaning and disinfection of medical and laboratory instruments.

    Q: Where can it be used?
    A: Ideal for hospitals, dental clinics, laboratories, and surgical centers requiring automated instrument reprocessing.

    Q: Why choose this disinfector?
    A: With programmable cycles, high-temperature thermal disinfection, and a compact, stainless steel design, it ensures compliance with hygiene standards while enhancing workflow efficiency.

    Maintenance Tips
    • Use Approved Detergents: Always use manufacturer-recommended cleaning agents to prevent damage to internal components.
    • Daily Rinse & Wipe Down: Clean the interior chamber and spray arms with a damp cloth to remove residue.
    • Inspect & Clean Filters Weekly: Remove and rinse filters to ensure proper drainage and performance.
    • Check & Maintain Spray Arms: Ensure spray nozzles are clear of blockages to maintain effective cleaning.
    • Monitor Water Quality: Use filtered or softened water to prevent scaling and buildup.
    • Run Self-Cleaning Cycles: Perform routine cleaning cycles with an approved descaler to prevent mineral deposits.
    • Check Seals & Gaskets: Inspect door gaskets for wear and clean them regularly to maintain a tight seal.
    • Perform Regular Testing: Conduct cycle validation and temperature checks to ensure disinfection efficiency.
    • Schedule Annual Maintenance: Professional servicing helps keep the unit in optimal working condition.
