Tuttnauer TIVA8-MD High Thermal Disinfection Washer - TTN-TIVA8-MD-1-DENTAL

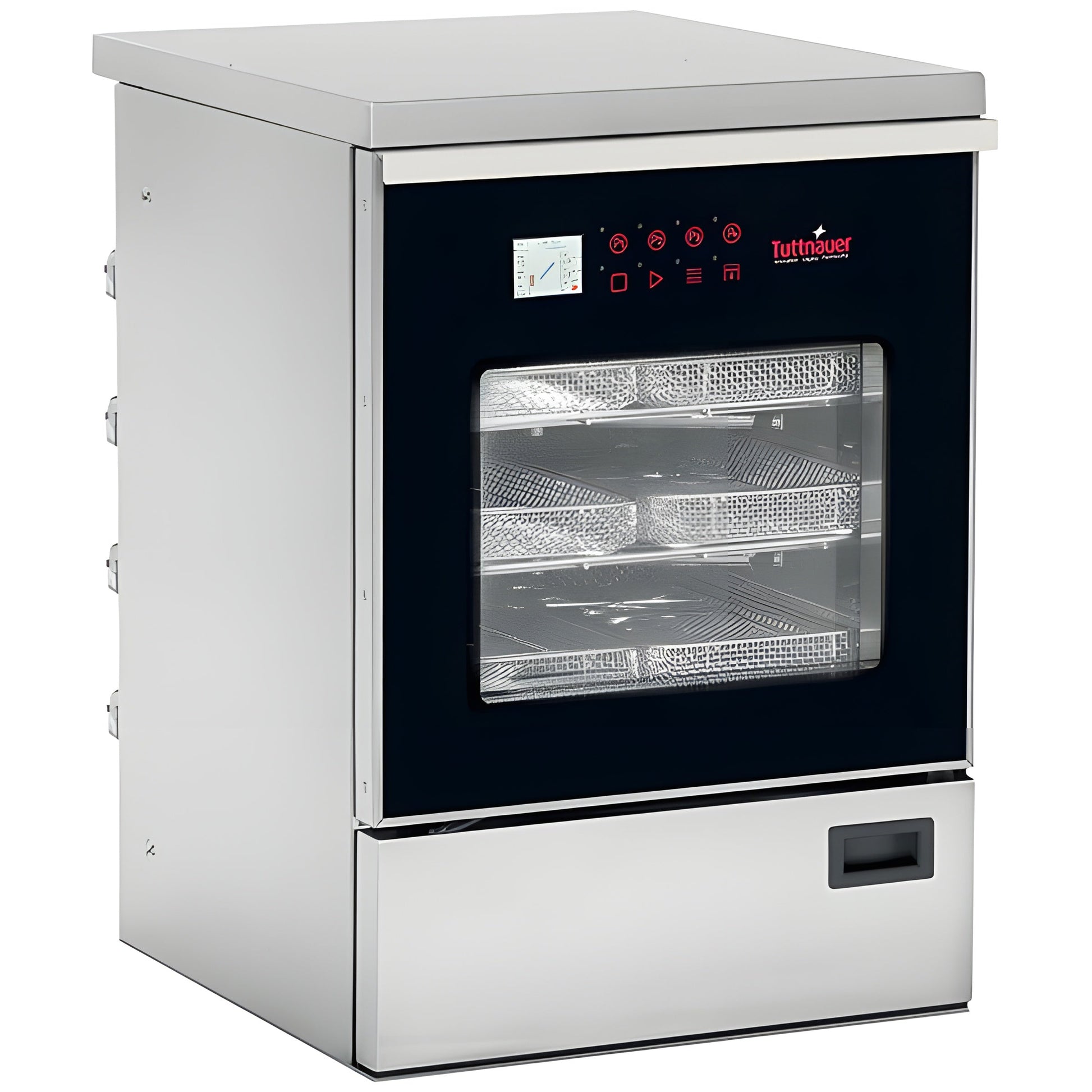

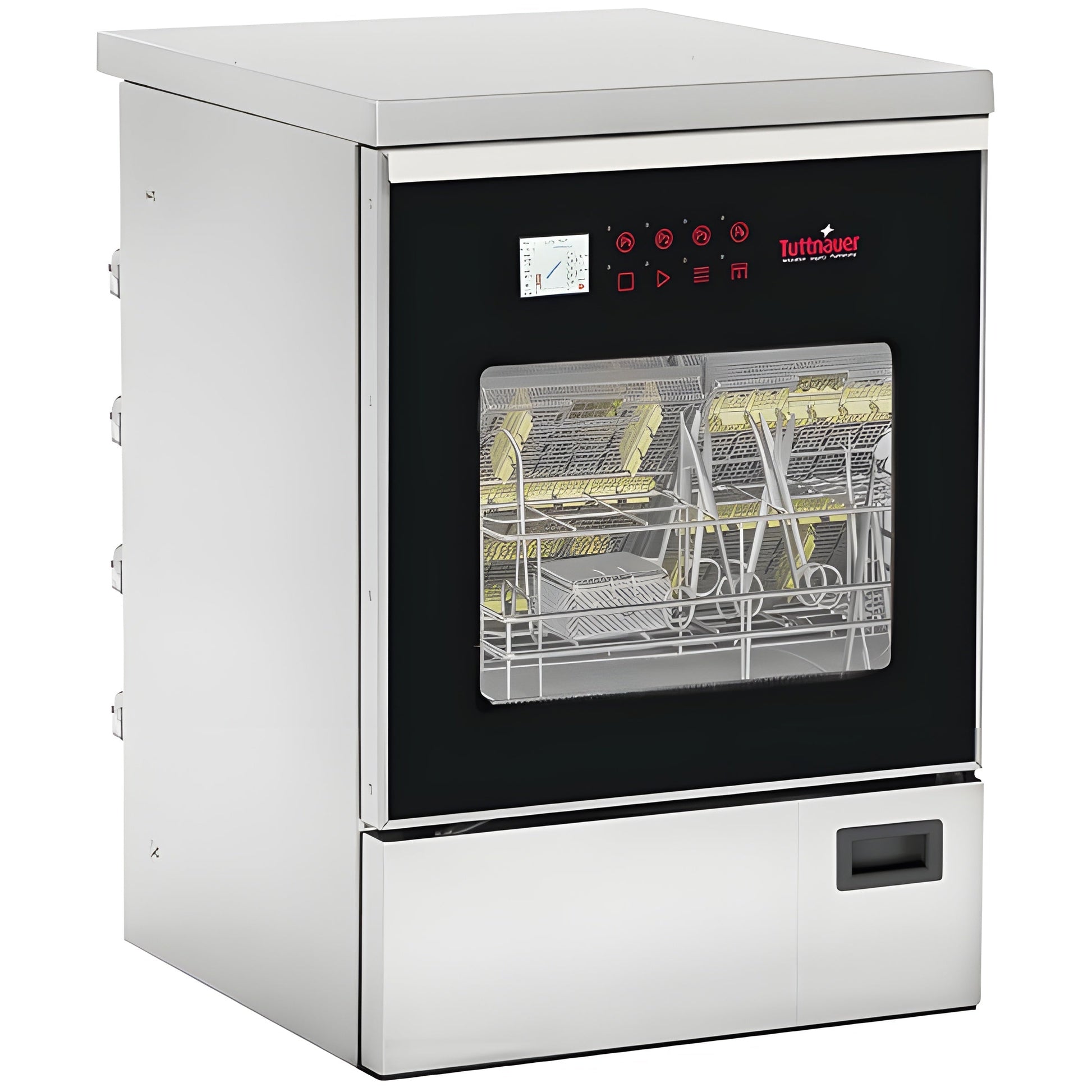

The Tuttnauer TIVA8-MD High Thermal Disinfection Washer is designed for washing, disinfecting, and drying vital instruments, to prepare them for sterilization.

The TIVA8-MD High Thermal Disinfection Washer is available in two power configurations: 3-Phase 208 - 240 V without Neutral, 60 Hz or Single Phase 208 - 240 V without Neutral, 60 Hz (see Packages for inclusions). It features a double-layered tempered glass door, and is made from AISI 316L stainless steel. The upper rack is equipped with a monitored spray arm, and the chamber features a multi-color LED light source to indicate stages of each phase.

This Disinfection Washer utilizes cold and hot water with softeners, and demineralized water to effectively wash instruments. It's very user-friendly, with 40 washing programs to choose from on a single-touch color display. After each cleaning, the unit produces a graphic report for each washing phase with pertinent information such as time and temperature.

The integrated water softener and built-in steam condenser ensure an eco-friendly wash with each cycle. They reduce contamination and remove excess steam. In addition, there are two dosing pumps with flowmeters which dictate the amounts of acid and alkaline detergents for monitoring.

Features
  • User-friendly, touchscreen, color display.
  • Up to 40 washing cycles to choose from.
  • Effectively prepares instruments for sterilization.
  • Each cycle produces a report with washing phase information for records.

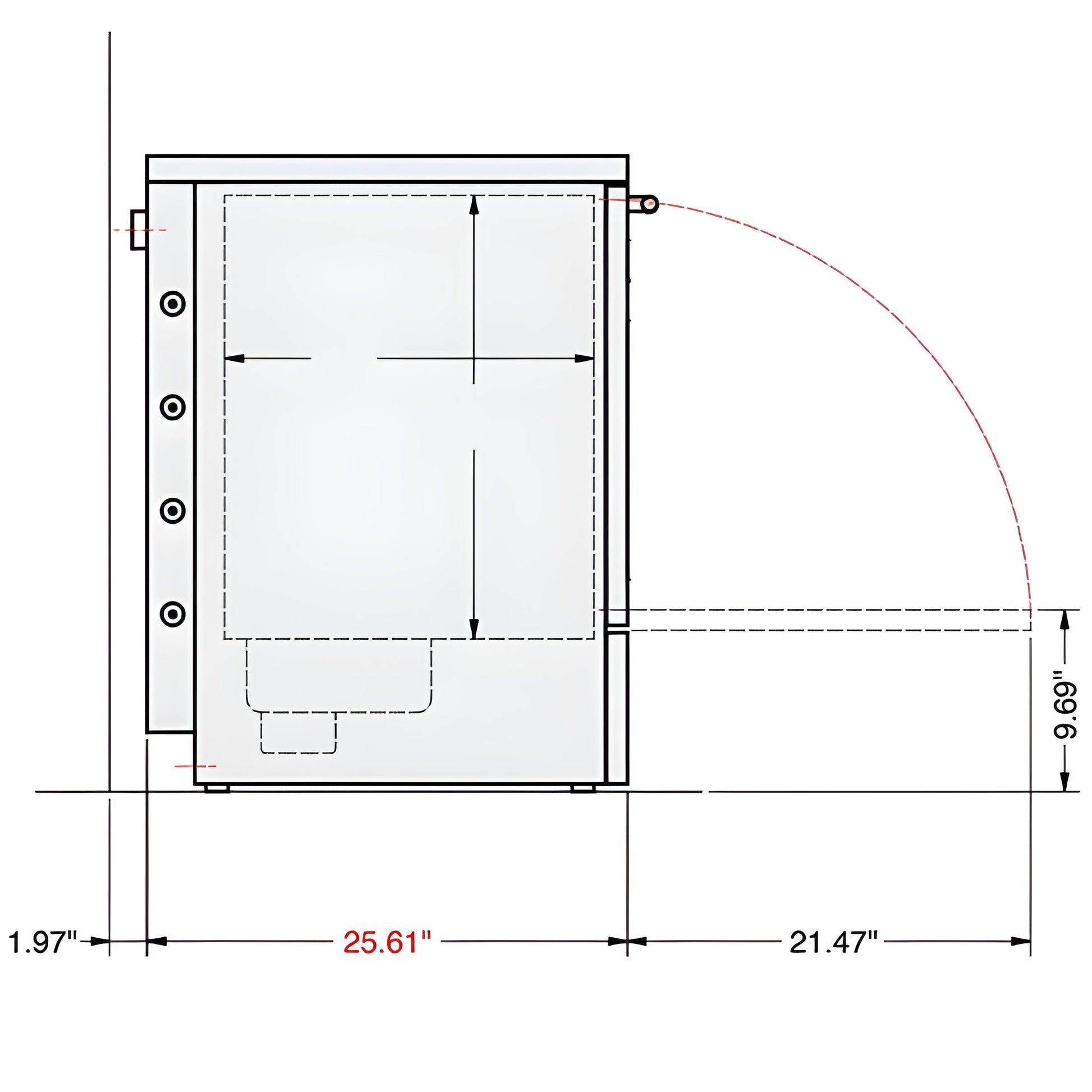

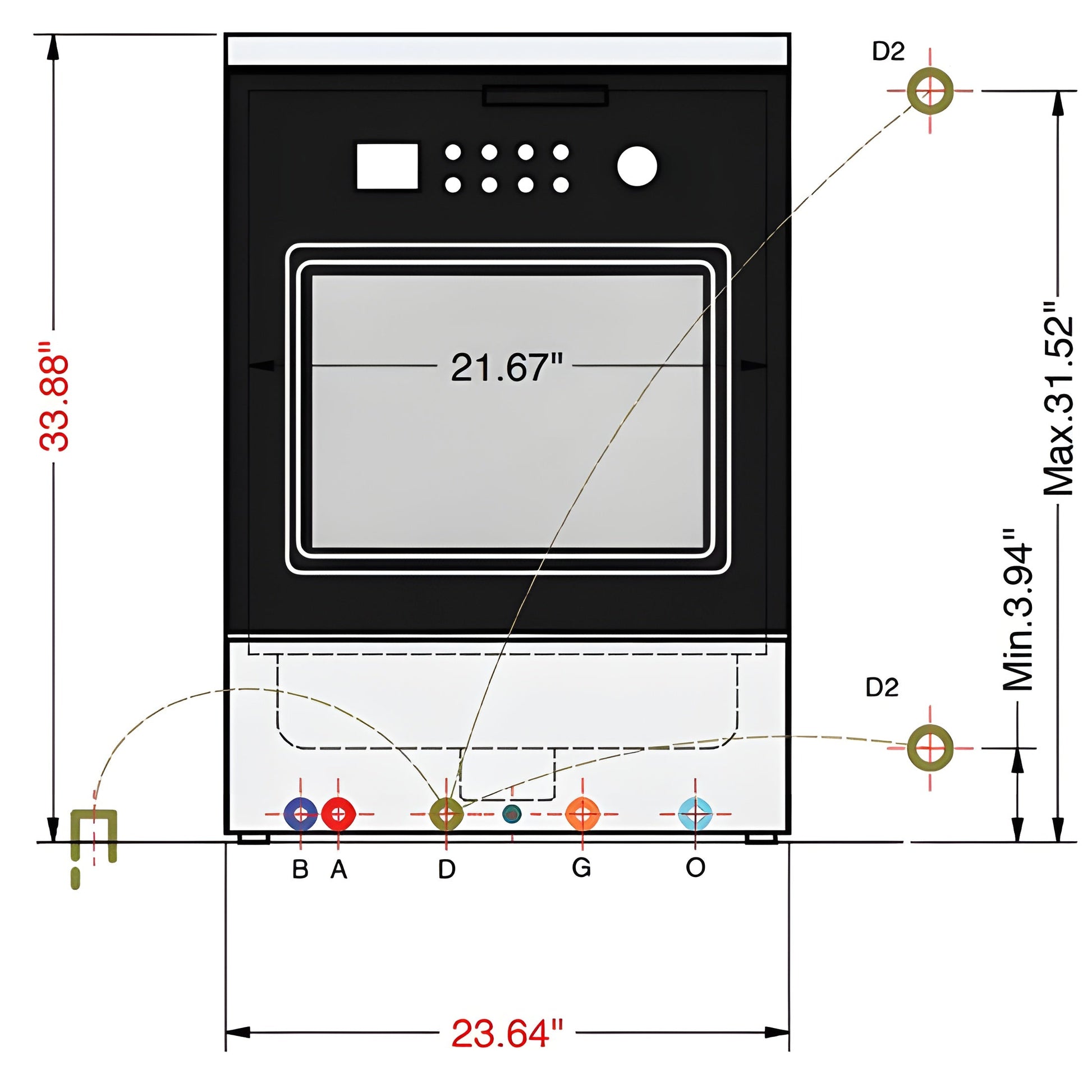

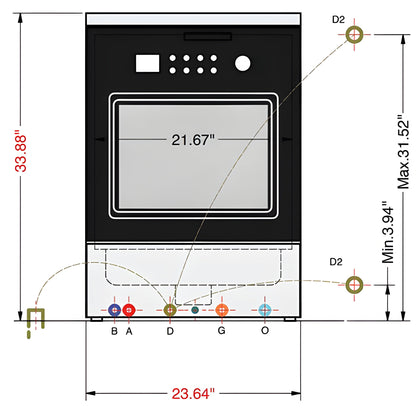

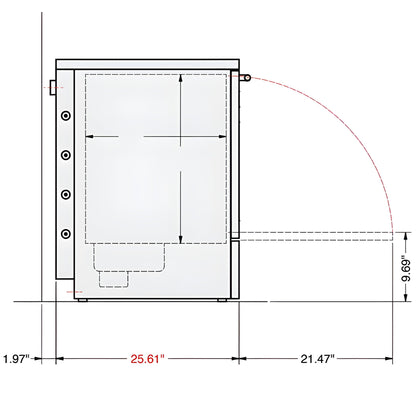

Specifications
Height 33.88"
Width 23.64"
Hot Water Connection 3/4" g (tube 1/2" g)
Cold Water Connection 3/4" g (tube 1/2" g)
Drain Hose Connection 0.984" (at wall, dn 40)
Demineralized Water Connection 1/2" g
Material AISI 316L Stainless Steel
Packages

The following lists what items are included with each package.

  • #TIVA8-MD 1 DENTAL:
    • TIVA8-MD High Thermal Disinfection Washer - 1 Phase, 208 - 240 V (#112002083).
    • (A206) Insert Trays/Cass. 6 POS. (35 mm) (#D00774100).
    • (A085) 1/3 Basket - Suitable on all racks (#D00594900).
    • (A194) Insert - 14 Position (#D00752400).
  • #TIVA8-MD 3 DENTAL:
    • TIVA8-MD High Thermal Disinfection Washer - 3 Phase, 208 - 240 V (#112002082).
    • (A206) Insert Trays/Cass. 6 POS. (35 mm) (#D00774100).
    • (A085) 1/3 Basket - Suitable on all racks (#D00594900).
    • (A194) Insert - 14 Position (#D00752400).
  • #TIVA8-MD 1 MEDICAL:
    • TIVA8-MD High Thermal Disinfection Washer - 1 Phase, 208 - 240 V (#112002083).
    • (A002) (4) DIN Baskets - 19" x 10" x 2" (#465060061).
  • #TIVA8-MD 3 MEDICAL:
    • TIVA8-MD High Thermal Disinfection Washer - 3 Phase, 208 - 240 V (#112002082).
    • (A002) (4) DIN Baskets - 19" x 10" x 2" (#465060061).
  • #TIVA8-L: Glass Lab Washer - 3 Phase, 208 - 240 V.
Accessories
  • Tuttnauer TIVA8 Basket Package
    • Dental Package
      • (A206) Insert Trays/Cass. 6 POS. (35 mm) (#D00774100).
      • (A085) 1/3 Basket - Suitable on all racks (#D00594900).
      • (A194) Insert - 14 Position (#D00752400).
    • Medical Package
      • (A002) (4) DIN Baskets - 19" x 10" x 2" (#465060061).
Literature

Tuttnauer TIVA8-MD High Thermal Disinfection Washer Brochure

What Our Experts Think
  • Advanced Thermal Disinfection – Ensures thorough disinfection of dental instruments with high thermal efficiency, providing hygienic results with every cycle.
  • Optimal for Dental Use – Specifically designed for dental practices, handling a wide range of dental instruments with ease and effectiveness.
  • Fast & Efficient – High-performance cycles reduce turnaround time, enhancing productivity in busy dental offices.
  • User-Friendly Interface – Simple, intuitive controls make it easy to operate, even for staff with minimal technical experience.
  • Reliable & Durable – Built with quality materials to ensure long-lasting performance and minimal downtime, making it a dependable addition to any dental practice.
Q&A

Q: How does the Tuttnauer TIVA8-MD High Thermal Disinfection Washer work?
A: The washer uses high-temperature water and detergent to clean and disinfect dental instruments. The automatic cycles ensure thorough cleaning, disinfecting, and drying of instruments, which are essential for maintaining hygiene standards in dental offices.

Q: What is the capacity of the Tuttnauer TIVA8-MD High Thermal Disinfection Washer?
A: The Tuttnauer TIVA8-MD features a spacious chamber that can accommodate a variety of dental instruments, allowing for multiple tools to be disinfected in one cycle.

Q: Is the Tuttnauer TIVA8-MD High Thermal Disinfection Washer easy to use?
A: Yes, it features a user-friendly control panel with intuitive buttons and a digital display, making it simple to operate and monitor the disinfection process.

Q: What types of instruments can be disinfected with the Tuttnauer TIVA8-MD High Thermal Disinfection Washer?
A: The TIVA8-MD is designed for cleaning and disinfecting dental instruments, including handpieces, scalers, forceps, and other dental tools that are safe for thermal disinfection.

Q: Is the Tuttnauer TIVA8-MD High Thermal Disinfection Washer energy-efficient?
A: Yes, the TIVA8-MD is designed to be energy-efficient, ensuring high performance while minimizing energy consumption, making it a cost-effective solution for dental offices.

Q: Does the Tuttnauer TIVA8-MD High Thermal Disinfection Washer comply with infection control standards?
A: Yes, the TIVA8-MD is compliant with infection control standards, including those set by the CDC and OSHA, to ensure dental instruments are properly disinfected and safe for patient use.

Q: What is the cycle time for the Tuttnauer TIVA8-MD High Thermal Disinfection Washer?
A: The cycle time varies depending on the load and specific settings, but it typically ranges from 20 to 60 minutes, including the cleaning, disinfecting, and drying phases.

Q: Who is the Tuttnauer TIVA8-MD High Thermal Disinfection Washer ideal for?
A: This disinfection washer is ideal for dental offices that need an efficient, reliable, and high-performance solution for disinfecting dental instruments quickly and effectively.

Maintenance Tips
  • Daily Cleaning: Clean the interior and exterior of the disinfection washer daily to prevent buildup of debris, soil,
