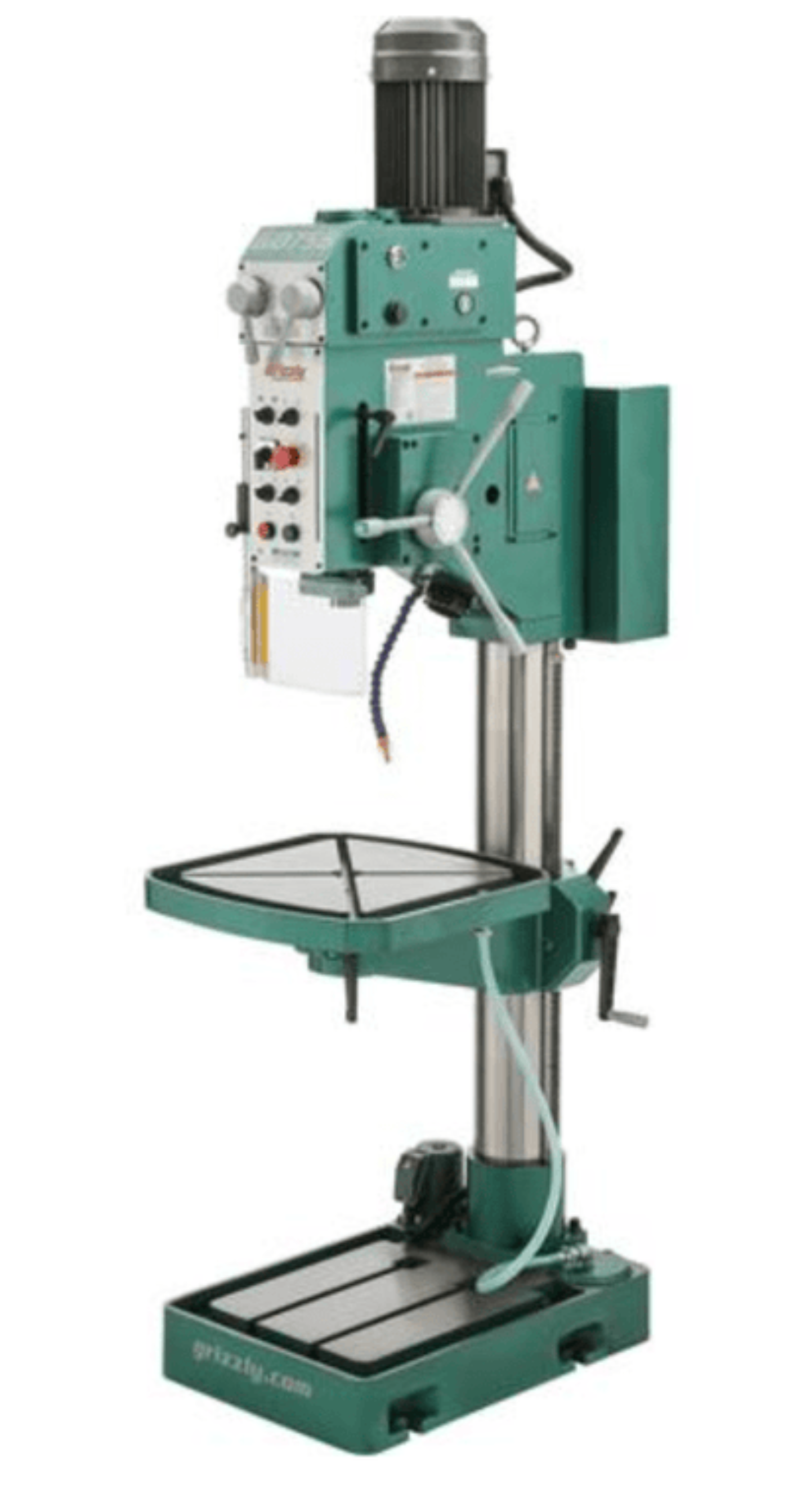

U.S Industrial Grizzly G0756 - 27-1/2" Heavy-Duty Drilling Machine
G0756 27-1/2" Heavy-Duty Drilling Machine
Built for the most demanding production shops.
The G0756 27-1/2" Heavy-Duty Drilling Machine has a massive 6" column diameter providing the necessary rigidity to ensure repeatable accuracy—even when drilling 1-1/2" holes at high speeds!
Geared drill presses are designed for drilling larger holes than belt driven machines. This machine has a 1-1/8 / 2 HP motor that provides the power for drilling and tapping.
Another advantage is using convenient quick-change gearbox controls for managing spindle speed. Just twist a lever or two to choose between 18 speeds from 60–1740 RPM.
The MT #4 spindle has 7" of travel, 2-speed automatic downfeed, power tapping with electronic clutch, an LED work light, and a tooling ejection feature for fast bit changes.
This colossal workhorse also includes a built-in coolant system vital for drilling metal. It also comes with a packed toolbox to maintain your machine including an MT #4–MT #3 and MT #4–MT #2 spindle adapters, and 1/8"–5/8" drill chuck with arbor.
The precision-ground cast-iron table is nearly 2" thick and features a 22" x 22" work surface, two 9/16" crossed T-slots, and coolant drainage troughs.
The maximum spindle to table distance is 30-3/4" and the table rotates out of the way, so the workpiece can mount to the precision-ground base table, using its two 9/16" parallel T-slots.
Like all Grizzly drill presses, the G0756 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.
The G0756 easy-to-read manual was written by our U.S. based Technical Documentation Department and makes it easier to assemble and maintain your drill press.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
Features
- Front-mounted emergency stop button
- See-through chip guard
- Pump-driven recycling coolant system
- 360° table positioning around column
- Built-in LED work light
- Depth stop with auto shut-off switch
- Spindle speeds change with convenient gearhead levers
- Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate service is not available.
Specifications
| Main Motor |
1-1/8 / 2 HP, 220V, 3-phase, 6.4A |
| Coolant Pump |
75W |
| Swing |
27-1/2" |
| Max. Spindle to Table |
30-3/4" |
| Max. Distance Spindle to Column |
11" |
| Spindle Travel |
7" |
| Spindle Speeds |
18, 60-740 RPM |
| Spindle Taper |
MT #4 |
| Drilling Capacity (Cast Iron) |
1-1/2" |
| Drilling Capacity (Steel) |
1" |
| Downfeed Speeds |
1mm/rev, 2mm/rev |
| Table Size |
22" L x 22" W x 1-7/8" H |
| Vertical Table Travel |
20" |
| Table Swivel |
360° |
| T-Slot Size |
9/16" |
| Quill Diameter |
3" |
| Footprint |
20" W x 29" D |
| Overall Size (W x D x H) |
22" x 37" x 89-1/2" |
| Approximate Shipping Weight |
1202 lbs. |
What our Experts Think
-
27-1/2" Heavy-Duty Design: Built for industrial use, offering superior stability and precision for demanding drilling applications.
-
High-Powered Motor: Delivers ample torque and consistent performance, making it ideal for metalworking, woodworking, and fabrication shops.
-
Variable Speed Control: Allows for precise adjustments to match different materials and drill bit sizes, ensuring optimal results.
-
Rugged Construction: Made with durable cast iron and steel components, providing long-lasting reliability in heavy-use environments.
-
Large Worktable: Accommodates various workpiece sizes and offers excellent support for precision drilling.
-
Adjustable Depth Stop: Ensures consistent hole depths for repeat drilling operations, improving efficiency.
-
Ideal for Industrial & Commercial Use: Perfect for machine shops, metal fabricators, and manufacturing facilities requiring a powerful and versatile drilling machine.
Q&A
Q: What is the U.S. Industrial Grizzly G0756 Heavy-Duty Drilling Machine?
A: A powerful 27-1/2" heavy-duty drilling machine designed for precision drilling in industrial and workshop settings.
Q: What are the key features?
A: Heavy-duty cast iron construction, variable speed control, large worktable, powerful motor, and precision depth control for accurate drilling.
Q: What materials can it drill through?
A: Suitable for drilling through metal, wood, and other tough materials in industrial applications.
Q: Is it suitable for professional use?
A: Yes, it's designed for industrial and heavy-duty workshop environments requiring precision and durability.
Q: How durable is the machine?
A: Built with a rigid cast iron frame and high-quality components for long-lasting performance.
Q: What’s included with the drilling machine?
A: Drill press, adjustable worktable, chuck, and safety guards.
Maintenance Tips
-
Keep It Clean: Regularly wipe down the machine and remove dust, metal shavings, and debris to prevent buildup.
-
Lubricate Moving Parts: Apply the recommended lubricants to the spindle, bearings, and other moving components to reduce wear.
-
Check Belt Tension: Inspect and adjust belt tension as needed to maintain proper drilling performance.
-
Inspect Electrical Components: Ensure power cords, switches, and wiring are in good condition and free from damage.
-
Tighten Bolts & Fasteners: Periodically check all bolts, screws, and fasteners to keep the machine stable and secure.
-
Monitor Drill Bits: Use sharp, high-quality drill bits and replace dull or damaged ones to ensure precision drilling.
-
Follow Load Limits: Avoid excessive force or overloading to prevent motor strain and prolong machine life.
