U.S Industrial Grizzly G0860 - 1-1/2 HP Portable Cyclone Dust Collector

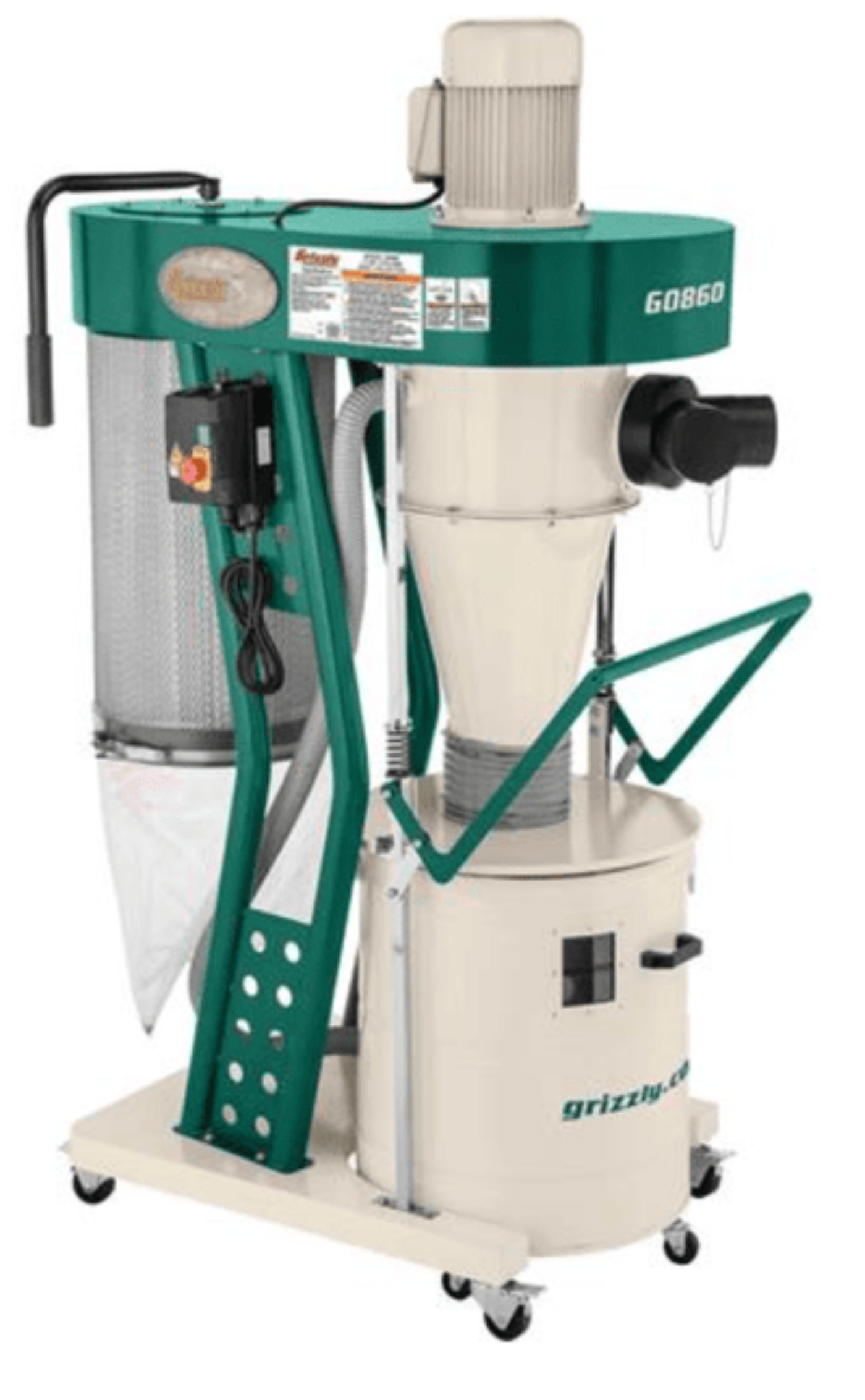

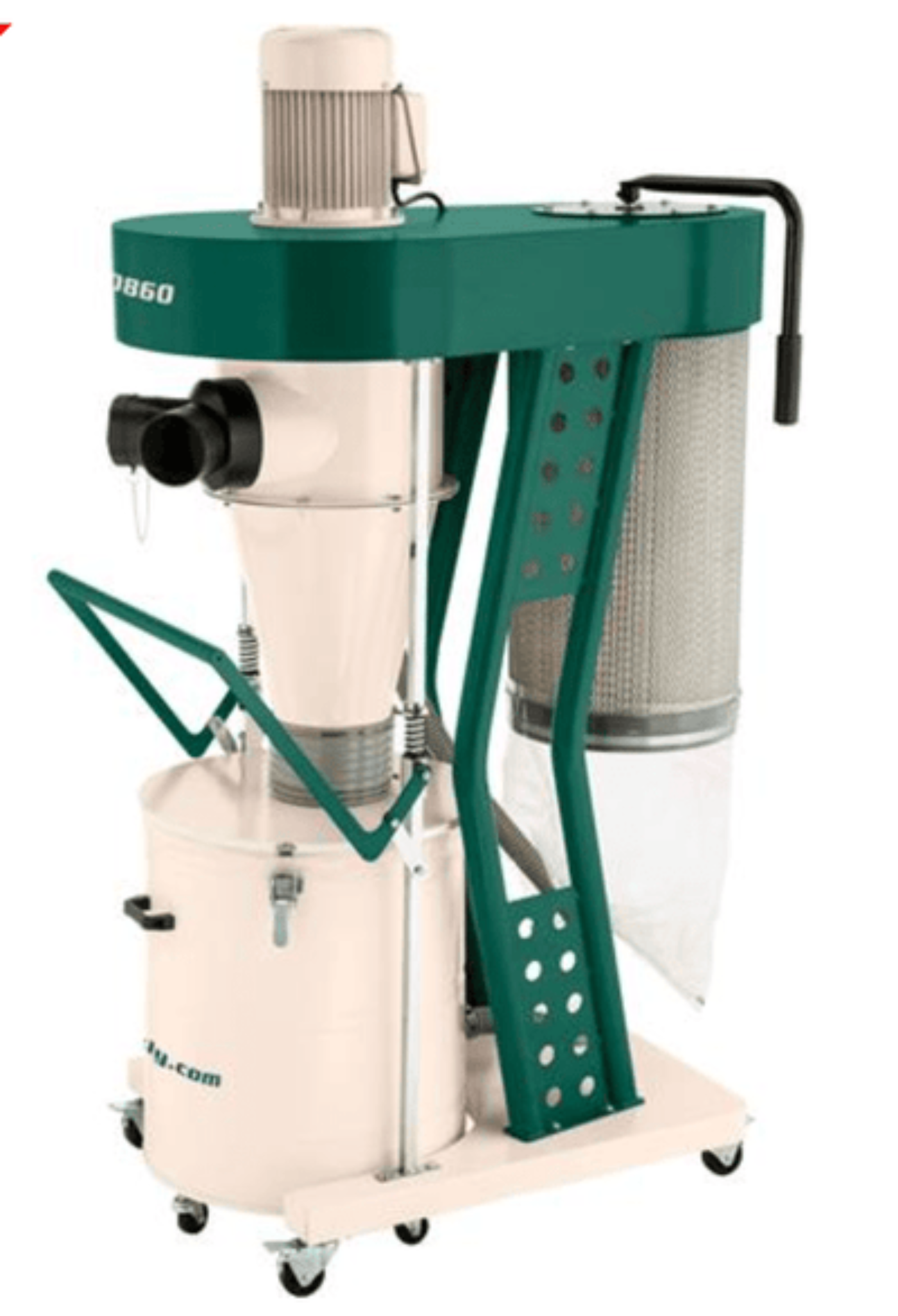

G0860 1-1/2 HP Portable Cyclone Dust Collector
For the shop tight on space needing a portable dust collector.
The G0860 1-1/2 HP Portable Cyclone Dust Collector features an impressive 868 CFM and up to 9.7" of static pressure, creating a vortex of incoming air that extracts heavy wood chips and large dust particles into a plastic-bag-lined steel drum.
The remaining fine dust travels past the 12-3/4" aluminum impeller, is caught by a canister filter and then deposited in a separate plastic collection bag.
The spun-bond polyester filter catches 99.9% of particles to 1-micron in size and is pleated to provide maximum surface area for efficient air flow.
A turn of the crank handle rotates the paddle brushes, knocking caked-on dust off of the pleats to keep your CFM as high as possible.
The collection drum features a quick-release handle that makes it easy to roll it out for sawdust disposal.
This cyclone has a normal operating sound range of 78 dB, slightly quieter than a telephone dial tone.
A great value for the price and an upgrade over any single-stage unit.
Replacement T30314 Filters are available.
The upgraded T30489 HEPA Filters are also available for those wanting to capture particles down to 0.3 microns.
Like all Grizzly machines, the G0860 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.
The G0860 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your two-stage dust collection system.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for your machine may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
Features
Collection drum with quick-release handle for easy disposal
Two-stage operation for ultimate dust collection
Swivel casters
Lift handle and roll drum for easy sawdust disposal
Pleated filter with paddle brushes and crank handle for max air flow efficiency
Vacuum equalizer built into collection drum for use with disposable plastic bags
Wireless remote control
Specifications
| Motor |
1-1/2 HP, 110V, single-phase, 15A |
| Intake Hole Size |
6" |
| Impeller |
12-3/4" aluminum |
| Airflow Capacity |
868 CFM at 1.8" SP |
| Max Static Pressure |
9.7" |
| Filtration |
1-micron |
| Filter Surface Area |
28.1 sq. ft. |
| Collection Size |
20-gallon drum |
| Sound Rating |
78 dB |
| Overall Dimensions |
27-1/2" W x 44" L x 70" H |
| Approximate Shipping Weight |
278 lbs |
What our Experts Think
-
1-1/2 HP Motor: Provides reliable suction for efficient dust collection in woodworking and light industrial applications.
-
Cyclone Separation System: Separates heavy debris before reaching the filter, maintaining strong airflow and reducing filter clogging.
-
Portable & Compact Design: Equipped with casters for easy movement, making it ideal for small to medium workshops.
-
High-Efficiency Canister Filter: Captures fine dust particles down to 1 micron for improved air quality.
-
Large Collection Drum: Extends operating time between emptying, enhancing workflow efficiency.
-
Sturdy Steel Construction: Built for durability and long-term use in demanding shop conditions.
-
Perfect for Woodworking Shops: Ideal for cabinet makers, home workshops, and small production facilities requiring reliable dust management.
Q&A
Q: What is the U.S. Industrial Grizzly G0860 Cyclone Dust Collector?
A: A 1-1/2 HP portable cyclone dust collector designed for efficient dust separation and mobility in woodworking and industrial environments.
Q: What are the key features?
A: 1-1/2 HP motor, cyclone dust separation for improved filtration, high airflow capacity, compact portable design with casters, and a large collection drum.
Q: What types of dust does it capture?
A: Effectively collects fine dust, wood chips, and larger debris, making it ideal for woodworking shops and industrial applications.
Q: Is it suitable for professional use?
A: Yes, it is built for workshops, woodworking facilities, and industrial settings requiring mobile dust collection.
Q: How efficient is the filtration system?
A: The cyclone design optimizes dust separation before reaching the filter, reducing clogging and maintaining consistent airflow.
Q: What’s included with the dust collector?
A: Dust collector unit, cyclone separator, collection drum, filtration system, caster wheels, and necessary hoses and fittings.
Maintenance Tips
-
Empty the Collection Drum Regularly: Prevent loss of suction by disposing of dust before it reaches full capacity.
-
Clean or Replace Filters: Check and clean the HEPA or pleated filter to maintain maximum airflow and filtration efficiency.
-
Inspect Hoses & Connections: Look for cracks, leaks, or blockages to ensure proper dust collection.
-
Monitor Motor & Impeller Performance: Ensure the motor runs smoothly without excessive noise or overheating, and check the impeller for dust buildup.
-
Lubricate Bearings & Moving Parts: Apply lubrication to motor bearings and other moving components to reduce wear.
-
Secure Fasteners & Mounts: Tighten all bolts, clamps, and seals to prevent vibration-related loosening.
-
Check Suction Power & Airflow: Run periodic tests to detect any performance drops due to clogged filters or leaks.
-
Ensure Proper Seal on Dust Drum: Make sure the drum lid and gaskets are airtight to prevent suction loss.
