U.S Industrial Grizzly G0862 - 3 HP Portable Cyclone Dust Collector

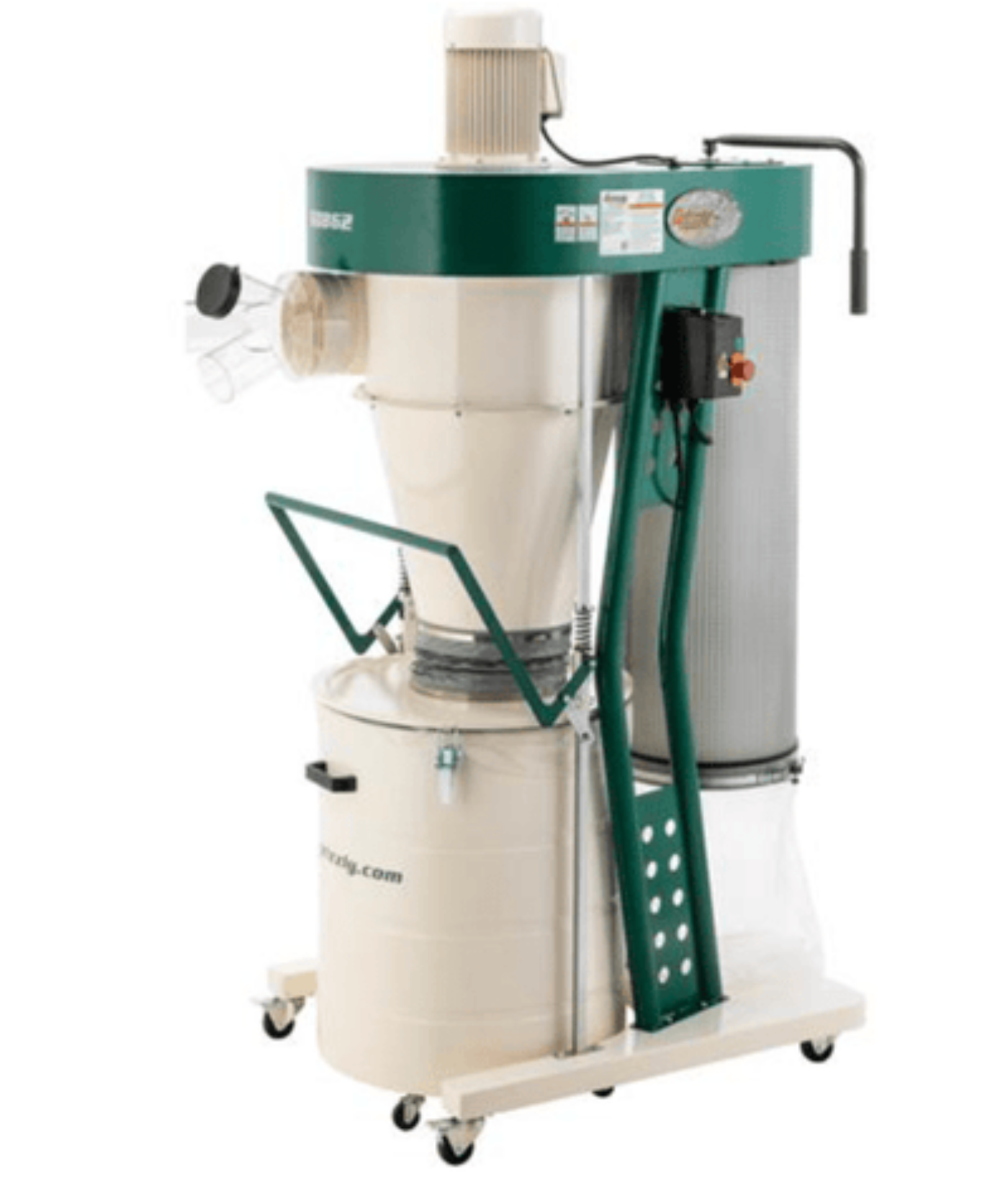

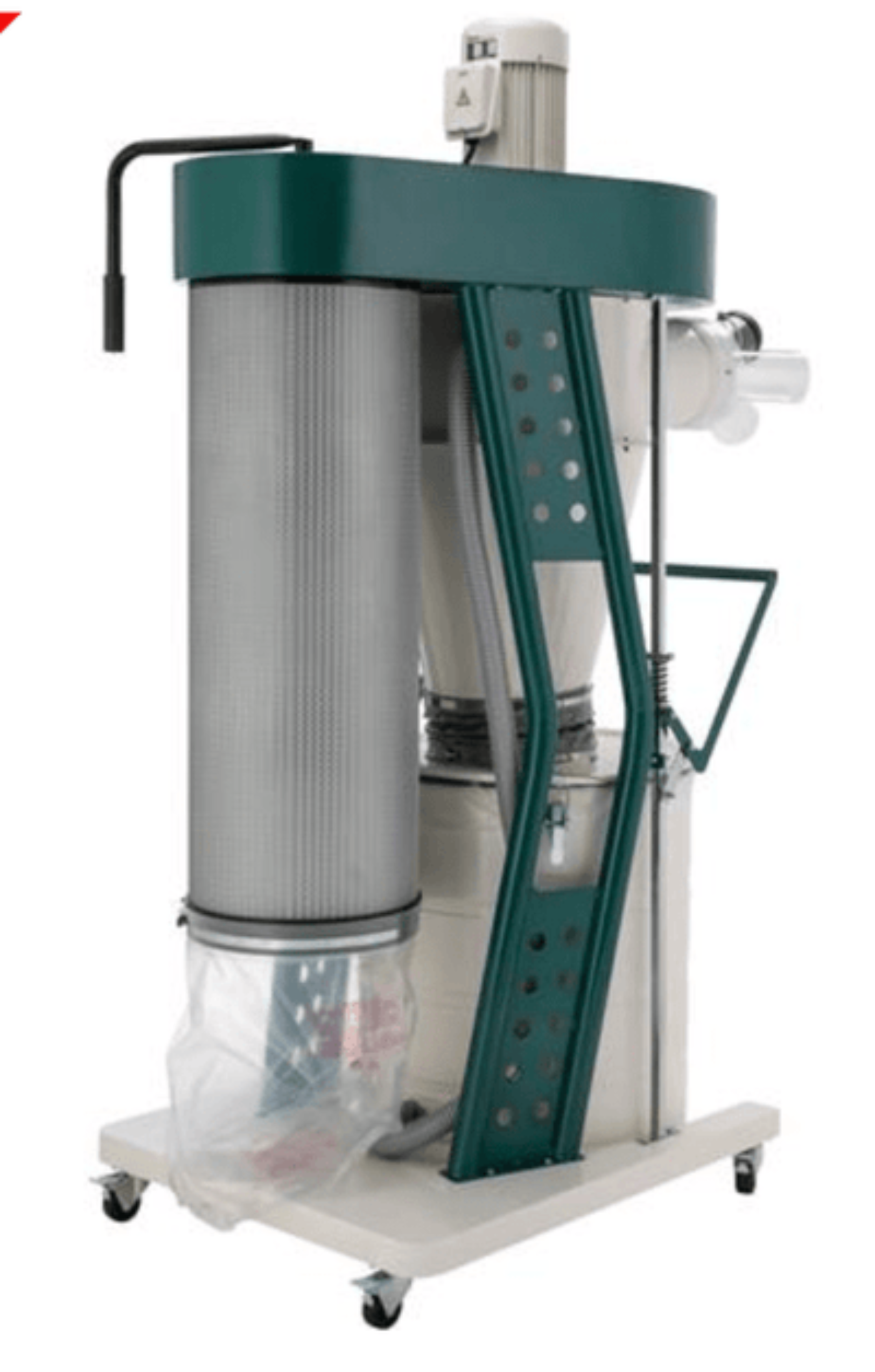

G0862 3 HP Portable Cyclone Dust Collector
A quality dual-filtration unit for keeping your shop clear of dust.
Need a high CFM dust collector for your shop? Look no further than this 3 HP beast with an airflow capacity of 1941 cubic feet per minute and 45-gallon collection capacity.
The G0862 Portable Cyclone Dust Collector creates a vortex of incoming air that extracts heavy wood chips and large dust particles into a plastic-bag-lined steel drum.
The remaining fine dust travels past the 15" cast-aluminum impeller, is caught by a canister filter, and deposited in a separate plastic collection bag.
The spun-bond polyester filter catches 99.9% of particles to 1 micron in size and is pleated to provide maximum surface area for efficient airflow. A crank handle rotates the paddle brushes, knocking caked-on dust off of the pleats to keep your CFM as high as possible.
The collection drum features a quick-release handle that makes sawdust disposal easy. The impellers are computer balanced to minimize vibration. This cyclone has a normal operating sound range of 79 dB, slightly quieter than a telephone dial tone.
Machines manufactured after 2021 feature a heavy-gauge clear plastic adapter that allows three 4" lines to be connected simultaneously. This allows for easy visibility and will help track down potential clogs.
Replacement T30315 Filters are available.
The upgraded T30490 HEPA Filters are also available for those wanting to capture particles down to 0.3 microns.
Like all Grizzly machines, the G0862 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.
The G0862 manual was written by our U.S. based Technical Documentation Department and is packed with useful information.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for your machine may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
Features
- Two-stage operation for ultimate dust collection
- Built-in collection drum vacuum equalizer
- Lift handle and roll drum for easy sawdust disposal
- Pleated filter with paddle brushes and crank handle
- Heavy-gauge clear plastic adapter for easy visibility
- Wireless remote control
Specifications
| Motor |
3 HP, 220V, single-phase, 15A |
| Main Inlet Size |
8" |
| Impeller |
16" aluminum |
| Airflow Capacity |
1941 CFM @ 2.9" SP |
| Max Static Pressure |
11.0" |
| Filtration |
1-micron |
| Filter Surface Area |
45.2 sq. ft. |
| Collection Capacity |
45-gallon drum |
| Sound Rating |
79 dB |
| Overall Dimensions |
31" W x 54" D x 82" H |
| Approximate Shipping Weight |
376 lbs |
What our Experts Think
-
High-Powered Dust Collection – 3 HP motor delivers strong suction for efficient debris and dust removal.
-
Cyclone Separation System – Reduces filter clogging by separating heavy particles before filtration.
-
Portable & Space-Saving – Compact design with easy-roll casters for flexibility in the workshop.
-
High-Capacity Collection – Large drum minimizes emptying frequency for uninterrupted workflow.
-
Perfect For – Woodshops and workshops needing powerful, mobile, and efficient dust extraction.
Q&A
Q: What is the U.S. Industrial Grizzly G0862?
A: A 3 HP portable cyclone dust collector designed for high-efficiency dust separation and collection in woodworking and industrial applications.
Q: What is the airflow capacity?
A: Provides up to 1,575 CFM (Cubic Feet per Minute) for powerful dust extraction.
Q: How does the cyclone system work?
A: Uses cyclonic separation to remove large debris before fine dust reaches the filter, reducing clogging and improving efficiency.
Q: What type of filtration does it use?
A: Features a canister filter with pleated media, ensuring fine dust capture and better air quality.
Q: What type of motor does it have?
A: A 3 HP motor, delivering strong and consistent suction.
Q: Is it portable?
A: Yes, it includes rolling casters for easy movement around the workshop.
Q: Can it support multiple machines?
A: Yes, it has multiple dust ports, allowing connection to multiple woodworking tools.
Q: Why choose the G0862?
A: Its high airflow, efficient cyclone separation, fine dust filtration, and portability make it a great choice for keeping a woodworking shop clean and dust-free.
Maintenance Tips
-
Filter & Canister Cleaning: Regularly clean or replace filters to maintain strong suction.
-
Dust Bin Emptying: Empty collection bins frequently to prevent clogs and maintain efficiency.
-
Cyclone Chamber Maintenance: Inspect for dust buildup and clean as needed for optimal separation.
-
Hose & Duct Inspection: Check for blockages, leaks, or wear in hoses and connections.
-
Motor & Fan Care: Keep free of dust buildup and lubricate bearings as required.
-
Seal & Gasket Check: Ensure all seals are intact to maintain strong airflow.
-
Electrical & Safety Inspection: Test wiring, switches, and grounding for safe operation.
