U.S Industrial Grizzly G0876 - 8" x 27" Enclosed CNC Mill w/ Auto Tool Changer

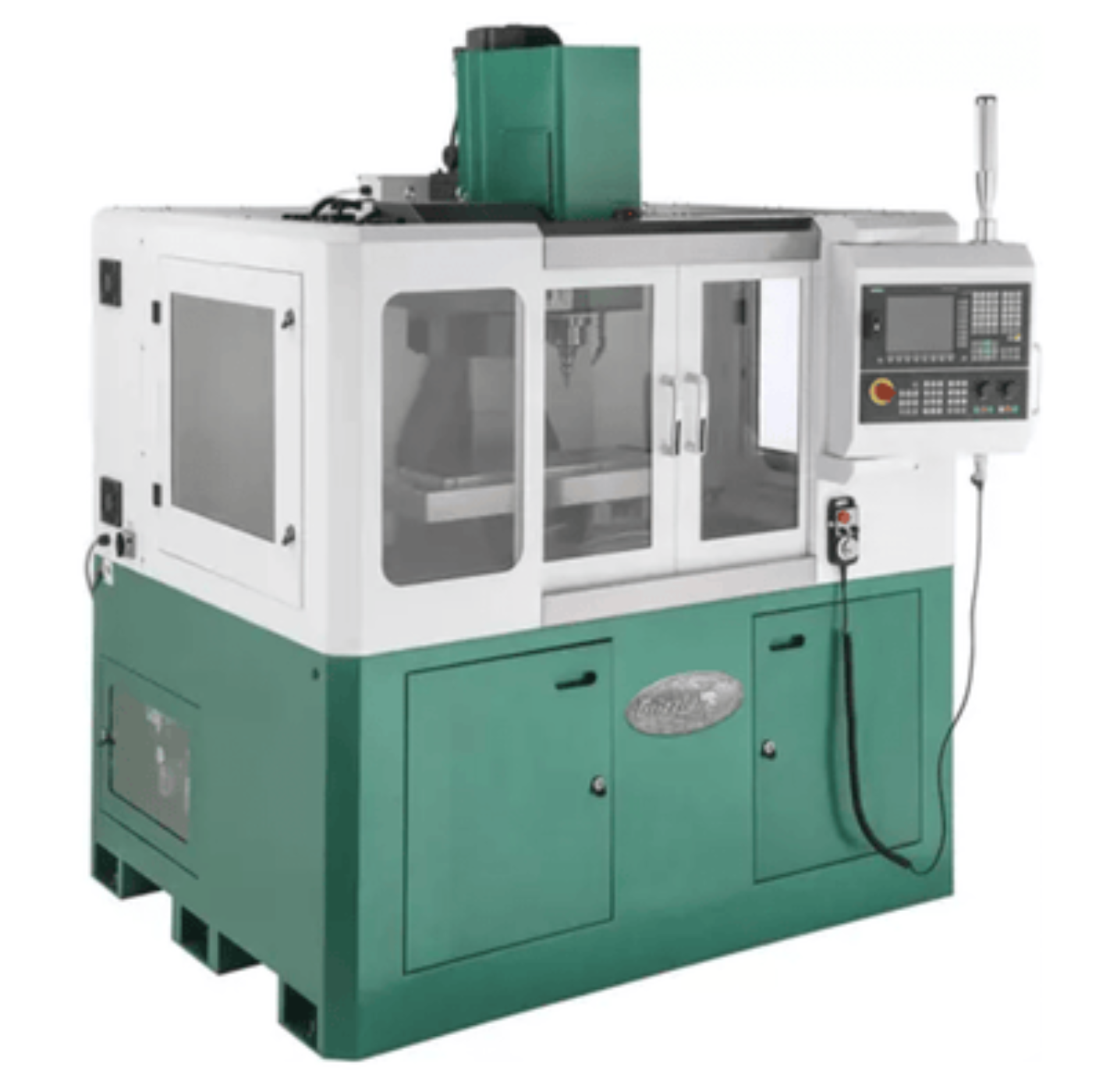

G0876 8" x 27" Enclosed CNC Mill w/Auto Tool Changer
Built with production in mind, the G0876 8" x 27" Enclosed CNC Mill w/Auto Tool
Changer features a 3 HP BT30 driven spindle.
Paired with an 8-position automatic tool changer and a powered pull stud, it's the perfect recipe for making some serious chips and doing so quickly.
The hands-free tool changer eliminates the need to babysit the machining cycle and allows you to maximize your most valuable resource, time.
With the Siemens Sinumerik CNC controller at the helm and powerful servo motors driving ball screws on all axes, the machine is built for accuracy.
With a 10,000 RPM spindle and rapid speeds of 400in./min. this machine can produce repeatable parts, fast!
All this wrapped in an enclosed cabinet with a high flow 13-gallon coolant tank and you have a machine ready to go to work for you.
The G0876 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)
The Grizzly Customer Service and Technical Support Teams are U.S. based.
Parts for the mill may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Features
- Siemens Sinumerk CNC controller
- Servo motors with ball screws on all axes
- Built in pendant/hand controller
- Powerful 3 HP main motor
- 50-10000 RPM spindle speeds
- Easy access to table from three sides
- Hands-free tool changes with 8-position automatic changer
- Rapid table speeds of up to 400 in./min.
- Heavy duty BT30 spindle included
Specifications
| Spindle Motor |
3 HP, 220V, 3-Phase, 6.4A |
| Spindle Taper |
BT30 |
| Spindle Speeds |
Variable, 50–10,000 RPM |
| X- and Y- Motors |
1 HP, 2.1A |
| Z- Motor |
1.3 HP, 3A |
| Spindle to Column |
11" |
| Spindle to Table |
16-1/2" |
| Longitudinal Travel |
12-3/16" |
| Cross Travel |
7-3/4" |
| Vertical Travel |
11-3/4" |
| Position Resolution |
±0.0008" |
| Repeat Position Resolution |
±0.0005" |
| Tool Changer |
8 positions |
| Tool Change Speed |
6 seconds |
| Max Tooling Weight |
13 lbs. |
| Table Size |
8-1/4" x 27" |
| Table T-Slots |
(3) 5/8" |
| Max Workpiece Weight |
220 lbs. |
| Rapid Speed |
400 in./min. |
| Coolant Tank Capacity |
13 gallons |
| Overall Dimensions (W x D x H) |
71" x 65" x 79" |
| Approximate Shipping Weight |
3350 lbs. |
What our Experts Think
-
Expanded Cutting Capacity – 8" x 27" work area for handling larger machining projects.
-
Automatic Tool Changer (ATC) – Improves efficiency with quick, automated tool swaps.
-
Fully Enclosed Design – Enhances safety and chip containment for cleaner operation.
-
Heavy-Duty Construction – Cast iron frame reduces vibration for precise, high-quality machining.
-
Perfect For – Small to mid-sized workshops needing CNC automation, versatility, and precision.
Q&A
Q: What is the U.S. Industrial Grizzly G0876?
A: An 8" x 27" enclosed CNC mill with an automatic tool changer, designed for precision machining in industrial and workshop settings.
Q: What is the work area size?
A: 8 inches x 27 inches, providing a larger cutting space for complex projects.
Q: What makes this CNC mill different from the G0875?
A: The G0876 includes an automatic tool changer (ATC) for increased efficiency and reduced downtime between tool changes.
Q: What materials can it machine?
A: Suitable for metals, plastics, and composites, depending on the tooling used.
Q: Does it have an enclosure?
A: Yes, it features a fully enclosed design for enhanced safety, dust control, and a cleaner work environment.
Q: What type of CNC control does it use?
A: Compatible with standard CNC programming, allowing automated, high-precision machining.
Q: Does it include a coolant system?
A: Yes, it has built-in coolant capabilities to improve tool life and machining performance.
Q: Why choose the G0876?
A: Its larger work area, automatic tool changer, and enclosed industrial-grade build make it an excellent choice for precision manufacturing, prototyping, and small-scale production.
Maintenance Tips
-
Lubrication: Regularly check and apply lubricant to moving parts for smooth operation.
-
Coolant System: Maintain proper coolant levels and clean filters to prevent clogging.
-
Chip & Debris Removal: Clean work area and chip trays daily to avoid buildup.
-
Auto Tool Changer Care: Inspect tool holders and ensure smooth tool changes.
-
Spindle & Belt Maintenance: Check for wear and proper tension to prevent breakdowns.
-
Software & Calibration: Regularly update software and calibrate for precision.
-
Electrical & Safety Check: Inspect wiring, connections, and emergency stops for safety.
