U.S Industrial Grizzly G0894 - 24" x 36" CNC Router

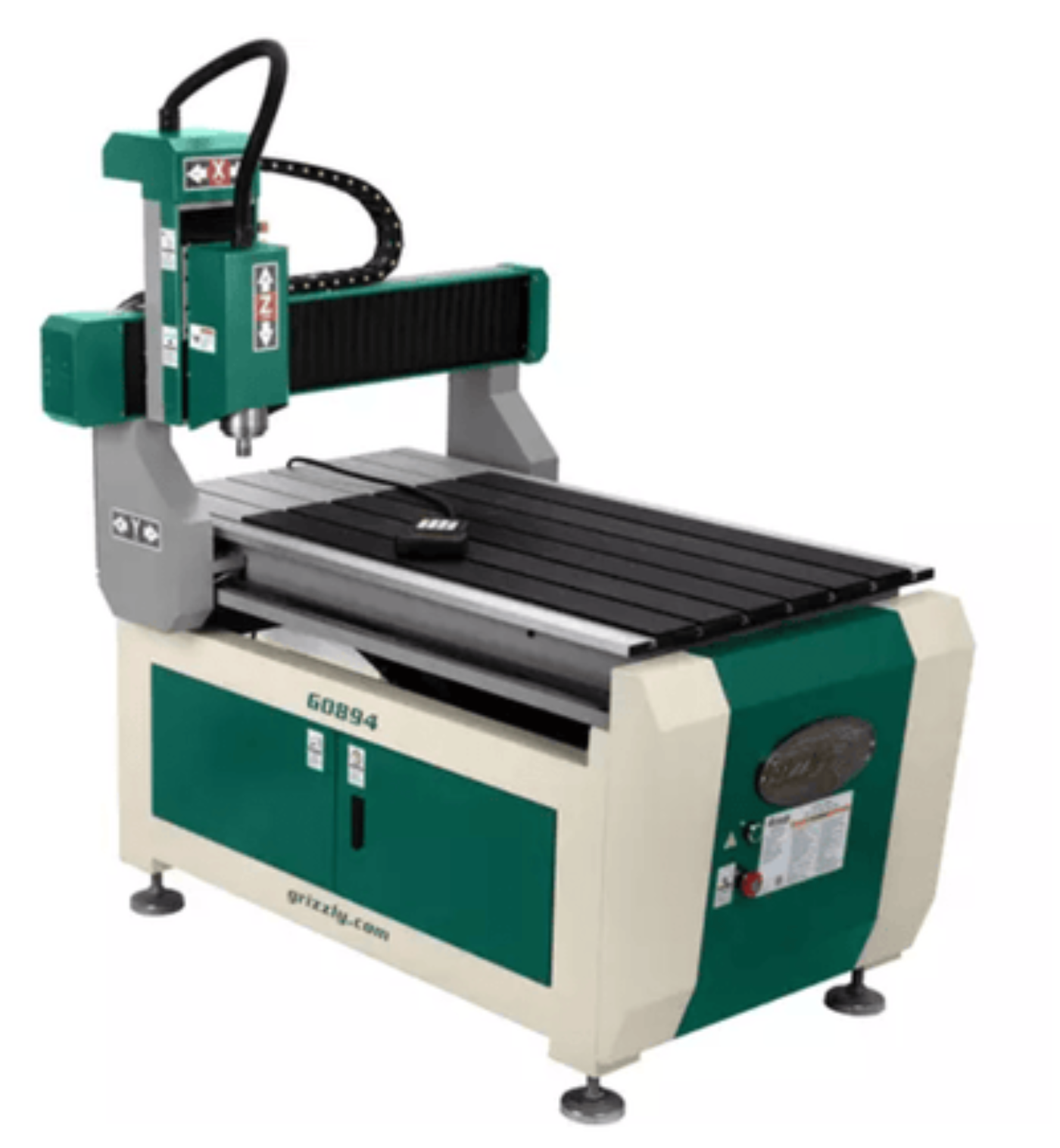

G0894 24" x 36" CNC Router
Take your shop to the next level by adding CNC capabilities.
The G0894 CNC Router boasts a large 23-5/8" x 35-3/8" cutting area with a 3 HP, 24,000 RPM spindle motor to do the work.
This machine features stepper motor driven ball screws on all axes that can approach cutting speeds of 400 inches per minute. This ensures accurate, repeatable results and saves you precious time in the shop.
The integrated controller allows you to store commonly used programs on the hard drive as well as load programs from a flash drive or even connect directly to you PC.
The spindle utilizes ER20 collets allowing for a wide range of tooling options.
The one-shot oiler for the precision ground bearing carriages and the water cooled spindle prove that this machine is ready for production.
This machine is compatible with many common CAD/CAM platforms including, but not limited to:
- Vcarve and Vcarve Pro
- Aspire
- Cut2D
- Fusion360
- Solidworks
- Type3
- Artcam
- UG
- Pro/E
- MasterCAM
- Cimatron
- Ucancam
If you are wanting a more in-depth overview of V-Carve design software, watch a three-part series on how to get started with CNC.
Like all of the Grizzly CNC machines, the G0894 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)
The G0894 manual was written by our U.S. based Documentation Department is packed with useful information.
The Grizzly Customer Service and Technical Support Teams are U.S. based.
Parts for the CNC machine may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Specifications
| Motor |
3 HP, 220V, 3-phase (with inverter), 8A |
| X-, Y-, Z-axis Motors |
Stepper, 4.3A |
| Cutting Area |
23-5/8" x 35-3/8" |
| Cutting Accuracy |
+/-0.005" |
| Maximum Distance Spindle to Table |
6-1/2" |
| Spindle Speed |
0-24,000 RPM |
| X-axis Travel |
35-3/8" |
| Y-axis Travel |
23-5/8" |
| Z-axis Travel |
5" |
| X-, Y- Travel Speed |
33 FPM |
| Z- Travel Speed |
16 FPM |
| Collet Size |
1/8", 1/4", 1/2" |
| Collet Type |
ER20 |
| Footprint |
47-1/4" x 28-1/2" |
| Overall Dimensions |
45" W x 56-1/2" D x 62" H |
| Approximate Shipping Weight |
882 lbs |
What our Experts Think
-
24" x 36" Cutting Area: Ideal for precision routing on wood, plastics, and soft metals.
-
Heavy-Duty Construction: Provides stability and durability for long-term industrial use.
-
Powerful Spindle Motor: Ensures smooth and accurate cutting for intricate designs and detailed projects.
-
Intuitive CNC Control System: User-friendly interface with precise motion control for high-quality results.
-
T-Slot Table Design: Allows for secure material clamping, ensuring stability during cutting operations.
-
Compatible with Various CAD/CAM Software: Supports industry-standard programs for seamless workflow integration.
-
Ideal for Small to Medium Production: Perfect for sign-making, woodworking, prototyping, and other precision applications.
Q&A
Q: What is the U.S. Industrial Grizzly G0894 CNC Router?
A: A precision 24" x 36" CNC router designed for automated cutting, carving, and engraving in woodworking, plastics, and soft metals.
Q: What are the key features?
A: 24" x 36" cutting area, rigid frame construction, high-speed spindle motor, CNC control for precision machining, and compatibility with various design software.
Q: What materials can it cut?
A: Suitable for wood, plastics, composites, and soft metals like aluminum.
Q: Is it suitable for professional use?
A: Yes, it is ideal for woodworking shops, sign makers, prototyping, and small-scale manufacturing.
Q: How accurate is the CNC routing?
A: Designed for high precision with repeatable accuracy, making it suitable for detailed engraving and complex cuts.
Q: What’s included with the CNC router?
A: CNC router unit, spindle motor, control system, worktable, and necessary tool holders.
Maintenance Tips
-
Keep the Work Area Clean: Regularly remove dust, debris, and chips from the table, gantry, and cutting area to prevent buildup.
-
Lubricate Linear Rails & Ball Screws: Apply appropriate lubricant to the guide rails and lead screws to ensure smooth motion.
-
Inspect & Tighten Fasteners: Check bolts, belts, and connections for any loosening due to machine vibrations.
-
Monitor Spindle & Collet Condition: Clean and inspect the spindle regularly; replace collets if worn or damaged.
-
Check Stepper Motors & Drive Belts: Ensure motors run smoothly without skipping steps and that belts remain properly tensioned.
-
Verify Electrical & Cooling Systems: Inspect wiring, connections, and cooling fans to prevent overheating or electrical issues.
-
Calibrate & Check Alignment: Regularly check the squareness and accuracy of the router to maintain precision cuts.
-
Test Emergency Stop & Safety Features: Ensure all safety mechanisms function properly before operation.
