U.S Industrial Grizzly G0932 - 4' x 8' CNC Router With Rotary 4th Axis

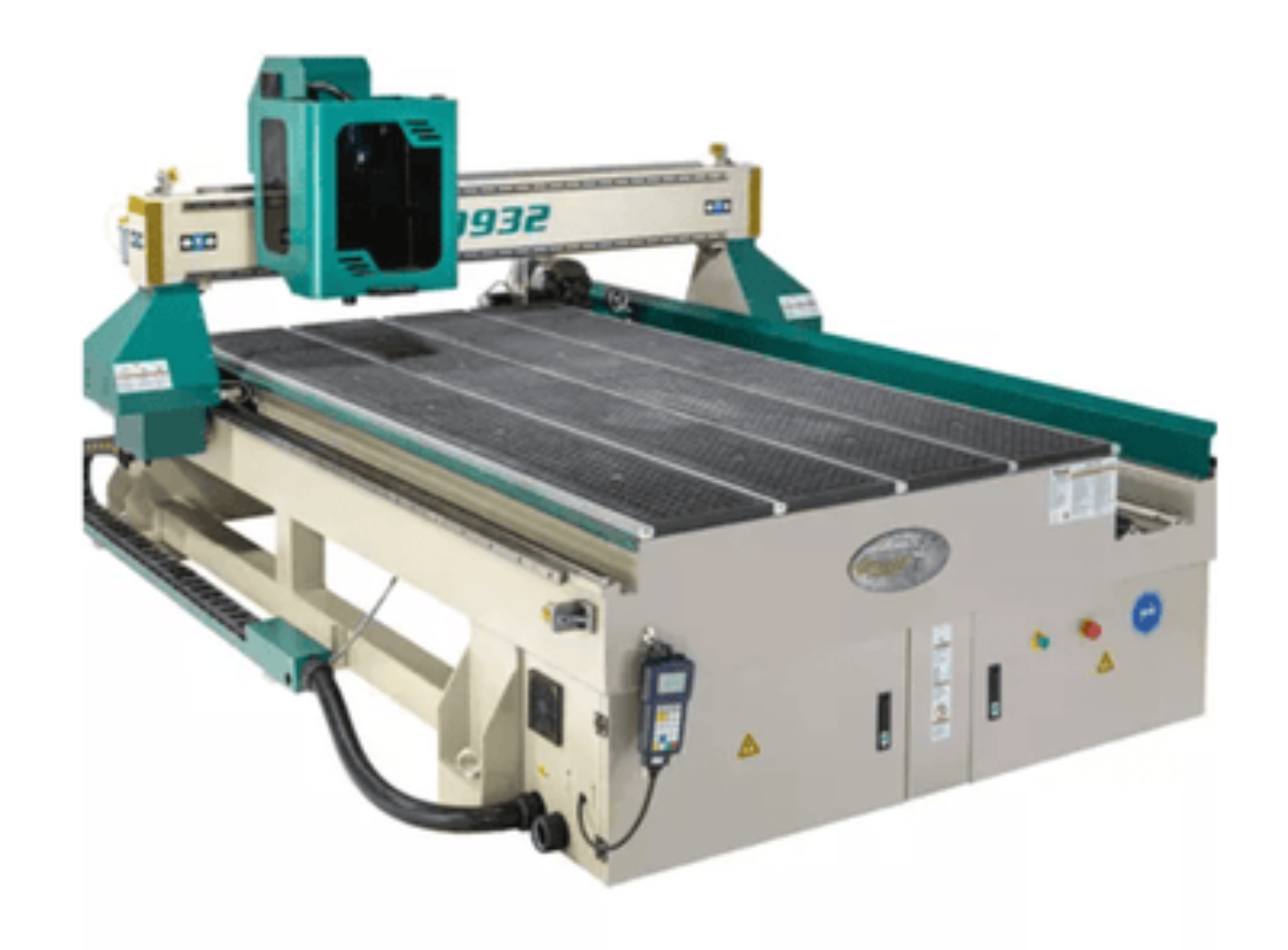

G0932 4' x 8' CNC Router with Rotary 4th Axis
A full-sized CNC router with 4th axis rotary attachment for thousands less.
The G0932 4' x 8' CNC Router can fit an entire 4’ x 8’ sheet of plywood on its table.
Featuring an easy-to-use RichAuto B18 controller; this motion control system can automatically update itself.
The rotary axis boasts an impressive 7-7/8" swing over the bed for machining large spindles.
The addition of a Z-axis tool setter and a vacuum table with four independently controlled zones makes setting up your workpiece even easier.
This machine is compatible with many common CAD/CAM platforms including, but not limited to:
Vcarve and Vcarve Pro
Aspire
Cut2D
Fusion360
Solidworks
Type3
Artcam
UG
Pro/E
MasterCAM
Cimatron
Ucancam
If you are wanting a more in-depth overview of the design software used with the G0932, watch a three-part series on how to get started with CNC.
Perfect for everyone from seasoned CNC users to beginners who are looking to get into rotary axis machining.
Like all of the Grizzly computer numeric controlled machines, the G0932 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects.
(Consumables are not covered by the warranty.)
The Grizzly Customer Service and Technical Support Teams are U.S. based.
Parts and accessories for the CNC machine may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Features
- Helical rack-and-pinion X- and Y- gantry travel on sealed cartridge bearings
- Ball-screw driven Z-axis
- Rotary attachment
- Vacuum table with four independently controlled zones
- Tool touch-off pad for quickly setting Z-axis height
- RichAuto B18 controller
- ER25 collets
- Automatic oiler for bearing rails
- HSD Air-cooled spindle
- 10 HP water ring vacuum pump power
Specifications
| Spindle Motor |
4 HP, 220V, 3-phase, 12.5A |
| Axis Motors |
(x4) NEMA 34, 4.2A |
| Swing Over Bed |
7-7/8" |
| X-Axis Travel |
51-3/16" |
| Y-Axis Travel |
98-7/16" |
| Z-Axis Travel |
7-7/8" |
| XY-Rapid Speed |
1181 IPM |
| Z-Rapid Speed |
400 IPM |
| Rotary Rapid Speed |
472 IPM |
| Cutting Area |
51-3/16" x 98-7/16" x 7-7/8" |
| Cutting Accuracy |
+/-0.002" |
| Table Size |
62-5/8" W x 131-7/8" L |
| Overall Size (W x D x H) |
94-1/2" W x 132" D x 63" H |
| Approximate Shipping Weight |
3087 lbs. |
What our Experts Think
-
Large 4' x 8' Cutting Area: Ideal for handling full-size sheet materials, making it perfect for cabinetry, signage, and large-scale fabrication.
-
Rotary 4th Axis: Expands capabilities by enabling 3D carving, cylindrical engraving, and complex multi-axis machining.
-
High-Precision CNC Control: Delivers smooth, accurate movements for detailed designs and intricate cuts.
-
Heavy-Duty Steel Frame: Reduces vibration for enhanced stability and cutting accuracy, ensuring long-term durability.
-
Powerful Spindle Motor: Handles wood, plastics, composites, and soft metals with ease, making it highly versatile.
-
T-Slot Clamping System: Secures materials firmly for precise and consistent results.
-
User-Friendly CNC Interface: Simplifies operation, making it suitable for both experienced machinists and beginners.
-
Versatile Industrial Applications: Perfect for woodworking shops, sign makers, furniture manufacturers, and prototyping labs requiring high-precision machining.
Q&A
Q: What is the U.S. Industrial Grizzly G0932 CNC Router?
A: A 4' x 8' CNC router with a rotary 4th axis, designed for precision cutting, engraving, and 3D carving in industrial and workshop settings.
Q: What are the key features?
A: 4' x 8' cutting area, rotary 4th axis for cylindrical work, rigid T-slot table, high-powered spindle motor, and CNC-controlled precision for complex machining.
Q: What materials can it cut?
A: Suitable for wood, plastics, composites, and soft metals like aluminum.
Q: Is it suitable for professional use?
A: Yes, it is designed for industrial applications, including woodworking, signage, cabinetry, and prototyping.
Q: How durable is the CNC router?
A: Built with a heavy-duty steel frame and precision components for long-term reliability and accuracy.
Q: What’s included with the CNC router?
A: CNC router, rotary 4th axis attachment, control system, spindle motor, and necessary tool holders.
Maintenance Tips
-
Clean the Work Area: Regularly remove dust, wood chips, and debris from the router bed, linear rails, and rotary axis to prevent buildup.
-
Lubricate Moving Parts: Apply manufacturer-recommended lubricant to ball screws, linear rails, and spindle bearings for smooth operation.
-
Inspect & Tighten Fasteners: Check and secure bolts, screws, and connections to maintain structural stability.
-
Monitor the Spindle & Bits: Ensure the spindle runs smoothly and replace worn or dull bits to maintain precision and prevent strain.
-
Check Belt & Drive System: Inspect belts and gears for wear or slack, adjusting or replacing them as needed.
-
Maintain the T-Slot Table & Rotary Axis: Keep both surfaces clean for accurate material holding and smooth rotation.
-
Align & Calibrate Components: Regularly check gantry alignment, tool offsets, and rotary axis positioning for cutting accuracy.
-
Inspect Electrical & Cooling Systems: Ensure wiring is intact and that cooling systems function properly to prevent overheating.
