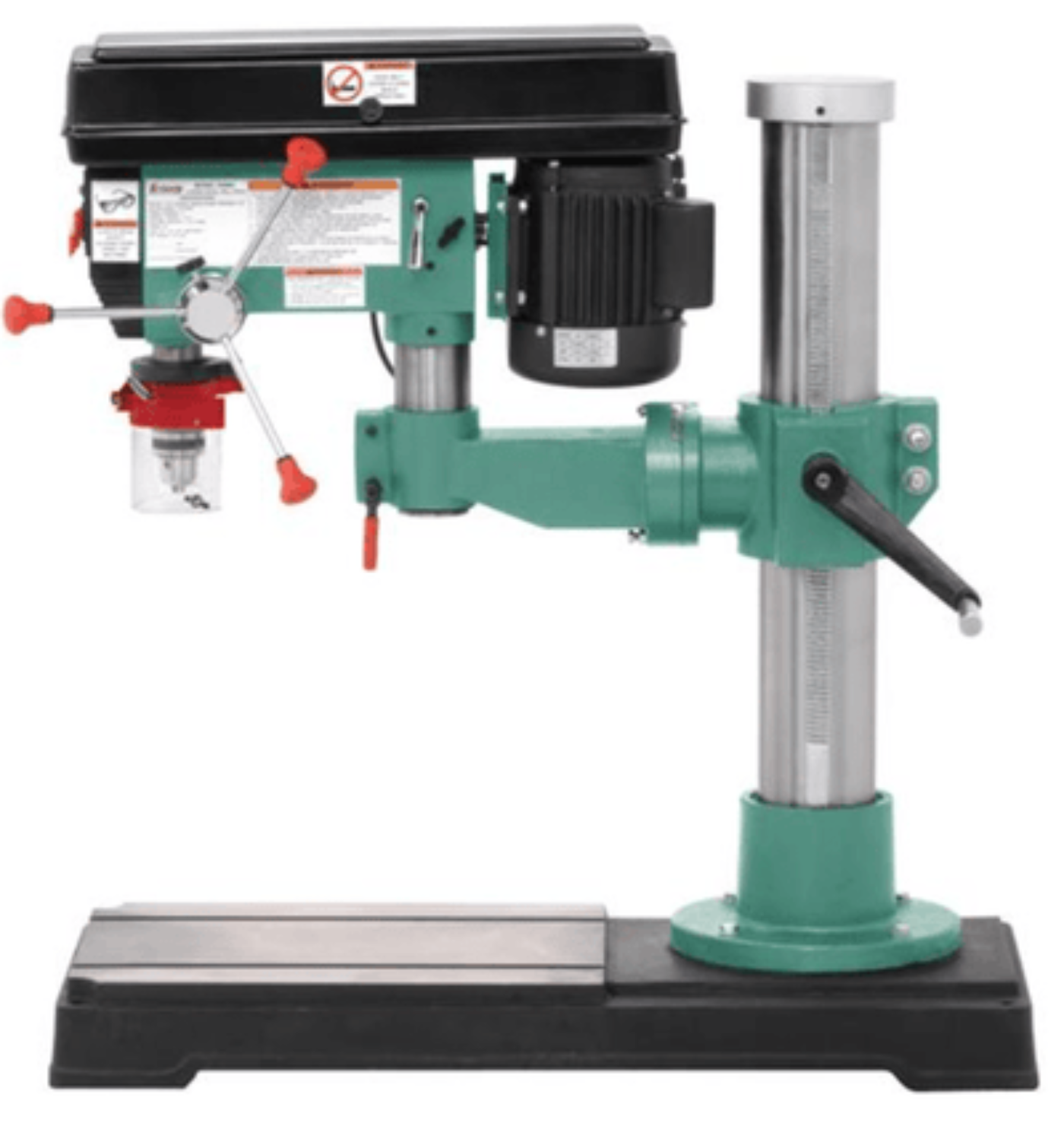

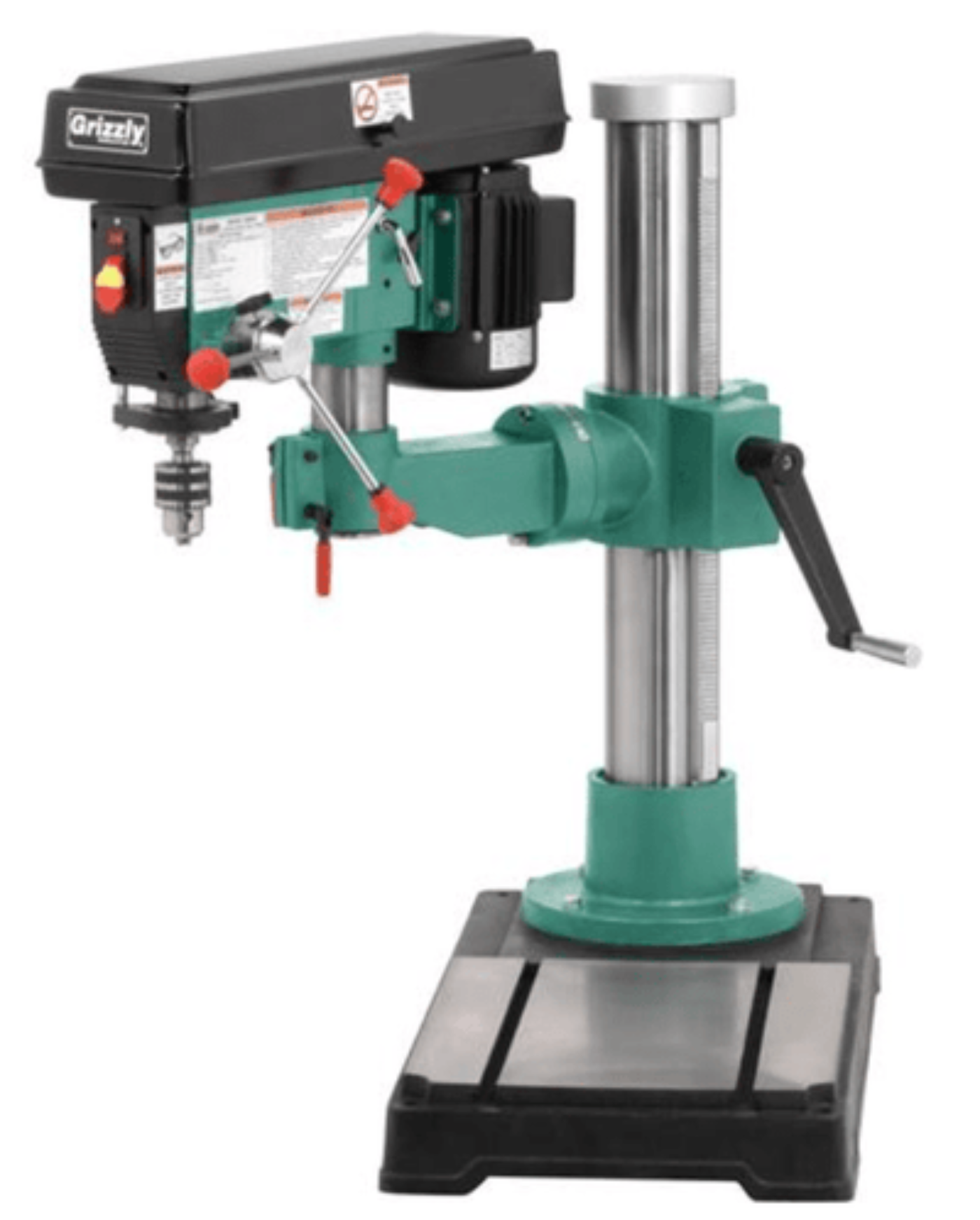

G9969 45" Radial Drill Press
A popular drill press for both wood and metalworking shops that have bulky projects.
The swing on the G9969 45" Radial Drill Press is a huge 45" (you can drill in the middle of a 45" diameter piece).

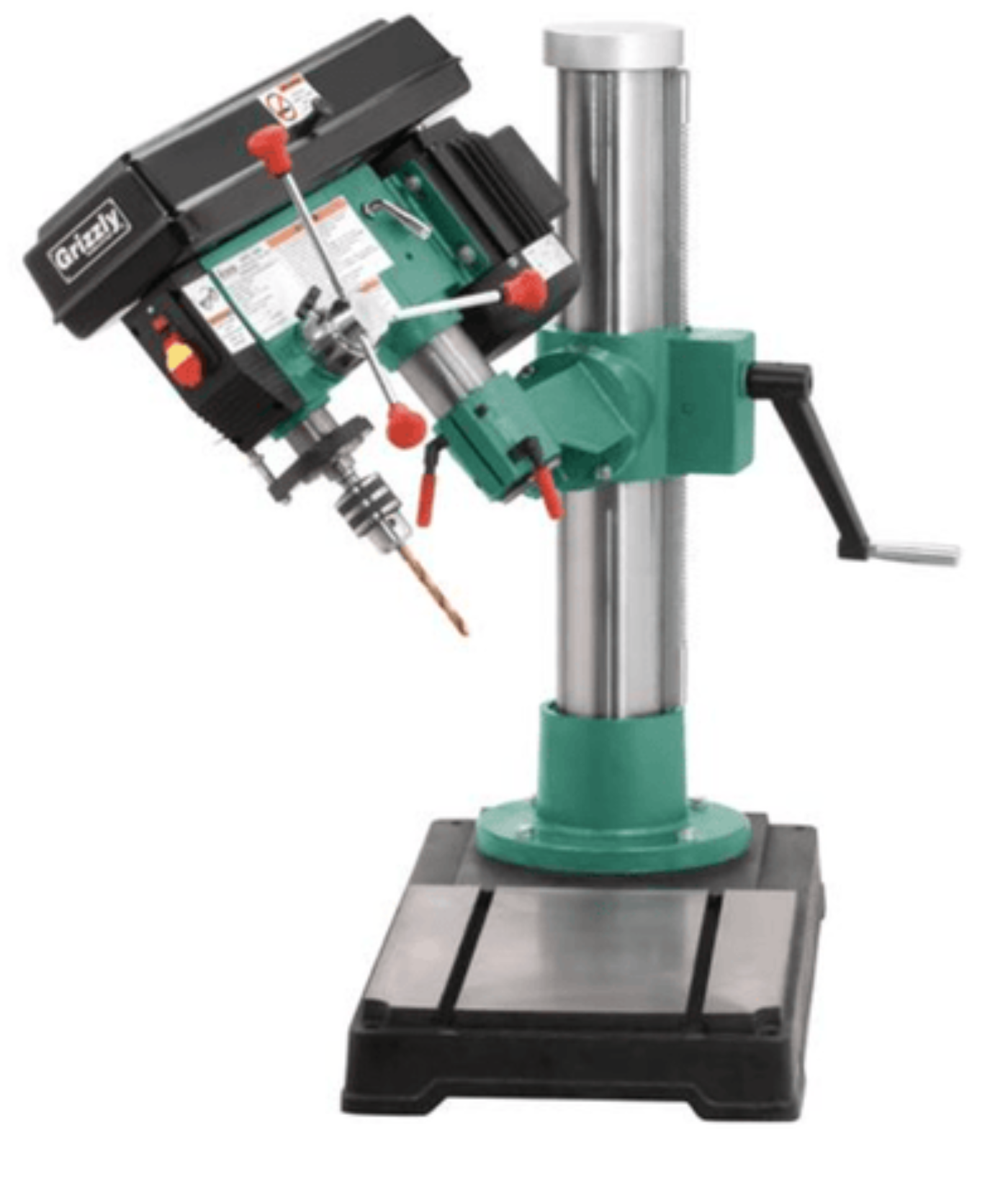

For added adjustability, the headstock can be rotated 360° around the column, can swivel 360° in place, and can tilt 45° to the left or the right.

The G9969 boasts a 1 HP motor that smoothly powers the 12 spindle speeds ranging from 140–3050 RPM. The low RPM speed is vital to drilling metal.

The spindle can be brought close to the column with the uniquely designed swivel post.

The drill press features rack-and-pinion elevation controls—adjustable 20-1/2" vertically.

Prewired for 110V, 45" Radial Drill Press can plug into a standard 110V wall receptacle or can be converted to operate on a 220V power supply.

Ready for industrial use, the t-slots in table allow you to use a variety of clamping options.

The G9969 has a depth stop that allows you to drill repeated non-through holes to the same depth every time.

Enjoy getting the most out of your bulky projects with all the features the G9969 provides.
Like all Grizzly drill presses, the G9969 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The G9969 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your drill press.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the drill press may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 Factory

Features

• Slots in table allow for multiple clamping options
• Uniquely designed swivel post
• 1/8" - 5/8" Chuck
• 1 HP motor
• 12 Speeds
• 45" Swing

Specifications

What our Experts Think

• 45" Swing Capacity: Offers extended reach, perfect for drilling large workpieces with precision.

• Powerful Motor: Provides consistent torque for heavy-duty drilling applications.

• Radial Arm Adjustability: Allows for versatile drilling angles and positions, increasing flexibility for various projects.

• Variable Speed Control: Enables fine-tuned adjustments to match different materials and drill bit types.

• Heavy-Duty Cast Iron Construction: Enhances stability, reduces vibration, and ensures long-term durability.

• Rack-and-Pinion Table Adjustment: Allows for smooth height adjustments to accommodate different workpiece sizes.

• Ideal for Metalworking & Woodworking: Suited for machine shops, fabrication facilities, and professional workshops requiring precise and powerful drilling.

Q&A

Q: What is the U.S. Industrial Grizzly G9969 Radial Drill Press?
A: A heavy-duty 45" radial drill press designed for precision drilling with an extended reach, ideal for industrial and professional applications.

Q: What are the key features?
A: 45" arm for increased drilling capacity, powerful motor, variable speed control, adjustable radial arm for versatile drilling angles, and a sturdy cast iron base for stability.

Q: What materials can it drill through?
A: Suitable for drilling metal, wood, plastics, and composites requiring precise hole placement.

Q: Is it suitable for professional use?
A: Yes, it is built for machine shops, metalworking, woodworking, and industrial applications requiring high precision and power.

Q: How durable is the drill press?
A: Constructed with heavy-duty cast iron and precision-machined components for long-term reliability and vibration resistance.

Q: What’s included with the drill press?
A: Radial drill press unit, adjustable worktable, chuck, precision depth stop, and necessary assembly hardware.

Maintenance Tips

• Keep the Table & Spindle Clean: Remove metal shavings, dust, and debris regularly to ensure smooth operation.

• Lubricate Moving Parts: Apply oil to the spindle, quill, column, and radial arm joints to reduce friction and wear.

• Check & Tighten Fasteners: Inspect and secure bolts, nuts, and pulleys to maintain machine stability.

• Inspect Belt & Motor: Ensure the drive belt is properly tensioned and replace it if worn or cracked. Monitor motor function for overheating or unusual noises.

• Align the Spindle & Chuck: Check for any runout or misalignment to ensure precision drilling.

• Test Radial Arm Movement: Ensure smooth adjustment and locking of the arm for consistent positioning.

• Verify Depth Stop & Speed Settings: Confirm that speed changes work correctly and the depth stop engages properly.

• Inspect Electrical Components: Check wiring, switches, and power connections for safety and reliability.
