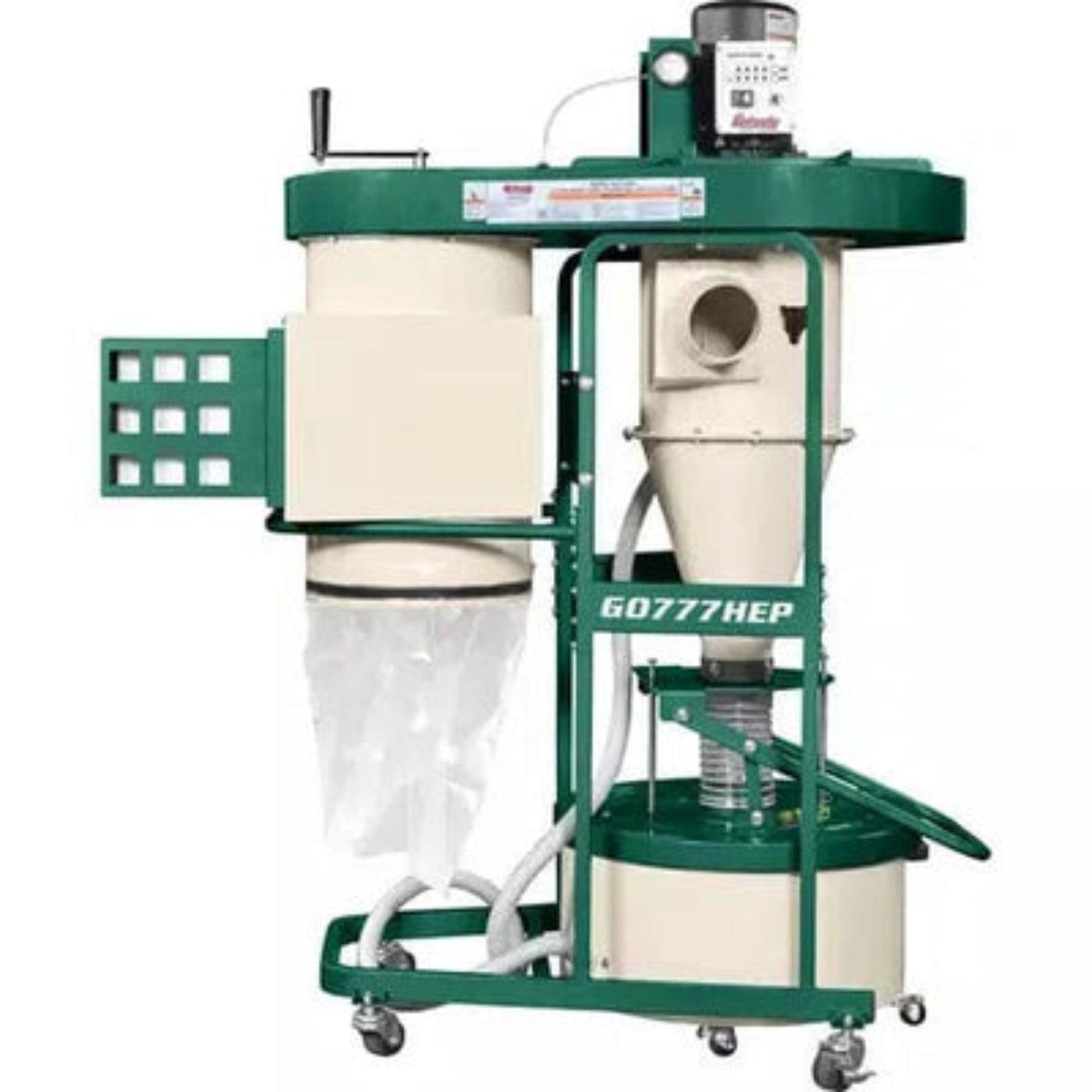

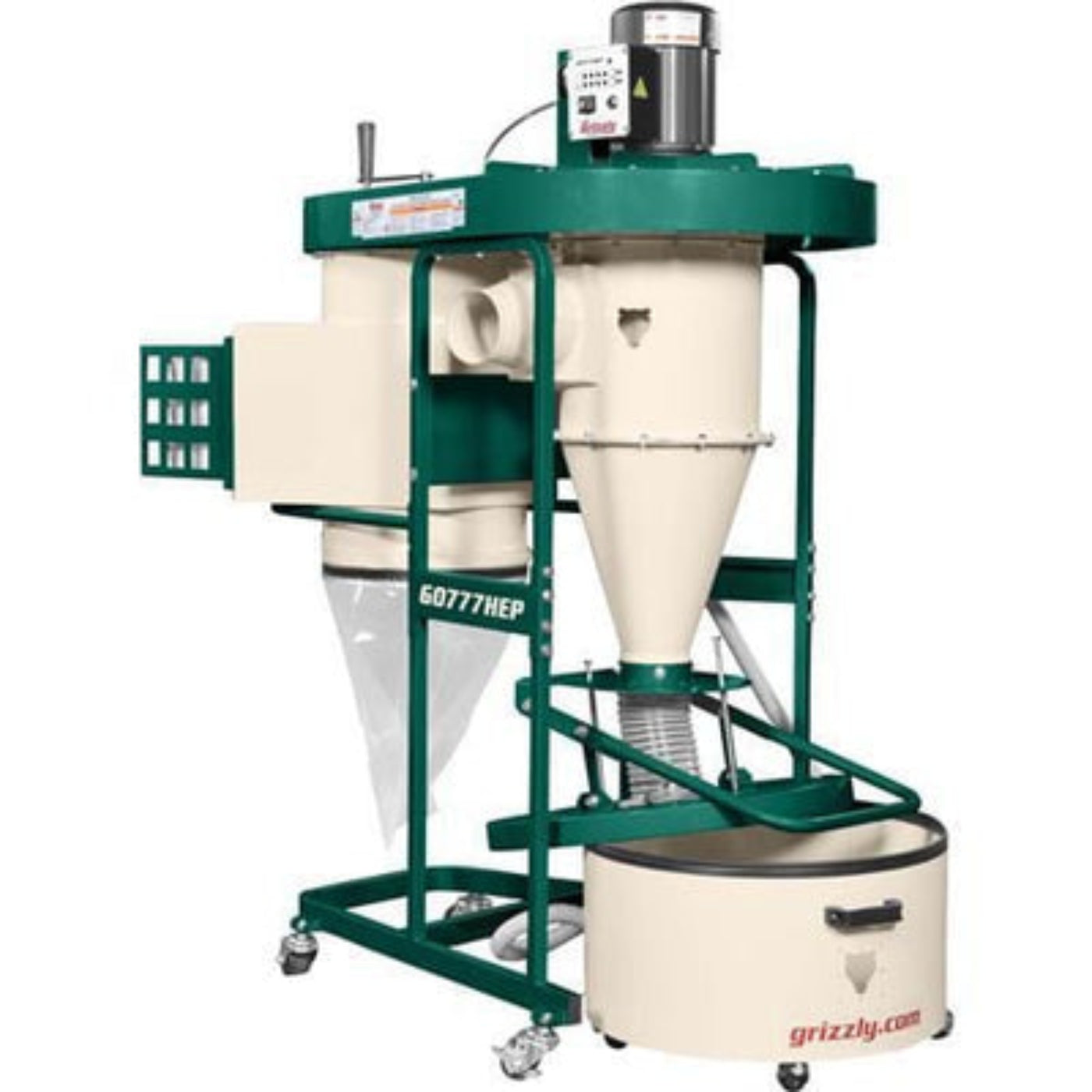

U.S Industrial Grizzly Industrial 1-1/2 HP Ultra-Quiet Dual-Filtration HEPA Cyclone Dust Collector
Most dust collectors this size operate at a minimum of 80-82 dB, the G0777HEP can collect even the biggest shavings without exceeding 72 dB due to its slow-speed motor and large impeller.
But the fact that it's really quiet isn't the only reason to appreciate it, it also features a compact profile on a sturdy mobile frame, a pleated filter system, an internal filter-cleaning brush system, an impressive 880 CFM airflow, a built-in remote-control switch, and a mobile 26-gallon collection drum.

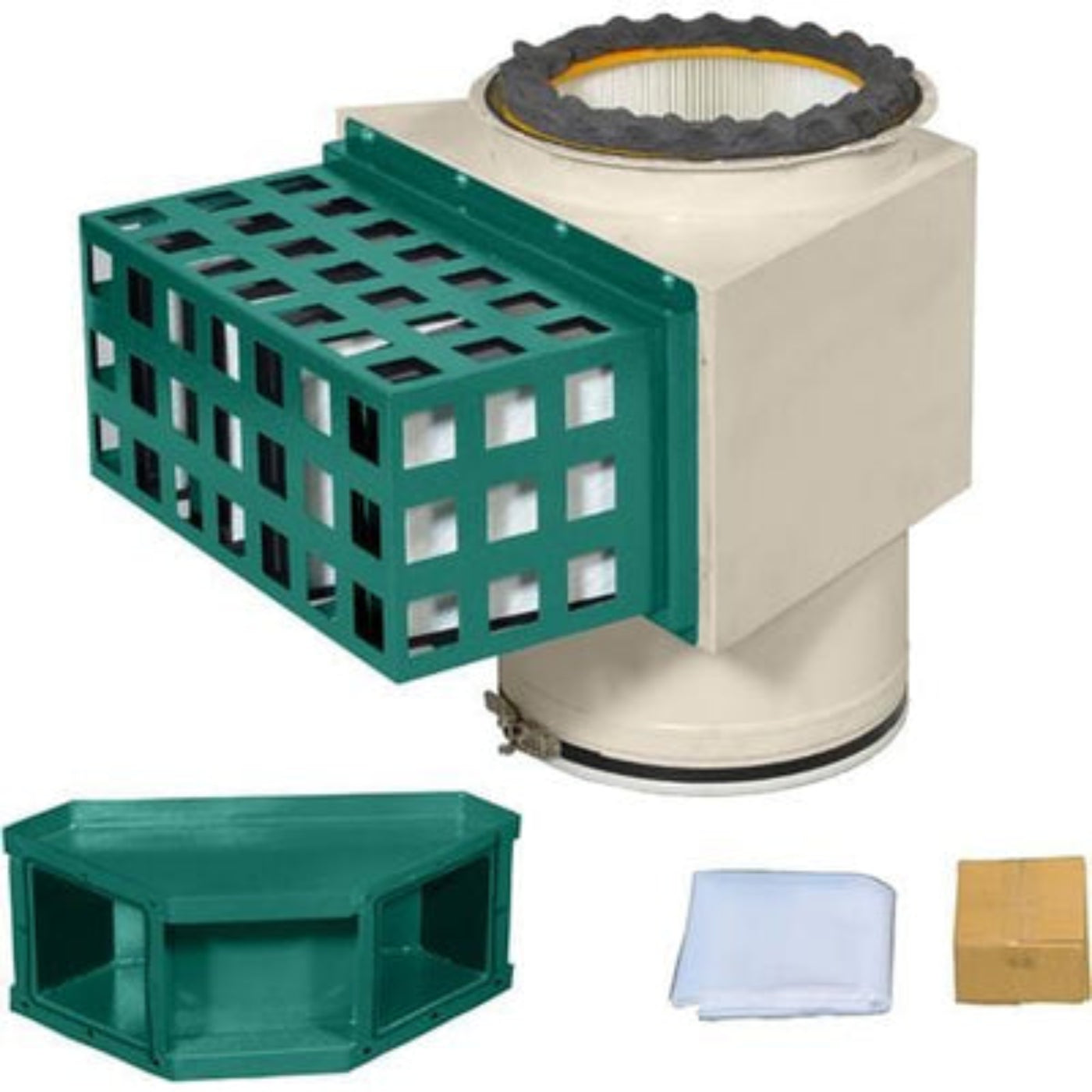

The G0777HEP comes with a dual-filtration HEPA filter system. The primary filter is internally pleated and catches 99.99% of particles at 0.2-2 microns, while the secondary filter is a V-cell HEPA that captures 99.97% of particles at 0.3 microns.
The advantage of this dual filtration setup is the majority of all fine dust is captured by the first filter and only the finest dust makes it to the HEPA filter, resulting in up to a 900% increase in the life of the HEPA filter.
This is the same filtration level required in hospitals for surgical rooms.
Like all Grizzly cyclones, the G0777HEP comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.
The G0777HEP manual was written by our U.S. based Technical Documentation Department and is packed with useful information.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for your machine may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
Features
- Remote control switch
- Cartridge filter has crank handle shaker for maximum filter efficiency
- Easy cleaning drum canister rolls on swivel casters
- Fully mobile with built-in casters
- Unique vacuum equalizer built into collection drum for use with disposable plastic bags
Specifications
| Motor |
1-1/2 HP, 110V/220V* (prewired 110V), single-phase, 15A/7.5A |
| Intake Hole Size |
6" |
| Airflow Capacity |
880 CFM at 1.9" SP |
| Maximum Static Pressure |
9" |
| Filtration |
0.3-Micron |
| Filter Surface Area |
48 sq. ft. |
| MERV Rating |
MERV-17 |
| Filtration Rating |
HEPA rated 99.97% at 0.3 microns |
| Impeller |
24" Aluminum radial fin |
| Collection Drum |
Steel, 26-gallon |
| Sound Rating |
71 dB |
| Overall Size (W x D x H) |
59-3/4" x 34-1/2" x 72" |
| Approximate Shipping Weight |
353 lb. |
What our Experts Think
-
1-1/2 HP Motor: Delivers powerful suction for efficient dust collection in woodworking and industrial settings.
-
Ultra-Quiet Operation: Designed for minimal noise, making it ideal for workshops where noise reduction is a priority.
-
Cyclone Filtration System: Separates heavy debris before reaching the HEPA filter, extending filter life and maintaining airflow efficiency.
-
Dual-Stage HEPA Filtration: Captures fine dust particles down to 0.3 microns, ensuring a cleaner and healthier work environment.
-
High-Capacity Collection Drum: Reduces the frequency of emptying, allowing for longer operation without interruption.
-
Durable Steel Construction: Built for long-term use, withstanding demanding shop conditions.
-
Ideal for Woodworking & Industrial Use: Perfect for cabinet shops, furniture makers, and industrial workshops requiring superior dust control.
Q&A
Q: What is the U.S. Industrial Grizzly 1-1/2 HP Ultra-Quiet Dual-Filtration HEPA Cyclone Dust Collector?
A: A high-performance dust collection system designed for ultra-quiet operation, featuring HEPA filtration and cyclone separation for superior dust control in workshops.
Q: What are the key features?
A: 1-1/2 HP motor, ultra-quiet operation, dual-filtration system with HEPA filter, cyclone dust separation, and high-efficiency dust collection for cleaner air.
Q: What types of dust does it capture?
A: Effectively captures fine dust, wood chips, and debris, making it ideal for woodworking and industrial applications.
Q: Is it suitable for professional use?
A: Yes, it is designed for workshops, woodworking facilities, and industrial environments requiring superior dust control.
Q: How efficient is the HEPA filtration?
A: The HEPA filter captures 99.97% of particles as small as 0.3 microns, ensuring clean air quality.
Q: What’s included with the dust collector?
A: Dust collector unit, HEPA filter, cyclone separator, collection drum, and necessary hoses and fittings.
Maintenance Tips
-
Empty the Collection Bin Regularly: Prevent overflow by emptying the dust bin before it reaches full capacity.
-
Clean or Replace Filters: Routinely inspect the HEPA and pre-filters, cleaning or replacing them as needed for optimal airflow.
-
Inspect Hoses & Connections: Check for leaks, blockages, or loose hose connections to maintain efficient suction.
-
Lubricate Moving Parts: Apply lubricant to motor bearings and moving components to reduce wear and prolong lifespan.
-
Check for Airflow Obstructions: Ensure the cyclone chamber and ducting remain clear of buildup to maintain peak performance.
-
Monitor Motor & Electrical Components: Inspect power cords, switches, and the motor for signs of wear or overheating.
-
Secure Fasteners & Mounts: Regularly tighten bolts and screws to prevent vibrations from loosening critical components.
-
Perform Routine System Tests: Turn on the collector and check for abnormal noise, reduced suction, or unusual vibrations.
