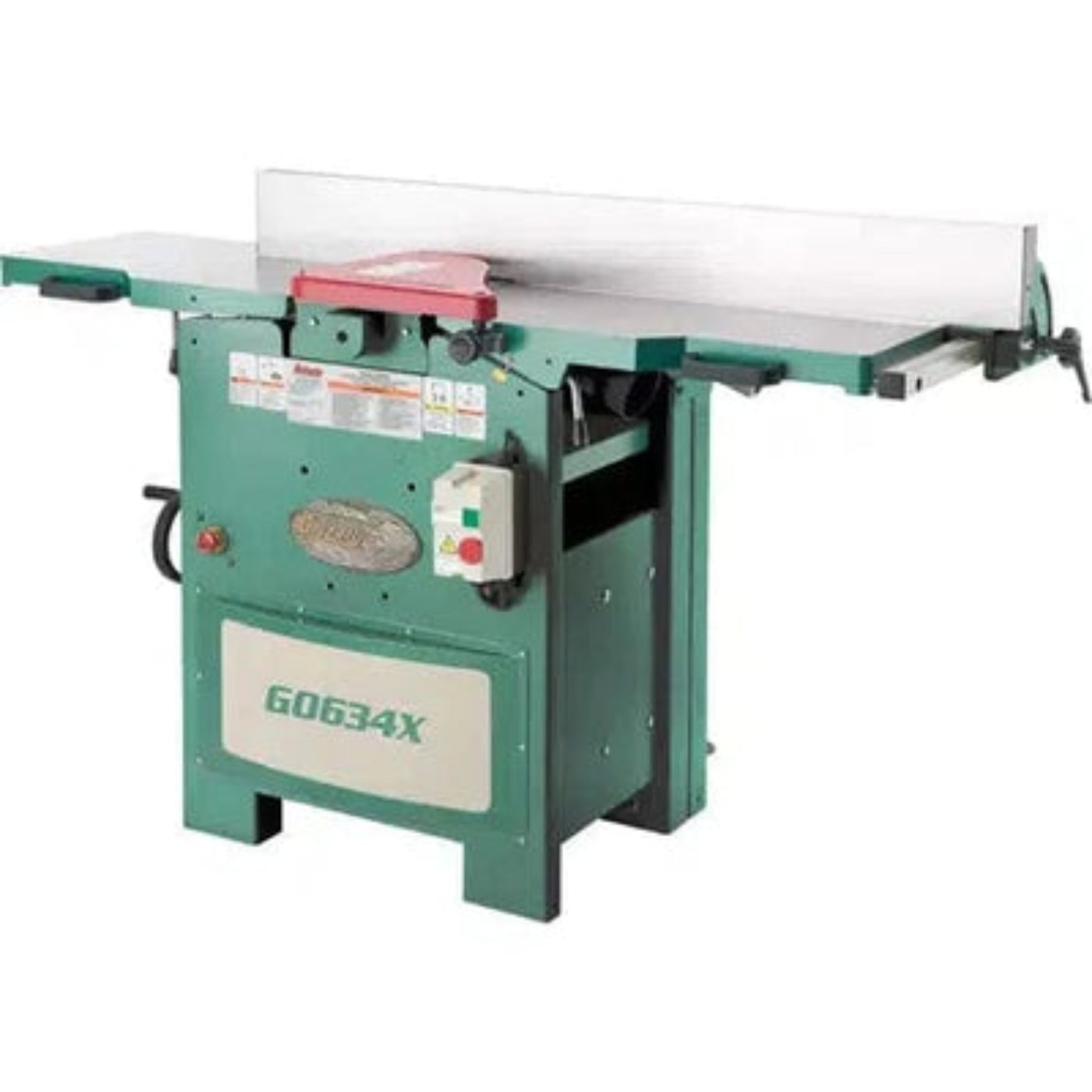

U.S Industrial Grizzly Industrial 12" 5 HP Planer/Jointer with V-Helical Cutterhead
Most woodworking projects require lumber that is jointed and planed as a starting point. Save time, space, and money with a machine that does it all.
The G0634X 12" 5 HP Planer / Jointer combines a powerful 5 HP motor with a V-helical cutterhead for unmatched finish and long-lasting durability compared to a machine with straight knives.
No need to sharpen the blades every time they get dull or nicked. The 48 indexable carbide inserts can be rotated up to 3 times for a new sharp edge.

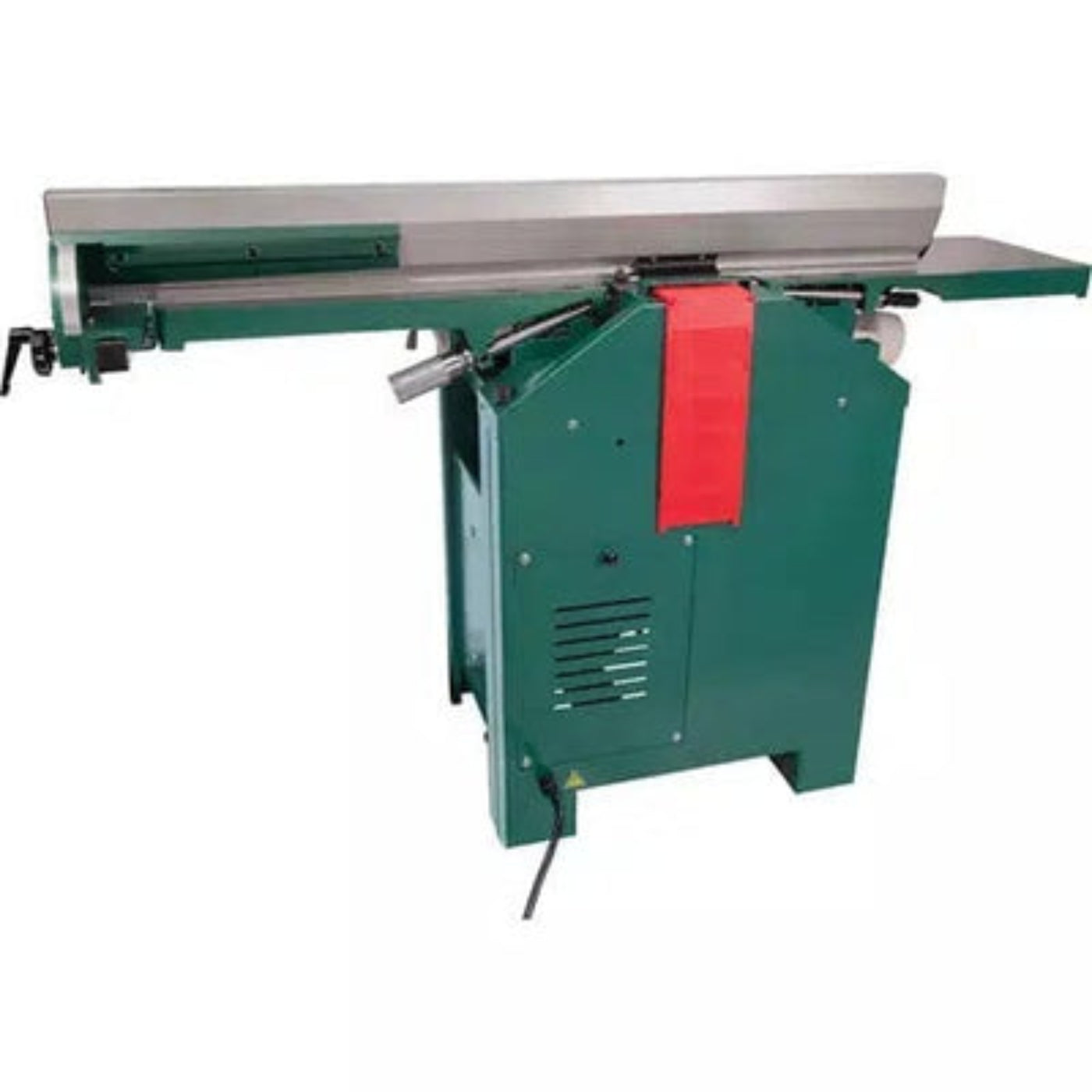

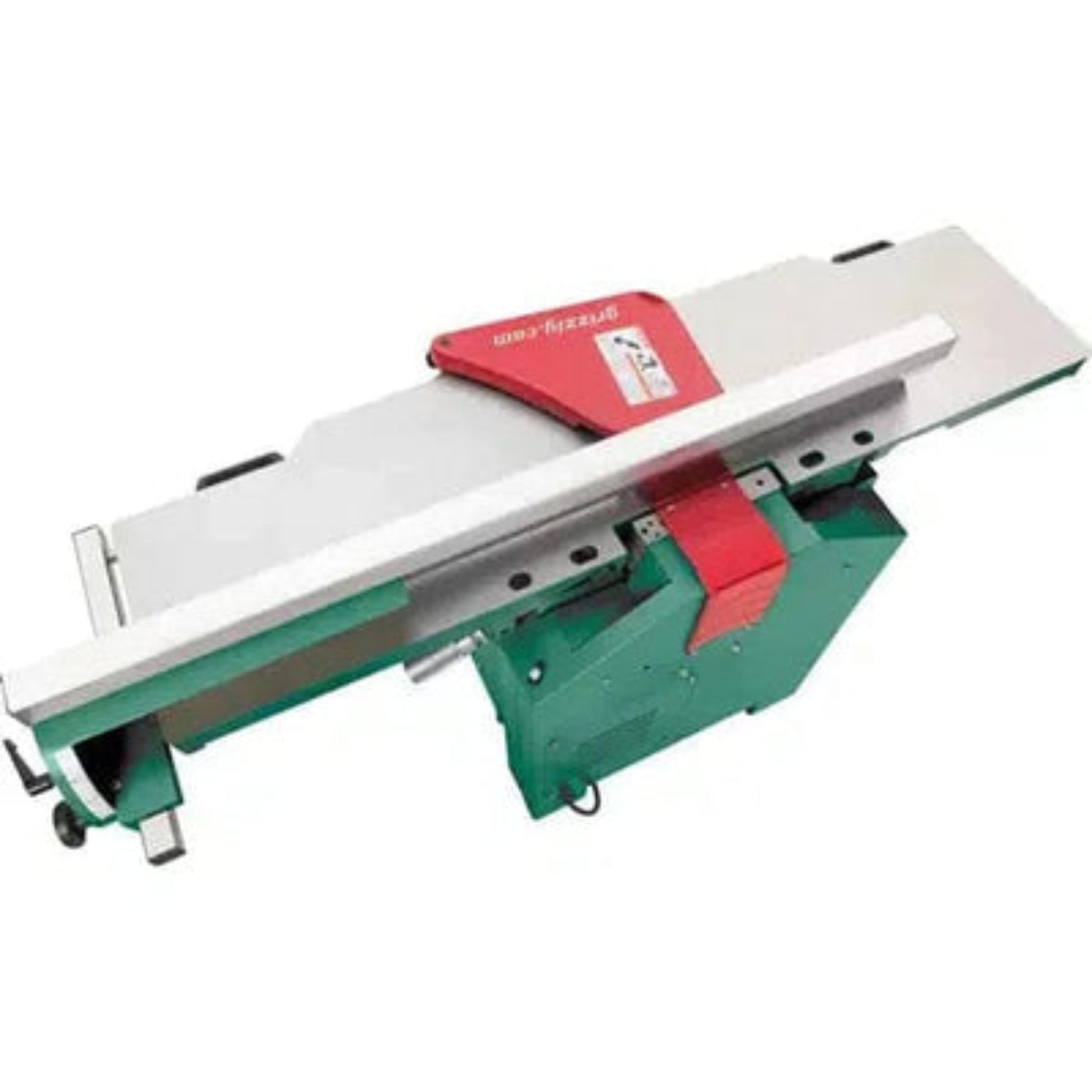

The quick-release fence can be positioned at any angle between 45° and 90° as shown by the tilt scale. The fence has been end-mounted to save space so nothing is protruding from the back of the machine.

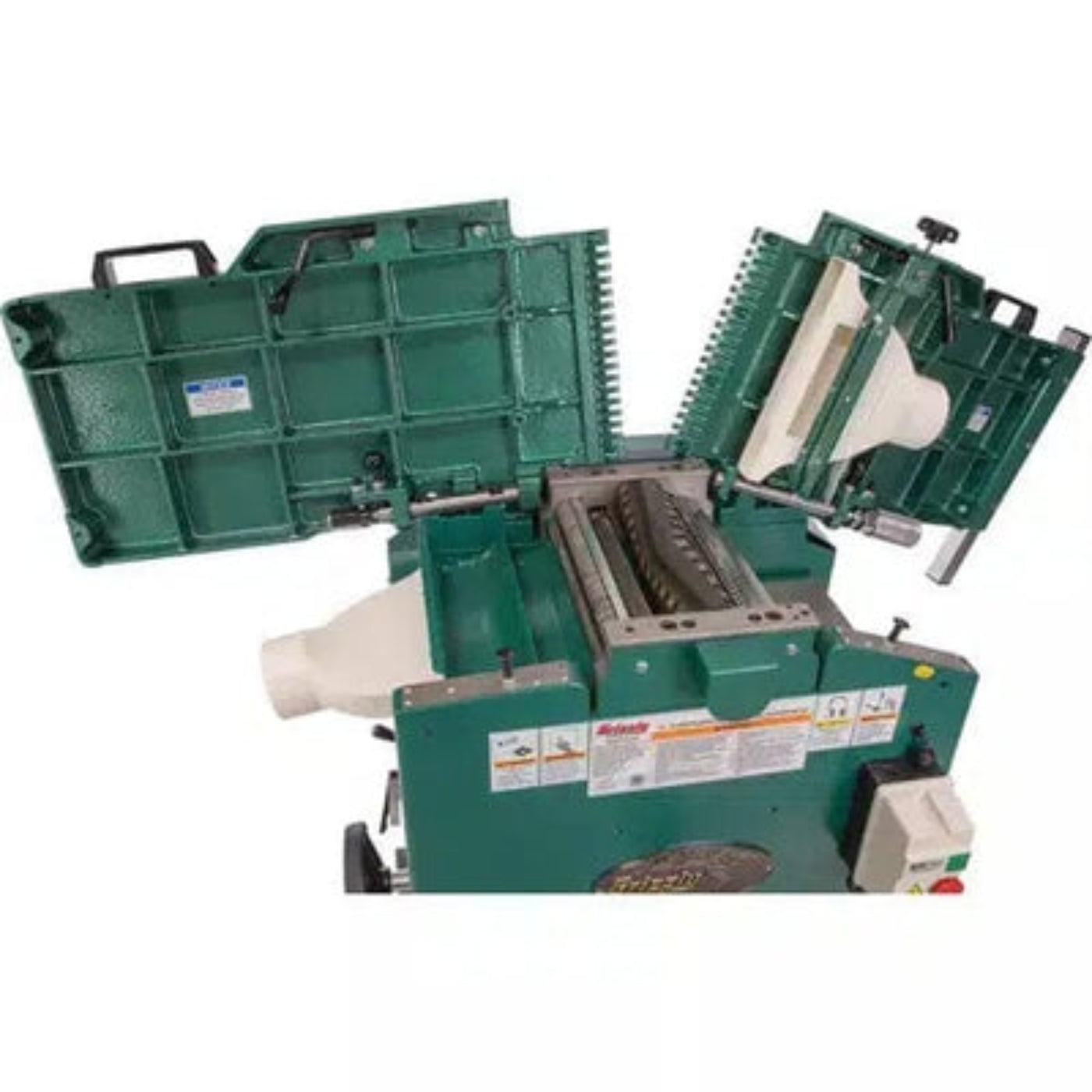

Conversion from the jointer to the planer is easy. Just remove the quick-release fence and flip up the jointer tables. To use the jointer again, simply release and lower the tables, put the fence back on and you are ready to face or edge joint.

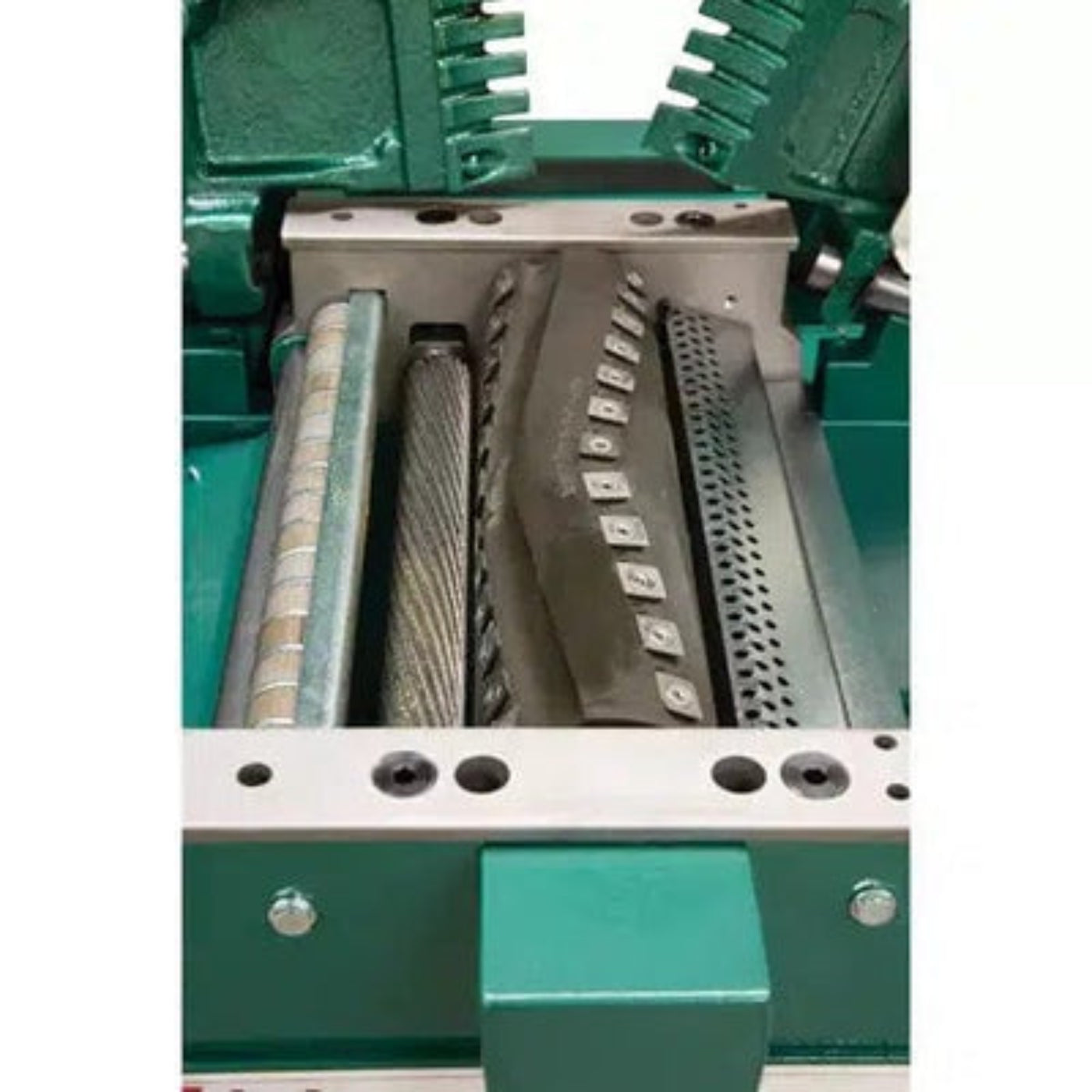

The planer features cast-iron infeed and outfeed tables, two feed rollers, anti-kickback fingers and a depth of cut scale on the front.
Like all Grizzly machines, the G0634X comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)
The G0634X manual was written by our U.S. based Tech Doc Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your machine.
The Grizzly Customer Service and Tech Support Teams are U.S. based. Parts may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
Features
- Superior finish and improved dust collection from the V-helical cutterhead
- End-mounted fence to save space allowing the machine to be put against a wall
- Flip-up tables and change lever simplify jointer/planer conversion
- Rubber-coated outfeed roller eliminates roller impressions on finished workpieces
Specifications
| Motor |
5 HP, 220V, single-phase, 25A |
| Maximum Cut Width |
11-3/4" |
| Maximum Cut Depth |
1/8" |
| Maximum Planer Stock Thickness |
8" |
| Cutterhead Diameter |
3-1/8" |
| Cutterhead Speed |
5034 RPM |
| Cutterhead Type |
V-helical, 4-row, 48 inserts |
| Cutterhead Insert Size |
15 x 15 x 2.5mm |
| Planer Feed Rate |
22 FPM |
| Bevel Jointing |
0°-45° |
| Jointer Table Size |
14" x 59-1/2" |
| Fence Size |
5-3/4" x 51-1/2", end-mounted |
| Fence Stops |
45° and 90° |
| Dust Port Size |
4" (x2) |
| Overall Size |
67-1/2" W x 24" D x 41-1/2" H |
| Approximate Shipping Weight |
704 lbs. |
What our Experts Think
-
Dual-Function Machine: Combines a planer and jointer in one unit, saving space and increasing efficiency.
-
12" Cutting Width: Handles large workpieces with ease, ideal for professional woodworking.
-
Powerful 5 HP Motor: Delivers consistent performance for smooth, precise cuts in hardwoods and softwoods.
-
V-Helical Cutterhead: Reduces noise, improves chip evacuation, and produces a superior finish with minimal tear-out.
-
Heavy-Duty Cast-Iron Construction: Ensures durability, stability, and vibration reduction for accurate results.
-
Precision Fence System: Adjustable for jointing at various angles, enhancing versatility.
-
Efficient Dust Collection Port: Keeps the workspace clean by effectively removing chips and debris.
-
Ideal for Professional Woodworkers & Cabinet Shops: Perfect for those needing a high-quality, space-saving solution for surfacing and dimensioning lumber.
Q&A
Q: What is the U.S. Industrial Grizzly 12" 5 HP Planer/Jointer with V-Helical Cutterhead?
A: A high-performance 12" planer/jointer combination machine designed for precision surfacing and thicknessing of wood, featuring a powerful motor and V-helical cutterhead for superior cutting quality.
Q: What are the key features?
A: 5 HP motor, 12" cutting width, V-helical cutterhead for smoother cuts and reduced noise, heavy-duty cast iron construction, and an easy transition between planer and jointer functions.
Q: What materials can it handle?
A: Ideal for surfacing and planing hardwoods, softwoods, and composite wood materials.
Q: Is it suitable for professional use?
A: Yes, it is designed for woodworking shops, furniture makers, and industrial applications requiring precise stock preparation.
Q: How efficient is the V-helical cutterhead?
A: The V-helical cutterhead delivers quieter operation, a smoother finish, and longer-lasting carbide inserts compared to traditional straight knives.
Q: What’s included with the planer/jointer?
A: Machine unit, V-helical cutterhead with carbide inserts, infeed and outfeed tables, dust collection port, and adjustment tools.
Maintenance Tips
-
Keep the Machine Clean: Remove wood chips, dust, and debris from the table, cutterhead, and dust collection port after each use.
-
Inspect & Rotate Cutter Inserts: Check carbide inserts for dullness or damage; rotate or replace as needed for consistent cuts.
-
Lubricate Moving Parts: Apply lubricant to the infeed/outfeed tables, fence, and height adjustment mechanisms to ensure smooth operation.
-
Check & Adjust Belt Tension: Inspect drive belts for wear and adjust tension to prevent slipping.
-
Verify Table & Fence Alignment: Ensure the jointer fence and planer bed are square for accurate jointing and planing.
-
Monitor Motor & Electrical Components: Check for overheating, inspect wiring, and clean vents to maintain proper airflow.
-
Tighten Fasteners & Check Safety Guards: Ensure all bolts, screws, and blade guards are secure for safe operation.
-
Test Feed Rollers & Height Adjustment: Ensure smooth feed operation and proper cutterhead height calibration.
