U.S Industrial Grizzly Industrial 12" 7-1/2 HP 3-Phase Compact Sliding Table Saw
A sliding table saw can also take up a lot of room. What to do if you're pressed for shop space?

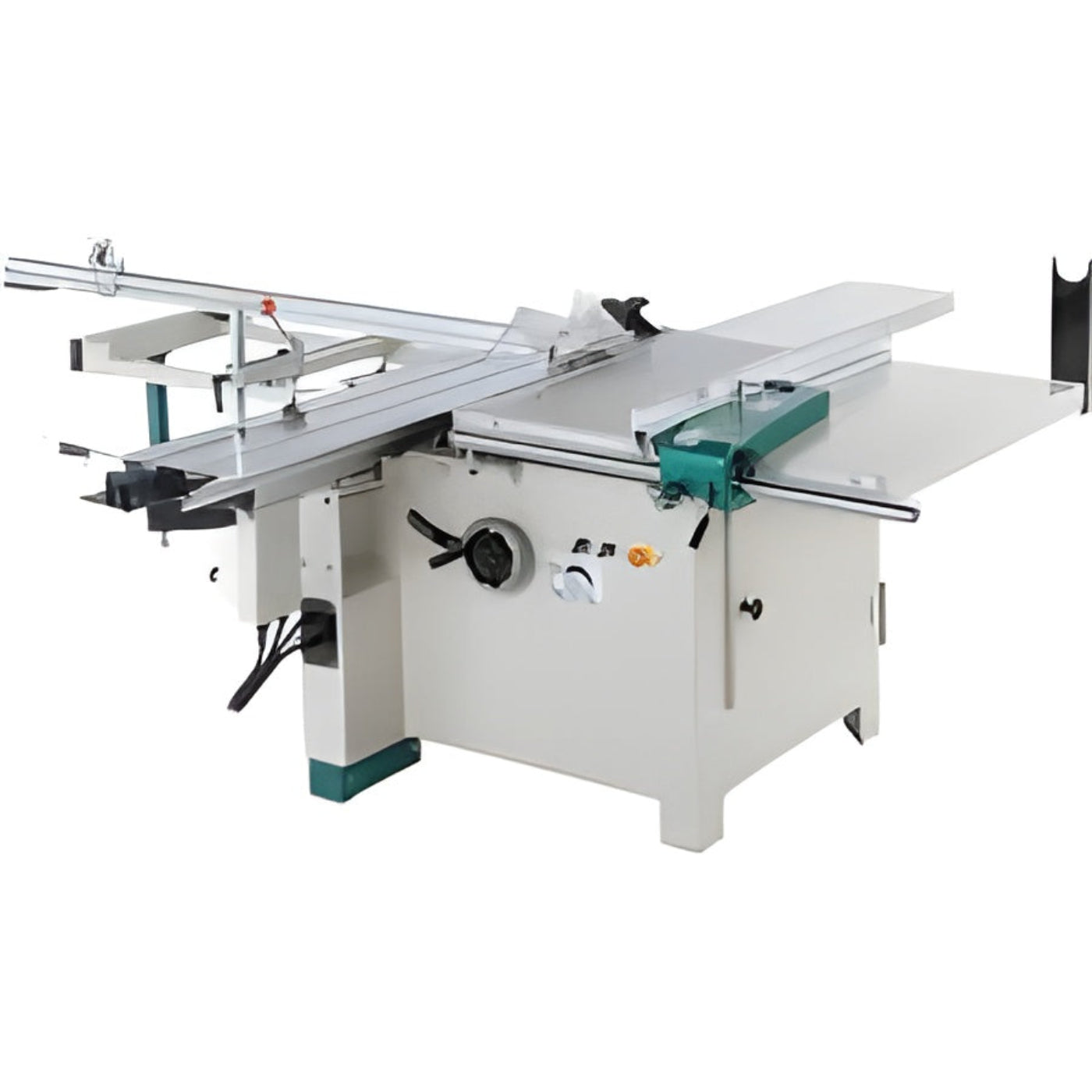

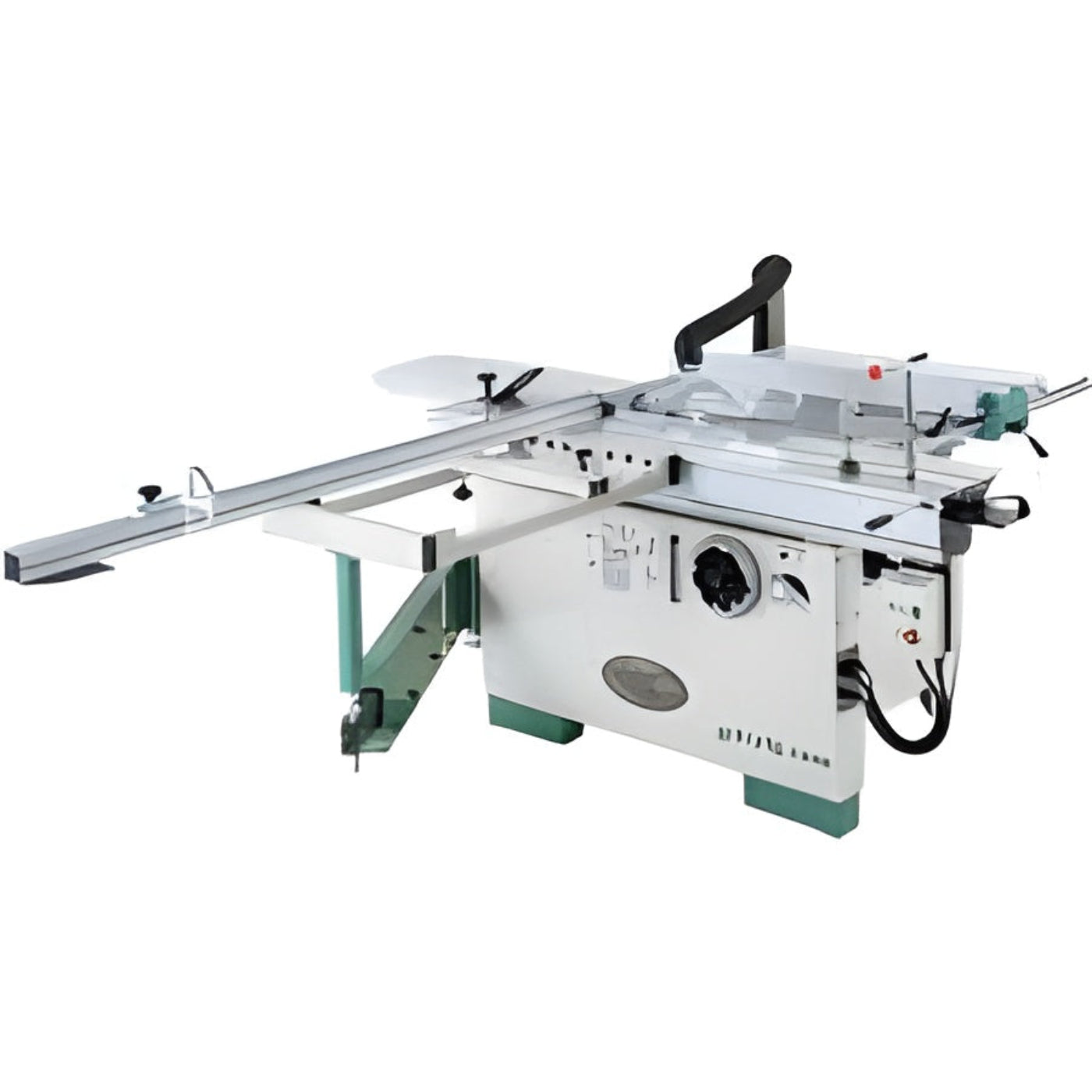

The space-saving G0820 12" 7-1/2 HP 3-Phase Compact Sliding Table Saw, measures 118" x 90"!
This slider will allow you to crosscut sheets up to 63" x 101-1/2" and rip panels as wide as 33".
Don't let the smaller size fool you; this 7-1/2 HP workhorse has all of the user-friendly features you'd expect from an industrial-duty sliding table saw.
These features include a scoring blade that eliminates tear-out, a miter fence with adjustable flip-stops, dust ports above and below the blade, riving knife, a standard rip fence and a clamping hold-down system for the sliding table.
For production ripping and crosscutting, every shop needs a sliding table saw—and the G0820 just might be the perfect fit!
Like all Grizzly table saws, the G0820 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.
The G0820 manual was written by our U.S. based Technical Documentation Department and is packed with useful information; making it easier to assemble and maintain your saw.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the table saw are available on-line and shipped from the Grizzly parts warehouse in Springfield, MO.
Features
- Crosscut fence for 90° and 45° cuts
- Aluminum rip fence
- Double roller-carriage sliding table
- Adjustable riving knife
- Adjustable blade hood guard
- 5" Main dust port
- Blade tilts 45° for miter cutting
- Precision-ground cast-iron main table
Specifications
| Motor |
7-1/2 HP, 220V/440V* (prewired for 220V), 3-phase, 20A/10A |
| Rip Capacity |
33" |
| Crosscut Capacity |
63" |
| Blade Tilt |
0–45° |
| Max. Depth of Cut @ 90° |
3-5/16" |
| Max. Depth of Cut @ 45° |
2-3/8" |
| Main Table Size with Extensions |
40" x 68" |
| Sliding Table Size |
63" x 12-1/4" |
| Floor-to-Table Height |
34-1/4" |
| Main Blade Size |
12" |
| Main Blade Arbor |
1" |
| Main Blade Speed |
4000 RPM |
| Scoring Blade Size |
4-3/4" (120mm) |
| Scoring Blade Arbor |
20mm |
| Scoring Blade Speed |
8000 RPM |
| Number of Dust Ports |
2 |
| Dust Port Size |
2-1/2" (compatible with standard shop vacuums), 5" |
| Footprint |
35" W x 45" L |
| Overall Dimensions |
118" W x 90" D x 45" H |
| Approx. Shipping Weight |
996 lbs. |
What our Experts Think
-
High-Powered Performance – 7-1/2 HP motor delivers exceptional cutting power for thick and dense materials.
-
Precision Sliding Table – Ensures smooth, accurate crosscuts and panel processing.
-
Compact Yet Capable – Space-saving design while maintaining industrial-grade performance.
-
Heavy-Duty Construction – Rigid steel and cast-iron build for long-term durability and minimal vibration.
-
Perfect For – Cabinet shops, furniture makers, and professionals needing precise, high-capacity cutting in a compact footprint.
Q&A
Q: What is the U.S. Industrial Grizzly 12" 7-1/2 HP 3-Phase Compact Sliding Table Saw?
A: A heavy-duty 12-inch sliding table saw with a 7.5 HP motor, designed for precision cutting in woodworking and cabinet-making shops.
Q: What is the motor power and phase?
A: Equipped with a 7.5 HP, 3-phase motor, providing powerful and smooth cutting performance.
Q: What is the advantage of the sliding table?
A: Allows for precise and smooth panel cutting, making it ideal for sheet goods, large panels, and hardwoods.
Q: What type of fence system does it use?
A: Features a high-precision rip fence and adjustable miter fence, ensuring accuracy and repeatability.
Q: Does it support a scoring blade?
A: Yes, includes a scoring blade system to prevent tear-out when cutting laminates and veneered panels.
Q: Does it have dust collection?
A: Yes, equipped with multiple dust ports to maintain a clean working environment.
Q: Why choose this sliding table saw?
A: Its powerful motor, precision sliding table, scoring blade, and industrial-grade construction make it an excellent choice for professional woodworkers and cabinetmakers.
Maintenance Tips
-
Blade Maintenance: Keep blade clean, sharp, and properly aligned for precise cuts.
-
Sliding Table Care: Regularly clean and lubricate rails for smooth operation.
-
Fence & Miter Gauge Alignment: Check and adjust for accuracy.
-
Belt & Pulley Inspection: Ensure proper tension and replace worn belts as needed.
-
Dust Collection System: Keep ports clear and empty dust bins frequently.
-
Lubrication: Apply lubricant to moving parts like the arbor, trunnions, and elevation mechanisms.
-
Electrical & Safety Check: Inspect wiring, switches, and emergency stops for safe operation.
