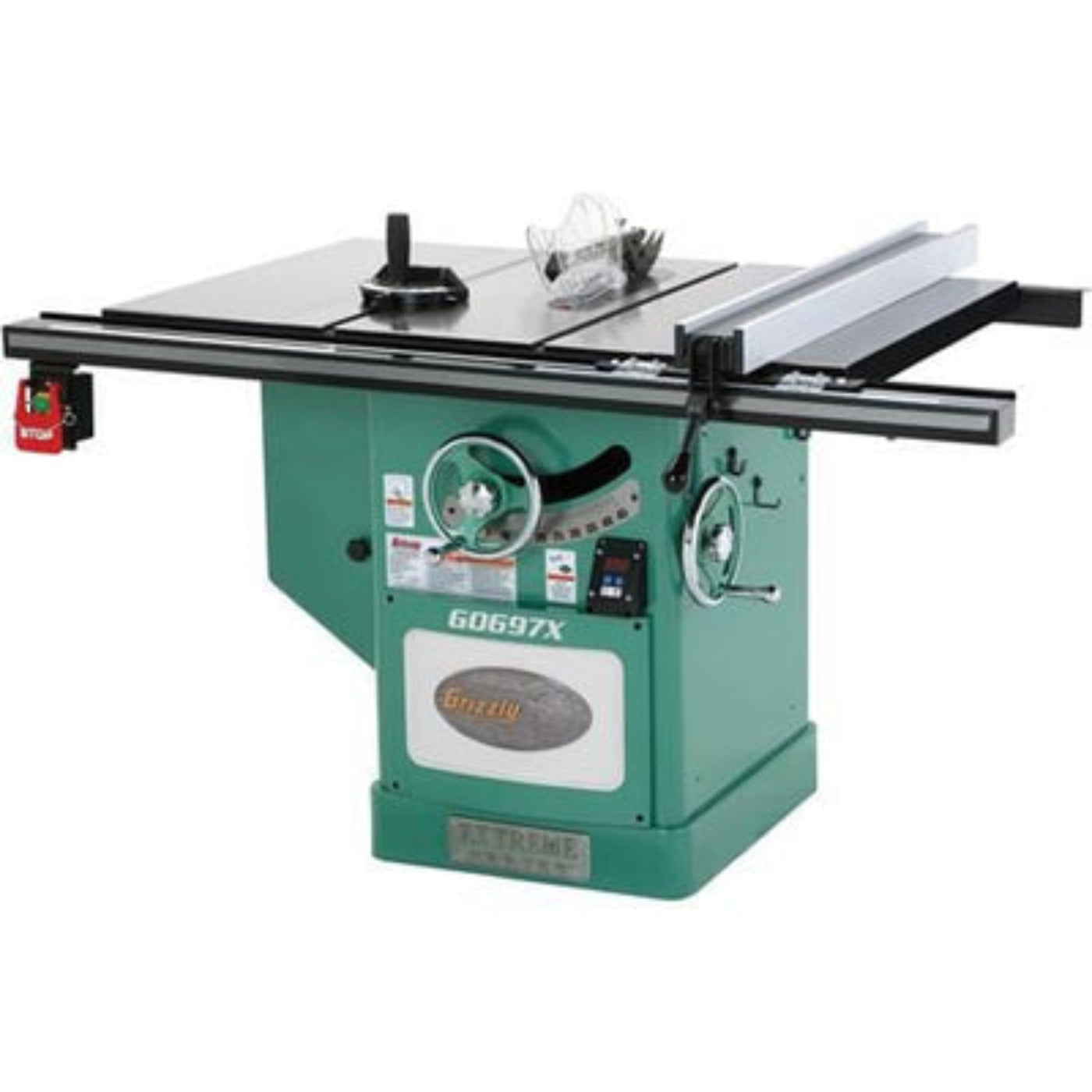

U.S Industrial Grizzly Industrial 12" 7-1/2 HP 3-Phase Extreme Series Table Saw
For serious woodworkers, cabinet makers, and production shops, step it up to the G0697X Extreme Series Table Saw.
The heavy-duty 7-1/2 horsepower motor spins the 12" blade at 3600 RPM while operating on 3-phase power.
With a footprint of under two square feet, you can save space in a crowded shop while still achieving an unstoppable 4" maximum depth of cut and 36" rip capacity.

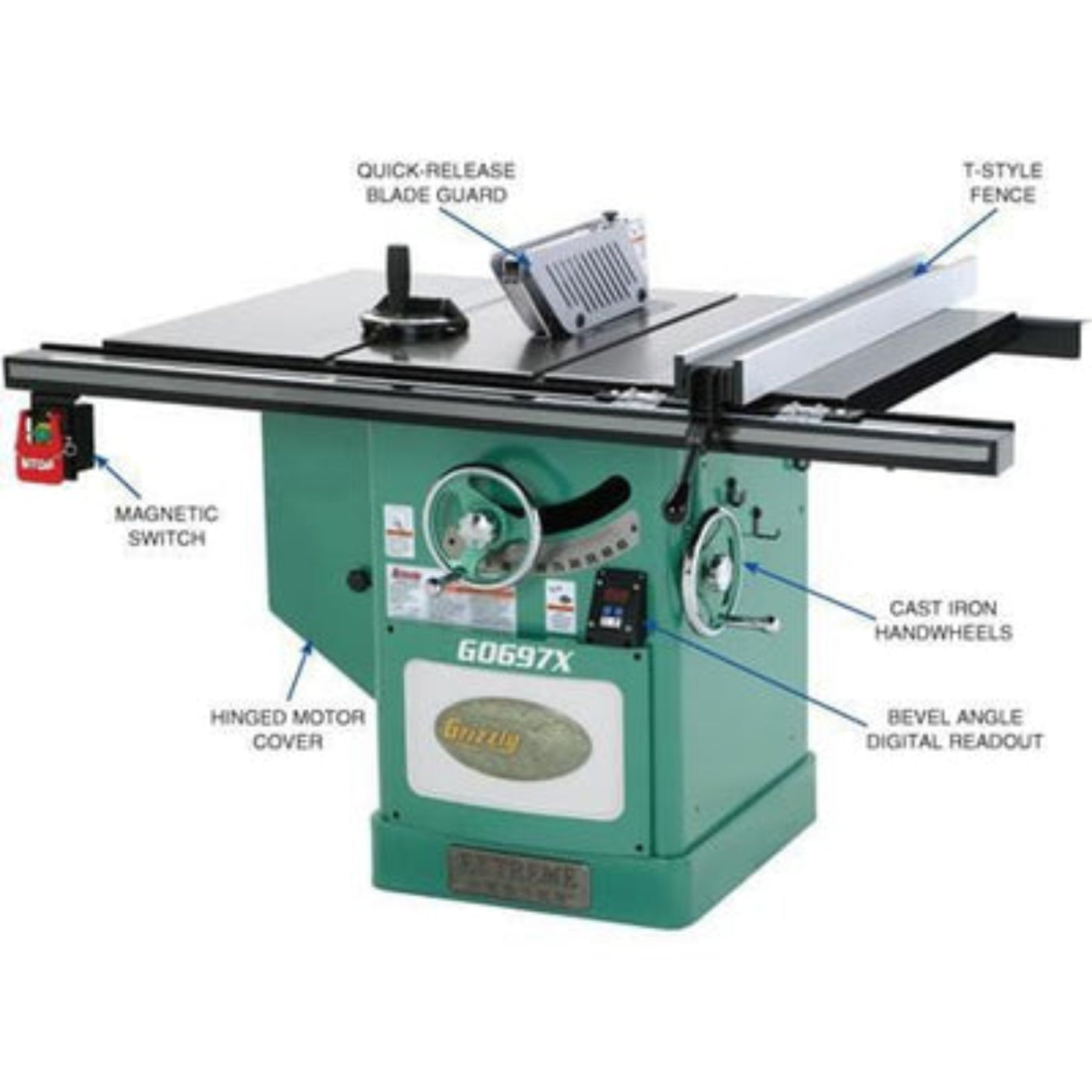

A digital readout for the blade angle allows you to set and cut precise bevels every time with consistent results.
An internal dust port and sloped cabinet floor directs saw dust into the 4" dust port, providing highly effective dust removal. A poly-V serpentine belt system efficiently transfers power.
A rail mounted lockable magnetic switch with thermal overload protection provides an additional safety feature. This disables the switch to prevent accidental startup and restrict usage.
Add to that the massive precision-ground cast-iron table, worm-drive blade elevation, and a host of other features, this table saw will tackle anything you can throw at it!
Like all Grizzly table saws, the G0697X comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.
The G0697X manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your saw.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the table saw may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
Features
- Digital readout for bevel angle
- Precision-ground cast-iron table
- Cast-iron trunnions
- 3/8" x 3/4" T-slots and miter gauge
- Smooth and quiet poly-V serpentine belt system
- Comfortable polished chrome handles
- Heavy-duty miter gauge
- Includes a 12" x 60T blade and long-reach push stick
Specifications
| Motor |
7-1/2 HP, 220V/440V (prewired for 220V), 3-phase, 19.5A/10A |
| Rip Capacity |
36" |
| Maximum Depth of Cut @ 90° |
4" |
| Maximum Depth of Cut @ 45° |
2-3/4" |
| Table Size |
30-3/4" x 48-1/4" |
| Floor-to-Table Height |
35-3/4" |
| Arbor Diameter |
1" |
| Arbor Speed |
3600 RPM |
| Maximum Width of Dado |
3/4" |
| Dust Port Size |
4" |
| Footprint |
22-1/2" L x 24" W |
| Overall Dimensions |
75" W x 44" D x 42-1/2" H |
| Approximate Shipping Weight |
698 lbs. |
What our Experts Think
-
High-Powered 7-1/2 HP Motor: Delivers exceptional cutting power for heavy-duty woodworking applications.
-
12" Blade Capacity: Provides increased cutting depth for thick hardwoods and sheet goods.
-
Precision Fence System: Ensures accurate, repeatable cuts with smooth adjustments.
-
Heavy-Duty Cast-Iron Construction: Enhances stability, minimizes vibration, and ensures long-lasting durability.
-
Industrial-Grade Safety Features: Includes a riving knife, blade guard, and emergency stop for user protection.
-
Large Cast-Iron Table Surface: Supports oversized materials for improved accuracy and ease of use.
-
Optimized Dust Collection Port: Keeps the workspace clean by efficiently removing sawdust.
-
Ideal for Cabinet Shops & Professional Woodworkers: Designed for high-performance precision cutting in demanding environments.
Q&A
Q: What is the U.S. Industrial Grizzly 12" 7-1/2 HP 3-Phase Extreme Series Table Saw?
A: A high-powered, precision table saw designed for industrial and professional woodworking applications, offering superior cutting performance and durability.
Q: What are the key features?
A: 12" blade capacity, 7-1/2 HP 3-phase motor for powerful cutting, precision-ground cast iron table, heavy-duty trunnion system, advanced safety features, and a large rip capacity.
Q: What materials can it cut?
A: Ideal for cutting hardwood, softwood, plywood, MDF, and composite wood materials.
Q: Is it suitable for professional use?
A: Yes, it is built for high-production woodworking shops, furniture makers, and industrial applications requiring precision and power.
Q: How does it ensure accuracy?
A: Features a precision fence system, smooth arbor operation, and vibration-dampening construction for highly accurate cuts.
Q: What’s included with the table saw?
A: Saw unit, precision rip fence, miter gauge, blade guard, dust collection port, and extension table.
Maintenance Tips
-
Keep the Saw Clean: Regularly remove sawdust, debris, and resin buildup from the table, blade, and dust collection port.
-
Inspect & Sharpen Blade: Check the blade for dullness, warping, or missing teeth; replace or sharpen as needed.
-
Lubricate Moving Parts: Apply lubricant to the arbor, trunnions, gears, and height/tilt adjustments for smooth operation.
-
Check & Align Blade & Fence: Ensure the blade is parallel to the miter slots and the fence is square for accurate cuts.
-
Inspect Belts & Pulleys: Check for wear or looseness in belts and pulleys, adjusting or replacing as needed.
-
Test Safety Features: Verify that the riving knife, blade guard, and emergency stop functions properly.
-
Tighten Fasteners & Motor Mounts: Regularly inspect and secure bolts, nuts, and motor mounts to prevent vibrations from loosening them.
-
Monitor Electrical Components: Ensure the motor runs smoothly and check wiring connections for any signs of wear or overheating.
