U.S Industrial Grizzly Industrial 18" 1-1/2 HP Open-End Drum Sander w/ VS Feed

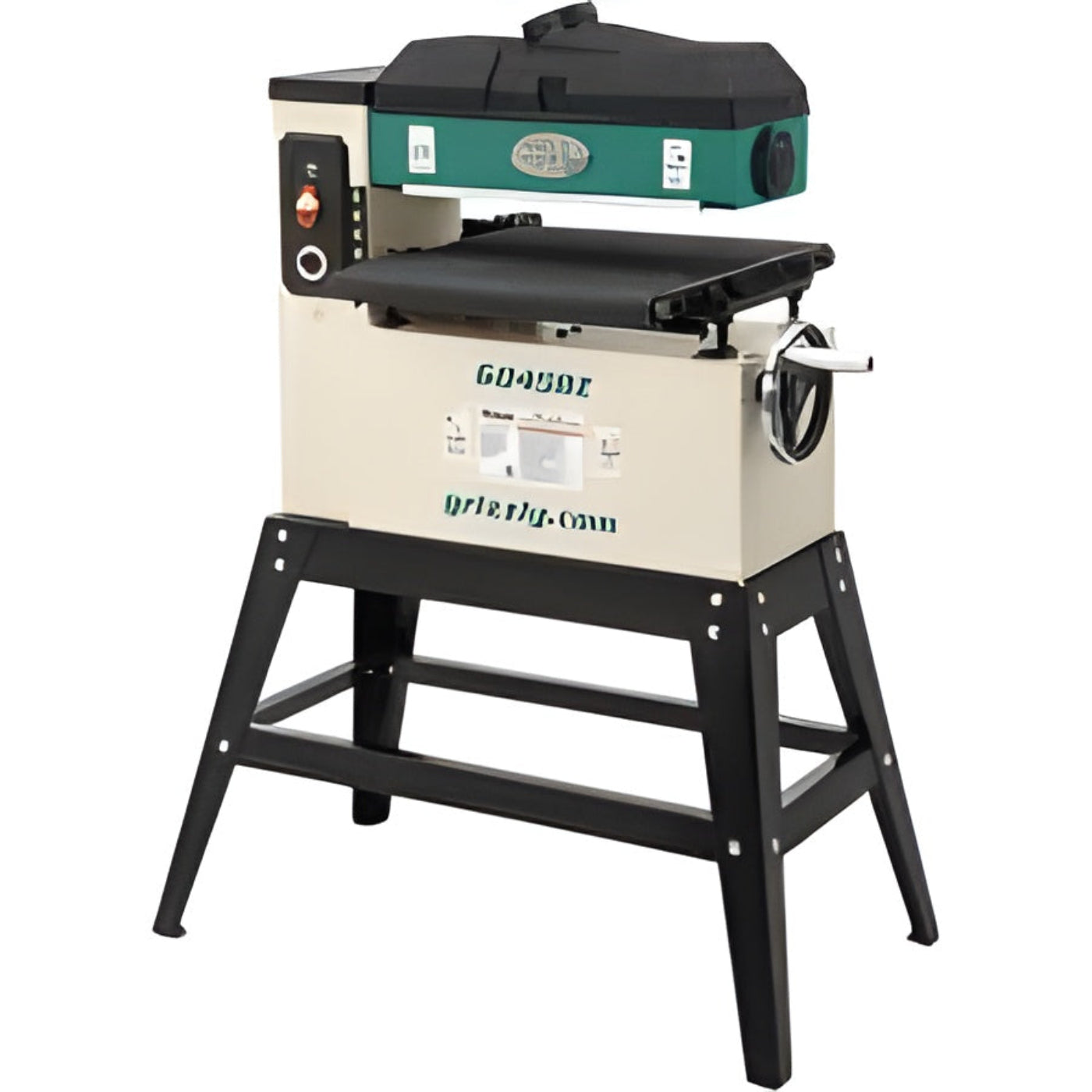

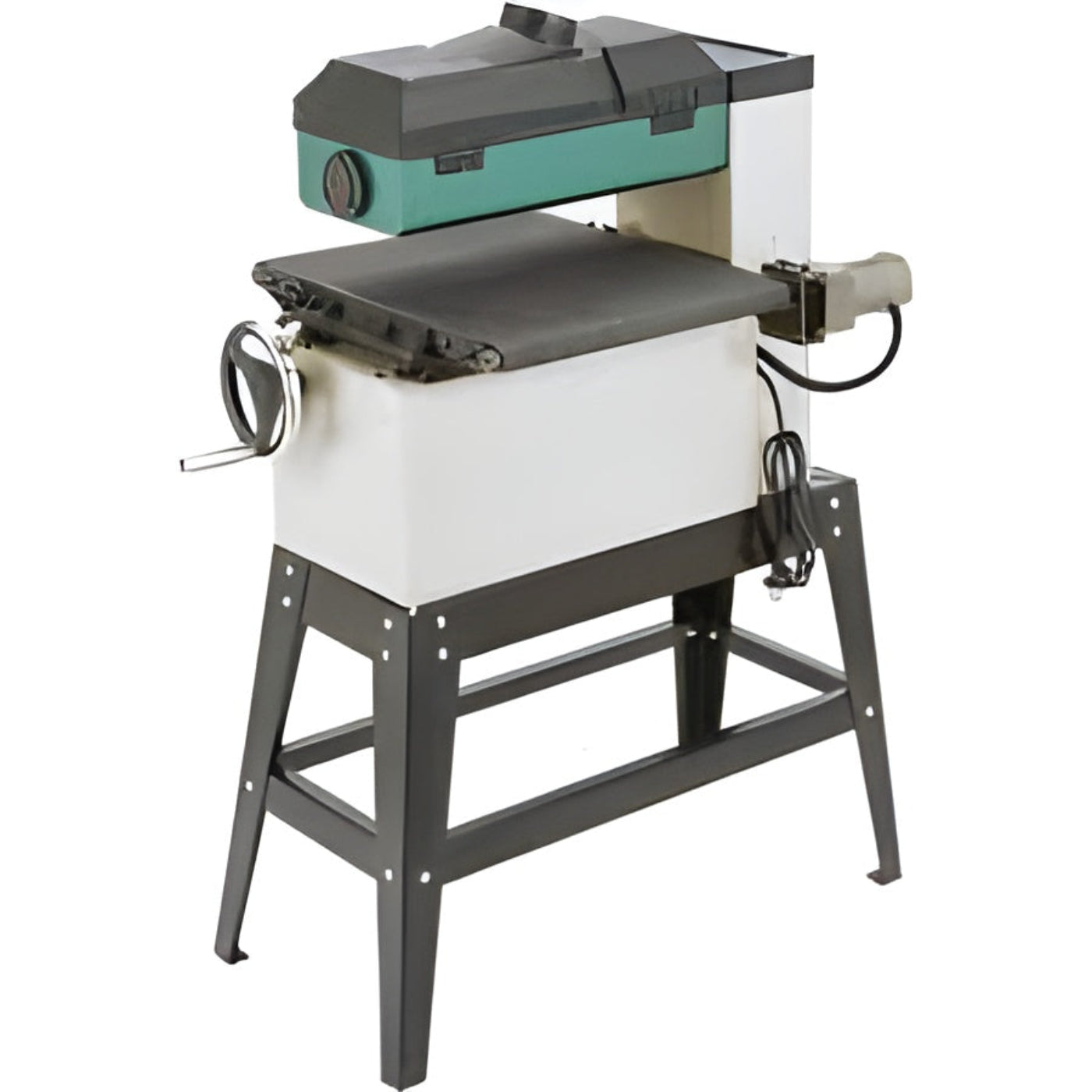

The G0458Z 18" 1-1/2 HP Variable-Speed Open-End Drum Sander offers a lot of versatility and a huge sanding capacity in a small amount of floor space. Sand stock up to 36" wide and 4-1/2" thick!
Unlike other open-end drum sanders, the table moves up and down instead of the head, meaning the drum support is much more rigid during sanding operations, giving you more consistent results.
The precision control of the electronic variable-speed conveyor allows you to find the perfect feed rate up to 12 feet per minute (FPM).
The dual-speed 4" sanding drum rotates at 2600 and 3400 FPM, depending on the belt position on the pulleys.

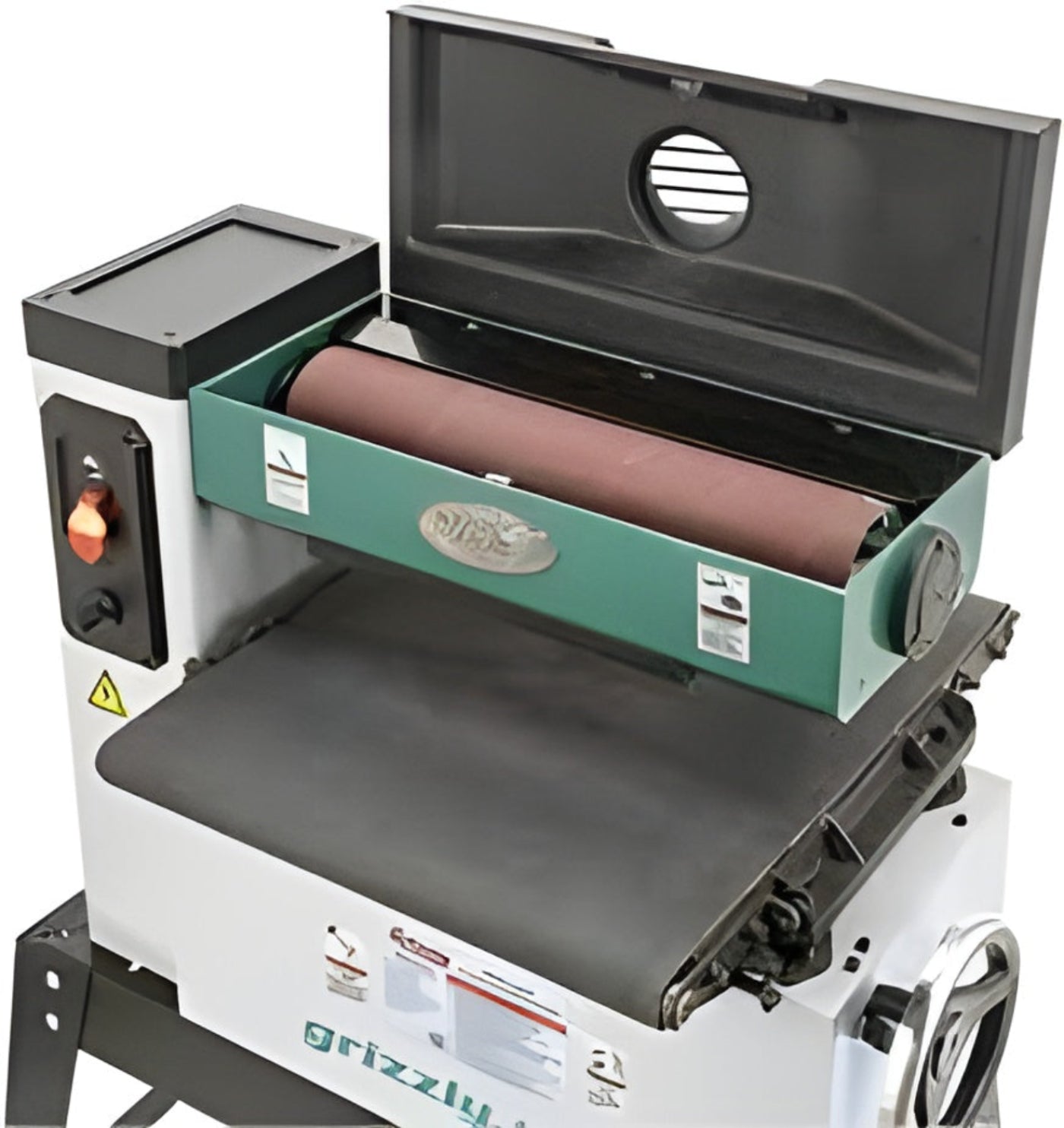

Changing the sandpaper is easy and straightforward. Simply remove the top cover for unobstructed access.
With the G0458Z, you can run wide stock through two or three times without adjusting table height. Turn stock 180° between passes to ensure an evenly sanded surface.
Like all Grizzly sanders, the G0458Z comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)
The G0458Z manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your sander.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the sander may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Features
- Two spring-loaded pressure rollers
- V-belt drive
- Steel construction
- 18" x 44-1/2" abrasive conveyor belt
- Electronic variable-speed conveyor
- Stationary drum headstock
- Safety switch with removable key
- Uses 3" wide sandpaper (100 grit included)
- Easy access for sandpaper changes
Specifications
| Motor |
1-1/2 HP, 120V, single-phase, 13A |
| Drum Surface Speed |
2600, 3400 FPM |
| Conveyor Feed Rate |
Variable, 0–12 FPM |
| Maximum Stock Dimensions |
36" W x 4-1/2" H |
| Minimum Board Length |
6" |
| Minimum Board Thickness |
1/8" |
| Sanding Drum Size |
4" |

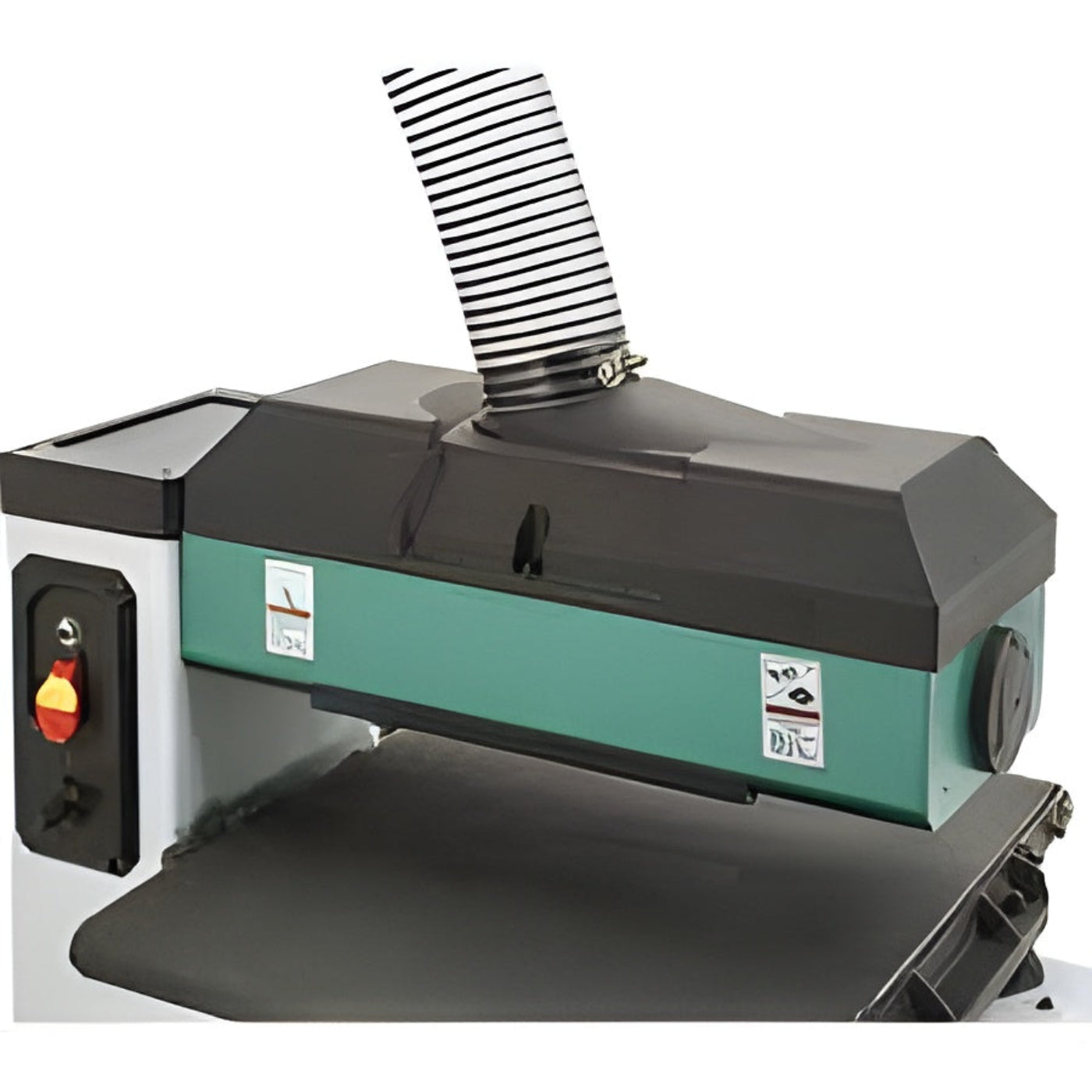

| Dust Collection Port |
4" |
| Overall Size (W x D x H) |
35-1/2" W x 22-1/2" D x 50" H |
| Approximate Shipping Weight |
235 lbs. |
What our Experts Think
-
Versatile Sanding Power – 18" open-end design allows sanding of wider materials in multiple passes.
-
1-1/2 HP Motor – Delivers consistent, high-performance sanding for woodworking projects.
-
Variable-Speed Feed – Adjusts conveyor speed for precise control over different materials.
-
Durable & Stable Build – Heavy-duty cast-iron construction reduces vibration for smooth operation.
-
Perfect For – Woodworkers and shops needing precision surface finishing with adjustable speed control.
Q&A
Q: What is the U.S. Industrial Grizzly 18" Open-End Drum Sander?
A: A 1-1/2 HP open-end drum sander with variable speed (VS) feed, designed for precision sanding of wide workpieces in woodworking shops.
Q: What is the maximum sanding width?
A: 18 inches in a single pass, and up to 36 inches with two passes due to its open-end design.
Q: What type of motor does it have?
A: A 1-1/2 HP motor for consistent sanding power.
Q: How does the variable speed feed work?
A: The adjustable conveyor feed rate allows better control over sanding speed and finish quality.
Q: What materials can it sand?
A: Ideal for wood, plywood, MDF, and other panel materials.
Q: Is dust collection supported?
A: Yes, it includes a dust port for efficient debris extraction.
Q: Why choose this drum sander?
A: Its open-end design, variable speed feed, and powerful motor make it a great choice for woodworking professionals who need precision and versatility in their sanding operations.
Maintenance Tips
-
Drum & Sandpaper Check: Inspect for wear, replace sandpaper as needed for smooth sanding.
-
Dust Collection: Regularly empty and clean dust ports to prevent clogging.
-
Feed Belt Maintenance: Adjust and clean for consistent material feeding.
-
Lubrication: Apply lubricant to moving parts per manufacturer guidelines.
-
Belt Tension & Tracking: Check and adjust for proper alignment and performance.
-
Electrical & Safety Inspection: Ensure wiring, switches, and emergency stops are functioning properly.
-
Motor & Drive System: Inspect belts and pulleys for wear, replacing as needed.
