U.S Industrial Grizzly Industrial 2/3 HP 3 Roller Variable-Speed Brushless Motor Power Feeder - G0826
This all-purpose, heavy-duty G0826 Variable-Speed Power Feeder boasts a 2/3 HP BLDC motor that provides energy-efficient, high-torque, from a single-phase power supply.
No more fussing with gears–just dial in the exact feed speed you need and start cutting thanks to the variable-speed feed control from 7–72 FPM.
This power feeder also automatically compensates for variations in workpiece thicknesses up to 3/4" via a roller-spring mechanism.

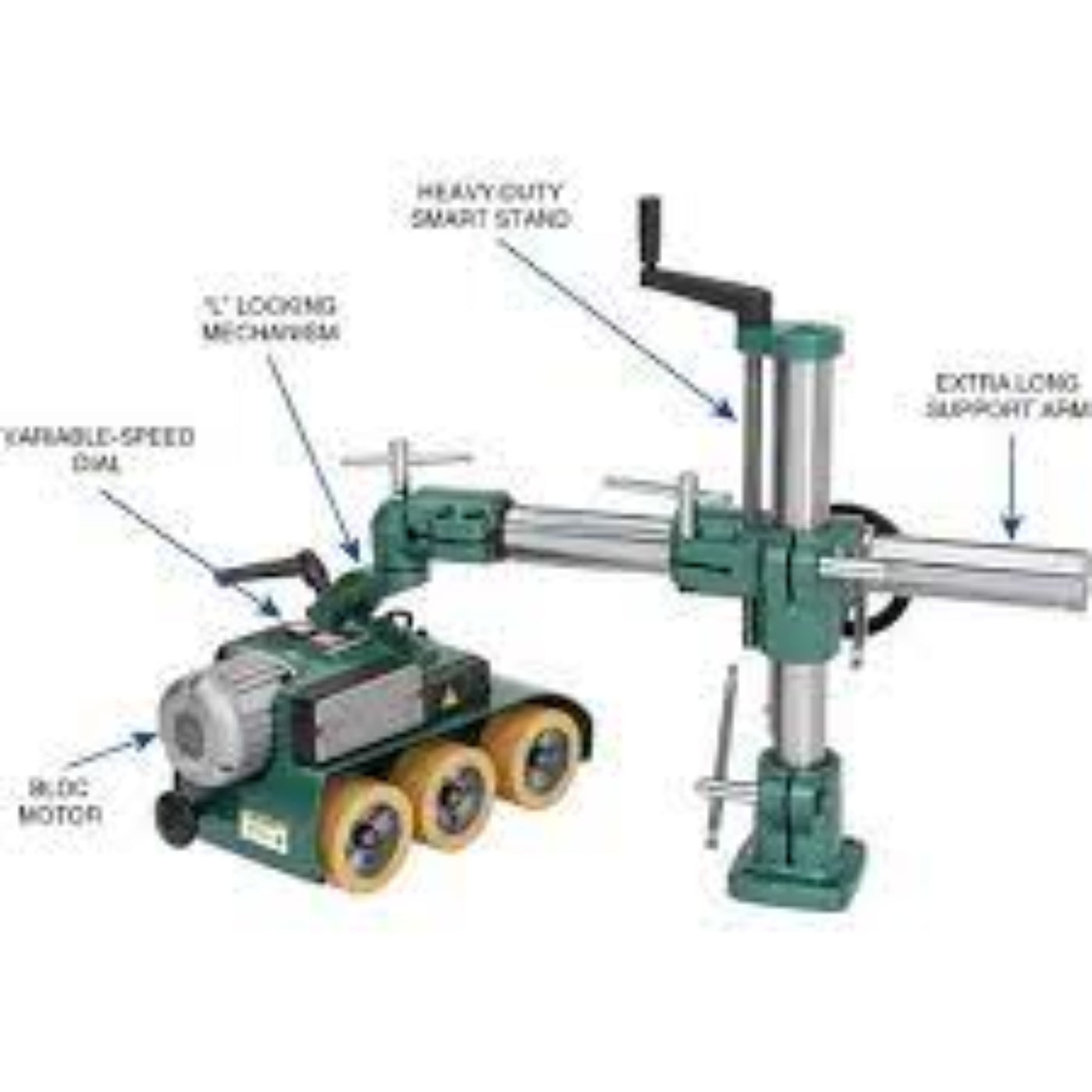

Additionally, it comes equipped with a heavy-duty "smart stand, a durable ductile-steel vertical and horizontal support column.
An extra-long support column and arm allows for use on larger woodworking machinery.
It also has a joint that features an "L" locking mechanism for securing the feeder in horizontal, vertical, or angled feeding positions.
Last but not least, the horizontal rotation features a clutch and memory-lock for quick and easy repositioning after blade or cutter changes. This saves significant downtime compared with other power feeders of the same size.
Like all Grizzly power feeders, the G0826 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.
The G0826 manual was written by our U.S. based Technical Documentation Department and is packed with useful information.
The complete-and-easy to read manual makes it easier to assemble and maintain your power feeder.
The Grizzly Customer Service and Technical Support Teams are U.S. based.
Parts for the feeders may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
Features
- BLDC motor for energy-efficient, high-torque, variable-speed control from a single-phase power supply
- High-efficiency green technology (50% less power consumption than similar power feeders of the same size)
- Forward/reverse feed
- Includes heavy-duty smart stand
- Extra-long support column for use with larger machinery
- Clutch and memory lock for horizontal rotation, for easy repositioning after blade or cutter changes
- X-, Y-, Z-axis adjustment
Specifications
| Motor |
2/3 HP, 220V, single-phase, 2.3A |
| Feed Speed |
Variable, 7–72 FPM |
| Swing |
360° |
| Vertical Travel |
6-11/16" |
| Horizontal Travel |
17" |
| Rotation |
Forward and reverse |
| Minimum Workpiece Length |
6" |
| Rollers |
(x3) 2-5/16" x 4-3/4" |
| Roller Suspension |
3/4" |
| Maximum Height of Rollers |
7-1/2" |
| Overall Size |
37-1/2" W x 20-1/2" D x 29-1/2" H |
| Approximate Shipping Weight |
125 lbs. |
What our Experts Think
-
Powerful 2/3 HP Brushless Motor: Provides consistent torque and smooth operation with minimal maintenance.
-
Variable Speed Control: Allows precise feed rate adjustments for different materials and cutting applications.
-
Three-Roller Feeding System: Ensures steady and uniform material feeding for enhanced accuracy and safety.
-
Durable Industrial Design: Built for long-term reliability in demanding woodworking environments.
-
Versatile Mounting Options: Easily attaches to table saws, shapers, and other machinery.
-
Ideal for Woodworking Professionals: Improves precision, reduces kickback risk, and enhances workflow efficiency.
Q&A
Q: What is the U.S. Industrial Grizzly 2/3 HP 3-Roller Variable-Speed Brushless Motor Power Feeder?
A: A durable, high-precision power feeder designed to provide consistent and controlled material feeding for woodworking machines like table saws, shapers, and jointers.
Q: What are the key features?
A: 2/3 HP brushless motor for efficient power and low maintenance, three rollers for smooth and stable feeding, variable speed control, and heavy-duty construction for long-term use.
Q: What materials can it handle?
A: Suitable for feeding wood, composites, and other materials through cutting, shaping, and planing machines.
Q: Is it suitable for professional use?
A: Yes, it is ideal for cabinet shops, furniture makers, and industrial woodworking operations requiring precision and safety.
Q: How does the variable-speed control improve performance?
A: Allows for precise adjustments to match different cutting operations, ensuring smoother and more accurate feeding.
Q: What’s included with the power feeder?
A: Power feeder unit, three durable feed rollers, adjustable mounting arm, and speed control system.
Maintenance Tips
-
Keep Rollers Clean: Regularly wipe down the rollers to remove dust, debris, and buildup for consistent material feeding.
-
Inspect & Adjust Roller Pressure: Ensure proper roller tension for smooth and even material feeding; adjust as needed.
-
Lubricate Moving Parts: Apply lubricant to pivot points and adjustment mechanisms for smooth operation.
-
Check Belt & Gear Condition: Inspect for wear or misalignment and replace if necessary to maintain efficiency.
-
Monitor Motor & Speed Control: Ensure the brushless motor operates smoothly and speed adjustments respond correctly.
-
Tighten Fasteners & Mounting Bolts: Regularly check and secure all bolts to prevent vibrations from loosening them.
-
Test Safety Features: Verify emergency stop functionality and ensure all safety mechanisms are operational.
