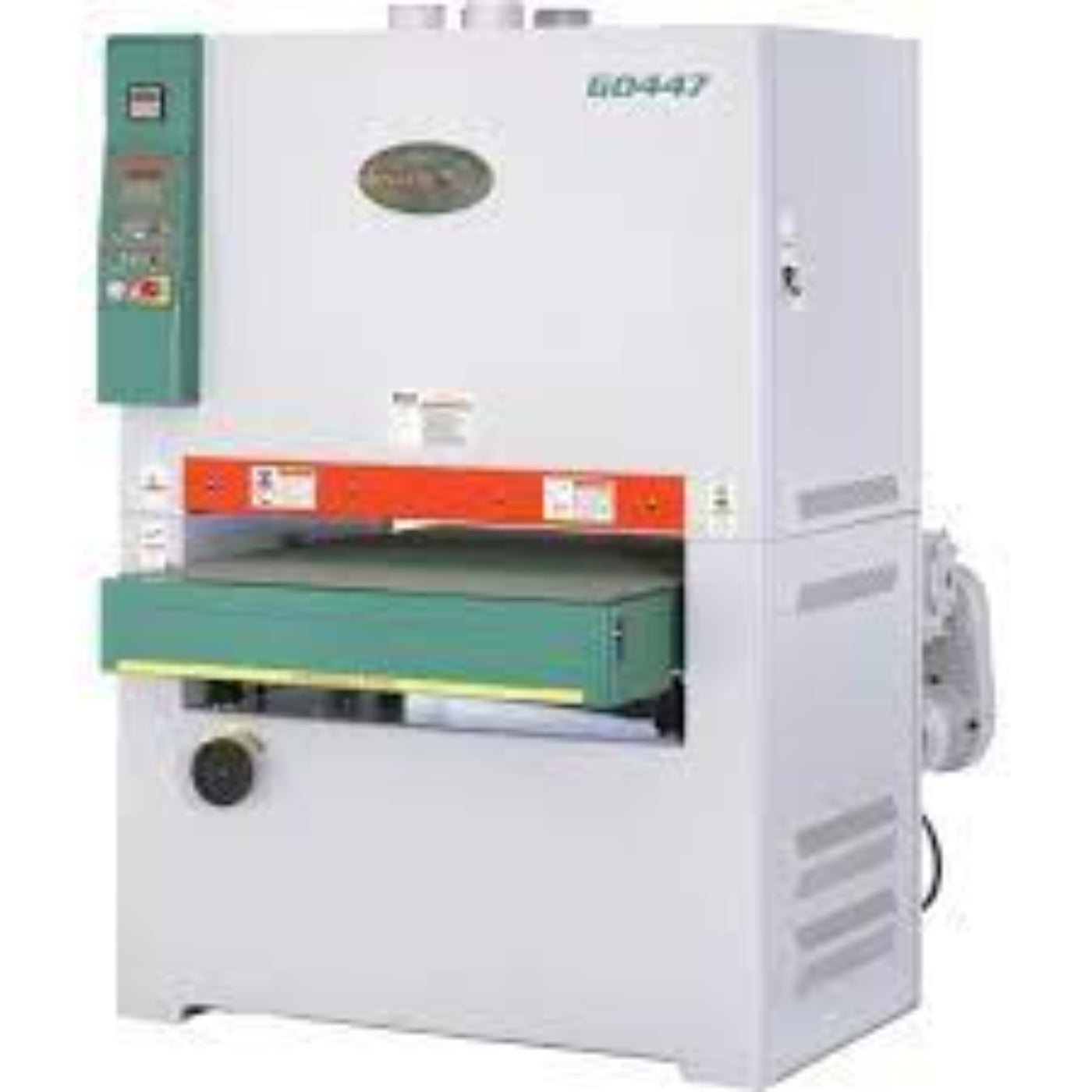

U.S Industrial Grizzly Industrial 37" 20 HP 3-Phase Double Head Wide-Belt Sander

Rarely can a machine claim to cut your sanding time in half.

The G0447 37" 20 HP 3-Phase Double Head Wide-Belt Sander features dual heads enabling them to sand to finer grits in a single pass!

The first belt runs on a single drum and the rear belt runs on a platen system which allows you to adjust the sanding depth.

The sandpaper length needed is 35" wide by 75" long. For a full range of replacement paper for the G0447, shop here.

If you are still sanding through two different grit levels using a single head wide-belt sander you are not being the most efficient.

Like all of the Grizzly wide-belt sanders, the G0447 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)

The G0447 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your sander.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the sander may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

Features

• Rubber pressure rollers
• Hard rubber infeed drum
• Adjustable graphite platen
• Digital encoder depth control
• Amp/load meter

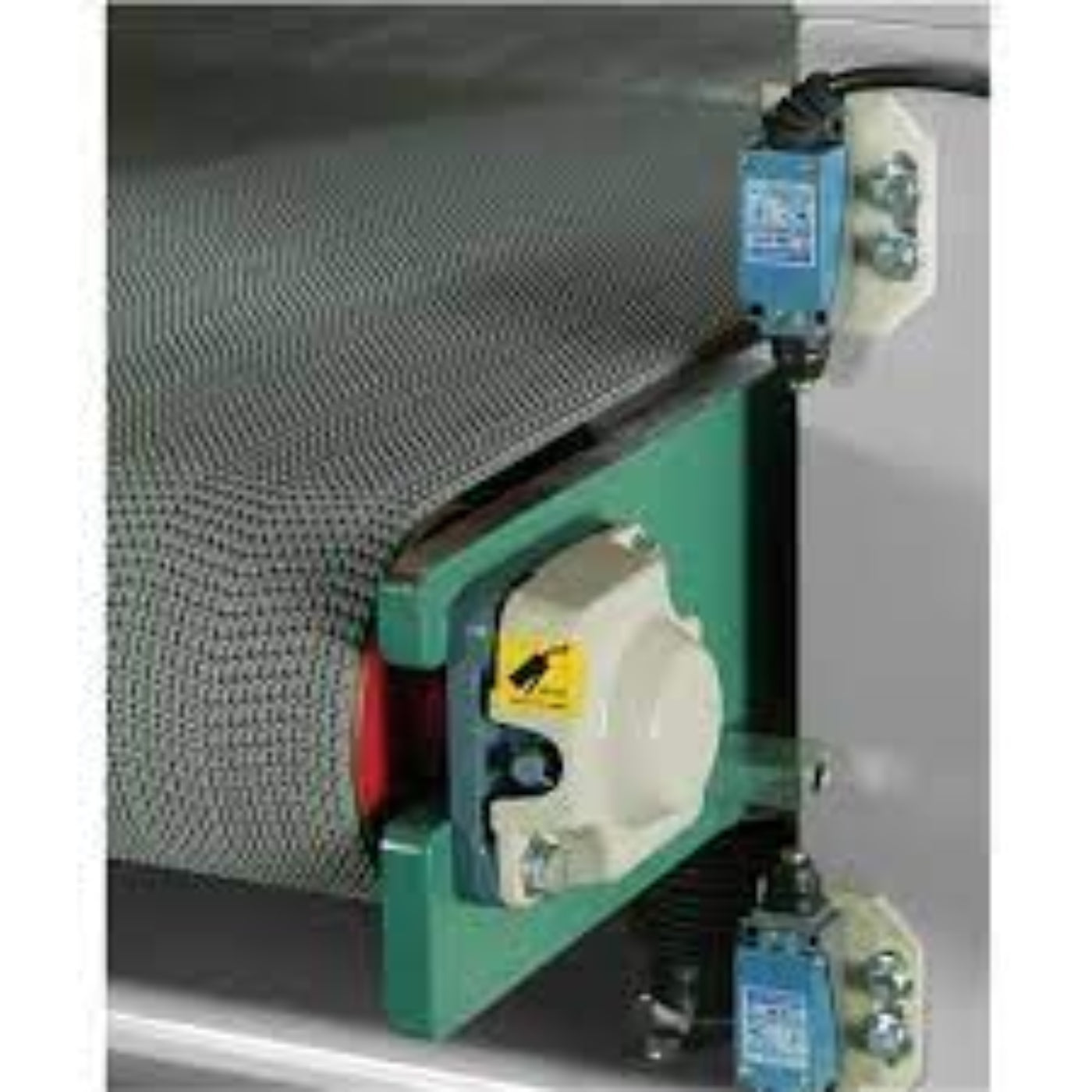

• Disc brake for emergency stop
• Variable feed speed

Specifications

What our Experts Think

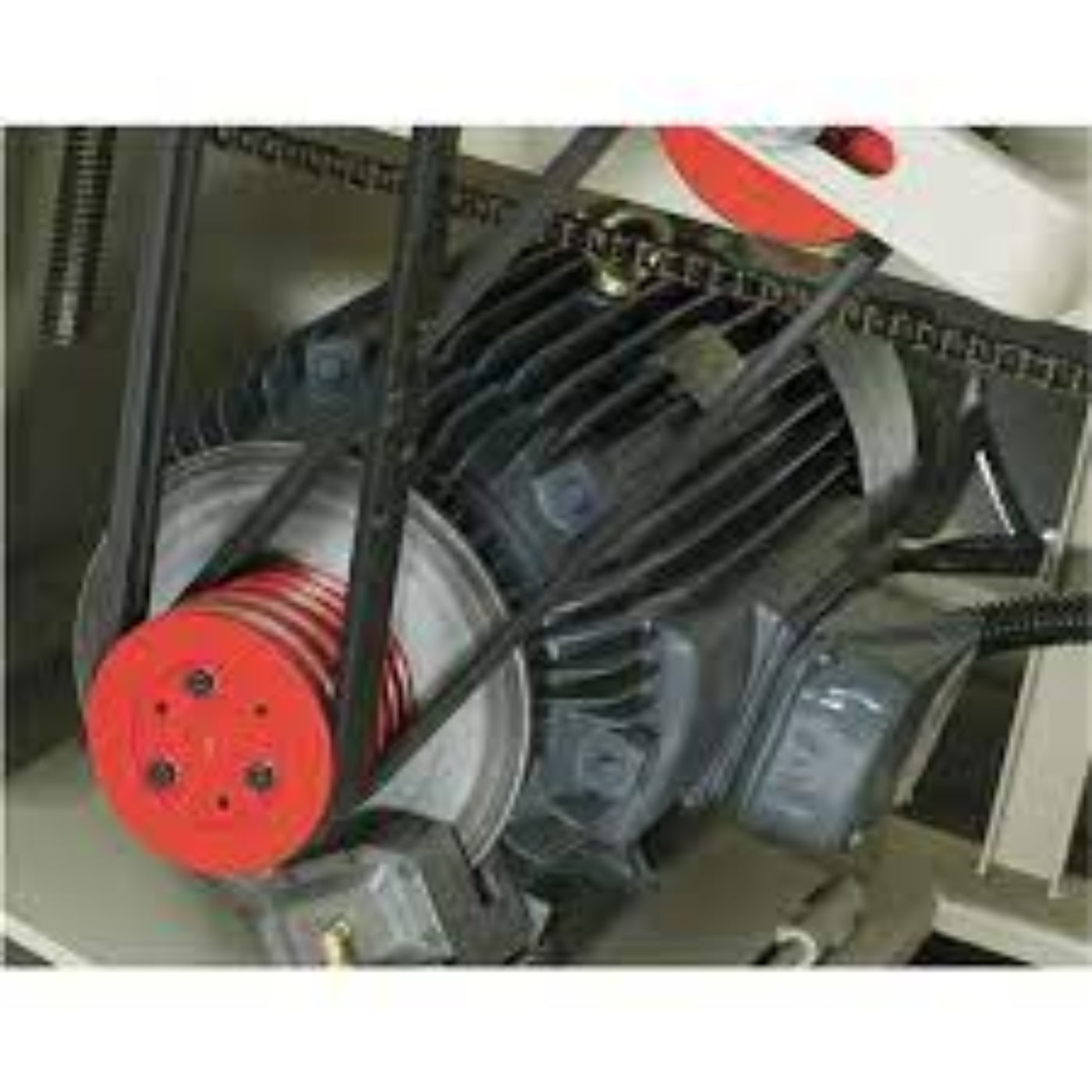

• High-Powered Sanding – 20 HP motor delivers exceptional performance for large-scale material removal.

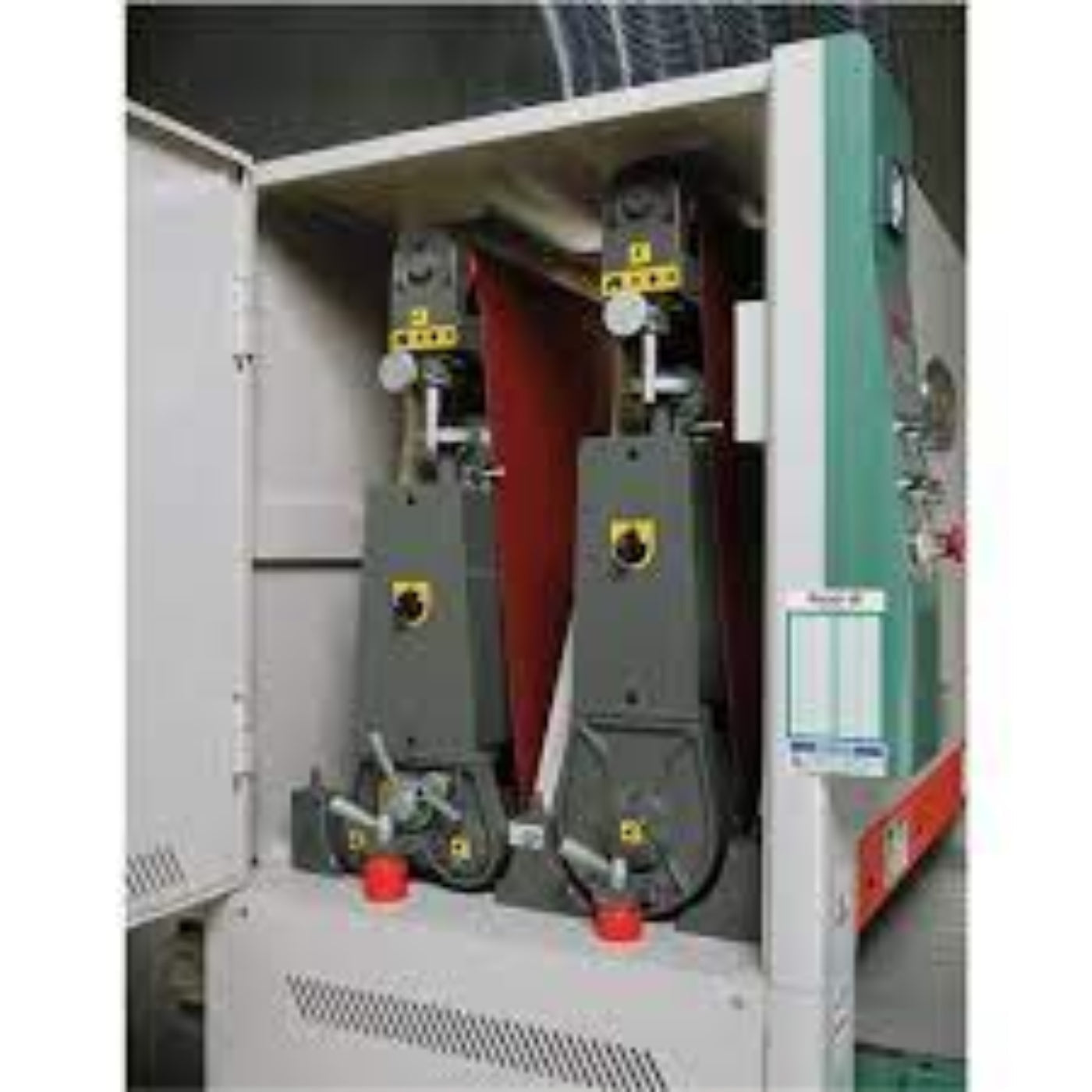

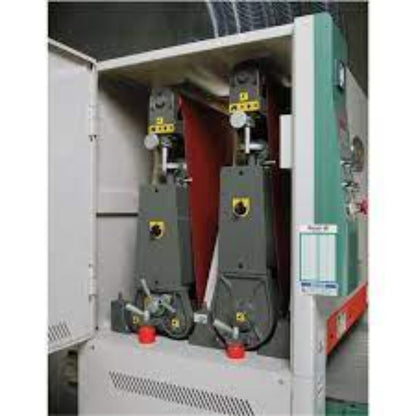

• Double-Head Design – Two sanding heads for increased efficiency and finer surface finishing.

• Wide 37" Capacity – Handles large workpieces with ease, perfect for cabinetry and furniture production.

• Industrial-Grade Durability – Heavy-duty steel construction ensures long-lasting precision and stability.

• Perfect For – High-production woodworking shops needing fast, consistent, and high-quality sanding results.

Q&A

Q: What is the U.S. Industrial Grizzly 37" 20 HP 3-Phase Double Head Wide-Belt Sander?
A: A heavy-duty 37-inch wide-belt sander with a 20 HP motor and double sanding heads, designed for professional woodworking and high-volume sanding operations.

Q: What is the motor power and phase?
A: Equipped with a 20 HP, 3-phase motor, delivering powerful and consistent sanding performance.

Q: What is the sanding capacity?
A: - Maximum sanding width: 37 inches

• Maximum sanding thickness: Typically 5-6 inches

Q: What is the advantage of double sanding heads?
A: Allows for progressive sanding, with the first head performing rough sanding and the second head finishing the surface, improving efficiency and quality.

Q: What type of sanding belts does it use?
A: Uses wide, industrial-grade sanding belts, typically 37" x 75", for smooth and even sanding.

Q: Does it have variable speed control?
A: Yes, it features an adjustable conveyor belt feed speed, allowing for fine-tuned sanding results.

Q: Does it include dust collection?
A: Yes, comes with multiple 4-inch dust ports for efficient dust extraction and a cleaner workspace.

Q: Why choose this wide-belt sander?
A: Its high-powered motor, double sanding heads, precision control, and wide capacity make it an excellent choice for professional woodworking shops requiring fast and high-quality sanding results.

Maintenance Tips

• Belt Inspection & Replacement: Check sanding belts for wear, tracking, and tension; replace as needed.

• Drum & Platen Care: Keep clean and inspect for wear to ensure even sanding.

• Dust Collection System: Regularly clean filters and empty dust bins for efficient operation.

• Conveyor Belt Maintenance: Adjust tracking and tension for smooth, consistent material feed.

• Lubrication: Apply lubricant to moving parts like bearings and rollers to reduce wear.

• Motor & Electrical System Check: Inspect wiring, switches, and emergency stops for safety.

• Feed Speed & Pressure Calibration: Periodically check and adjust for optimal performance.
