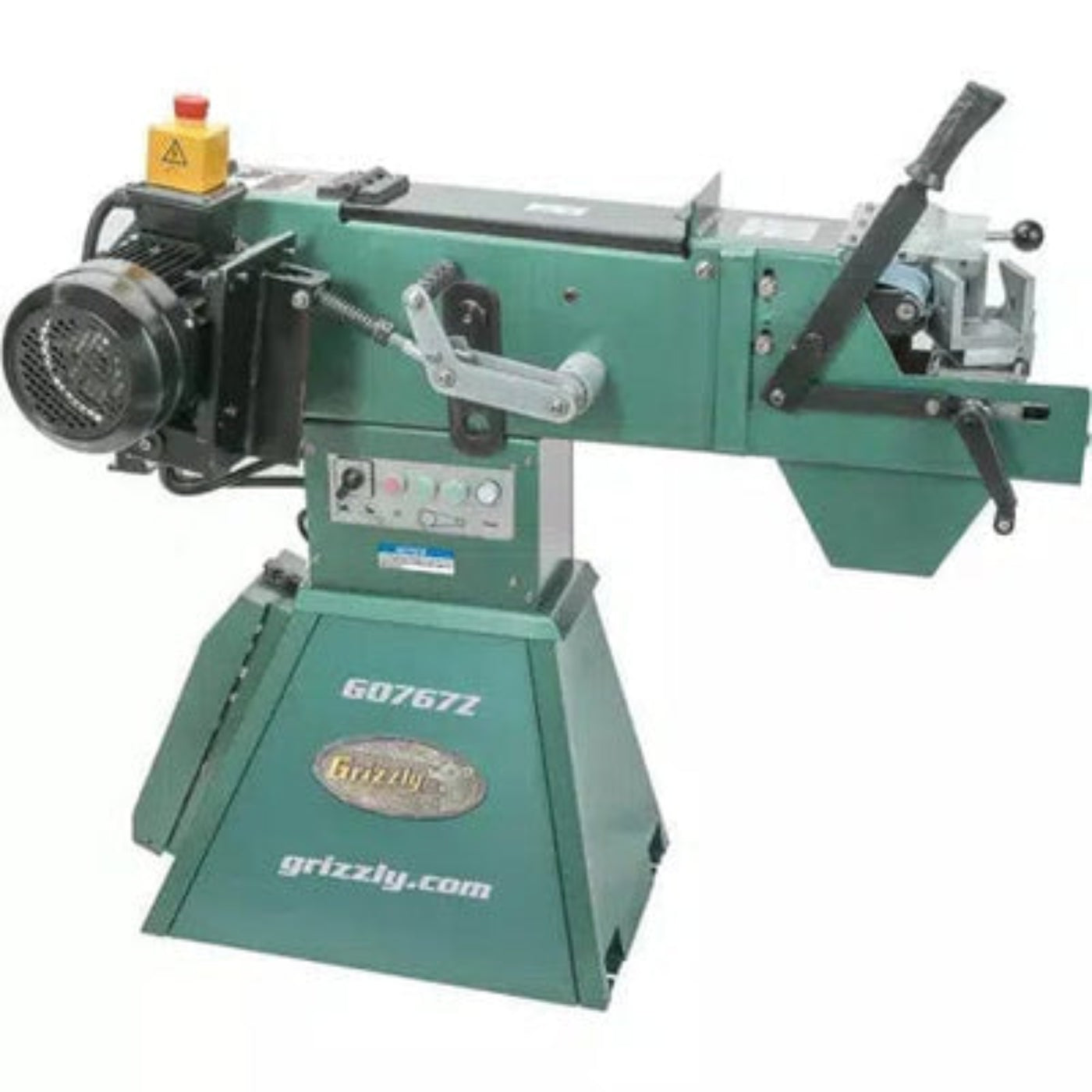

The perfect notcher for any professional or production welding shop.
The G0767Z Abrasive Tube Notcher is designed to quickly notch or cope the ends of metal tubing, so two pieces of tubing can be welded together with clean, strong joints.
It is an ideal machine for production work in shops with three-phase power.
Quickly manufacture fencing, gates, roll cages, bicycle frames, stainless steel piping or any other type of tubing work that requires joining multiple pieces together.
The vise allows the tube to be set at any angle from 30° to 90° to the grinding belt.
Using the variety of included profile rollers, notches can be formed in diameters from 3/4" to 3" and stored on the rack away from debris and grime.

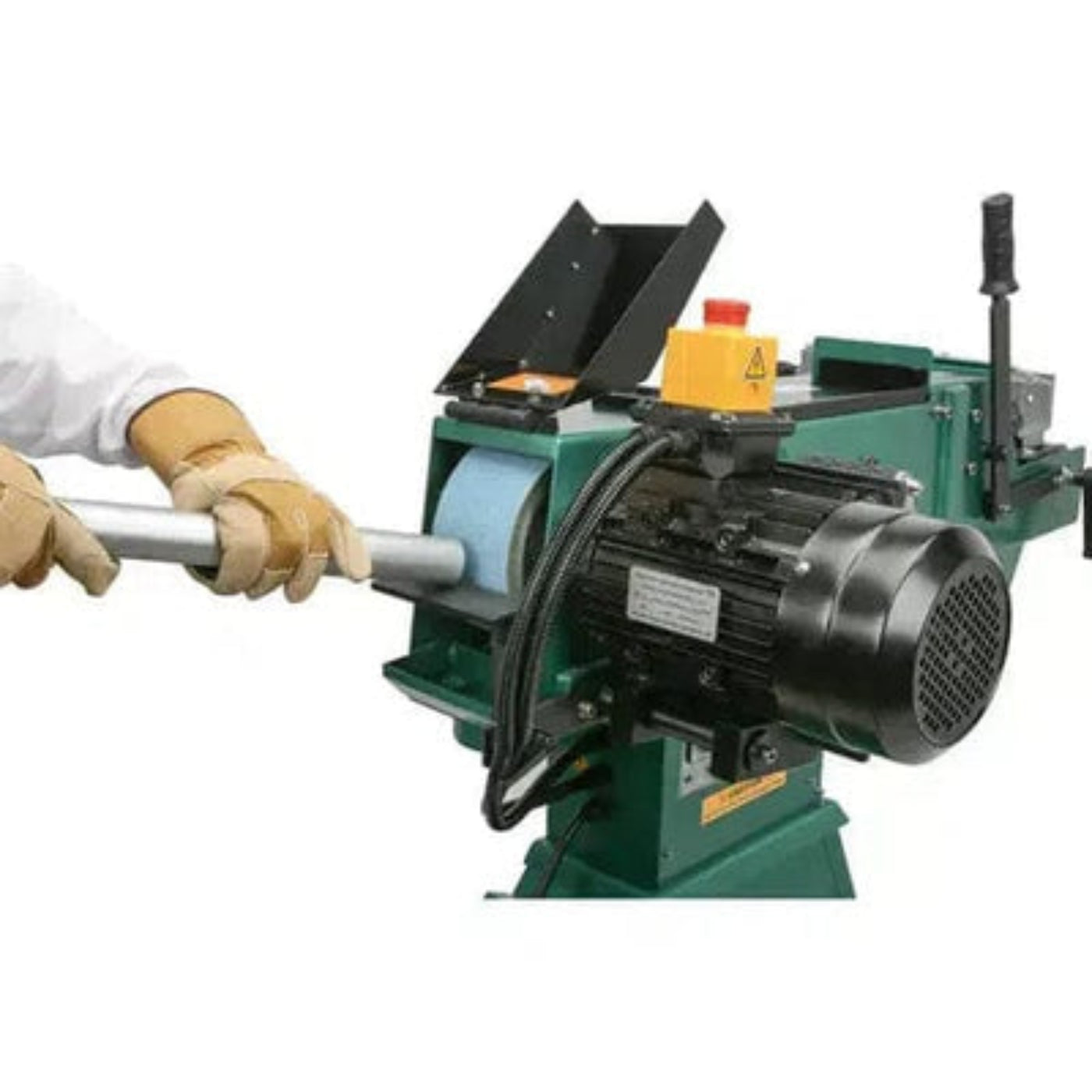

After notching is complete, tubing edges can be deburred using the deburring stations located on the top and rear of the machine.
Like all of the Grizzly Notchers, the G0767Z comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)
The G0767Z manual was written by our U.S. based Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your notcher.
The Grizzly Technical Support team is U.S. based. Parts and accessories for the notcher may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
Features

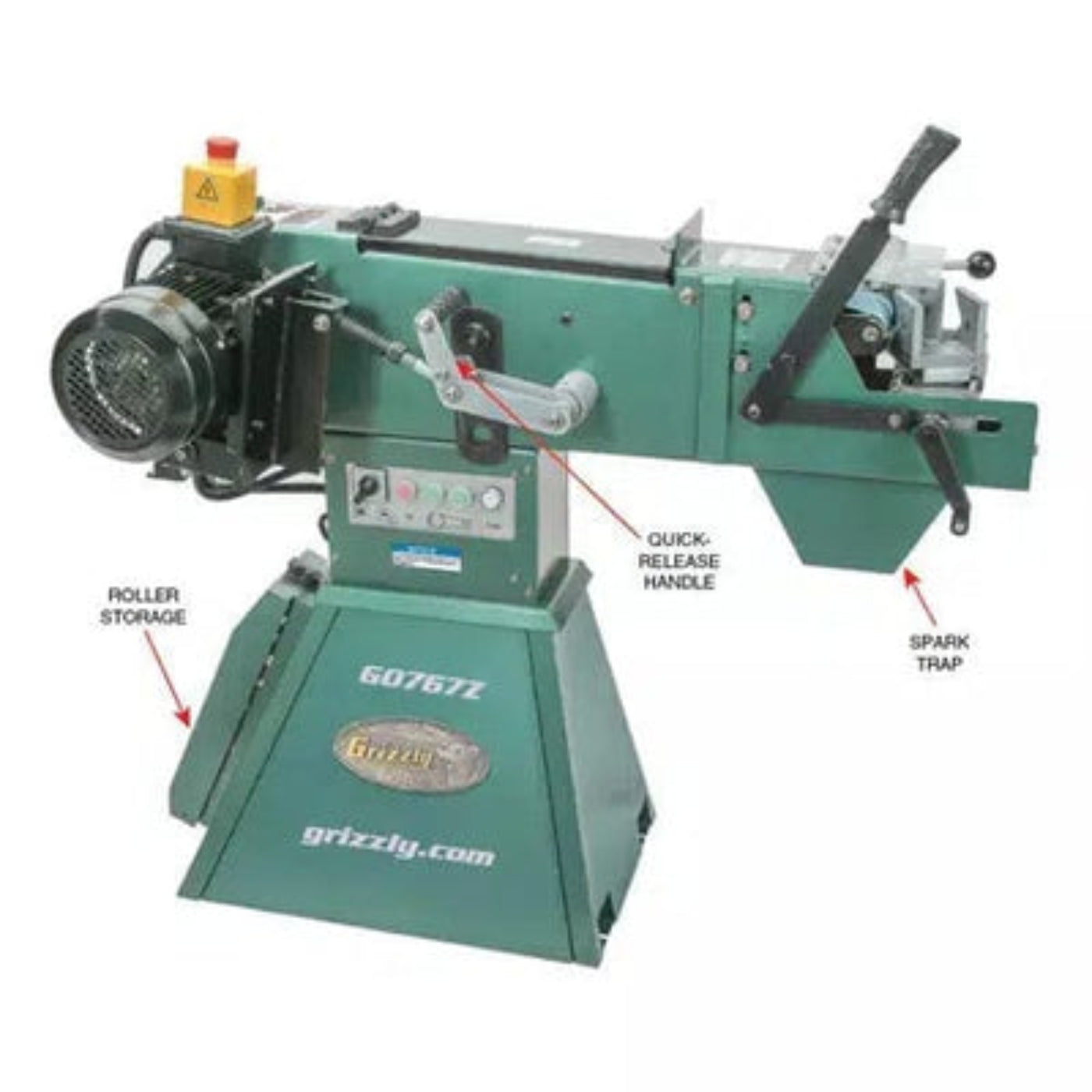

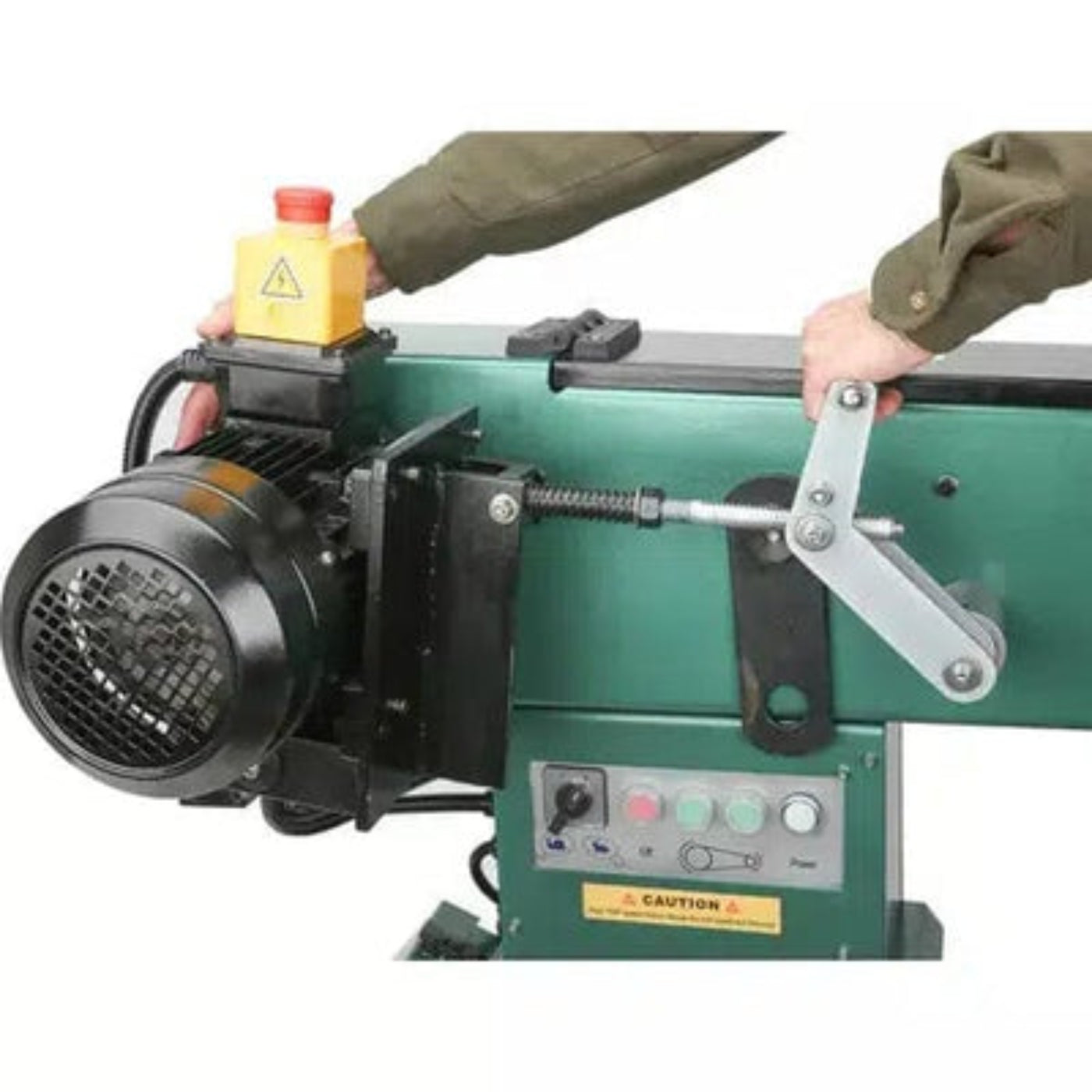

- Ratcheting system for easy tensioning of sanding belt
- Front debris-catching tray
- 3" dust port

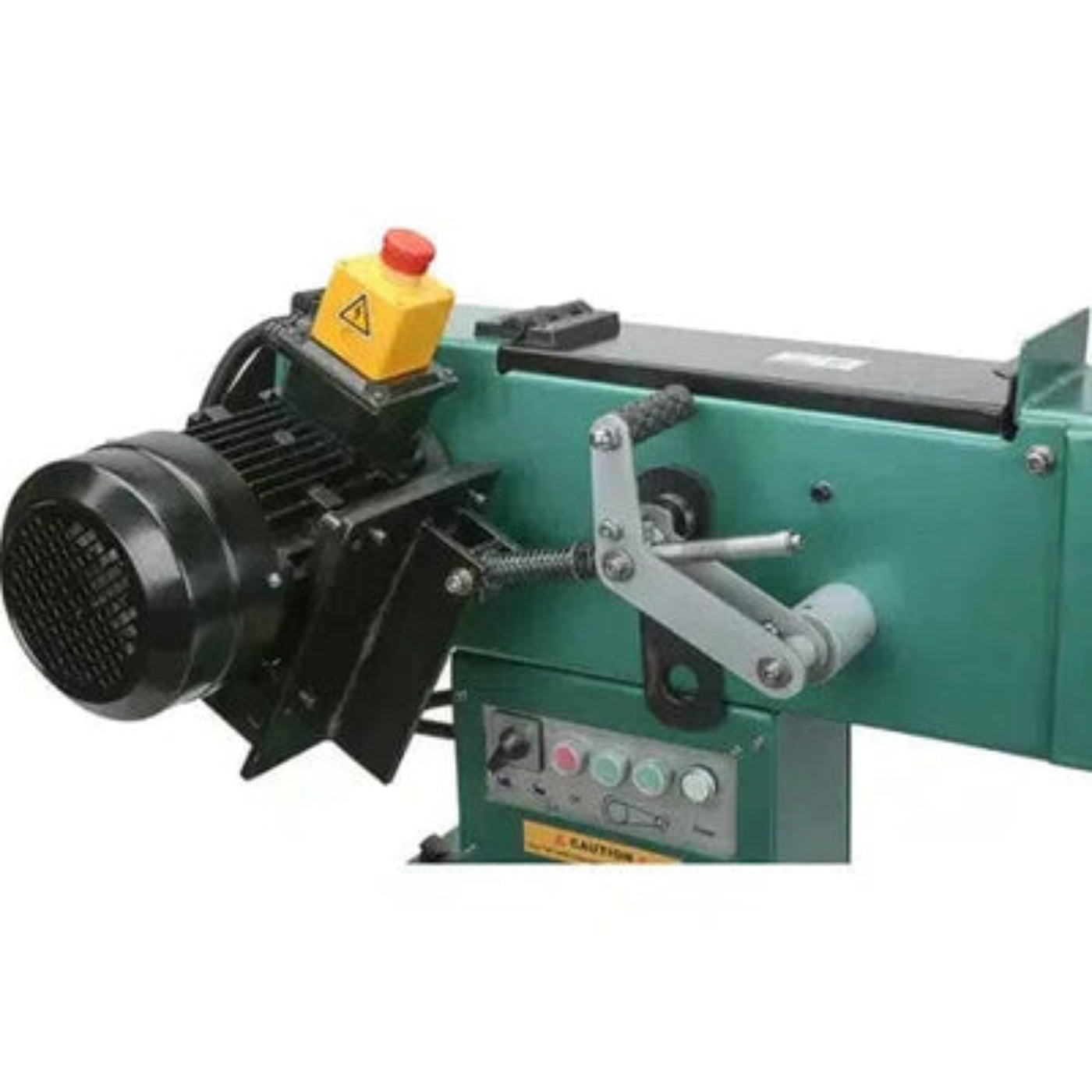

- Easy belt alignment/tracking system
- Top and rear sanding-belt access for deburring
- Self-aligning vise with side-to-side adjustment to prevent uneven belt wear
- Vise rotates 0–60 degrees
- Transparent safety guard
- Removable spark tray
Specifications
| Motor |
3 HP/4 HP, 220V, 3-phase, 9.7A/11.6A |
| Tube Angle Adjustment |
0°-30° |
| Sanding Belt Size |
4" x 78-3/4" |
| Sanding Belt Speed |
3580, 6180 FPM |
| Roller Sizes |
3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", and 3" |
| Platen Size |
4-1/2" x 15-3/8" |
| Footprint |
25-1/2" L x 16" W |
| Overall Size |
31-1/2" W x 47-1/4" H x 49-1/4" L |
| Approximate Shipping Weight |
381 lb. |
What our Experts Think
-
Heavy-Duty Abrasive Notching: Designed for precise notching of metal tubing, ideal for fabrication and welding applications.
-
4" x 79" Belt Size: Provides a large sanding surface for efficient material removal.
-
Powerful 3-Phase Motor: Delivers consistent performance for high-volume production.
-
Adjustable Notching Angles: Allows for precision cuts at various angles, enhancing versatility.
-
Durable Steel Construction: Ensures stability and longevity in demanding shop environments.
-
High-Speed Abrasive Belt: Quickly removes material, reducing labor time and improving efficiency.
-
User-Friendly Operation: Simple controls and ergonomic design make it easy to use for professionals and fabricators.
-
Ideal for Metal Fabrication Shops: Perfect for creating clean, strong tube joints for welding and assembly projects.
Q&A
Q: What is the U.S. Industrial Grizzly 4" x 79" 3-Phase Abrasive Tube Notcher?
A: A heavy-duty industrial tube notcher designed for precision notching of metal tubing using an abrasive belt system, ideal for fabrication and welding applications.
Q: What are the key features?
A: 4" x 79" belt size, powerful 3-phase motor, adjustable notching angles, heavy-duty steel construction, and smooth belt operation for clean, precise cuts.
Q: What materials can it notch?
A: Suitable for notching steel, stainless steel, aluminum, and other metal tubing.
Q: Is it suitable for professional use?
A: Yes, it is designed for metal fabrication shops, industrial manufacturing, and professional welding applications.
Q: How precise is the notching process?
A: Offers adjustable notching angles and smooth belt tracking for consistent, accurate results.
Q: What’s included with the tube notcher?
A: Notching unit, abrasive belt, adjustable worktable, and necessary safety guards.
Maintenance Tips
-
Keep the Machine Clean: Regularly remove metal shavings, dust, and debris to prevent buildup and maintain efficiency.
-
Inspect & Replace Belts: Check the abrasive belt for wear, fraying, or tears; replace it as needed for optimal performance.
-
Lubricate Moving Parts: Apply lubrication to bearings, rollers, and pivot points to reduce friction and extend lifespan.
-
Check Fasteners & Alignments: Tighten all bolts and ensure rollers and guides are properly aligned.
-
Monitor Motor & Electrical Components: Ensure the motor runs smoothly, check for overheating, and inspect wiring connections for safety.
-
Verify Belt Tracking & Tension: Adjust belt tracking and maintain proper tension to avoid premature wear and misalignment.
-
Inspect Workpiece Clamping Mechanism: Ensure the clamping system securely holds materials to prevent slippage during operation.
-
Test Emergency Stop & Safety Features: Regularly check all safety mechanisms for proper functionality before use.
