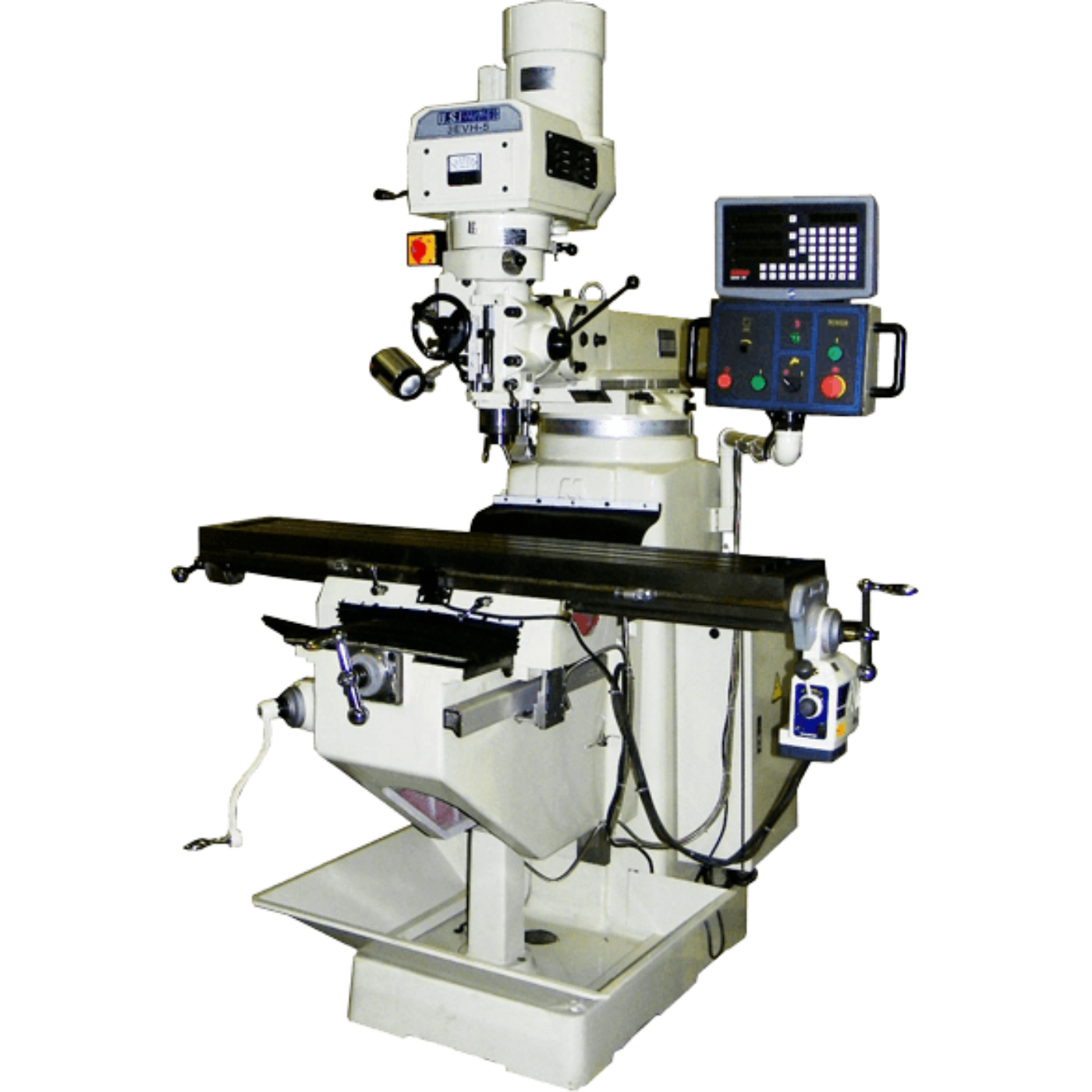

U.S Industrial Machinery Milling Machine, 10” X 54”, Heavy Duty, Manual, Variable Speed, - 3VH-3-KIT

by U.S Industrial
SKU 3VH-3-KIT
Save 6% Save 6%
$16,990.00
$16,990.00 - $16,990.00
$16,990.00
$15,970.99
$15,970.99 - $15,970.99
$15,970.99

  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.


U.S. Industrial Machinery’s line of milling machines offers a ton of user flexibility to make precision cuts for beautiful finished work.

At our Memphis, Tennessee facility we complete the assembly, calibrate, test, and perform cosmetic upgrades of all in-coming machinery to ensure sturdy, functional pieces of equipment that can be put to the test of the most demanding jobs. All equipment comes with a one-year part and labor warranty, and our technical support is always available to help you troubleshoot any user problems. Contact us for a milling machine quote today. Our line of milling machines features three standard models that offer the best in drilling, boring, and cutting of your materials. Choose from the manual variable speed mill, the heavy-duty manual variable speed mill, or the heavy-duty electronic variable speed mill.

  • Sino 3-Axis digital readout inch or metric

  • Flood coolant and chip pan

  • Power table feed

  • Power quill feed

  • Machine light

  • Enclosed electrical cabinet

  • Circuit breaker protection

  • Low voltage controls

Working Surface 10” x 54”
Longitudinal Travel 34.4” with powerfeed (37.4” without powerfeed)
Cross Travel 16.5" (15.5” with readout installed)
Vertical Travel 16.5”
Ram Travel 18.5" with scale
Head tilt, left to right 90 degrees left, 90 degrees right with degree ring scale
Head Tilt, front to back 45 degrees front, 45 degrees back with degree ring scale
Ram Circular Movement 360 Degree with degree ring scale
T-Slots 3 with 2-1/2" centers, 5/8" each
Spindle Drive 3 HP
Spindle Range (Manual Vari-speed sheeve) 60-4200 Variable with Direct Drive and Back-geared
Spindle Type R-8
Quill Travel 5" travel and 3 3/8" diameter
Power quill feed range, Inches per rev 0.0018”, 0.003”, 0.006”
Weight of Work Piece 660 lbs.
Spindle Motor 3 HP, 208-240 volt or 440/460/480 volt
Electrics 208-240V or 440/460/480V
Machine, Net Weight 3400 lbs
