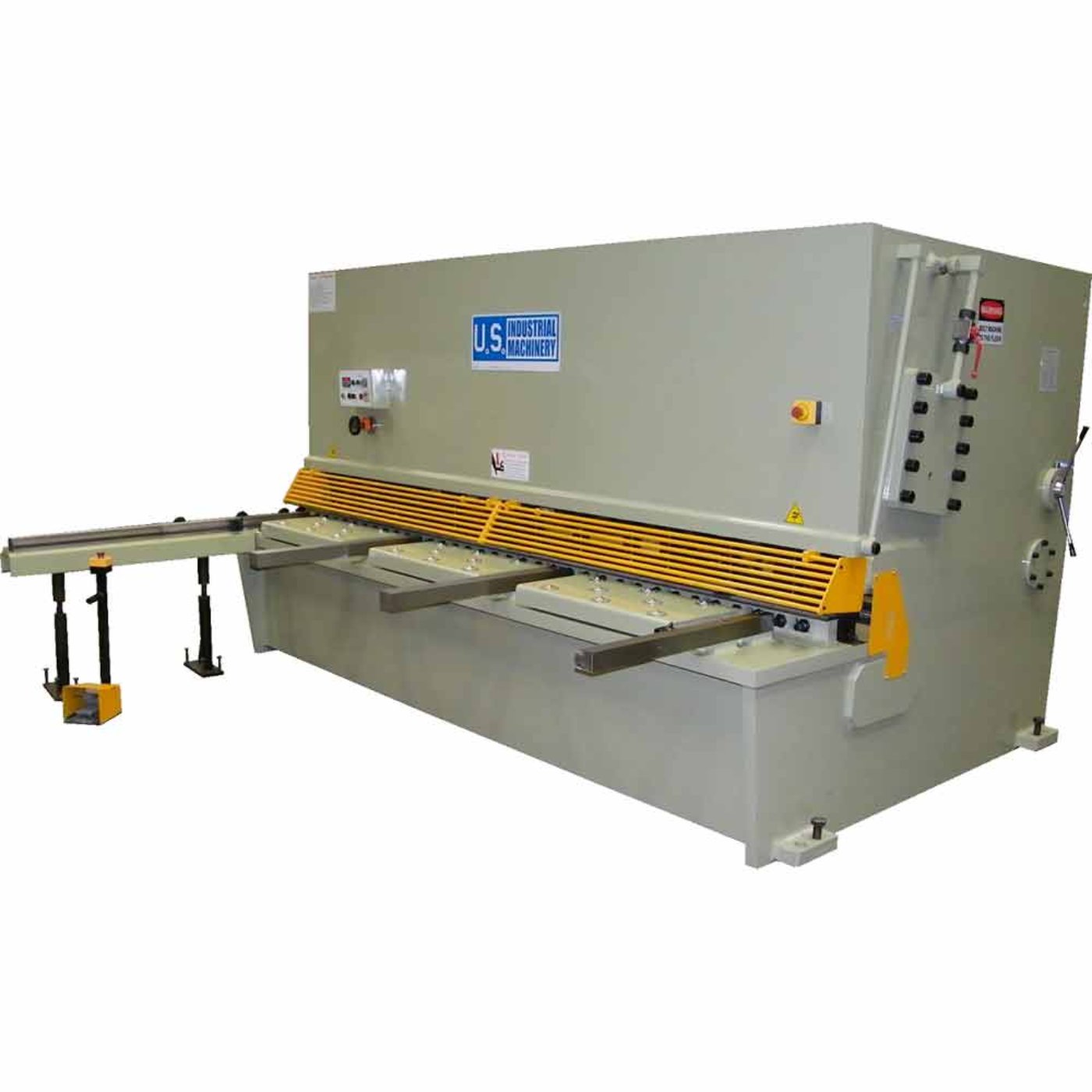

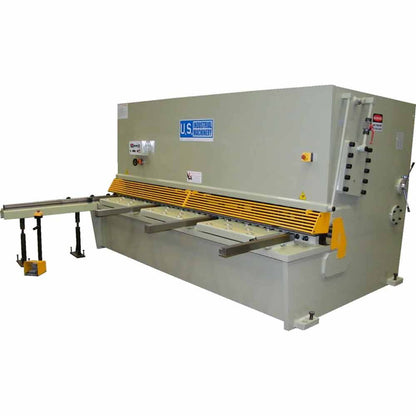

U.S Industrial Machinery 13’ x 3/8” Hydraulic Shear - US13375

U.S. Industrial Machinery can accommodate all kinds of custom machine requests to handle your unique jobs in addition to what we have in our standard inventory.

All hydraulic shears feature quick blade gap adjustment, support arms on the front of the machine, transfer tables for easily handling materials, and a foot pedal operation with an emergency stop. Our machines come with a standard 3’ squaring arm, but we offer larger squaring arms in 6′, 8′, and 10′ lengths upon request. Choose your wiring preference for 220 volts, 3-phase or 440 volts, 3-phase power. Our manual control hydraulic shears offer easy configuration to cut materials of varying thickness with stroke length adjustments as well. Our CNC-controlled hydraulic shears automate many of the features available in the manual machines for increased precision and control. What’s great about this equipment is it can also be controlled manually when the situation calls for it. These versatile machines offer exceptional speed and accuracy and the ability to design and save your own cutting programs. Each program accepts 20 steps, and users can store up to 200 programs at one time.

• Motorized front-operated power back-gauge with digital and mechanical readouts

• Fine adjustment handwheel

• Back-gauge adjustment range from ½” to 36”

• A swing-up mechanism for cut depths larger than 36″

• Setting back-gauge position

• Setting stroke length and blade gap

• Custom cutting program storage

• Front operated power Backgauge with digital readout, 36” travel

• Squaring Arm – 39”

• Support Arms, Ball Transfer Tables w/hand slots between tables

• Quick blade gap adjustment

• Material drop/support chute

• Powerful Cutting Capacity: The U.S. Industrial Machinery 13’ x 3/8” Hydraulic Shear (US13375) is engineered to handle heavy-duty cutting tasks, capable of cutting materials up to 3/8” thick with precision. This shear is perfect for industries requiring robust and efficient cutting of thick metal sheets.
• Generous 13-Foot Cutting Length: With a 13-foot cutting length, the US13375 is well-suited for handling large sheets of metal, reducing the need for multiple cuts. This extensive capacity is ideal for high-volume cutting, optimizing workflow and boosting productivity in busy manufacturing or fabrication environments.
• Hydraulic Precision: Equipped with a hydraulic system, this shear delivers smooth, clean, and consistent cuts. The hydraulic mechanism ensures accurate cutting with minimal effort, providing reliable performance and reducing material waste, even when working with thicker materials.
• Heavy-Duty Construction: Built to withstand the demands of industrial environments, the US13375 features a durable, robust frame that guarantees long-lasting performance. Its rugged construction is designed to handle continuous use without compromising on strength or precision.
• Increased Efficiency: The shear's hydraulic operation allows for fast, efficient cutting, minimizing downtime between cuts and accelerating production. This speed, combined with its ability to handle large sheets, ensures maximum productivity in metalworking shops or other industries with high-volume cutting needs.
• User-Friendly Interface: The machine's intuitive controls make it easy for operators to adjust settings and quickly switch between tasks. This user-friendly design ensures ease of operation and reduces the potential for errors, making it suitable for operators of varying skill levels.
• Versatility Across Materials: The US13375 can cut a wide range of materials, including steel, aluminum, and other metals, making it versatile enough for various industries, such as construction, automotive, and general metal fabrication.
• Cost-Efficiency: By streamlining the cutting process and reducing material waste, the US13375 helps businesses cut costs while maintaining high-quality output. Its long-lasting durability and efficiency make it a valuable, cost-effective investment for industries in need of large-scale metal cutting solutions.

Q: What is the U.S. Industrial Machinery 13’ x 3/8” Hydraulic Shear - US13375?
A: The U.S. Industrial Machinery US13375 is a hydraulic shear designed to cut metal sheets up to 13 feet wide and 3/8 inch thick. It is built for precision cutting in demanding industrial environments, offering high performance and durability.

Q: What materials can the US13375 shear handle?
A: The US13375 is capable of shearing various metals, including steel, aluminum, and other materials commonly used in industrial fabrication and manufacturing.

Q: What are the key features of the US13375?
A: The US13375 features a powerful hydraulic system, an adjustable back gauge for accurate cuts, and a robust steel frame for stability and durability. It is engineered for high-volume, heavy-duty cutting tasks.

Q: What are the dimensions and weight of the US13375?
A: The US13375 is a large industrial machine. For detailed specifications regarding dimensions and weight, please refer to the product manual or contact the manufacturer directly.

Q: Is the US13375 easy to operate?
A: Yes, the US13375 is designed for user-friendly operation with intuitive controls and a smooth hydraulic system, making it suitable for operators with varying levels of experience.

Q: Does the US13375 come with a warranty?
A: Yes, the US13375 typically includes a manufacturer warranty. For specific warranty details, please consult the manufacturer or authorized distributor.

Q: Who is the US13375 ideal for?
A: The US13375 is ideal for metalworking shops, manufacturing facilities, and industries that require precise and high-capacity cutting for larger sheets of metal. Its heavy-duty design makes it suitable for demanding tasks.

• Blade Inspection: Regularly check blades for damage or dullness; sharpen or replace to ensure clean, accurate cuts.
• Hydraulic System Care: Maintain proper hydraulic fluid levels, check for leaks, and replace the hydraulic oil annually to ensure efficient function.
• Lubrication: Apply grease to moving parts such as pivot points, guides, and hinges to reduce friction and prevent wear.
• Electrical Systems Check: Test emergency stop functions, inspect wiring for wear or corrosion, and ensure all electrical components are secure.
• Tighten Fasteners: Periodically check and tighten all bolts and fasteners to maintain structural stability and avoid machine malfunctions.
• Clean the Cutting Area: After each use, remove scrap material and debris from the machine bed to prevent build-up and ensure smooth operation.
• Back Gauge Calibration: Regularly test and adjust the back gauge to maintain cutting precision and accuracy.
• Follow Manufacturer’s Maintenance Schedule: Adhere to the recommended maintenance intervals and part replacements for optimal machine performance.
