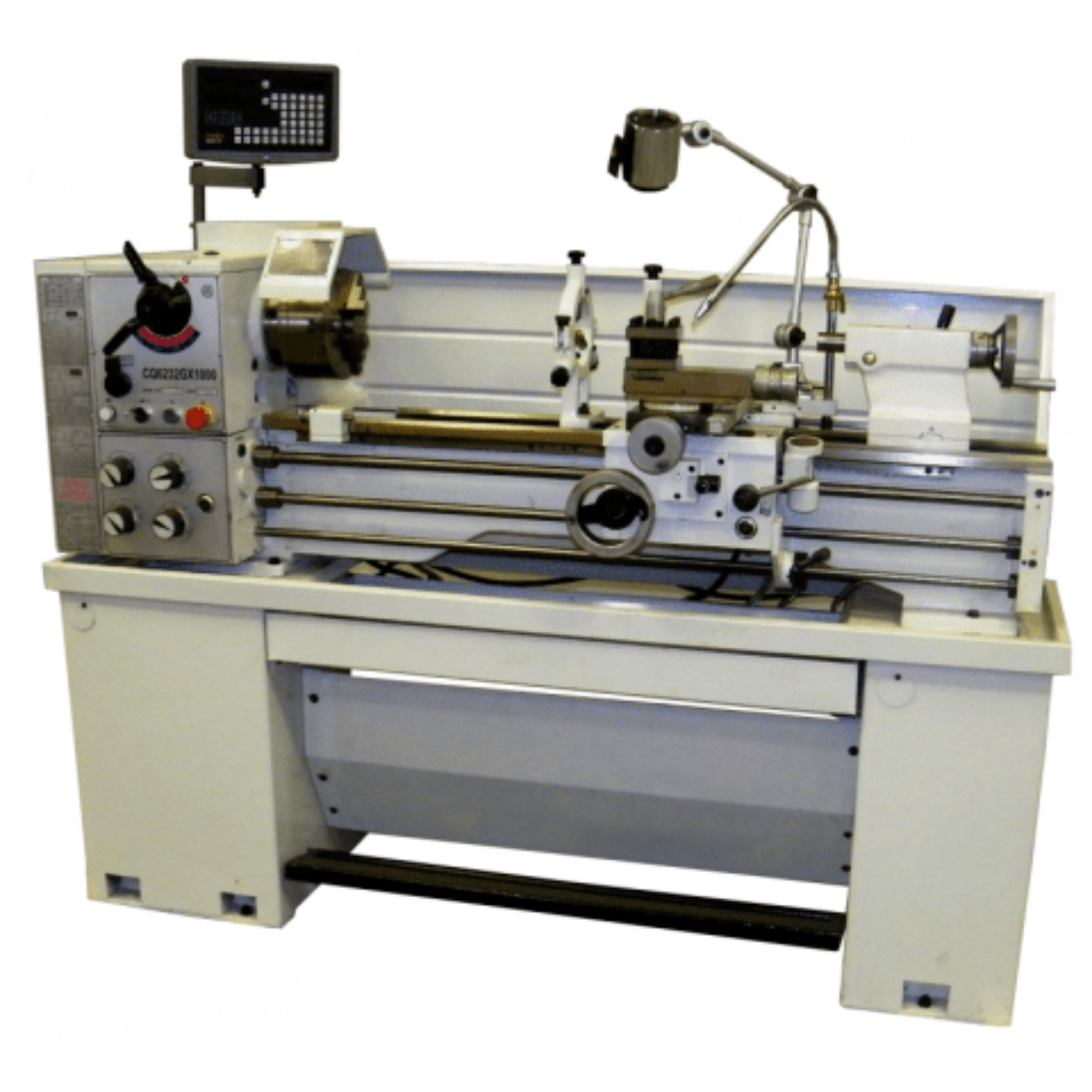

U.S Industrial Machinery Lathe, 13” X 40”, Precision Geared Head Engine - USL1340BH-KIT

U.S. Industrial Machinery is your headquarters for precision-geared head engine lathes to complete jobs that require precise shaping of metals.

Our standard stock machines range in size from 13 x 40 to 26 x 120, however; we can accommodate custom lathes of any size.  In addition to our competitive prices, customers benefit from our continued support and troubleshooting assistance throughout the entire life of their machine. When you buy from us, we are here when you need us to offer any technical help you need.  Most of our machines come with a one-year warranty on parts and labor.  Need a lathe for bigger jobs than our standard line covers? Contact us for a custom quote. All lathes are assembled in our Memphis, TN facility and undergo complete testing, calibration, and adjustments to ensure optimal performance when delivered. For more demanding work and the ultimate execution of rigorous jobs, we offer a heavy-duty geared head engine lathe for heavy turning. When your industry or profession calls for it, we deliver with some of the most substantial machinery in the business.

• 3-jaw chuck and 4-jaw chuck

• Face plate and dog plate

• Chuck guard

• Steady rest and follow rest

• Splash guard

• Weight capacity between centers of more than 40,000 lbs

• Swing of 40” to 120”

• Center Distance of 10’ to 80’

• High horsepower headstock

• Hydraulic tailstock quill and power travel

• Rotating center and 3-jaw chuck on tailstock

• Heavy-duty roller support

• Heavy-duty steady rest

• Extensive four-way bed

• 8” 3-Jaw Chuck. Universal, Self-centering

• 8” 4-Jaw Independent Chuck

• Face Plate

• Foot Brake with microswitch

• Steady Rest

• Follow Rest

• 4-Way Tool Post

• Micrometer Carriage Stop

• Thread Dial

• Inch/Metric Dials on cross, compound and tailstock

• Safety Chuck Shield • Work Lamp

• Taper Attachment (installed)

• Flood Coolant System

• Large spindle bore to pass 2”

• Sino 2-axis Digital Readout, inch and metric, (installed)

• Rear Splash Guard

• Manual with test certificate

• Slide out Chip Pan

• 220 Volt, Single phase operation

• Induction hardened bed ways

• Precision and Accuracy: The U.S. Industrial Machinery Lathe (USL1340BH-KIT) is equipped with a precision geared head, ensuring exceptional accuracy in machining. This lathe excels at producing high-tolerance parts with consistent results, making it ideal for industries where precision is critical.

• Versatile 13" x 40" Work Area: With a generous 13" swing over the bed and a 40" between centers, this lathe offers ample workspace for a wide range of projects. The large work area allows for both small and medium-sized pieces, providing flexibility across various applications.

• Geared Head for Smooth Operation: The geared head design allows for smooth and consistent operation, providing better torque control, especially during high-speed machining. This feature is essential for reducing vibrations and improving surface finish on machined parts.

• Heavy-Duty Construction for Durability: Built with a robust cast iron frame, the USL1340BH-KIT is engineered to withstand demanding operations. Its heavy-duty construction reduces flexing and vibration during cutting, ensuring long-lasting durability and high performance in tough environments.

• Wide Range of Speeds for Diverse Applications: The lathe offers multiple speed settings, making it adaptable to different materials and tasks. Whether you're working with soft metals or harder materials, you can adjust the speed for optimal results and efficiency, enhancing the overall versatility of the machine.

• Easy Setup and Operation: The lathe is designed with user-friendly features, including a clear control panel and simple speed adjustment. Its intuitive setup allows for a quick learning curve, which reduces training time and increases productivity for new users or seasoned machinists.

• Precision Machining for Complex Parts: The USL1340BH-KIT is ideal for complex machining tasks that require fine detail. Whether creating threads, turning diameters, or performing other intricate operations, this lathe provides the precision necessary to meet high industry standards.

• High Torque for Tough Materials: This machine provides excellent torque, making it capable of handling tough materials with ease. The geared head design ensures reliable cutting power, even for demanding materials like stainless steel and other hard metals.

• Versatile Accessory Compatibility: The lathe comes with the option for a variety of attachments and accessories, making it even more versatile. Whether you need a chuck, tailstock, or other attachments, the machine can be easily customized to suit your specific machining needs.

• Cost-Effective Investment for Precision Operations: While this lathe requires an upfront investment, its ability to handle precision work with ease and its durable construction make it a cost-effective solution in the long run, especially for shops focused on high-precision, high-volume operations.

Q: What is the U.S. Industrial Machinery Lathe, 13” X 40”, Precision Geared Head Engine - USL1340BH-KIT?
A: The U.S. Industrial Machinery USL1340BH-KIT is a precision geared head engine lathe with a 13-inch swing and 40-inch between centers, designed for high-accuracy machining of a variety of materials. It is ideal for precision turning, threading, and other metalworking operations.

Q: What are the key specifications of the USL1340BH-KIT?
A: The USL1340BH-KIT features a 13” swing over the bed, 40” between centers, and a precision geared head for smooth and reliable operation. It is equipped with various speed settings for versatile cutting options.

Q: What type of materials can be processed with the USL1340BH-KIT lathe?
A: This lathe is designed to process materials such as steel, aluminum, brass, and other metals, making it suitable for turning and machining a wide range of workpieces.

Q: How does the geared head benefit the USL1340BH-KIT?
A: The precision geared head allows for smoother operation, improved torque, and precise adjustments, making the lathe more versatile and capable of handling various cutting tasks at different speeds.

Q: What is the accuracy level of the USL1340BH-KIT?
A: The USL1340BH-KIT provides high precision and accuracy, suitable for demanding machining tasks such as threading and turning, with a focus on maintaining consistent tolerances and smooth finishes.

Q: Is the USL1340BH-KIT easy to operate?
A: Yes, the lathe is designed for ease of use, featuring a user-friendly control panel and various settings that allow for smooth adjustments, even for operators with moderate experience.

Q: What industries use the USL1340BH-KIT?
A: The USL1340BH-KIT is widely used in industries such as manufacturing, metalworking, aerospace, automotive, and repair shops, where precision machining of metal components is required.

Q: Does the USL1340BH-KIT come with any accessories or tools?
A: The USL1340BH-KIT comes as a complete kit, typically including the lathe itself along with essential accessories and tools for operation, such as chucks, tool rests, and other necessary components for smooth machining.

Q: What type of power is required for the USL1340BH-KIT?
A: The USL1340BH-KIT is designed to be powered by a standard industrial electric power source, with specific voltage and current requirements depending on the region and the machine configuration.

Q: What is the warranty coverage for the USL1340BH-KIT?
A: The USL1340BH-KIT typically comes with a manufacturer's warranty, which covers defects in materials and workmanship. Warranty specifics can be obtained from the manufacturer or authorized distributors.

• Check and Lubricate the Gearbox: Regularly inspect the gearbox for proper lubrication and fluid levels. Use the recommended oil and change it according to the manufacturer’s schedule to maintain smooth operation.
• Lubricate Moving Components: Apply grease to all moving parts, including the carriage, tailstock, and cross slide, to reduce friction and ensure smooth and accurate movement.
• Inspect the Chuck: Regularly check the chuck for signs of wear, damage, or looseness. Clean and lubricate the chuck to ensure secure workpiece clamping and prevent vibration.
• Check the Headstock Bearings: Inspect the headstock bearings for wear and replace them if necessary. Keep them properly lubricated to reduce friction and prevent damage during use.
• Clean the Bed and Rails: Periodically clean the bed and rails to remove any debris, dust, and chips that may accumulate during operation. Lubricate the rails to ensure smooth movement of the carriage and tailstock.
• Check the Electrical System: Inspect the lathe’s electrical system, including switches, wires, and connections, to ensure everything is working properly and safely.
• Check Tool Post and Holders: Ensure the tool post and tool holders are securely fastened and in good condition. Tighten them periodically to avoid slippage during operations.
• Inspect the Tailstock and Cross Slide: Ensure the tailstock and cross slide are operating smoothly and check for any signs of wear that may affect precision.
• Follow Manufacturer’s Maintenance Schedule: Stick to the recommended maintenance intervals for oil changes, lubrication, part replacement, and inspections to keep the lathe in top condition.
