| Swing Over Bed |
16.53” (420mm) |
| Swing Over Cross-Slide |
8.85” (225mm) |
| Swing Over Gap |
21.65” (550mm) |
| Gap Length |
10.23” (260mm) |
| Maximum Workpiece Length |
39.37” (1000mm) |
| Spindle Bore |
3.15” (80mm) |
| Spindle Mount Type |
D1-8 Camlock |
| 15 Spindle Speeds |
24 to 1600 RPM |
| 66 Longitudinal Feeds |
.0027 to .15 IPR |
| 66 Cross Feeds |
00135 to .075 IPR |
| 66 Metric Threads |
0.5 to 28mm |
| 66 Inch Threads |
1 to 56 TPI |
| 33 Module Threads |
0.5 to 3.5mm |
| 33 Diametral Pitch Threads |
8 to 56 DP |
| Compound Rest Travel |
5.119” (130mm) |
| Cross-Slide Travel |
12” (305mm) |
| Tailstock Taper |
No. 5 Morse Taper |
| Tailstock Spindle Travel |
4.72” (120mm) |
| Main Motor HP |
10 HP (7.5 kw) 220V or 440V, 3-Phase |
| Coolant Pump Motor |
Fractional HP |
| Lathe Gross Weight |
3,900 lbs |
| Dimensions |
100” long, 48” wide, 60” tall |
Package includes
-
10” 3-jaw Chuck. Universal, Self-centering
-
12” 4-Jaw Independent Chuck
-
Steady Rest
-
4-Way Toolpost
-
Micrometer Carriage Stop
-
Thread Dial
-
Work Lamp
-
Flood Coolant System
-
Sino 2-axis digital readout inch/metric (installed)
-
Inch/metric Reading Dials on Apron, Cross-Slide and Compound
-
15” Face Plate & Dog Plate
-
Foot Brake with microswitch
-
Follow Rest
-
Safety Chuck Shield
-
Taper Attachment (installed)
-
Large Spindle Bore to pass 3”
-
Full Length Backsplash
-
Slide-out Chip Pan
-
Manual with test certificate
What Our Experts Think
-

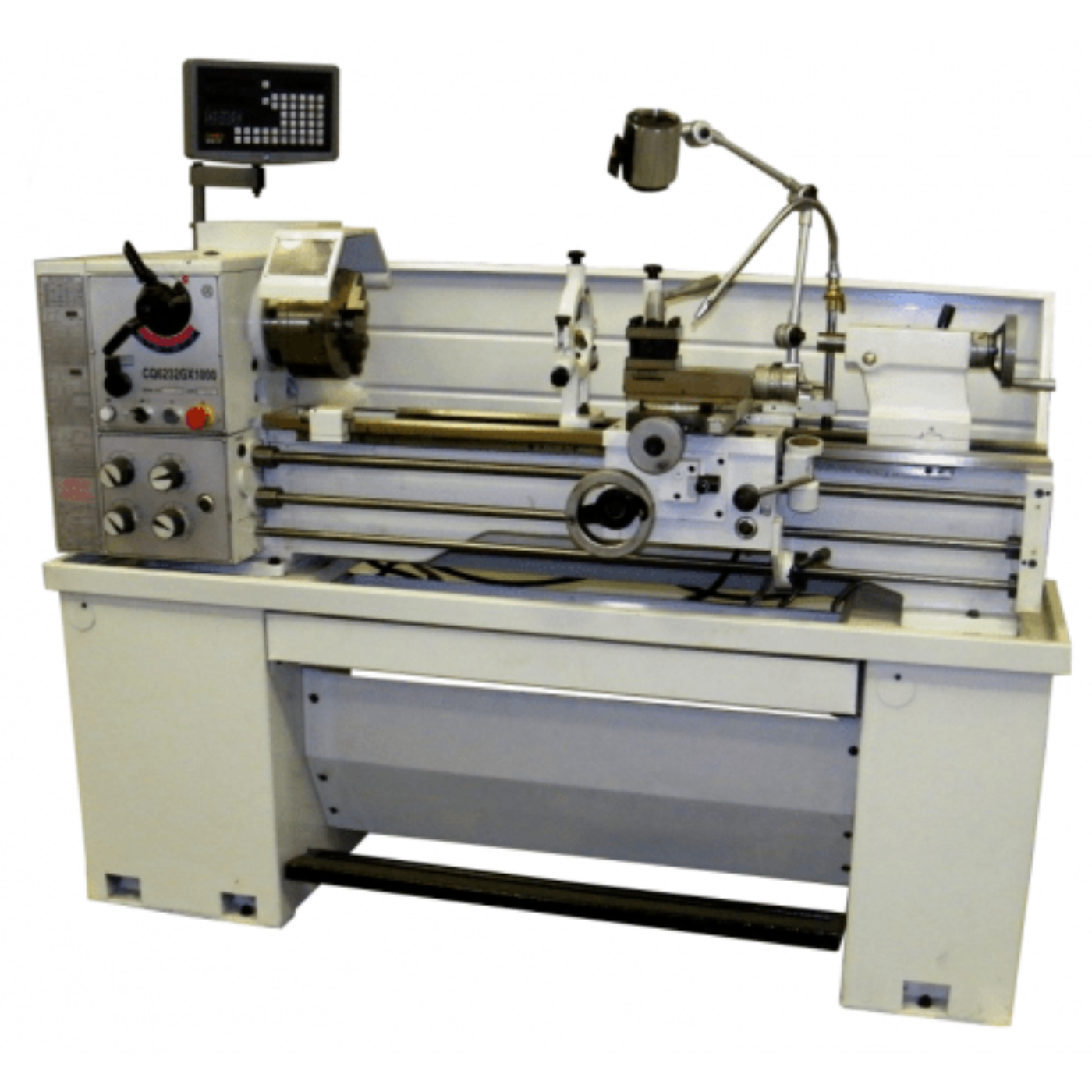

Precision Engineering: The U.S. Industrial Machinery Lathe (USL1640CX-KIT) features a precision geared head, ensuring high levels of accuracy and reliability in machining operations. It is designed for those who need precision in cutting, threading, and turning with fine tolerances.
-
Larger 16" Swing for Bigger Projects: With a 16" swing over the bed and 40" between centers, this lathe provides ample space for larger workpieces. The expanded capacity makes it ideal for machining bigger parts or working with longer pieces, increasing its versatility for diverse tasks.
-
Geared Head for Consistent Performance: The geared head design offers smooth, consistent torque delivery at all speeds. This ensures a steady operation, reducing chatter and vibration, even during high-speed runs or when cutting tougher materials, improving the surface finish and overall machining quality.
-
Heavy-Duty Build for Longevity: Built with a sturdy cast iron frame, the USL1640CX-KIT is designed to handle heavy-duty operations and minimize flexing during machining. Its robust construction ensures durability, allowing it to perform consistently in industrial settings where reliability is key.
-
Wide Speed Range for Versatility: The lathe offers a broad range of speeds, making it adaptable to various materials and machining tasks. This wide speed range enhances its versatility, allowing operators to switch between different applications with ease, whether working with softer metals or tougher alloys.
-
User-Friendly Controls for Efficiency: The machine is designed with intuitive controls, allowing operators to quickly adjust settings for different tasks. The easy-to-read control panel and speed settings make it efficient for both experienced machinists and those newer to the field, reducing setup times and increasing productivity.
-
High Torque for Heavy Materials: The USL1640CX-KIT provides high torque output, making it suitable for turning tough materials like stainless steel, titanium, or hard alloys. Its geared head ensures power is delivered where needed, preventing stalls and allowing for efficient cutting on demanding materials.
-
Customization with Accessories: The lathe supports a variety of accessories and attachments, including chucks, tailstocks, and more. This allows for further customization, enabling the lathe to be tailored to specific needs, whether for high-precision work or larger-scale production.
-
Ideal for Precision and Production: Whether for single-piece custom jobs or batch production runs, the USL1640CX-KIT is designed to meet the needs of both environments. Its precise engineering ensures each part is consistently manufactured to the highest standards, making it a reliable option for shops focused on quality.
-
Long-Term Investment: While the initial investment is significant, the lathe's durability and high-performance capabilities make it a cost-effective solution in the long run. Its ability to handle a wide range of materials and operations ensures it will remain a key asset in the shop for years.
Q&A
Q: What is the U.S. Industrial Machinery Lathe, 16” X 40”, Precision Geared Head Engine - USL1640CX-KIT?
A: The U.S. Industrial Machinery USL1640CX-KIT is a high-precision geared head engine lathe with a 16-inch swing and 40-inch between centers, designed for precise turning, threading, and machining of various materials in industrial applications.
Q: What are the key specifications of the USL1640CX-KIT?
A: The USL1640CX-KIT offers a 16” swing over the bed, 40” between centers, and a geared head that provides smooth operation at various speeds. It is engineered for high-precision machining tasks and is suitable for a wide range of materials.
Q: What types of materials can be processed with the USL1640CX-KIT lathe?
A: This lathe is ideal for machining a variety of materials, including steel, aluminum, brass, and other metals, and is capable of handling intricate turning and threading tasks.
Q: How does the geared head improve the performance of the USL1640CX-KIT?
A: The precision geared head enhances the lathe's stability and reduces vibration, offering consistent torque and accuracy across different speed settings, making it ideal for demanding machining operations.
Q: What is the accuracy level of the USL1640CX-KIT?
A: The USL1640CX-KIT delivers high-precision results, offering reliable and consistent machining performance with tight tolerances, making it suitable for industries that require fine and accurate workpieces.
Q: Is the USL1640CX-KIT easy to operate?
A: Yes, the USL1640CX-KIT is designed with user-friendly controls and adjustable settings, making it accessible for both experienced and novice operators.
Q: Which industries typically use the USL1640CX-KIT?
A: The USL1640CX-KIT is commonly used in industries such as aerospace, automotive, metalworking, manufacturing, and repair shops where precision machining and high-tolerance components are needed.
Q: Does the USL1640CX-KIT come with any accessories or tools?
A: Yes, the USL1640CX-KIT typically comes with essential accessories, including chucks, tool rests, and other components required for its operation, ensuring smooth and efficient machining.
Q: What type of power is required for the USL1640CX-KIT?
A: The USL1640CX-KIT requires a standard industrial power supply, with specific voltage and amperage requirements depending on the region and machine configuration.
Q: What is the warranty coverage for the USL1640CX-KIT?
A: The USL1640CX-KIT comes with a manufacturer’s warranty that covers defects in materials and workmanship. Details of the warranty can be obtained from the manufacturer or authorized distributors.
Maintenance Tips
-
Lubricate the Gearbox: Regularly check the gearbox oil level and ensure proper lubrication of gears. Change the oil according to the manufacturer’s recommendations to avoid wear and ensure smooth operation.
-
Grease Moving Parts: Apply grease to the carriage, tailstock, cross slide, and other moving components to reduce friction and enhance smooth and precise movements.
-
Inspect the Chuck: Check the chuck periodically for signs of wear, rust, or looseness. Clean it thoroughly, lubricate the jaws, and ensure they are functioning correctly for secure clamping.
-
Check Headstock Bearings: Regularly inspect the headstock bearings for wear and ensure they are properly lubricated to minimize friction. Replace worn bearings as necessary to maintain smooth operation.
-
Clean the Bed and Rails: Clean the bed, rails, and leadscrews frequently to remove debris, chips, and coolant build-up. Lubricate the bed and rails for smooth movement of the carriage and tailstock.
-
Electrical System Inspection: Inspect electrical connections, switches, and wiring for wear or damage. Test functionality to ensure the lathe operates safely and reliably.
-
Tighten Fasteners: Periodically check all fasteners, including bolts and nuts, for tightness to prevent vibrations that may affect machining precision.
-
Inspect Tool Post and Holders: Check the tool post and tool holders for wear and secure attachment. Tighten them as needed to ensure tools are held firmly during cutting operations.
-
Check the Cross Slide and Tailstock: Regularly inspect the cross slide and tailstock for smooth motion and any wear that could impact machining accuracy. Clean and lubricate these components to keep them operating smoothly.
-
Follow Manufacturer’s Maintenance Schedule: Adhere to the manufacturer's recommended maintenance intervals for oil changes, lubrication, part replacements, and system checks to ensure optimal performance.
