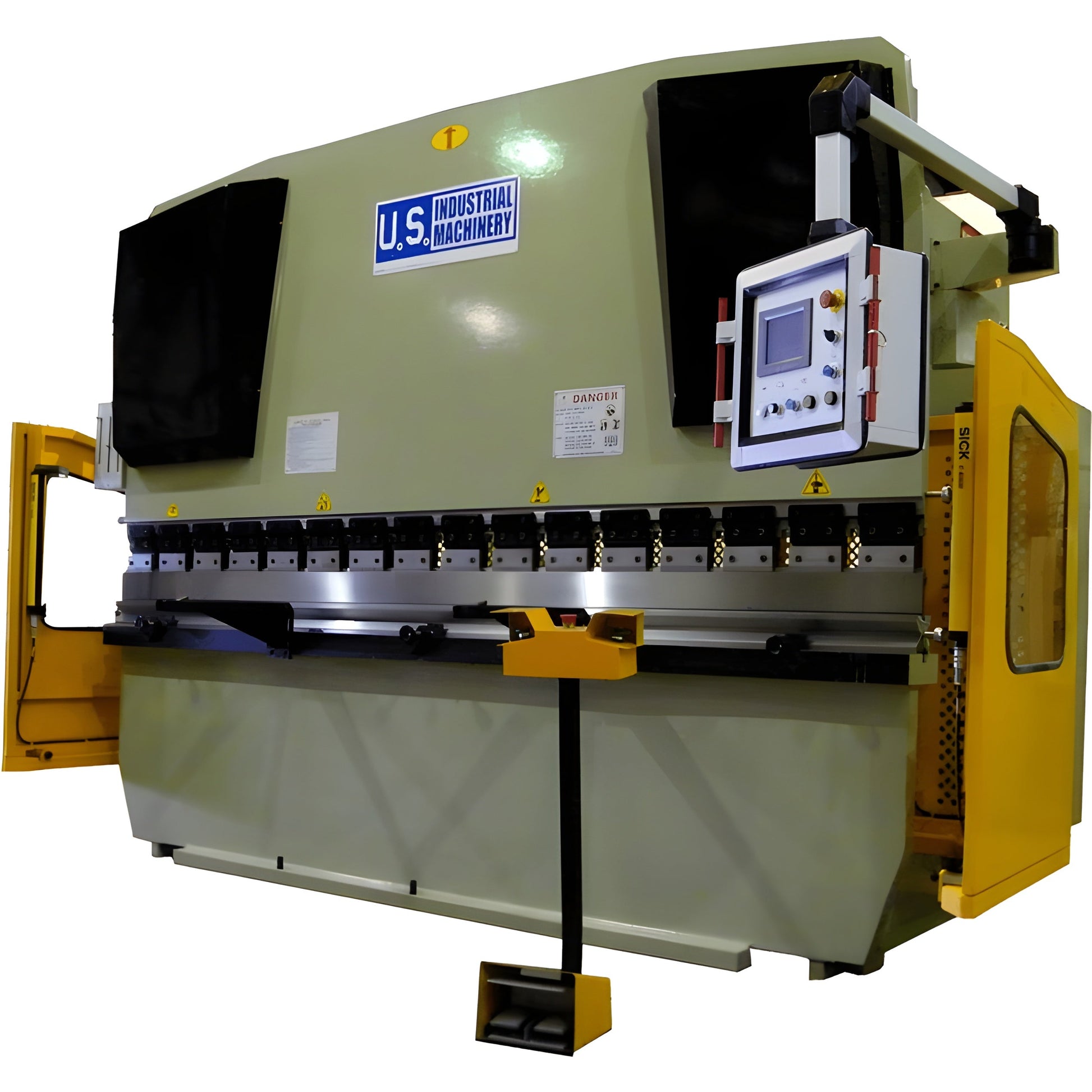

U.S. Industrial Machinery Hydraulic Press Brake, 22 Ton X 4’, with Simple CNC USHB22-4SCNC-1

Our CNC control hydraulic press brakes offer users the ability to tackle any project with precision, speed, and volume.

These machines can handle the most demanding jobs with impeccable details. The capability to use a removable USB drive means that additional program storage is virtually limitless.

• 6” LCD touchscreen to control the bend angle and back-gauge position

• 10 bends per program or cross-section

• Up to 20 punch library and up to 50 die library

• Auto bend sequence

• Auto back-gauge retract

• Spread length

• Interference bend chart

• Calculated bend allowance

• Programmable ram dwell

• Working Pressure: 22 Tons

• Length of Working Table: 51.9”

• Distance Between Housings: 40.1”

• Throat Depth: 7.8”

• Stroke Adjustment of Ram: 2.75”

• Ram Travel: 3.14”

• Open Height: 9.64”

• Rapid Ram Travel Speed: 2.4”/sec.

• Rapid Ram Retreat Speed: 2.0”/sec.

• Backgauge Travel: 24”

• Pressing Speed: Dependent on Tool Load

• Motor Horsepower: 7.5 HP

• Hydraulic Oil Capacity: 21 Gal. 220 or 440 Volts, 3 ph.

• Length: 73”

• Net Weight: 4,400 lbs.

• Width: 56”

• Simple CNC

• SICK DETEC 2 Light Curtain

The U.S. Industrial Machinery Hydraulic Press Brake (22 Ton x 4’ - USHB22-4SCNC-1) is a compact, precision-driven machine that combines hydraulic power with basic CNC automation, offering an excellent solution for small to medium-sized metalworking tasks. Here's why it stands out:

• 22-Ton Capacity: With a 22-ton capacity, this press brake is ideal for lighter bending tasks, allowing for precise, reliable results on thinner materials and smaller workpieces.
• 4-Foot Working Length: The 4-foot bed length makes it suitable for smaller sheets and light-duty applications, perfect for businesses with limited space or those focused on smaller, more detailed projects.
• Simple CNC Control: The Simple CNC system automates some of the bending functions, providing improved accuracy and repeatability compared to manual control. It’s ideal for users looking for basic automation without the complexity of advanced CNC systems, improving efficiency and reducing the potential for operator error.
• Hydraulic Power: The hydraulic system ensures smooth, consistent bending with controlled pressure, offering high precision with minimal manual input.
• Compact and Efficient: Its smaller size and simple design make it easy to fit in tight spaces, while still delivering reliable, efficient performance for small-scale operations.
• Low Maintenance: The straightforward design ensures easy upkeep, allowing businesses to maintain high productivity without excessive downtime.

Q: What is the U.S. Industrial Machinery Hydraulic Press Brake (USHB22-4SCNC-1)?
A: It’s a 22-ton hydraulic press brake with a 4-foot bending length, featuring a Simple CNC controller for automated, precise metal bending.

Q: How does it work?
A: The press brake uses hydraulic power to bend metal sheets, while the Simple CNC controller automates and enhances the bending process, providing precision and ease of operation for custom tasks. The 4-foot bending length is ideal for smaller to medium-sized sheets.

Q: What makes it unique?
A: The combination of a 22-ton capacity and Simple CNC automation allows for accurate, repeatable bends on smaller materials, while the 4-foot working length ensures flexibility for various sheet sizes.

Q: Who is it ideal for?
A: Ideal for small to medium-sized fabrication shops, manufacturers, or businesses that need a cost-effective, automated solution for bending lighter materials with precision.

Q: Why choose this machine?
A: The U.S. Industrial Machinery Hydraulic Press Brake with Simple CNC provides the benefits of automation, precision, and hands-on flexibility, making it an excellent choice for businesses seeking to improve efficiency and accuracy in smaller metal bending applications.

• Daily Inspection: Check for hydraulic fluid leaks, loose fasteners, and wear on moving parts.
• Hydraulic Fluid: Monitor fluid levels regularly and replace the hydraulic fluid and filters according to the manufacturer's schedule.
• CNC System Maintenance: Clean the CNC controller and ensure software/firmware updates are performed to maintain accurate operation.
• Lubrication: Grease pivot points, guides, and the backgauge mechanism to reduce friction and maintain smooth operation.
• Tooling Maintenance: Inspect and clean press brake dies for wear, and replace tooling when necessary to ensure accurate bending.
• Alignment Checks: Periodically verify that the ram is properly aligned with the bed to ensure uniform pressure distribution.
• CNC Calibration: Regularly calibrate the CNC system to ensure precise positioning and consistent bending.
• Electrical System: Inspect wiring, connections, and electrical components for wear or overheating.
• Clean Workspace: Keep the machine and surrounding area free of dirt, debris, and contaminants to ensure optimal machine function.
• Professional Servicing: Schedule periodic servicing and inspections with a qualified technician to maintain long-term reliability and efficiency.
