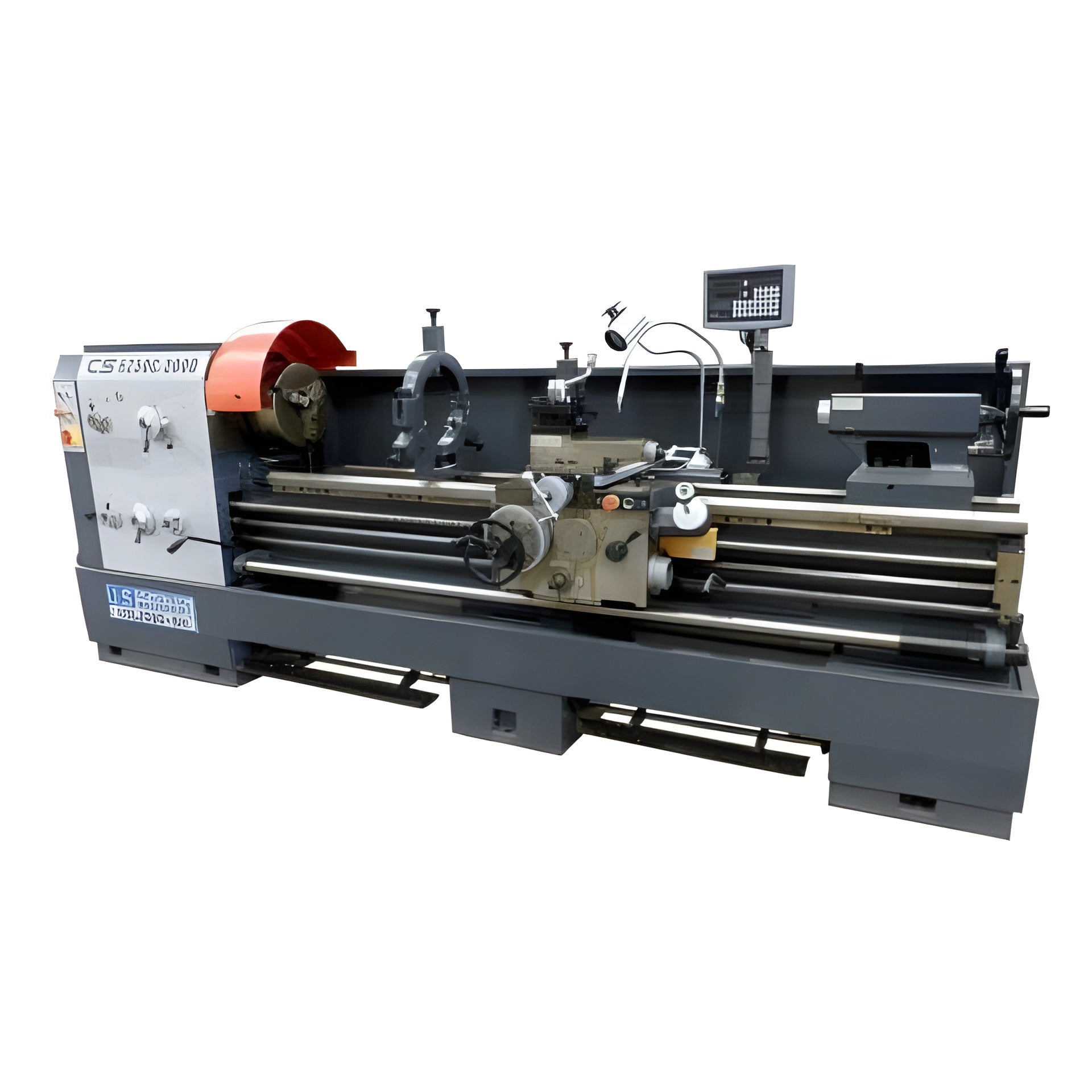

U.S Industrial Machinery Lathe, 26” X 120”, Precision Geared Head Engine - USL26X120BH-KIT

U.S Industrial Machinery Lathe, 26” X 120”, Precision Geared Head Engine - USL26X120BH-KIT

$44,990.00 $42,290.99

U.S Industrial Machinery Lathe, 26” X 120”, Precision Geared Head Engine - USL26X120BH-KIT

$44,990.00 $42,290.99

Recently Viewed Products

U.S. Industrial Machinery is your headquarters for precision-geared head engine lathes to complete jobs that require precise shaping of metals.

Our standard stock machines range in size from 13 x 40 to 26 x 120, however; we can accommodate custom lathes of any size.  In addition to our competitive prices, customers benefit from our continued support and troubleshooting assistance throughout the entire life of their machine. When you buy from us, we are here when you need us to offer any technical help you need.  Most of our machines come with a one-year warranty on parts and labor.  For more demanding work and the ultimate execution of rigorous jobs, we offer a heavy-duty geared head engine lathe for heavy turning. When your industry or profession calls for it, we deliver with some of the most substantial machinery in the business.

This precision, heavy duty geared head engine lathe incorporates hardened and precision ground bedways on longitudinal and cross ways, and wide, precision ground gears. It has a gap-bed design, feed-rod/lead screw safety interlock system, weight bearing tailstock and forward/reverse levers at both the aprons and the head stock. As with all U.S. Industrial lathes, it comes with a plethora of standard accessories, 3 and 4-jaw chucks, follower and steady rests, work lamp, a coolant system and an operator/service manual.

  • Weight capacity between centers of more than 40,000 lbs

  • Swing of 40” to 120”

  • Center Distance of 10’ to 80’

  • High horsepower headstock

  • Hydraulic tailstock quill and power travel

  • Rotating center and 3-jaw chuck on tailstock

  • Heavy-duty roller support

  • Heavy-duty steady rest

  • Extensive four-way bed

Swing Over Bed 26” (660mm)
Swing Over Cross-Slide 16.53” (420mm)
Swing Over Gap 34.25” (870mm)
Gap Length 9.44” (240mm)
Maximum Workpiece Length with 3-jaw 118” (3000mm)
Maximum Turning Length 116” (2950mm)
Spindle Bore 4.134” (105mm)
Spindle Mount Type D1-8 Camlock
12 Spindle Speeds 36 to 1600 RPM
65 Longitudinal Feeds .0023 to .0937 IPR
65 Cross Feeds 0011 to .0404 IPR
22 Metric Threads 1 to 14mm
27 Inch Threads 2 to 28 TPI
18 Module Threads 0.5 to 7mm
24 Diametral Pitch Threads 4 to 56 DP
Compound Rest Travel 5.75”
Cross-Slide Travel 12.125”
Tailstock Taper No. 5 Morse Taper
Tailstock Spindle Travel 5.906” (150mm)
Tailstock Spindle Diameter 2.953” (75mm)
Main Motor HP 10 HP (7 kw) 220V or 440V, 3-Phase
Rapid Feed Motor 0.4 HP
Coolant Pump Motor 16 HP, 11 gallons per minute
Lathe Gross Weight 8,500 lbs
Dimensions 183” long, 40” wide, 55” tall
  • 12” 3-jaw Chuck. Universal, Self-centering

  • 16” 4-Jaw Independent Chuck

  • Steady Rest

  • 4-Way Toolpost

  • Thread Dial

  • Work Lamp

  • Flood Coolant System

  • Sino 2-axis digital readout inch/metric (installed)

  • Inch/metric Reading Dials on Apron, Cross-Slide and Compound

  • 25” Face Plate & Dog Plate

  • Foot Brake with microswitch

  • Follow Rest

  • Safety Chuck Shield

  • Taper Attachment (installed)

  • Large Spindle Bore to pass 3”

  • Full Length Backsplash

  • Slide-out Chip Pan

  • Manual with test certificate

  • Superior Precision: The USL26X120BH-KIT offers outstanding accuracy, ideal for high-precision tasks in demanding industrial settings.
  • Robust Build: Designed for heavy-duty use, it stands up to even the most challenging operations, ensuring longevity and reliability.
  • Increased Capacity: With a 26" swing and 120" length, this lathe accommodates larger workpieces, expanding your machining capabilities.
  • Smooth Performance: The precision geared head ensures seamless operation, improving efficiency and reducing vibrations.
  • Great Value: Combining exceptional performance with competitive pricing, this lathe provides excellent return on investment for both small and large shops.

Q: What is the U.S. Industrial Machinery Lathe, 26” X 120”, Precision Geared Head Engine - USL26X120BH-KIT?
A: The U.S. Industrial Machinery USL26X120BH-KIT is a precision geared head engine lathe designed with a 26-inch swing and 120-inch distance between centers, suitable for heavy-duty machining tasks and precision work on large workpieces.

Q: What are the key specifications of the USL26X120BH-KIT?
A: The USL26X120BH-KIT features a 26-inch swing over the bed, 120-inch distance between centers, and a precision geared head that enables smooth operation and consistent power delivery. It also offers a range of speeds and torque for a variety of machining operations.

Q: What types of materials can be processed by the USL26X120BH-KIT?
A: This lathe is ideal for processing a wide range of materials, including steel, aluminum, brass, and other alloys, making it versatile for industries like metalworking, aerospace, and automotive manufacturing.

Q: How does the geared head enhance the performance of the USL26X120BH-KIT?
A: The precision geared head of the USL26X120BH-KIT offers consistent torque, minimizes vibrations, and maintains smooth operation even at high speeds, leading to higher accuracy and quality in machining tasks.

Q: What level of accuracy can I expect from the USL26X120BH-KIT?
A: The USL26X120BH-KIT is known for delivering high precision and tight tolerances in machining, making it suitable for producing high-quality parts and components with minimal error.

Q: Is the USL26X120BH-KIT user-friendly?
A: Yes, this lathe is designed for ease of use, with user-friendly controls, adjustable settings, and a robust build to ensure smooth operation, even for beginners in the machining industry.

Q: What industries typically use the USL26X120BH-KIT?
A: The USL26X120BH-KIT is widely used in industries such as aerospace, automotive, heavy manufacturing, and large-scale metalworking, where the need for precision and the ability to handle larger workpieces is critical.

Q: Does the USL26X120BH-KIT come with additional accessories?
A: Yes, it typically includes necessary accessories such as chucks, tool rests, and other essential components, which enhance its functionality and versatility for various machining operations.

Q: What type of power supply is required for the USL26X120BH-KIT?
A: The USL26X120BH-KIT requires an industrial-grade power supply compatible with its operational specifications, ensuring it meets the electrical standards of your region.

Q: What warranty is available for the USL26X120BH-KIT?
A: The USL26X120BH-KIT is typically covered by a manufacturer’s warranty, which protects against defects in materials and workmanship. Details of the warranty can be confirmed through the manufacturer or an authorized distributor.

  • Lubricate the Gearbox: Regularly inspect and change the gearbox oil as per the manufacturer’s guidelines. Proper lubrication prevents gear wear and ensures smooth operation, especially under heavy-duty use.
  • Grease Moving Parts: Apply grease to the carriage, cross slide, tailstock, and saddle to reduce friction. Well-lubricated moving parts help maintain the accuracy and smoothness of the lathe’s operation.
  • Inspect the Chuck: Check the chuck periodically for wear, damage, or looseness. Clean and lubricate the chuck to ensure proper clamping of workpieces, minimizing vibration and ensuring precise machining.
  • Check Headstock Bearings: Inspect the headstock bearings for signs of wear. Proper lubrication is essential for smooth headstock rotation. Replace bearings when necessary to avoid operational issues and maintain consistent performance.
  • Clean the Bed and Rails: Regularly clean the bed, rails, and leadscrews to remove chips, debris, and coolant buildup. Lubricate these areas to ensure smooth carriage and tailstock movement, which is critical for precision.
  • Inspect the Electrical System: Regularly test and inspect the lathe’s electrical components, such as the main switch, wiring, and emergency stop, to ensure all components are in good working order for safe operation.
  • Tighten Fasteners: Periodically check bolts, nuts, and fasteners to ensure they are securely tightened. Loose fasteners can cause vibrations that affect machining accuracy and stability, so this step is essential for smooth operation.
  • Examine the Tool Post and Holders: Ensure that the tool post and holders are firmly attached and aligned correctly. Tighten them to prevent slipping or shifting during machining, which can lead to poor cut quality.
  • Inspect the Cross Slide and Tailstock: Regularly check for smooth movement of the cross slide and tailstock. Clean and lubricate these components to maintain consistent operation and prevent wear.
  • Follow Manufacturer’s Maintenance Schedule: Stick to the recommended maintenance intervals for oil changes, lubrication, and parts replacement as outlined in the manufacturer's manual. Regular checks and servicing will keep your lathe in optimal working condition.
