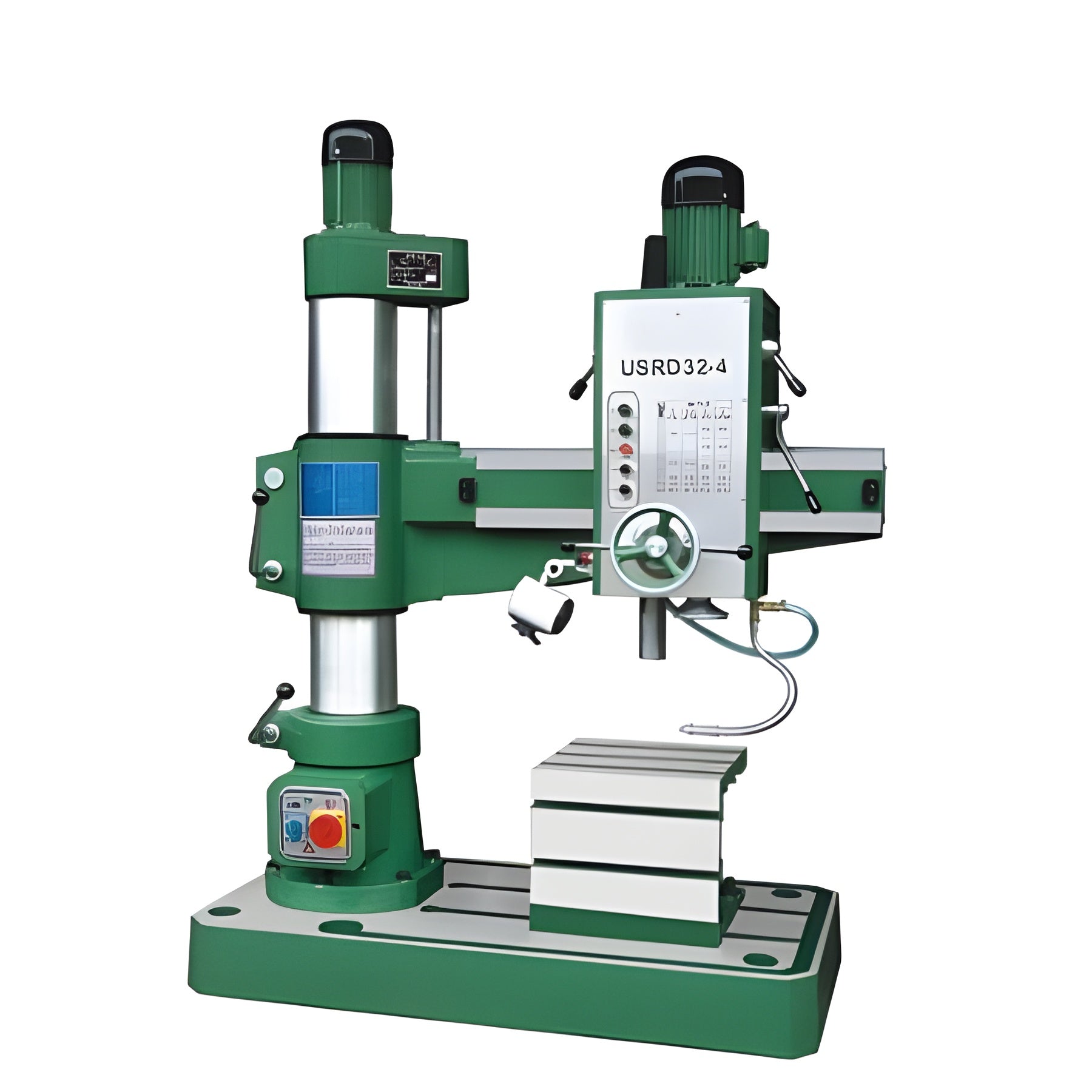

U.S Industrial Machinery 32” Radial Arm Drill Press- USRD32-4

U.S Industrial Machinery 32” Radial Arm Drill Press- USRD32-4

• 1.5” Drilling Capacity

• 12.6” to 32” Minimum and Maximum spindle to column • 7.87” Diameter of column • Morse Taper 4 Spindle

• 9.4” of Spindle Travel

• 75 to 1220 RPM Spindle speeds (6 speed gear driven)

• .0039” to .010” spindle feeds in Inches Per Revolution (3 feeds)

• 4.72” to 33.85” Minimum and Maximum distance spindle to base

• 15.75” x 15.75” x 13.75” Box Table dimensions

• 53.9” x 27.5” x 6.3” Base dimensions

• 55.4” x 28.3” x 74.2” Overall dimensions

• 2 HP main spindle drive (208-240 OR 440-480 Volts, 3 phase)

• 3135/2640 Gross/Net weight lbs.

• Morse Taper 4 Spindle

• Two side box work table, t-slotted

• T-slotted base

• Flood Coolant System

• Power Arm Elevation

• Manual Arm Clamp

• High Precision, Low Noise Ground Gears

• 9.4” + drilling depth

• Powerful and Versatile Drilling: The U.S. Industrial Machinery 32” Radial Arm Drill Press (USRD32-4) offers impressive power and versatility, making it suitable for a wide range of drilling tasks. With its large 32-inch radial arm, it can handle large workpieces with ease, providing flexibility for industries requiring precision drilling on both small and large-scale parts.

• Enhanced Precision and Accuracy: Equipped with a high-precision drilling system, the USRD32-4 ensures exceptional accuracy for a variety of drilling applications. Whether drilling through metal, wood, or composite materials, the drill press maintains consistent hole placement and depth, essential for industries that demand tight tolerances.

• Adjustable Radial Arm: The adjustable radial arm allows for quick positioning, providing a high degree of flexibility. Operators can easily adjust the arm's reach, allowing for the drilling of larger components or multiple workpieces without the need for repositioning. This feature increases both convenience and efficiency during operations.

• Heavy-Duty Construction: Built with durability in mind, the USRD32-4 features a robust frame that ensures stability during operation, even under heavy-duty drilling tasks. The solid construction minimizes vibrations, ensuring high-quality results and extending the machine's lifespan.

• Efficient for Large-Scale Production: This radial arm drill press is perfect for large-scale production environments that require consistent performance over extended periods. Its high power and large working capacity make it suitable for continuous operations, improving productivity and reducing the need for frequent tool changes or maintenance.

• User-Friendly Controls: The USRD32-4 is designed with operator ease in mind. Its intuitive controls and simple setup process make it easy for both novice and experienced machinists to quickly get the machine up and running, reducing training time and improving overall shop efficiency.

• Versatile Drilling Applications: Capable of performing a wide range of drilling operations, including tapping, reaming, and boring, the USRD32-4 is highly versatile. Its adaptability makes it an essential tool for industries such as automotive, construction, and aerospace, where a variety of hole sizes and types are required.

• Cost-Effective for Heavy-Duty Use: While the initial investment may be higher, the USRD32-4 offers excellent value due to its durability, versatility, and ability to handle demanding workloads. Businesses can rely on this drill press for long-term, efficient performance, making it a solid investment for shops with high-volume production needs.

Q: What is the U.S. Industrial Machinery 32” Radial Arm Drill Press - USRD32-4?
A: The U.S. Industrial Machinery USRD32-4 is a heavy-duty radial arm drill press designed for precision drilling operations. With a 32” arm length, it is ideal for large-scale industrial applications, allowing flexibility in positioning the drilling head for various tasks.

Q: What are the key features of the USRD32-4?
A: The USRD32-4 features a powerful motor, adjustable radial arm, and precise drilling capabilities. Its 32” radial arm provides the flexibility to position the drill head over large workpieces, and the robust construction ensures durability for demanding industrial tasks.

Q: What materials can the USRD32-4 handle?
A: The USRD32-4 is designed to handle a variety of materials, including steel, aluminum, and other metals. It is ideal for drilling holes in large workpieces and for tasks such as tapping, reaming, and counterboring in a variety of industrial settings.

Q: What are the dimensions and weight of the USRD32-4?
A: For specific dimensions and weight, it is recommended to consult the product manual or contact the manufacturer directly, as these details can vary based on configuration.

Q: Is the USRD32-4 easy to operate?
A: Yes, the USRD32-4 is designed for ease of use with adjustable features that allow operators to position the drill head quickly and precisely. Its user-friendly controls ensure accurate drilling while minimizing operator effort.

Q: Does the USRD32-4 come with a warranty?
A: Yes, the USRD32-4 typically comes with a manufacturer warranty. For detailed warranty coverage, it’s best to contact the manufacturer or an authorized distributor directly.

Q: Who is the USRD32-4 ideal for?
A: The USRD32-4 is ideal for industrial workshops, manufacturing plants, and metalworking shops that require high-precision drilling on large workpieces. Its heavy-duty design and versatile functionality make it a perfect choice for demanding drilling applications.

• Inspect Drill Bit and Chuck: Regularly check drill bits for wear, damage, or dullness; replace as needed for optimal drilling performance. Inspect and clean the chuck to ensure secure bit clamping.
• Lubricate Moving Parts: Apply lubricant to the radial arm, column, and pivot points to ensure smooth and free movement. Regularly grease all sliding and rotating components.
• Check the Hydraulic System: If equipped, check the hydraulic fluid levels and inspect hoses and seals for leaks. Replace hydraulic oil according to the manufacturer's recommendations.
• Inspect Electrical Systems: Check wiring, test emergency stop functionality, and ensure that all electrical components are in proper working order.
• Clean the Machine: Remove debris, metal shavings, and coolant residue from the drill press after each use to prevent buildup and keep the machine functioning properly.
• Tighten Fasteners: Periodically check all bolts, screws, and nuts to ensure they are tight and secure, preventing any vibrations during operation.
• Check Arm Alignment: Periodically check and adjust the radial arm’s alignment to ensure precise drilling and accurate positioning.
• Inspect the Work Table: Check the table surface for damage or wear. Clean and adjust the work table as needed to ensure stable support for workpieces.
• Follow Maintenance Schedule: Stick to the manufacturer’s recommended maintenance intervals for oil changes, part replacement, and system checks to ensure longevity and optimal performance.
