When it comes to high-quality plate roll machines, no one pairs performance with affordability like U.S. Industrial Machinery in Memphis, TN.
Our machines go through rigorous testing and quality assurance checks to ensure our customers receive nothing but the best. Every piece of equipment comes with a one-year warranty, and our team offers continuing support to customers for troubleshooting and specification questions throughout the life of your machine for the original purchaser. You’ll always have a U.S. Industrial Machinery specialist available when you need us. Our standard model plate rolling machines are available in four sizes; 5′ x 3/8″, 6′ x 5/16″, 8′ x ¼”, and 10’ x ¼”. Custom-built machines are also available for needs outside of these sizes. Our plate rolling machines are gear-driven and can be adjusted to pinch varying metal thicknesses up to the machine’s capacity. The LED display on the controller shows the position of the bending roll with memory storage so operators can repeat bends accurately. With the operator control panel’s long extension cord, it’s easy to maneuver the controls to work from either side of the machine. The electrical cabinet uses standard electrical components that are always in stock in our warehouse for fast replacements when needed.
Features
Specifications
| Capacity |
6‘ x 5/16” Mild Steel @ 65000 PSI |
| Pre-Bend Capacity |
5/16” Mild Steel @ 65000 PSI |
| Top and Bottom Roll Diameter |
6.57”/6.7” (ends/middle) |
| Bending Roll Diameter |
6.22”/6.34” (ends/middle) |
| Speed |
12. 5 FPM |
| Main Drive Motor |
5.5 HP Reduction Gear Drive |
| Adjustment Motor for bend roll position |
3 HP |
| Machine Length |
144” |
| Machine Width |
54” |
| Machine Height |
44” |
| Net Weight |
6,800 lbs. |
| Voltage |
220/440 Volts, 3 Phase |
What Our Experts Think

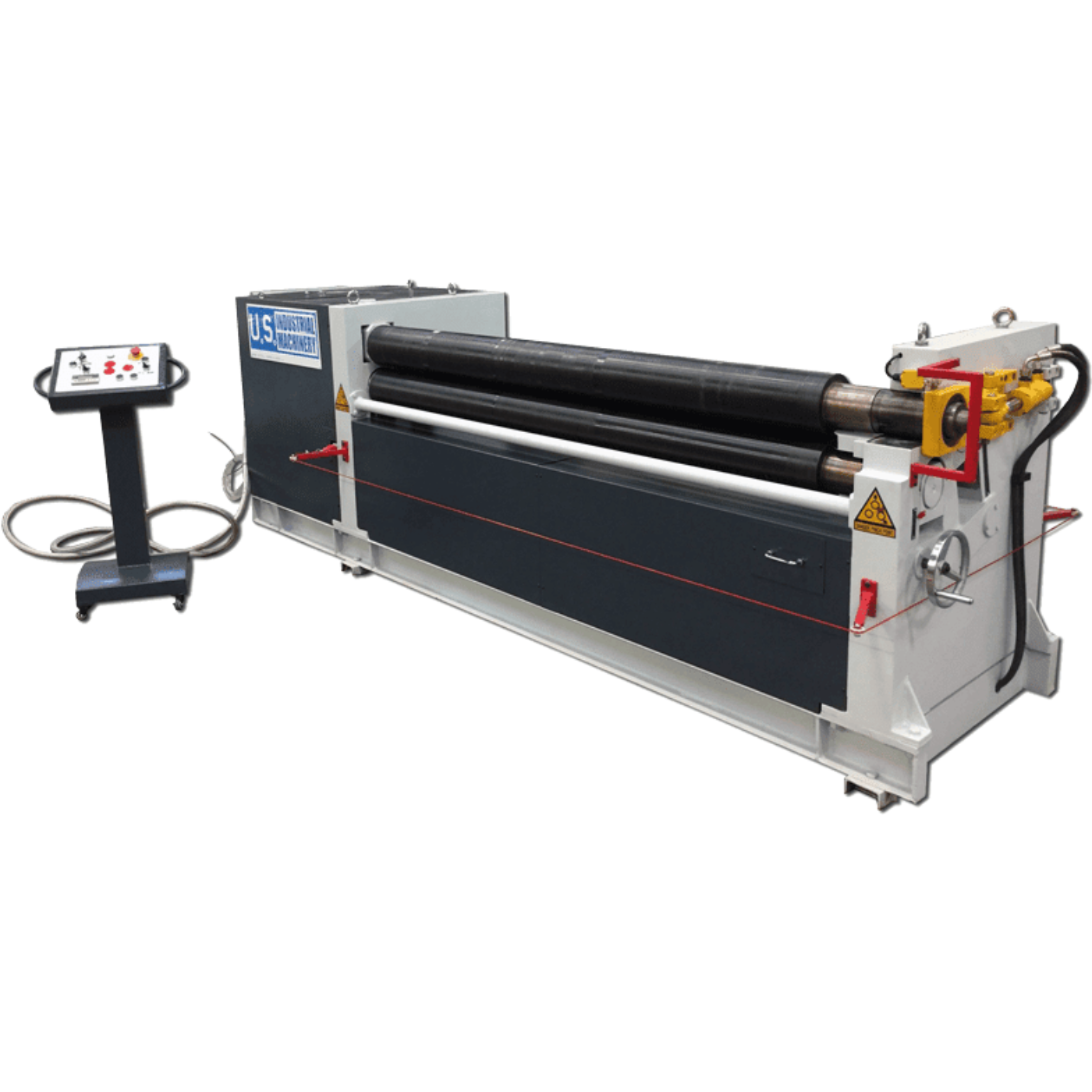

The U.S. Industrial Machinery Plate Roll (USR630) is an essential tool for precision metal rolling in industrial settings. Here’s why our experts recommend it:
-
Ideal Capacity: Rolls plates up to 6' in length and 5/16” thickness, accommodating a wide range of material sizes.
-
Initial Pinch Design: Provides superior control over the rolling process, ensuring consistent results from start to finish.
-
Heavy-Duty Build: Sturdy construction for durability and reliability under heavy use, even with tough materials.
-
Efficient Operation: Designed for fast, precise rolling, reducing material waste and increasing productivity.
-
Versatile Application: Perfect for shaping, bending, and rolling metal plates in various industries, including construction and manufacturing.
-
Easy to Use: User-friendly controls allow for straightforward operation and quick adjustments for different rolling needs.
Q&A
Q: What is the U.S. Industrial Machinery Plate Roll USR630?
A: The USR630 is a 6' x 5/16" initial pinch plate roll, designed for bending and shaping metal plates with precision and ease.
Q: What industries use the USR630 Plate Roll?
A: It's commonly used in metal fabrication, construction, and manufacturing industries for rolling and forming metal sheets.
Q: What types of materials can the USR630 handle?
A: It is capable of rolling various metals, including steel, aluminum, and other alloys.
Q: What makes the initial pinch design beneficial?
A: The initial pinch design provides better control over material handling and ensures consistent, high-quality bends throughout the process.
Q: Is this machine suitable for large-scale operations?
A: Yes, with its robust construction and capacity, it is ideal for medium to large-scale industrial applications.
Q: How does the USR630 improve productivity?
A: The machine's efficient design and ease of use minimize setup time and ensure faster, more consistent results for heavy-duty metal rolling tasks.
Maintenance Tips
-
Daily Cleaning: Remove metal shavings, dust, and debris after each use to prevent surface damage and maintain accuracy.
-
Lubrication: Regularly lubricate bearings, gears, and all moving parts as recommended in the manual to reduce friction and wear.
-
Inspect Rollers: Check rollers for wear, dents, or damage; clean them thoroughly to ensure smooth operation.
-
Alignment Check: Periodically verify roller alignment and adjust as necessary to maintain consistent rolling accuracy.
-
Hydraulic System (if applicable): Inspect hydraulic components for leaks or damage and maintain fluid levels as specified.
-
Check Drive System: Examine chains, belts, and gears for proper tension and replace worn components promptly.
-
Secure Fasteners: Tighten loose bolts or connections to avoid misalignment during operation.
-
Protect Machine: Cover the machine when not in use to shield it from dust and moisture.
