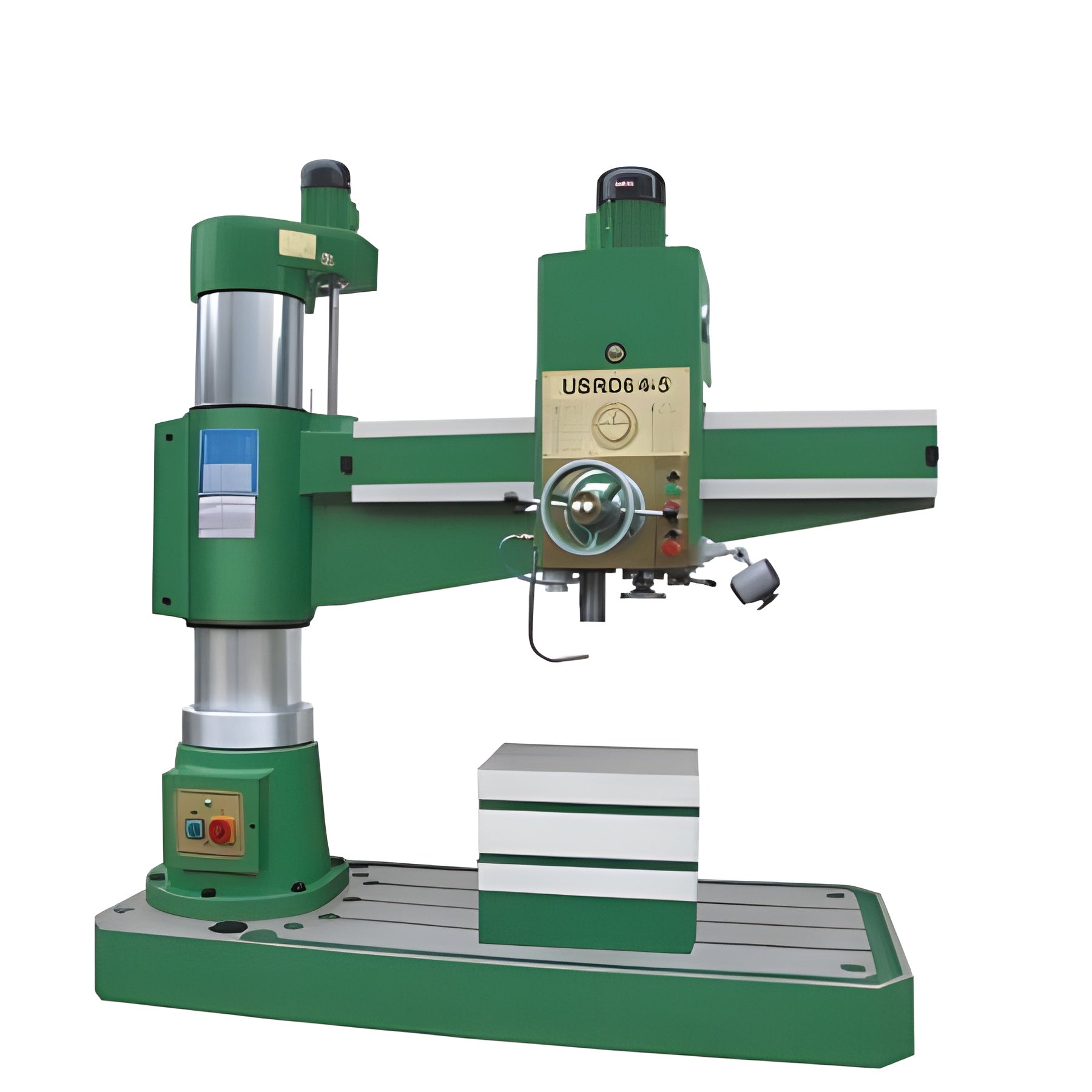

U.S Industrial Machinery 63” Radial Arm Drill Press- USRD64-5

U.S Industrial Machinery 63” Radial Arm Drill Press- USRD64-5

• 2” Drilling Capacity

• 13.8” to 63” Minimum and Maximum spindle to column

• 13.8” Diameter of column

• Morse Taper 5 Spindle

• 12.4” of Spindle Travel

• 30 to 2400 RPM Spindle speeds (16 speed gear driven)

• .0016 to .126 spindle feeds in Inches Per Revolution (16 feeds)

• 12.6” to 48” Minimum and Maximum distance spindle to base

• 24.8” x 19.7” x 19.7” Box Table dimensions

• 94.5” x 39.3” x 7.9” Base dimensions

• 98.4” x 41.7” x 104” Overall dimensions

• 5.4 HP main spindle drive (208-240 OR 440-480 Volts, 3 phase)

• 8580/7700 Gross/Net weight lbs.

• Morse Taper 5 Spindle

• Two side box work table, t-slotted

• T-slotted base

• Flood Coolant System

• Power Arm Elevation

• Power Arm Clamp

• High Precision, Low Noise Ground Gears

• 12” + drilling depth

• Exceptional Drilling Capacity: The U.S. Industrial Machinery 63” Radial Arm Drill Press (USRD64-5) stands out for its remarkable 63-inch radial arm, offering extended reach and flexibility. This makes it ideal for handling larger and heavier workpieces, accommodating the demands of industries that require precision drilling on large components, such as heavy machinery, automotive, and aerospace.

• Powerful Performance: The USRD64-5 features a high-powered motor, enabling it to tackle tough materials and heavy-duty applications. Whether you're drilling, tapping, or reaming, this machine delivers consistent, reliable performance, reducing downtime and boosting overall productivity in the shop.

• Superior Precision and Accuracy: With advanced engineering and high-quality components, the USRD64-5 provides exceptional precision for a variety of drilling tasks. Operators can rely on consistent hole placement and depth, ensuring high-quality results, even with complex or oversized workpieces.

• Adjustable and Versatile Arm: The radial arm of the USRD64-5 is fully adjustable, allowing for easy repositioning to accommodate different workpiece sizes. This flexibility helps streamline operations, enabling quicker setups and improving efficiency, especially in large-scale or multi-part production runs.

• Heavy-Duty and Durable: Built with industrial-grade materials, the USRD64-5 is designed to withstand demanding work environments. Its robust frame minimizes vibrations and ensures stability during operation, even under the pressure of continuous, high-volume use.

• Enhanced Productivity for Large Workpieces: With its large 63-inch arm, this radial arm drill press can drill larger workpieces without needing constant repositioning. This feature significantly improves production speed and efficiency in environments that handle oversized or complex parts.

• Ease of Use: Despite its advanced features, the USRD64-5 remains easy to operate, with intuitive controls that ensure a quick learning curve for operators. The user-friendly design reduces training time and enhances overall shop efficiency, making it accessible to both experienced machinists and those new to radial arm drilling.

• Versatile Applications: The USRD64-5 is perfect for a wide range of drilling applications, including tapping, boring, and reaming, across different industries. Its versatility makes it a must-have for shops that need to perform a variety of tasks on large or heavy-duty workpieces.

• Long-Term Value: The initial investment in the USRD64-5 is justified by its long-lasting durability, versatility, and high productivity. For shops dealing with heavy-duty workpieces and large-scale production runs, this radial arm drill press offers a significant return on investment through increased operational efficiency and reduced downtime.

Q: What is the U.S. Industrial Machinery 63” Radial Arm Drill Press - USRD64-5?
A: The U.S. Industrial Machinery USRD64-5 is a heavy-duty radial arm drill press designed for high-precision drilling operations. With a 63” radial arm, it offers exceptional flexibility and reach for large-scale industrial applications, allowing operators to position the drill head across a variety of workpieces.

Q: What are the key features of the USRD64-5?
A: The USRD64-5 features a powerful motor, a 63” adjustable radial arm for increased reach, and robust construction for durability. It is designed for versatility, capable of drilling, tapping, reaming, and counterboring operations, and can accommodate a wide range of workpiece sizes and materials.

Q: What materials can the USRD64-5 handle?
A: The USRD64-5 is suitable for drilling a variety of materials including steel, aluminum, castings, and other metals. It is ideal for tasks such as drilling holes, tapping threads, and performing other machining operations on large and heavy workpieces.

Q: What are the dimensions and weight of the USRD64-5?
A: For specific dimensions and weight, it’s recommended to consult the product manual or contact the manufacturer directly, as these details may vary based on configuration and options.

Q: Is the USRD64-5 easy to operate?
A: Yes, the USRD64-5 is designed for ease of use, with an adjustable arm that allows for easy positioning of the drill head. Its user-friendly controls enable precise drilling and other operations with minimal effort, making it suitable for both experienced and novice operators.

Q: Does the USRD64-5 come with a warranty?
A: Yes, the USRD64-5 typically comes with a manufacturer warranty. For specific warranty coverage details, it’s best to contact the manufacturer or an authorized distributor.

Q: Who is the USRD64-5 ideal for?
A: The USRD64-5 is ideal for industrial manufacturing plants, large workshops, and metalworking operations that require precision drilling on large or heavy workpieces. Its long reach and powerful motor make it perfect for demanding tasks in environments where high productivity and accuracy are needed.

• Inspect Drill Bit and Chuck: Regularly check for wear or damage to the drill bit; replace or sharpen as needed. Ensure the chuck is clean and securely grips the drill bit to prevent slipping.
• Lubricate Moving Components: Apply grease to the radial arm, column, and pivot points to ensure smooth movement. Lubricate all sliding and rotating parts regularly to reduce friction and wear.
• Check Hydraulic System: If the machine has a hydraulic system, monitor fluid levels and check for leaks. Replace hydraulic oil as recommended to maintain efficient operation.
• Electrical System Inspection: Check wiring and electrical connections for any signs of wear or damage. Test emergency stop functionality and ensure all controls are working properly.
• Clean the Machine: After each use, clean the machine bed, arm, and table from metal shavings, debris, and coolant to prevent build-up and ensure optimal performance.
• Tighten Fasteners: Regularly check bolts, screws, and nuts for tightness to avoid vibrations and ensure the machine operates safely and stably.
• Check Arm and Table Alignment: Verify the alignment of the radial arm and work table periodically to ensure accurate drilling. Adjust as needed to maintain precision.
• Inspect Bearings and Guides: Periodically check bearings and guides for wear; replace or adjust them to prevent inaccurate movement and ensure smooth operation.
• Follow Manufacturer’s Maintenance Schedule: Stick to the recommended intervals for maintenance tasks such as lubrication, oil changes, and part inspections to extend the machine’s lifespan and maintain optimal performance.
