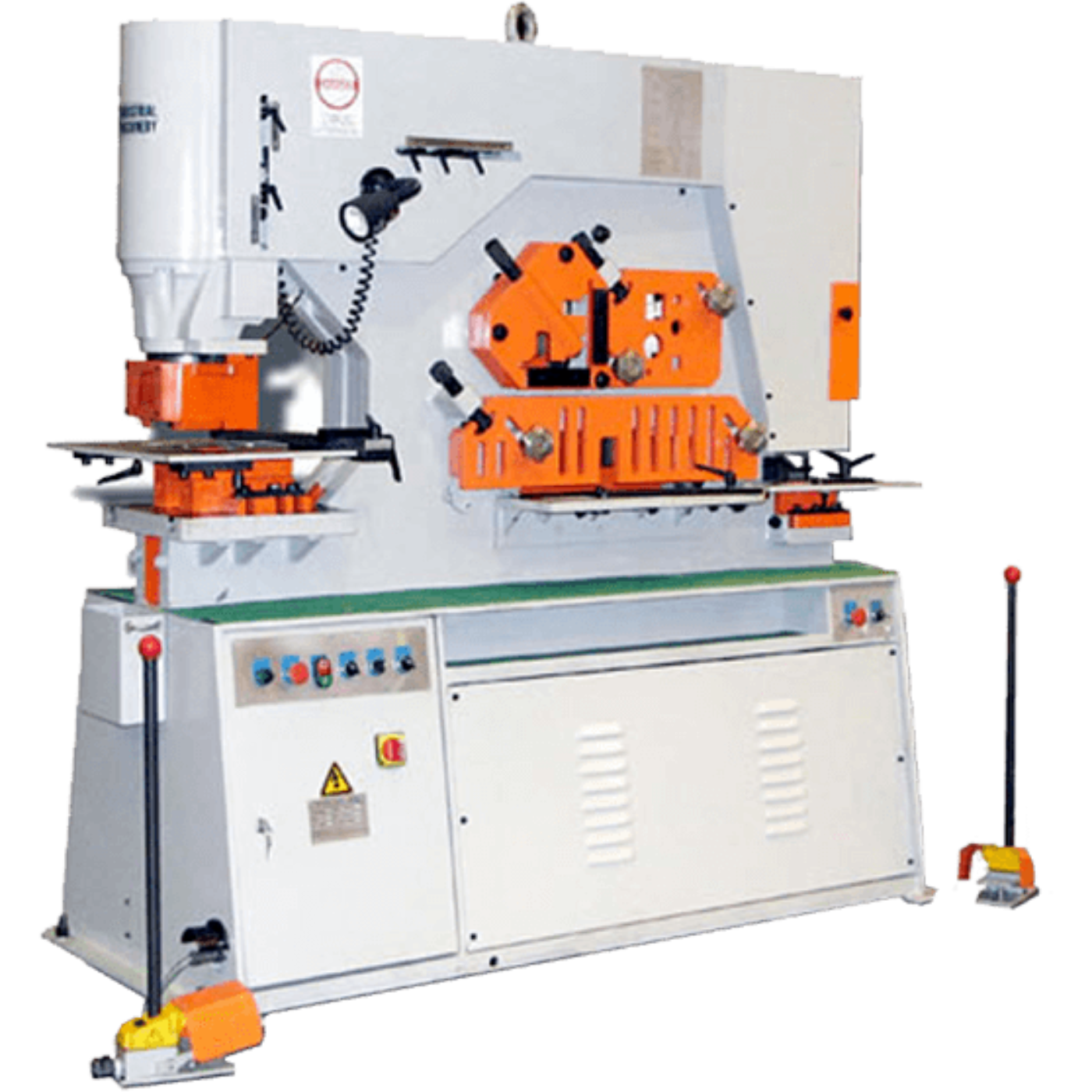

U.S Industrial Machinery 66 Ton Hydraulic Ironworker with Dual Operator Stations Extended 17” punch throat - USHI66T-DO-XT

U.S. Industrial Machinery has been delivering industrial-grade ironworker machines to handle the toughest jobs nationwide.

You can have confidence buying from us knowing that we complete the assembly, calibrate, test, and perform cosmetic upgrades of all in-coming machinery to meet the high standards we set for our products. All machines receive a final inspection complete with cosmetic upgrades to ensure the highest quality before leaving our warehouse for to you. Each of our products delivers what you expect with the performance you can trust, job after job. And as always, we are here for the life of your machine to offer technical support, answer questions, and troubleshoot any issues you may be experiencing. For the most durable machines to punch, shear, notch, and bend iron, you can count on the industry’s best by U.S. Industrial Machinery. Our machines range in punch tonnage from 66 tons to 155 tons with motor horsepower between 7.5 and 20 HP. Need a customized piece of equipment? We build those too.

Punch Stations

• Punching tons : 66

• Punching maximum - Round : 3/4" thick x 1" diameter

• Throat depth : 17"

• Punch and die clearance for gauge thickness  = slip fit to 1/64"

• Punch and die clearance for 1/4" to 1/2" thickness  = 1/32"

• Punch and die clearance for 1/2" to 3/4" thickness  = 1/16"

• Punch and die clearance for 3/4" to 1" thickness  = 3/32"

• Punch and die clearance for 1" and over thickness  = 1/8"

FLAT BAR SHEAR STATION

• Maximum thickness : 5/8" thick x 10" width

• Maximum length : 5/16" thick x 16" width

• Blade length : 16"

ANGLE SHEAR STATION

• Capacity at 90 degrees  : 5" x 5" x 3/8"

• Capacity at 45 degrees  : 2" x 2" x 1/4"

BAR SHEAR STATION

• Round solid bar maximum : 1-3/4"

• Square solid bar maximum : 1-9/16"

RECTANGULAR NOTCHER STATION

• Maximum thickness capacity : Width x Depth x Thick: 3" x 1-1/2" x 5/16"

• Width of notcher top blade : 3-3/16"

• Depth of notcher : 3-13/16"

REQUIREMENTS

• Horsepower :7.5

• Electrical : 220 Volts, 3 phase or 440 Volts, 3 phase

• Full load amps : 25/12.5

• Hydraulic oil type/capacity: Equal to Exxon/Mobil NUTO-H46 - 19 gal

• Weight and dimensions : 3,880 lbs. - 64"L x 31"W x 66"H
