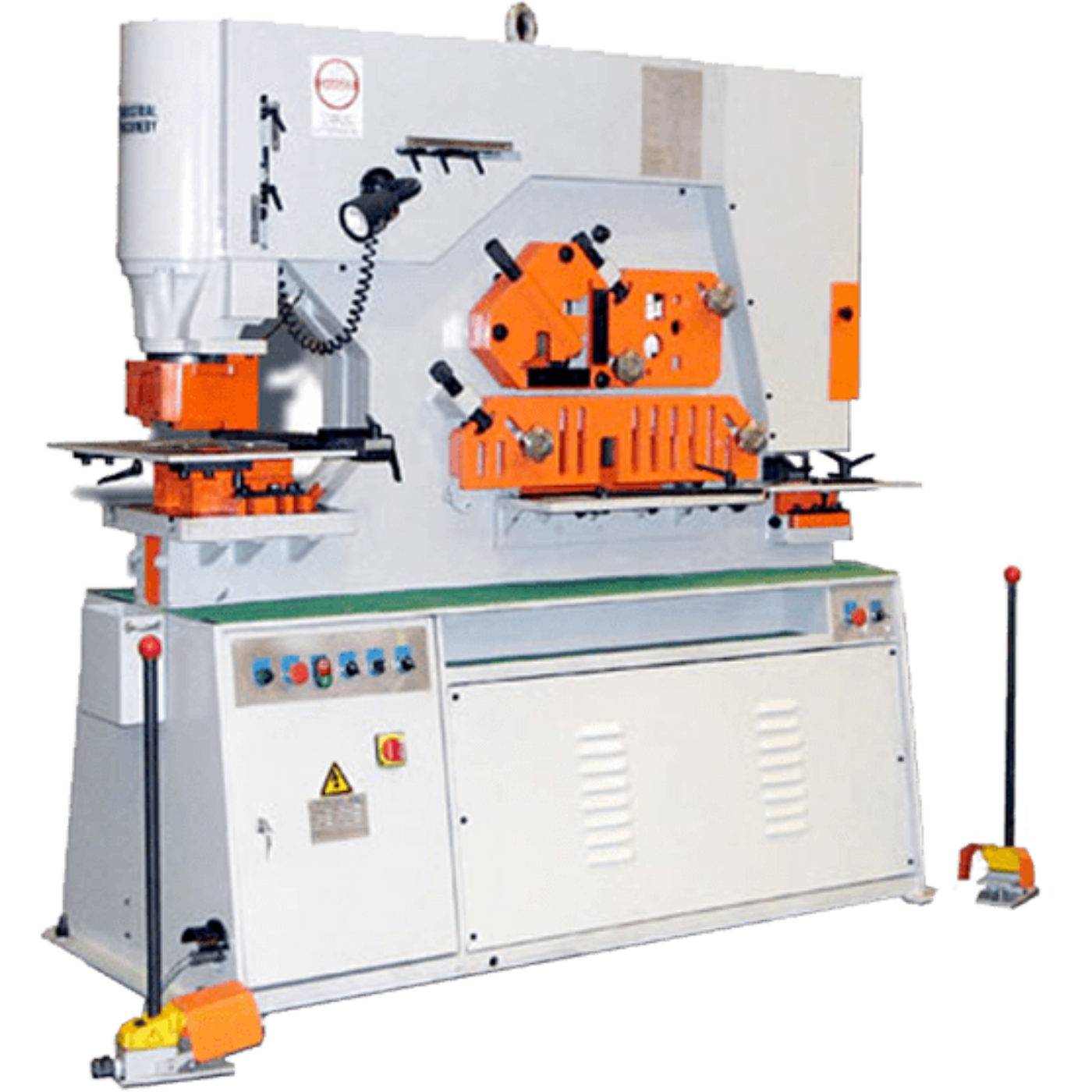

U.S Industrial Machinery 66 Ton Hydraulic Ironworker with Dual Operator Stations Standard 12” punch throat - USHI66T-DO

Free Shipping
80 Peoples are also watching that product.
Vendor: U.S Industrial
SKU: USHI-66T-DO
$20,670.99
$21,990.00
$20,670.99
Subtotal: $20,670.99
authorized dealer, shop your favorite brand.
Expert Support,

Dial 888-575-2099

Limited Supply,

grab it before it's gone.

Lowest prices,

As low as possible.

All Item are brand New,

Never used.

Recently Viewed Products

U.S. Industrial Machinery has been delivering industrial-grade ironworker machines to handle the toughest jobs nationwide.

Whether you’re a local iron business serving the needs of customers in your community or a national brand shaping the next generation of automobiles, we have high-grade equipment at affordable prices to meet every level of job. You can have confidence buying from us knowing that we complete the assembly, calibrate, test, and perform cosmetic upgrades of all in-coming machinery to meet the high standards we set for our products. All machines receive a final inspection complete with cosmetic upgrades to ensure the highest quality before leaving our warehouse for to you. Each of our products delivers what you expect with the performance you can trust, job after job. And as always, we are here for the life of your machine to offer technical support, answer questions, and troubleshoot any issues you may be experiencing. For the most durable machines to punch, shear, notch, and bend iron, you can count on the industry’s best by U.S. Industrial Machinery. Our machines range in punch tonnage from 66 tons to 155 tons with motor horsepower between 7.5 and 20 HP. Need a customized piece of equipment? We build those too.

  • Punch station

  • Angle shear station

  • Flat bar shear station

  • Notching station

  • Rod shear station

  • Electric back-gauge

  • Oversize work table with fences

  • Press brake attachment

  • Magnetic base work light

  • Punch slug chute and bucket

  • Dual hydraulic cylinders for two-man operation with two moveable foot pedals

  •  Five workstations: punch, plate shear, angle shear, rod shear and notcher.

  • This machine also comes with a press brake attachment.

  • Punch station has large two-piece gauging table with fence

  • Punch station has quick acting swing-away stripper with 3 inserts

  • Punch station has removable sections for punch leg of channel or I-beam

  • Quick change coupling nut and sleeve for punch

  • Electric Backgauge, 3’ long

  • Electrically interlocked safety guard for notching station

  • Magnetic base workstation light

  • 7.5 HP, 3-phase operation

  • This machine weighs 3,527 lbs.

  • Three sets of round punch and die

  •  Spare parts and tools

Punch Stations
Punching tons 66
Punching maximum - Round 3/4" thick x 1" diameter
Throat depth 12"
Punch and die clearance for gauge thickness slip fit to 1/64"
Punch and die clearance for 1/4" to 1/2" thickness 1/32"
Punch and die clearance for 1/2" to 3/4" thickness 1/16"
Punch and die clearance for 3/4" to 1" thickness 3/32"
Punch and die clearance for 1" and over thickness 1/8"
FLAT BAR SHEAR STATION
Maximum thickness 5/8" thick x 10" width
Maximum length 5/16" thick x 16" width
Blade length 16"
ANGLE SHEAR STATION
Capacity at 90 degrees 5" x 5" x 3/8"
Capacity at 45 degrees 2" x 2" x 1/4"
BAR SHEAR STATION
Round solid bar maximum 1-3/4"
Square solid bar maximum 1-9/16"
RECTANGULAR NOTCHER STATION
Maximum thickness capacity Width x Depth x Thick: 3" x 1-1/2" x 5/16"
Width of notcher top blade 3-3/16"
Depth of notcher 3-13/16"
REQUIREMENTS
Horsepower 7.5
Electrical 220 Volts, 3 phase or 440 Volts, 3 phase
Full load amps 25/12.5
Hydraulic oil type/capacity Equal to Exxon/Mobil NUTO-H46 - 19 gal
Weight and dimensions 3,527 lbs. - 64"L x 31"W x 66"H
