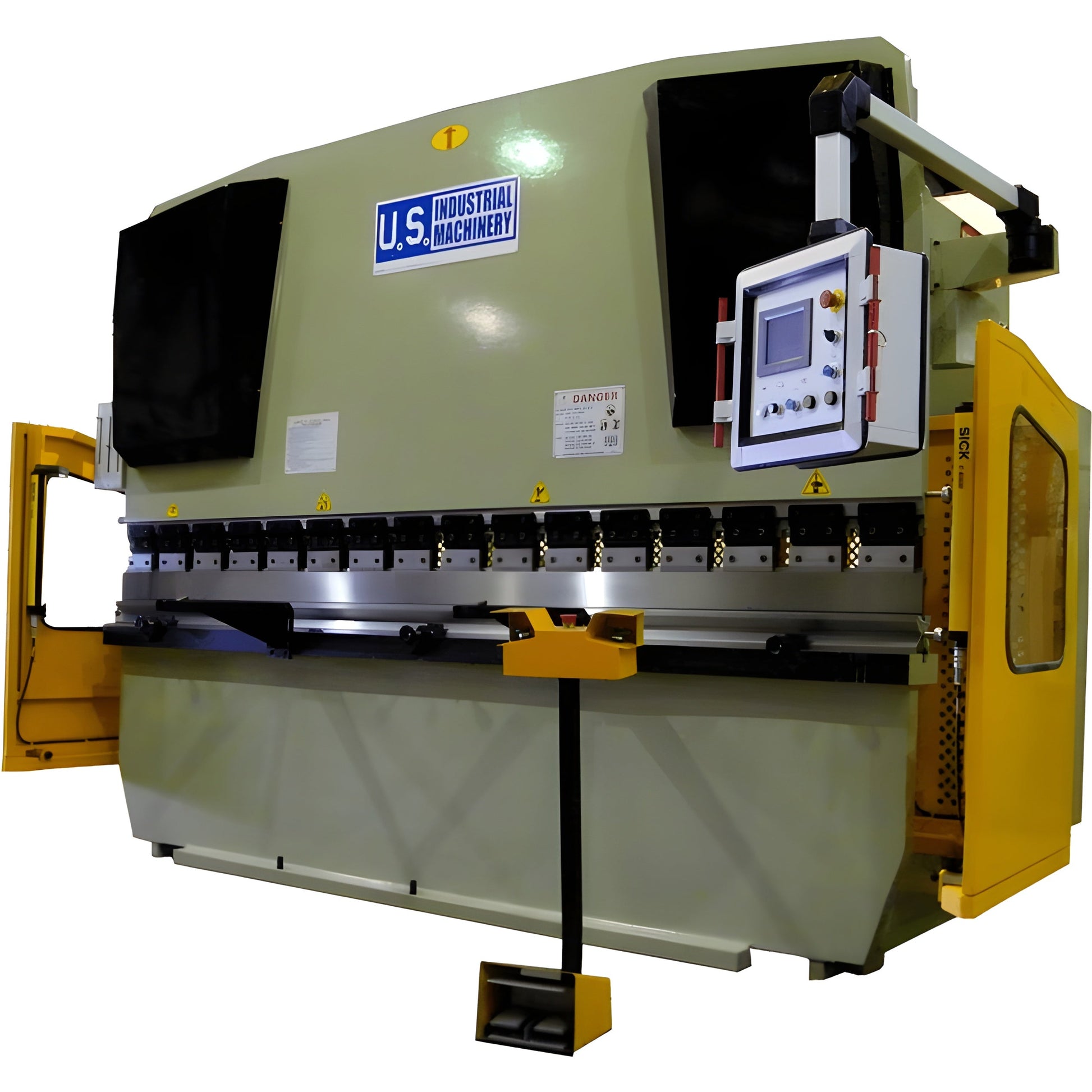

U.S. Industrial Machinery Hydraulic Press Brake, 88 TON x 8’, with Graphic CNC - USHB88-8CNC

U.S. Industrial Machinery Hydraulic Press Brake, 88 TON x 8’, with Graphic CNC - USHB88-8CNC

by U.S Industrial
SKU USHB88-8CNC
Save 6% Save 6%
$49,980.00
$49,980.00 - $49,980.00
$49,980.00
$46,981.99
$46,981.99 - $46,981.99
$46,981.99

  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.


Our CNC control hydraulic press brakes offer users the ability to tackle any project with precision, speed, and volume.

These machines can handle the most demanding jobs with impeccable details. The capability to use a removable USB drive means that additional program storage is virtually limitless.

  • 6” LCD touchscreen to control the bend angle and back-gauge position

  • 10 bends per program or cross-section

  • Up to 20 punch library and up to 50 die library

  • Auto bend sequence

  • Auto back-gauge retract

  • Spread length

  • Interference bend chart

  • Calculated bend allowance

  • Programmable ram dwell

Working Pressure 88 Tons
Pressing Speed Dependent on Tool Load
Length of Working Table 98.4”
Hydraulic Oil Capacity 60 Gal.
Distance Between Housings 81.8”
Motor Horsepower 10 HP, 220 or 440 Volts, 3 ph.
Throat Depth 9.8”
Net Weight 12,127 lbs.
Stroke Adjustment of Ram 1.96”
Length 120”
Ram Travel 3.93”
Width 64”
Open Height 13.7”
Height 90”
Rapid Ram Travel Speed 2.4”/sec.
Rapid Ram Retreat Speed 2.0”/sec.
Backgauge Travel 24”



  • CNC 2-axis Color Graphic Computer Control

  • Sick DETEC 4 Light Curtain

 
