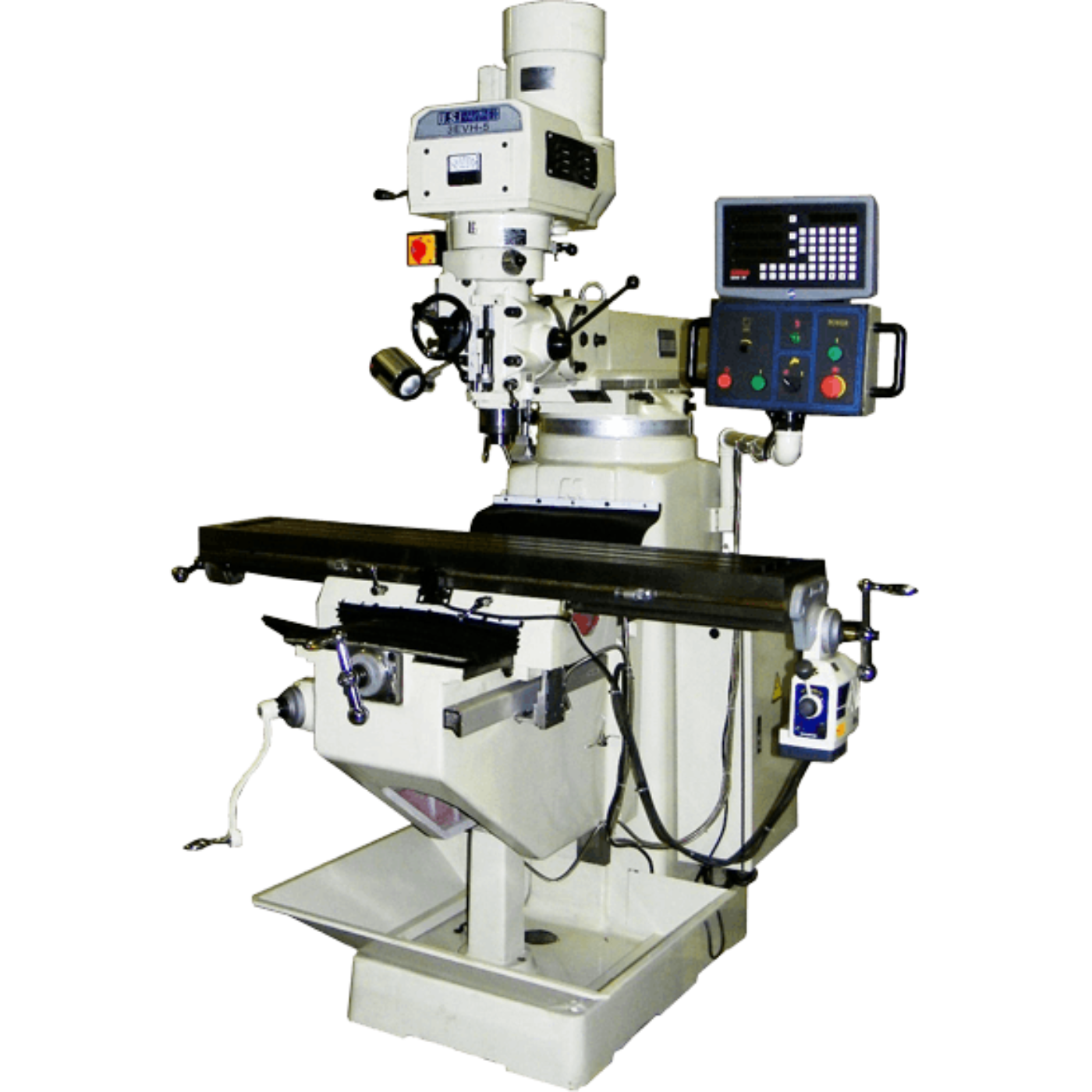

U.S Industrial Machinery Vertical Milling Machine, 9” X 49” ,Manual, Variable Speed, - 2VH-3-KIT

U.S. Industrial Machinery’s line of milling machines offers a ton of user flexibility to make precision cuts for beautiful finished work.

At our Memphis, Tennessee facility we complete the assembly, calibrate, test, and perform cosmetic upgrades of all in-coming machinery to ensure sturdy, functional pieces of equipment that can be put to the test of the most demanding jobs. All equipment comes with a one-year part and labor warranty, and our technical support is always available to help you troubleshoot any user problems. Contact us for a milling machine quote today. ur line of milling machines features three standard models that offer the best in drilling, boring, and cutting of your materials. Choose from the manual variable speed mill, the heavy-duty manual variable speed mill, or the heavy-duty electronic variable speed mill.

• Sino 3-Axis digital readout inch or metric

• Flood coolant and chip pan

• Power table feed

• Power quill feed

• Machine light

• Enclosed electrical cabinet

• Circuit breaker protection

• Low voltage controls

• 9” x 49” table with 3 T-slots, 5/8”, on 2.5” centers

• Table travel is 33”. Leadscrew pitch is 5TPI with dials on each end graduated in .001”.

• Travel of cross feed is 12” with .001” dial graduations

• Knee travel is 15.74” with 10TPI leadscrew, .001” dial graduations

• Ram allows for over 12” of travel, for variable throat depth

• Conventional dovetail ways on X, Y and Z Axis…………. Double locks on all axis

• Aged stressed castings, stress relieved for long life and accuracy, Meehanite type

• Power quill feed allows for 0.0018, 0.003, 0.006 Inches of feed per revolution of spindle

• Hardened and ground and precisely scraped work table, saddle and knee ways

• Centralized one-shot lubrication pump lubricates all way surfaces and leadscrews

• Backlash adjustment for leadscrews, Gib adjustments for ways

• Electrical cabinet with internal transformer for 110V and 24V devices, circuit breaker protected, Low Voltage controls, 24 volt halogen machine light. Transformer also includes power supply for digital readout and power table feed.

• Operator low voltage controls for coolant pump, machine light, main power with emergency stop button. Spindle off/forward/reverse switch.

• Built in coolant tank base with coolant pump, pressure and return hose , nozzle and valve, Installed and ready to use. Base chip pan to help prevent coolant overflow.

• Manual variable speed spindle drive, 3 Horsepower runs the spindle from 60 to 4200 RPM. Spindle speed dial on head shows RPM in direct drive and back gear. Spindle motor is finned for cooling.

• Sino three axis digital readout has 0.0002” resolution. Readout comes mounted to knee, table and cross and is ready to use. The readout is inch/metric switchable, with absolute incremental function. There is a calculator function, bolt hole pattern function, line pattern function, and arc calculate function. A comprehensive manual is included.

• Power table feed is Align model AL500SP. Infinitely variable feed from .8 to 32 IPM with rapid button, on/off switch, and adjustable travel stops. This heavy duty power feed has 150 inch pounds of torque, with max to 650. Power table feed comes installed on machine, ready to use.

• Toolbox and tools, manuals, electrical drawing, test certificate all included

The U.S. Industrial Machinery Vertical Milling Machine (2VH-3-KIT) offers precision and power in a manual design, making it ideal for professional and industrial use. Here’s why it’s a top choice:

• Generous Work Surface: 9” x 49” table provides ample space for milling a variety of materials.
• Manual Operation: Allows for hands-on control, offering precision and flexibility in milling tasks.
• Variable Speed Control: Easy-to-adjust speed settings ensure versatility across a wide range of applications.
• Heavy-Duty Construction: Built to endure tough conditions, ensuring longevity and reliable performance under continuous use.
• Smooth Operation: Designed for minimal vibration, resulting in clean, accurate cuts and finishes.
• Versatile Applications: Ideal for milling, drilling, and cutting operations in metalworking, construction, and machining.

Q: What is the U.S. Industrial Machinery 2VH-3-KIT Vertical Milling Machine?
A: The 2VH-3-KIT is a manual vertical milling machine with a 9” x 49” table, featuring variable speed for versatile machining tasks.

Q: Who is the 2VH-3-KIT Vertical Milling Machine designed for?
A: It is ideal for professionals in metalworking, toolmaking, and manufacturing industries that require precision milling capabilities.

Q: What materials can it machine?
A: This milling machine is designed to handle a variety of metals, including steel, aluminum, and alloys, with precision.

Q: How does the variable speed feature benefit operators?
A: The variable speed allows operators to adjust cutting speeds for optimal performance across different materials and tooling.

Q: Is this machine suitable for small to medium-sized workshops?
A: Yes, its compact size and versatility make it a great choice for small to medium-sized professional workshops.

Q: What makes the 2VH-3-KIT a valuable asset?
A: The combination of manual operation, variable speed, and robust build provides reliability, precision, and flexibility for various machining tasks.

• Daily Cleaning: Clean the machine of chips, dust, and debris after each use to ensure smooth operation and prevent surface damage.
• Lubrication: Apply proper lubricants to the lead screws, ways, and bearings to reduce friction and ensure smooth motion.
• Inspect Belts and Pulleys: Check the variable speed belts and pulleys for wear or damage, and adjust the tension as necessary.
• Spindle and Table Alignment: Periodically verify the spindle and table alignment to maintain accuracy in machining.
• Coolant System: Inspect the coolant system for leaks and ensure the tank is clean and filled to proper levels.
• Inspect Way Covers: Keep the way covers free of debris to prevent damage to critical surfaces during operation.
• Electrical Components: Check electrical connections for wear or damage to ensure safe operation and reliable control.
• Tool Care: Store and maintain tooling properly to keep them in good working condition for precise machining.
