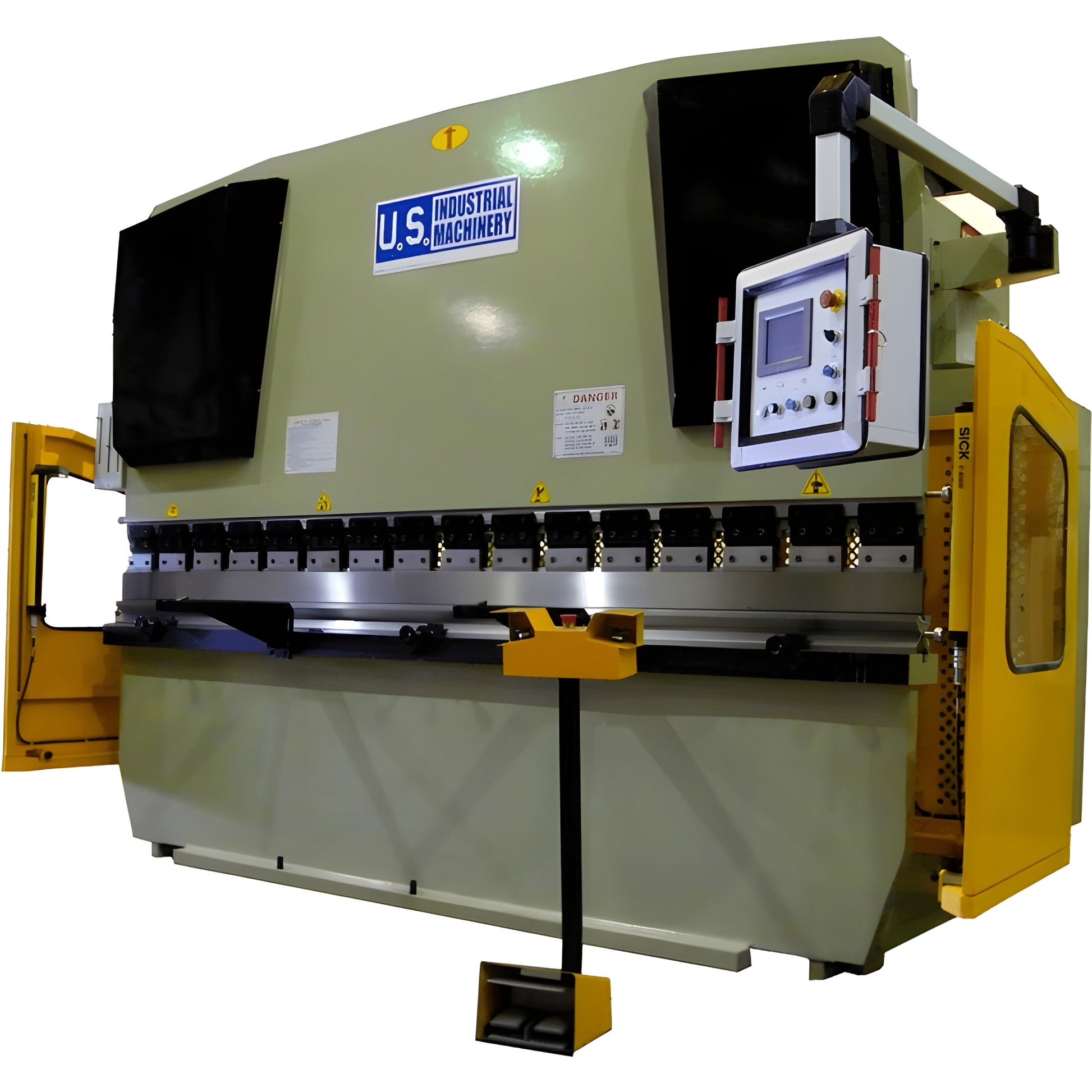

U.S. Industrial Machinery Hydraulic Press Brake, 44 TON x 6’, with Graphic CNC- USHB44-6CNC

U.S. Industrial Machinery Hydraulic Press Brake, 44 TON x 6’, with Graphic CNC- USHB44-6CNC

by U.S Industrial
SKU USHB44-6CNC
Save 6% Save 6%
$36,975.00
$36,975.00 - $36,975.00
$36,975.00
$34,756.99
$34,756.99 - $34,756.99
$34,756.99

  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.


Our CNC control hydraulic press brakes offer users the ability to tackle any project with precision, speed, and volume.

 These machines can handle the most demanding jobs with impeccable details. The capability to use a removable USB drive means that additional program storage is virtually limitless.

  • 6” LCD touchscreen to control the bend angle and back-gauge position

  • 10 bends per program or cross-section

  • Up to 20 punch library and up to 50 die library

  • Auto bend sequence

  • Auto back-gauge retract

  • Spread length

  • Interference bend chart

  • Calculated bend allowance

  • Programmable ram dwell

• Working Pressure 44 Tons
• Pressing Speed Dependent on Tool Load
• Length of Working Table 78.7”
• Hydraulic Oil Capacity 36 Gal.
• Distance Between Housings 63.7”
• Motor Horsepower 7.5 HP, 220 or 440 Volts, 3 ph.
• Throat Depth 7.8”
• Net Weight 7,700 lbs.
• Stroke Adjustment of Ram 1.96”
• Length 101”
• Ram Travel 3.93”
• Width 60”
• Open Height 12.5”
• Height 80”
• Rapid Ram Travel Speed 2.4”/sec.
• Rapid Ram Retreat Speed: 2.0”/sec
• Backgauge Travel 24”



  • CNC 2-axis Color Graphic Computer Control

  • Sick deTec 4 Light Curtain

 





Our CNC control hydraulic press brakes offer users the ability to tackle any project with precision, speed, and volume.

 These machines can handle the most demanding jobs with impeccable details. The capability to use a removable USB drive means that additional program storage is virtually limitless.

  • 6” LCD touchscreen to control the bend angle and back-gauge position

  • 10 bends per program or cross-section

  • Up to 20 punch library and up to 50 die library

  • Auto bend sequence

  • Auto back-gauge retract

  • Spread length

  • Interference bend chart

  • Calculated bend allowance

  • Programmable ram dwell

• Working Pressure 44 Tons
• Pressing Speed Dependent on Tool Load
• Length of Working Table 78.7”
• Hydraulic Oil Capacity 36 Gal.
• Distance Between Housings 63.7”
• Motor Horsepower 7.5 HP, 220 or 440 Volts, 3 ph.
• Throat Depth 7.8”
• Net Weight 7,700 lbs.
• Stroke Adjustment of Ram 1.96”
• Length 101”
• Ram Travel 3.93”
• Width 60”
• Open Height 12.5”
• Height 80”
• Rapid Ram Travel Speed 2.4”/sec.
• Rapid Ram Retreat Speed: 2.0”/sec
• Backgauge Travel 24”



  • CNC 2-axis Color Graphic Computer Control

  • Sick deTec 4 Light Curtain
