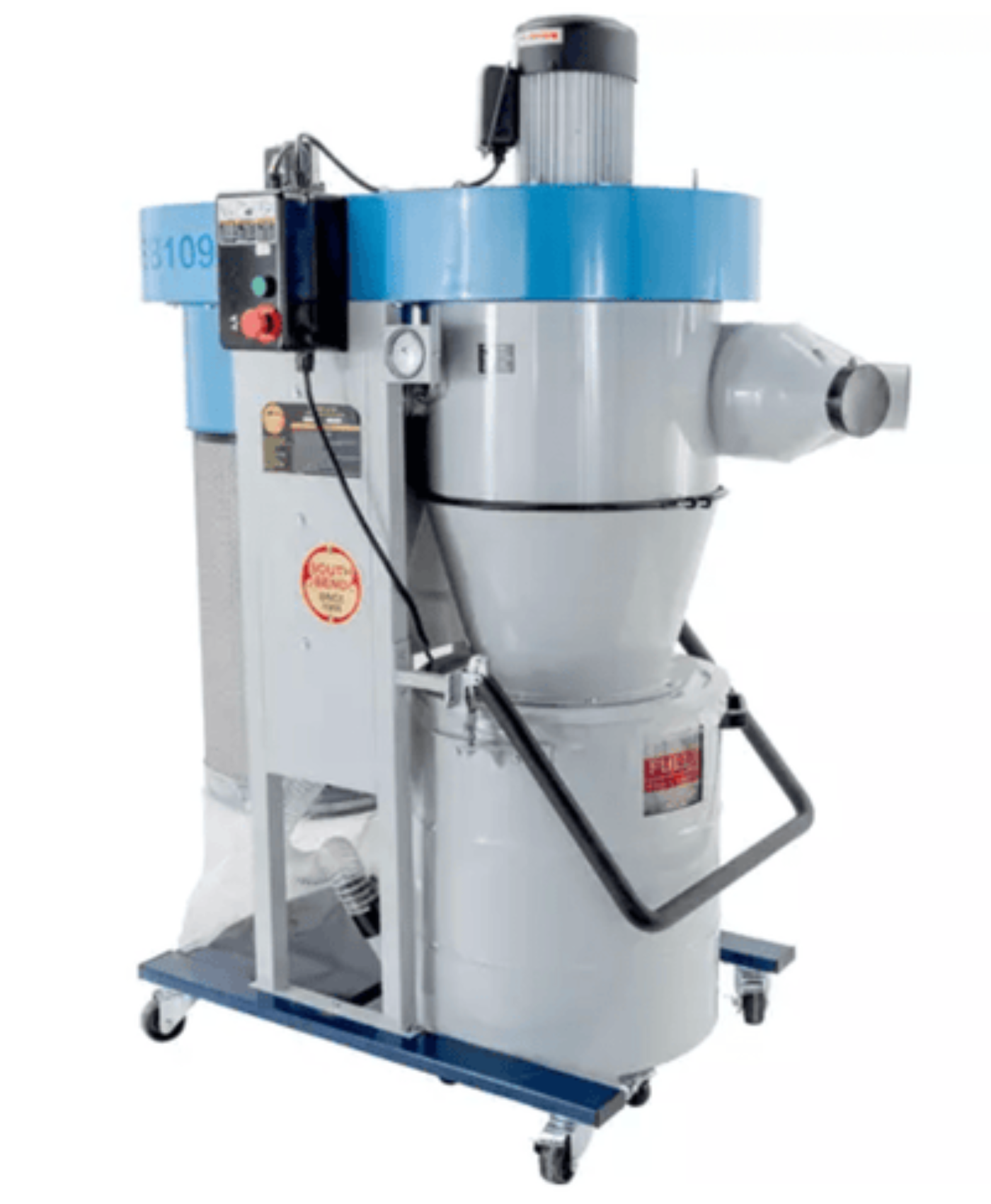

U.S Industrial South Bend SB1092 - 2 HP Cyclone Dust Collector
SB1092 South Bend 2 HP Cyclone Dust Collector
Performance and convenience in a compact design that's ready to meet the needs of your demanding shop.
The South Bend SB1092 2 HP Cyclone Dust Collector is not just top of its class in performance and dependability, it comes packed with features to help you improve workflow and efficiency.
The two-stage collector separates the large chips and debris into an easy-to-empty 28-gallon drum, then the fine particles travel through a self-cleaning 1-micron pleated filter and collect into the lower plastic bag.
The wireless remote with timer settings for automatic shutoff allows you to control the SB1092 from anywhere in your shop.
Connect up to two machines for simultaneous dust collection with the included 8" X 4" two-inlet adapter, or devote to a single machine.
The swivel casters on the base allow you to easily move the SB1092 to where you need it.
Also, this comes with a unique built-in vacuum pressure gauge that indicates normal operation, when it’s time to clean the filter, and when to replace it.
Additional high-end features such as automatic, power-driven filter cleaning brushes, a quick-release collection drum lid for easy dust disposal, and many more listed below make this South Bend dust collector the perfect choice for uncompromising woodworkers.
Like all South Bend woodworking machines, the SB1092 comes with a 2-year warranty and is built to South Bend high-precision industrial standards.
The manual was written by our U.S. based Technical Documentation Department and is packed with useful information.
The South Bend Customer Service and Technical Support Teams are U.S. based. Parts may be available online and shipped from the South Bend parts warehouse in Springfield, MO.
Features
- Steel stand with built-in casters
- Clear disposable plastic collection bags
- Automatic filter paddle brush for easy cleaning
- Compact with a low overall height of 64"
- Remote controlled magnetic switch
- Reinforced motor mount
- Timed shutoff settings
- Rolling collection drum with quick-release lift handle
- Vacuum equalizer built into collection drum for use with collection bags
- Built-in sound muffler
- US based customer service and technical support
Specifications
| Motor |
2 HP, 220V, single-phase, 9A |
| Main Inlet Size |
8", with two 4" adapter inlets |
| Airflow Capacity |
1132 CFM @ 1.1" SP |
| Maximum Static Pressure |
11.5" @ 0 CFM |
| Filtration Rating |
1-micron |
| Filter Surface Area |
29 sq. ft. |
| Impeller |
14-1/2" Radial fin |
| Collection Drum Size |
28 Gallons |
| Sound Rating |
77–79 dB |
| Switch |
Remote-controlled magnetic with thermal overload protection |
| Overall Dimensions |
51" W x 31" D x 64" H |
| Approximate Shipping Weight |
330 lbs |
What our Experts Think
-
Powerful Cyclone Suction – 2 HP motor provides strong airflow for efficient dust separation and collection.
-
Two-Stage Filtration – Cyclone system separates heavy debris before fine dust reaches the filter, improving performance.
-
High-Capacity Collection Drum – Reduces the frequency of emptying for increased convenience.
-
Durable & Low-Maintenance – Heavy-duty steel construction ensures longevity and reliability.
-
Perfect For – Woodshops and workshops needing efficient, high-volume dust collection with minimal clogging.
Q&A
Q: What is the U.S. Industrial South Bend SB1092?
A: A 2 HP cyclone dust collector designed for high-efficiency dust separation and collection in woodworking and industrial workshops.
Q: What is the airflow capacity?
A: Provides up to 1,700 CFM (Cubic Feet per Minute) for strong suction and dust extraction.
Q: How does the cyclone system work?
A: Uses cyclonic separation to remove large debris before fine dust reaches the filter, improving efficiency and reducing filter clogging.
Q: What type of filtration does it use?
A: Features a pleated canister filter for capturing fine dust particles and improving air quality.
Q: What type of motor does it have?
A: A 2 HP motor, providing consistent suction power for heavy-duty applications.
Q: How is dust collected and disposed of?
A: Includes a large-capacity collection drum for easy dust disposal.
Q: Can it support multiple machines?
A: Yes, with multiple dust ports, it can connect to multiple woodworking tools simultaneously.
Q: Why choose the SB1092?
A: Its high airflow, cyclone separation, and superior filtration make it a reliable solution for maintaining a clean and efficient workshop environment.
Maintenance Tips
-
Filter & Canister Cleaning: Regularly clean or replace the HEPA filter to maintain suction power.
-
Dust Bin & Drum Emptying: Empty collection bins frequently to prevent overflow and clogs.
-
Cyclone Chamber Inspection: Check for dust buildup and clean as needed for optimal separation.
-
Duct & Hose Maintenance: Inspect for blockages, leaks, or wear in hoses and connections.
-
Motor & Fan Care: Keep free of dust buildup and lubricate bearings as required.
-
Seal & Gasket Check: Ensure all seals are intact to maintain strong airflow.
-
Electrical & Safety Inspection: Test switches, wiring, and grounding for safe operation.
