U. S. Motors U.S. Motors D2P1ACR General Purpose Three Phase ODP C-Face Motor - D2P1ACR

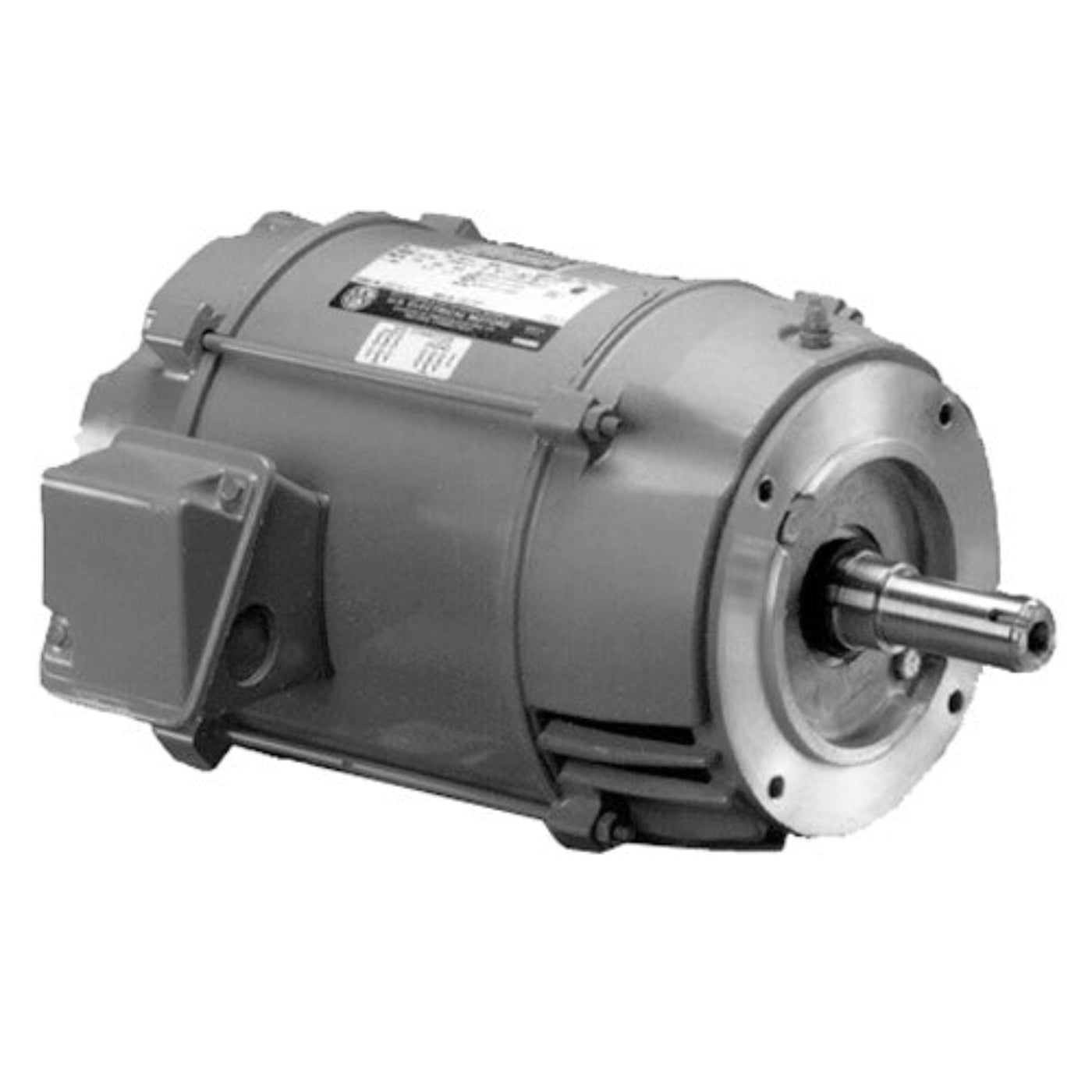

The U.S. Motors D2P1ACR is a general purpose three phase ODP C-Face motor designed for efficiency and reliability. This motor operates at two horsepower and delivers a speed of three thousand six hundred RPM, making it suitable for various industrial applications.

Product Highlights

This motor is built for continuous duty and features a sturdy C-face mounting that allows for easy installation. Its ODP enclosure protects internal components from moisture and dust, enhancing durability.

Features
  • Type: General Purpose
  • Power: 2 hp
  • Voltage: 208-230/460
Specifications
Brand U.S. Motors
Model Number (MPN) D2P1ACR
Power Rating 2 HP
Enclosure Type ODP (Open Drip Proof)
Frame Size 56C
Phase Three Phase
Frequency 60 Hz
Voltage Rating 208-230/460 V
Speed 3600 RPM
Weight 32.0 lb
Efficiency 85.5%
What our Experts Think
  • Versatile and Reliable Performance

  • Delivers 2 horsepower at 3450 RPM, suitable for a wide range of industrial applications.

  • Operates on 208/230/460V, 3-phase power, providing flexibility for various setups.

  • Features a 56C frame with C-face mounting, ensuring compatibility with existing systems.

  • Efficient and Durable Design

  • Open Drip Proof (ODP) enclosure allows for effective cooling while protecting internal components.

  • Equipped with ball bearings for smooth operation and longevity.

  • Class B insulation ensures reliable performance under varying conditions.

  • Enhanced Safety and Flexibility

  • Reversible rotation adds versatility for different operational requirements.

  • Designed for continuous-duty service, providing consistent performance over time.

Q&A

Q: What applications is the U.S. Motors D2P1ACR motor suitable for?
A: This motor is designed for general-purpose applications such as fans, blowers, compressors, and pumps in industrial and commercial settings.

Q: What are the key specifications of the D2P1ACR motor?
A: The motor delivers 2 horsepower at 3450 RPM, operates on 208/230/460V three-phase power, and features a 56C frame size with a C-Face mount. It has an Open Drip Proof (ODP) enclosure, providing adequate ventilation for clean, dry environments.

Q: What is the motor's service factor?
A: The D2P1ACR motor has a service factor of 1.15, allowing it to handle occasional overloads up to 15% above its rated capacity.

Q: What are the motor's construction features?
A: The motor includes a C-Face flange mount, ball bearings, and a keyed shaft (5/8" diameter x 1-7/8" length). It features Class B insulation and is thermally protected for safe operation.

Q: Is this motor suitable for variable frequency drive (VFD) applications?
A: Yes, the D2P1ACR motor is compatible with VFD applications, offering flexibility in speed control for various industrial processes.

Maintenance Tips
  • Ensure Proper Ventilation: Install the motor in a well-ventilated area to prevent overheating.

  • Inspect Electrical Connections: Regularly check wiring for signs of wear, corrosion, or loose connections to prevent electrical faults.

  • Monitor Operating Voltage: Confirm that the motor operates within its rated voltage range (208-230/460V) to avoid damage.

  • Lubricate Bearings: Apply lubricant to bearings as specified by the manufacturer to reduce friction and prevent wear.

  • Keep the Motor Clean: Remove dust and debris from the motor and surrounding area to maintain efficiency and prevent overheating.

  • Test Thermal Overload Protection: Ensure the motor's thermal overload protection is functioning correctly to prevent overheating.

  • Monitor Ambient Temperature: Operate the motor within the recommended ambient temperature range to prevent overheating and ensure efficient operation.
