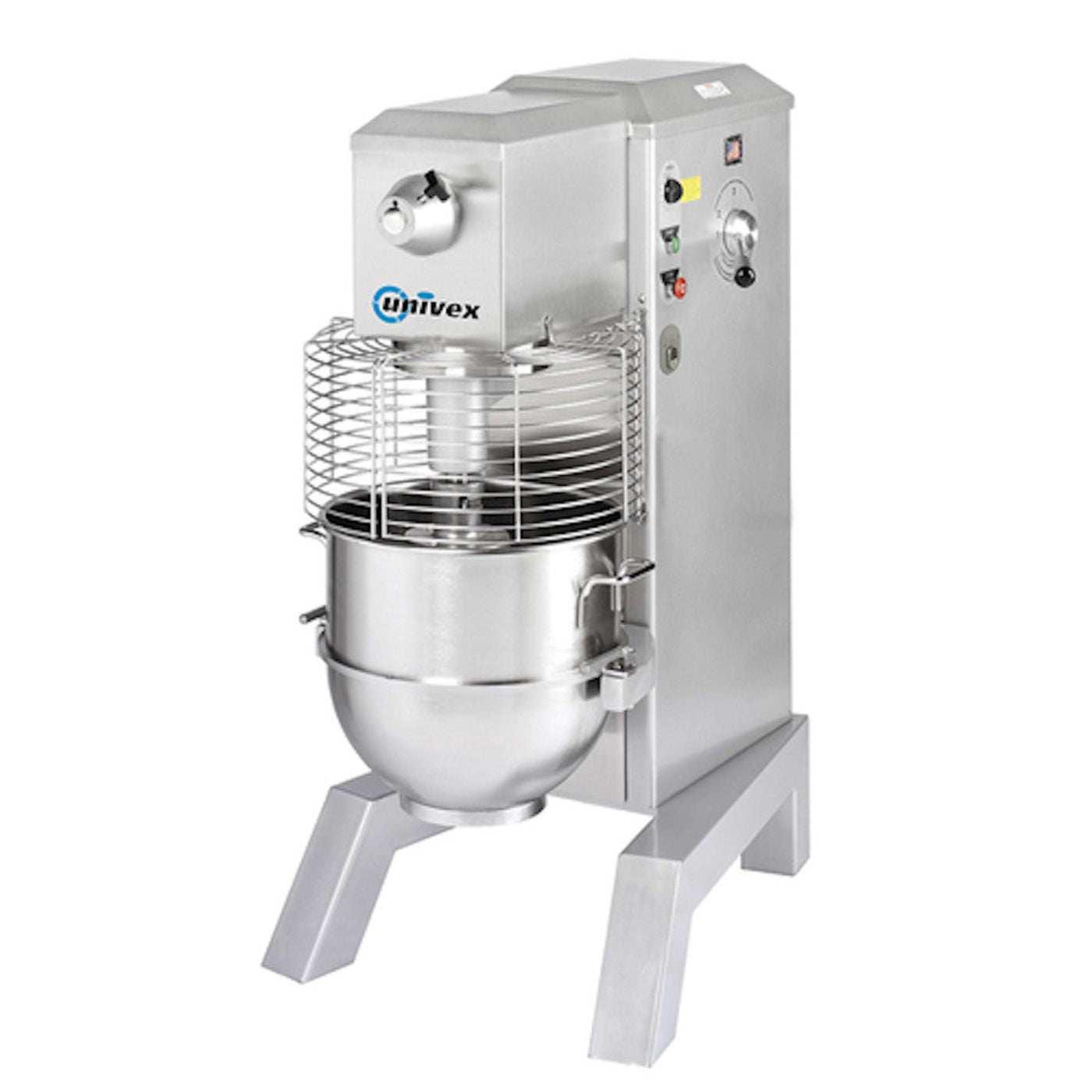

Univex SRM60+PM 60-Quart Planetary Floor Mixer - UVSRM60PM
When you purchase the Univex SRM60+PM pizza mixer, you're investing in an affordable, easy-to-use mixer. With a 3 HP capacitor start motor, you can count on this mixer to have the power necessary to meet high volume demands. It has a variable speed drive, allowing staff to choose among 4 fixed speeds or any speed in between! Talk about maximum versatility. You can even switch speeds without ever turning the unit off!
The SRM60+ is made of durable materials. It comes with a stainless steel, dishwasher-safe safety guard and a heavy-duty stainless steel bowl. The exterior has been powder coated with NSF approved hybrid epoxy/polyester.
It also comes with the accessories needed to begin using your mixer immediately. It comes with a 15-minute timer, dough hook, ingredient chute, and power bowl lift.
Features
- 3 hp capacitor start motor
- Variable Speed Drive: 4 fixed speeds or any speed in-between
- Change speeds without having to stop the mixer
- Two-piece, stainless steel, dishwasher safe safety guard
- Heavy-duty stainless steel bowl
- #12 Power Take Off (PTO) hub
- Interlock switches protect operator from injury if safety guard is open or bowl is lowered
- Hardened alloy gears in transmission
- Low voltage protection prevents accidental start up after power failure
- Durable NSF approved hybrid epoxy/polyester powder coat finish
Specifications
| Model |
SRM60+PM |
| Capacity |
60 quarts |
| Electrical Information |
|
| - Volts |
208-240 |
| - Hz |
60 |
| - Phase |
1 |
| - Amps |
16.0-16.8 |
| - Plug |
NEMA 6-20P |
| - HP |
3 |
| Dimensions |
|
| - Height |
56" |
| - Width |
27.63" |
| - Depth |
42.75" |
| Approximate Weight |
1000 lbs |
Standard Accessories
- 15 minute timer
- 60 qt. stainless steel bowl
- Dough hook
- Ingredient chute
- Power bowl lift
What our Experts Think
-
High Capacity: Designed for heavy-duty use, the SRM60+PM offers a 60-quart capacity, making it ideal for large batches of pizza dough.
-
Powerful Performance: Equipped with a 3 HP motor and a two-speed drive system, this mixer ensures efficient mixing of dense pizza doughs.
-
Durable Construction: Features a heavy-duty stainless steel bowl and a removable two-piece safety guard that is dishwasher safe, ensuring longevity and ease of maintenance.
-
User-Friendly Features: Includes a power bowl lift for effortless bowl positioning, a 15-minute timer for precise mixing cycles, and a #12 power take-off (PTO) hub for optional attachments.
-
Safety and Compliance: Incorporates interlock switches that prevent operation when the safety guard is open or the bowl is lowered, aligning with NSF standards and ensuring operator safet
Q&A
Q: What is the Univex SRM60+PM Planetary Floor Mixer?
The Univex SRM60+PM is a floor-standing planetary mixer designed for commercial kitchens, offering a 60-quart capacity suitable for mixing large quantities of dough and other heavy mixtures.
Q: What are the dimensions and weight of the SRM60+PM?
Q: What are the electrical specifications for the SRM60+PM?
The mixer operates on 208-220V single-phase power (208-220/60/1), with an optional three-phase configuration (208-220/60/3) available for an additional charge.
Q: What attachments are compatible with the SRM60+PM's PTO hub?
Compatible attachments include the VS9 vegetable slicer, VS9H vegetable shredder, and the ALMFC12 meat and food grinder.
Maintenance Tips
-
Regular Cleaning:
-
After Each Use:
-
Turn off and unplug the mixer.
-
Remove the bowl and any attachments.
-
Wash the bowl and attachments with warm water and mild detergent.
-
Wipe the mixer body with a damp cloth; avoid abrasive cleaners.
-
Lubrication:
-
Periodically apply food-grade lubricant to the mixer's moving parts as specified in the user manual to ensure smooth operation.
-
Operational Checks:
-
Verify that the speed control lever functions correctly, allowing speed changes without stopping the mixer.
-
Ensure the swing ring safety guard is properly installed and that interlock switches prevent operation when the guard is open or the bowl is lowered.
-
Test the power bowl lift to confirm it raises and lowers the bowl smoothly.
-
Attachment Care:
-
Use only Univex-approved attachments to prevent damage.
-
Always turn off the mixer before attaching or detaching accessories
-
Storage:
-
When not in use, cover the mixer to protect it from dust and debris.
-
Store in a dry, clean area to prevent corrosion.
