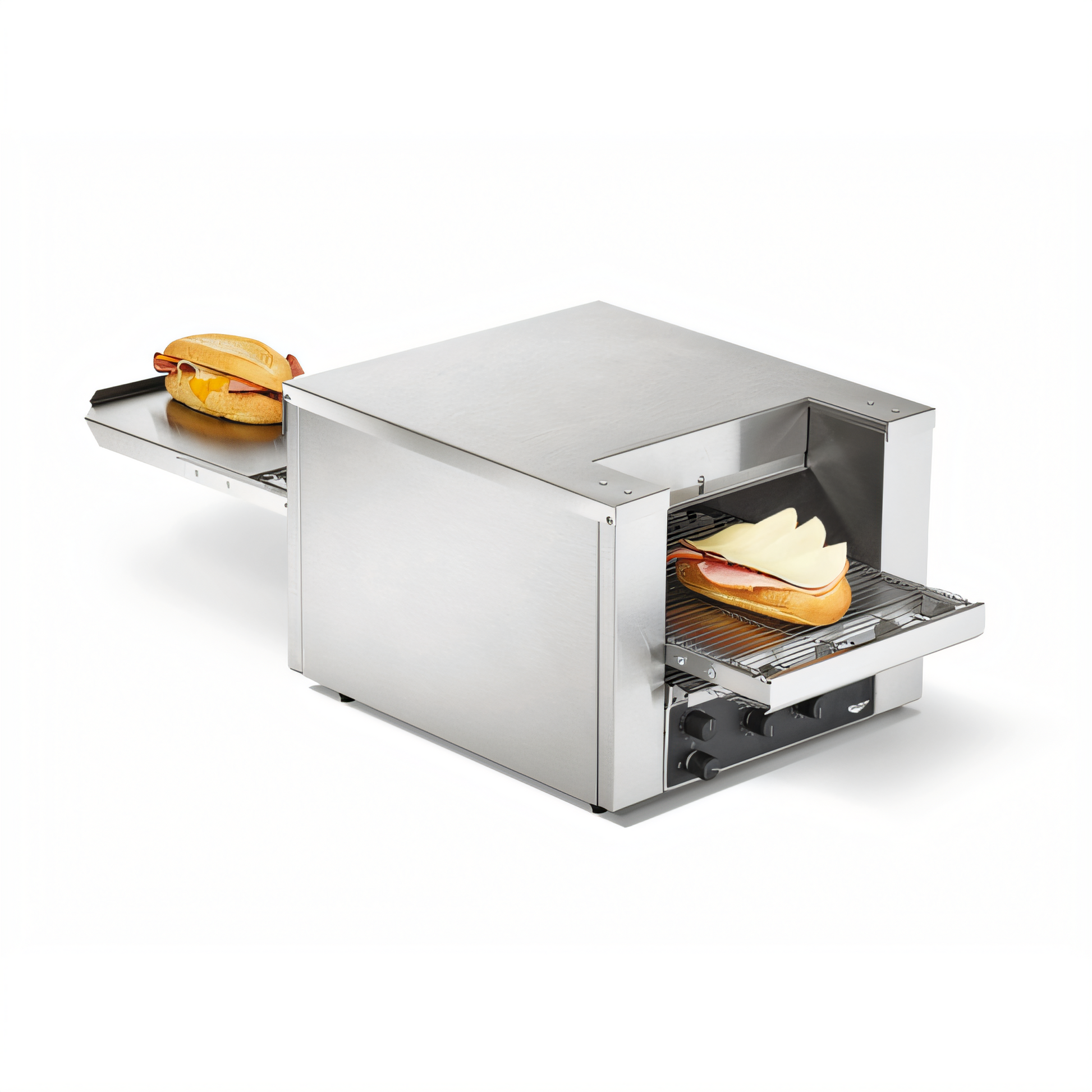

Vollrath JB2H Ventless Countertop Conveyor Sandwich Oven – 10.5" Belt, 208 V
Item #: SO2-20810.5 | Made in USA
Turn out perfectly toasted sandwiches, melts and breads in minutes—no hood required. Vollrath’s JB2H 40-inch conveyor sandwich oven gives low-volume restaurants and cafés the speed and consistency of a conveyor system inside a compact, ventless countertop package.
Key advantages
- UL, NSF & cUL certified ventless design – meets or surpasses EPA 202 for hood-free installation
- Fast-reacting quartz heating elements above and below the belt for even browning
- Independent top & bottom heat plus variable conveyor speed for total control
- Adjustable product opening from 1½"-3" to handle subs, open-face melts and breads
- Forced-convection airflow improves uniformity and energy efficiency
- Extended 40-inch conveyor with loading and receiving trays for easy pass-through service
- Maintenance-free stainless steel drive chain—no lubrication required
- Stackable with optional spacer (Vollrath 351038) when production demands grow
- Rugged stainless & aluminized steel construction, proudly made in the USA
Specifications
| Model / Item # |
JB2H / SO2-20810.5 |
| Conveyor width |
10.5 in (26.7 cm) |
| Product opening height |
1.5 – 3 in (3.8 – 7.6 cm) adjustable |
| Overall dimensions (W × D × H) |
16.12 in × 40.87 in × 12.5 in
(41 cm × 103.8 cm × 31.8 cm) |
| Voltage / Phase |
208 V / 1-phase |
| Power |
2,800 W | 13.5 A |
| Plug |
NEMA 6-20P (4.5 ft cord included) |
| Heating elements |
Quartz tube (top & bottom) |
| Certifications |
UL, NSF, cUL, Ventless EPA 202 compliant |
| Warranty |
2 years parts / 1 year labor • 1 year on heater tubes |
Ideal applications
- Cafés, coffee shops & delis adding toasted sandwiches to the menu
- Breads, bagels and croissants requiring quick through-put
- Melting cheese on open-face sandwiches or nachos
- Reheating pre-cooked pizza slices
Important: This unit is designed for toasting, reheating and finishing. It is not intended to cook raw proteins or for continuous 24/7 operation. Provide at least 8 in (20 cm) of clearance on both sides and keep ambient temperature below 104 °F (40 °C).
Need more capacity? Stack two ovens with the Vollrath 351038 dual-oven spacer (sold separately).
