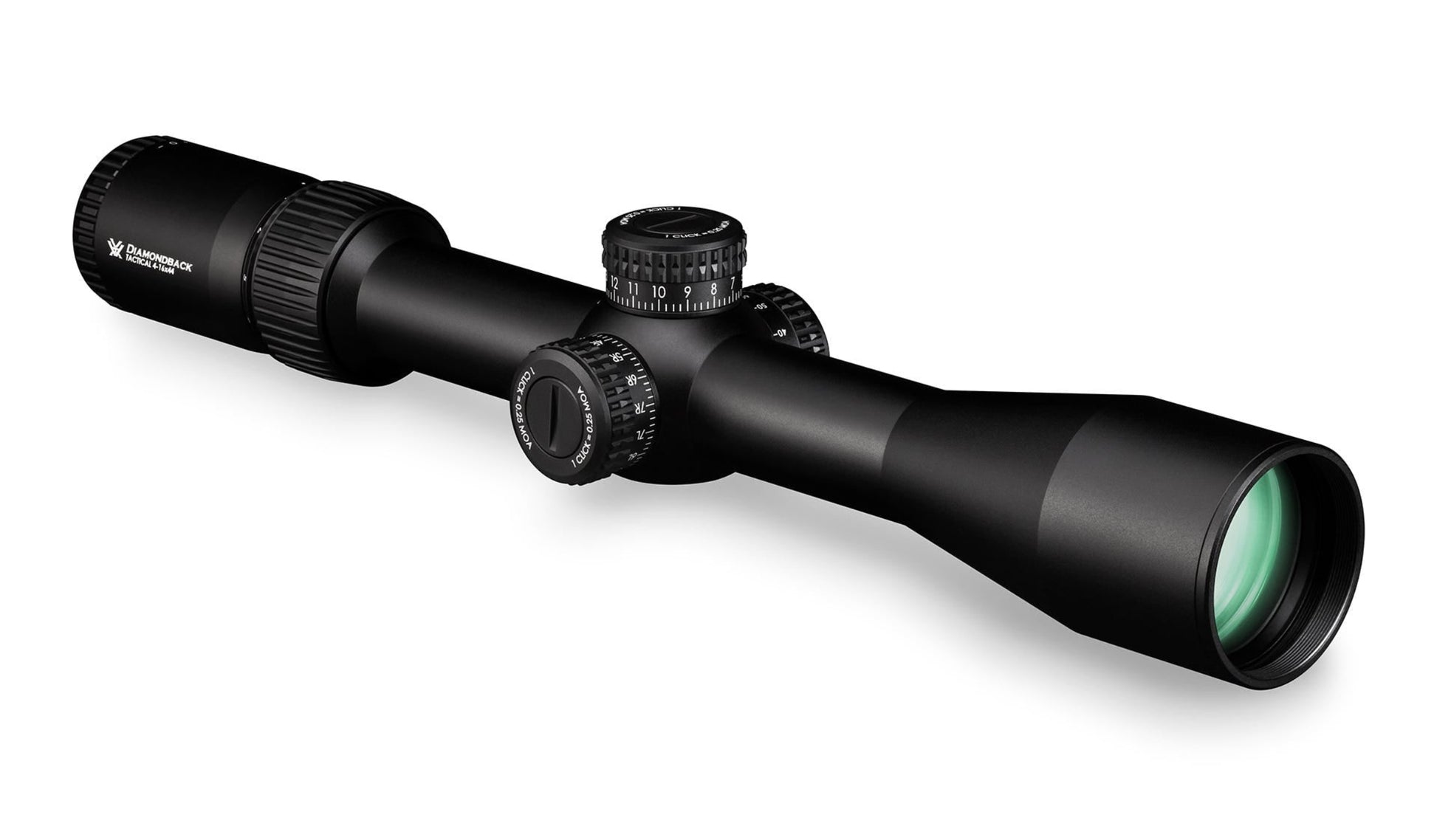

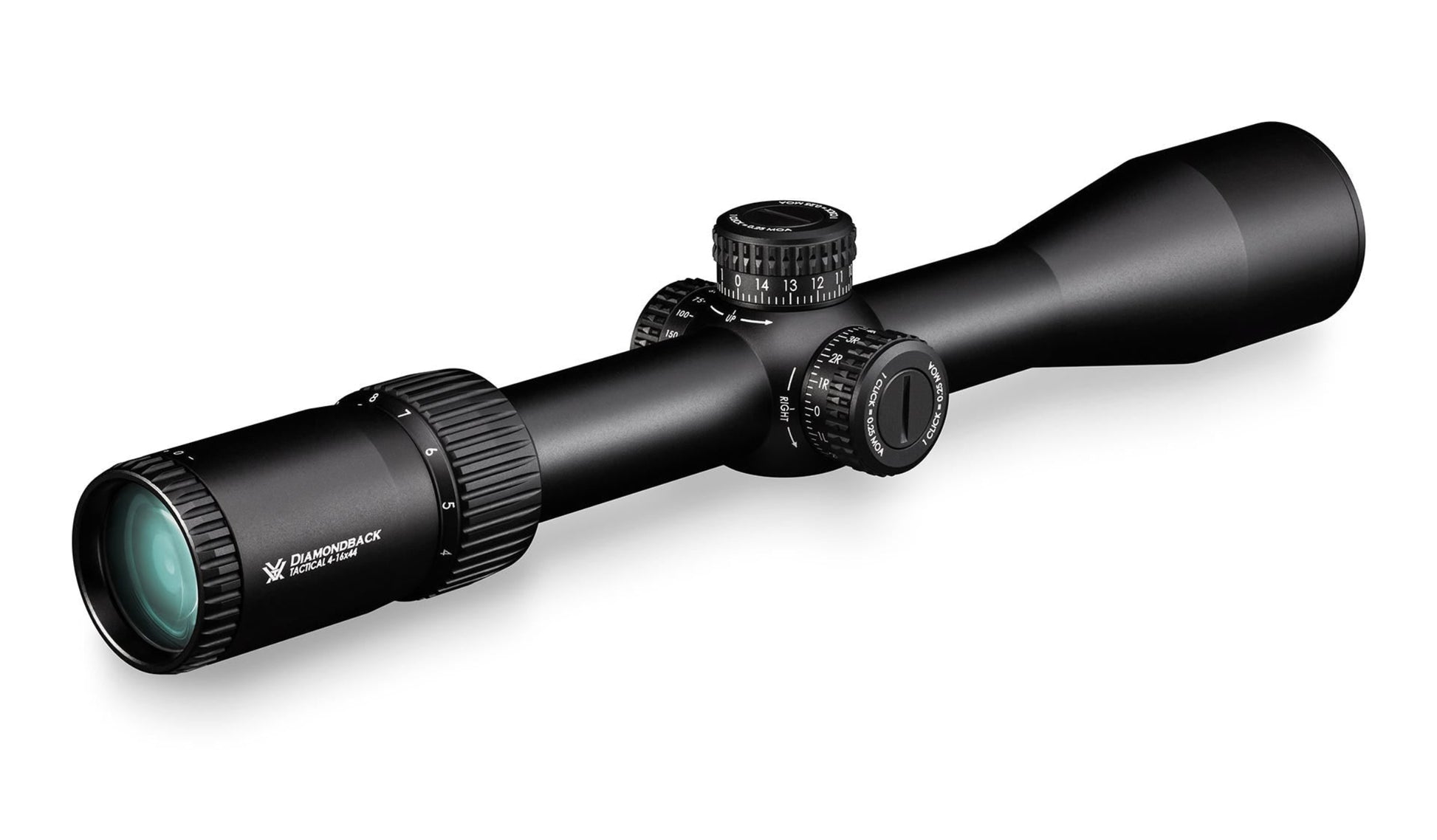

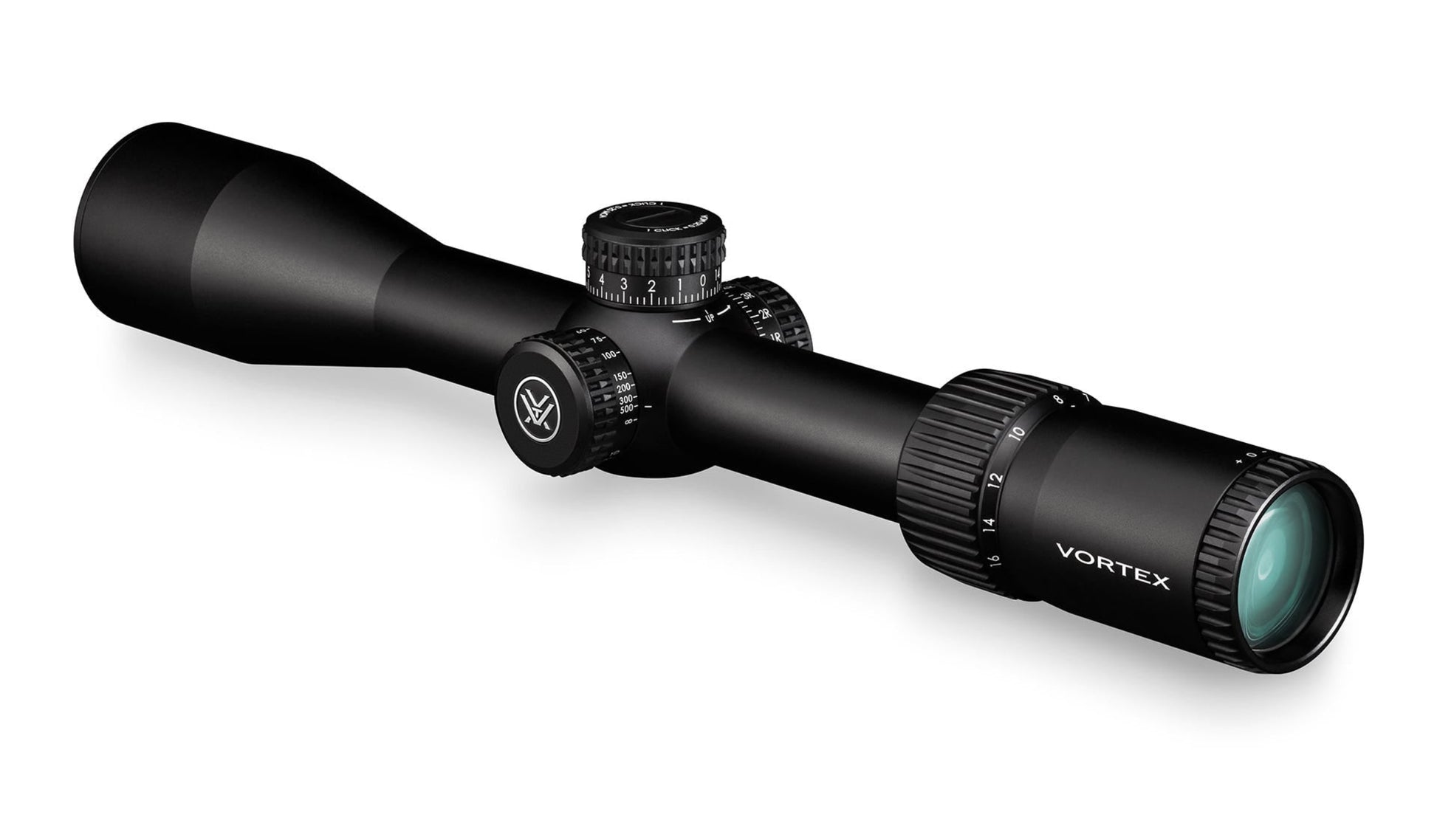

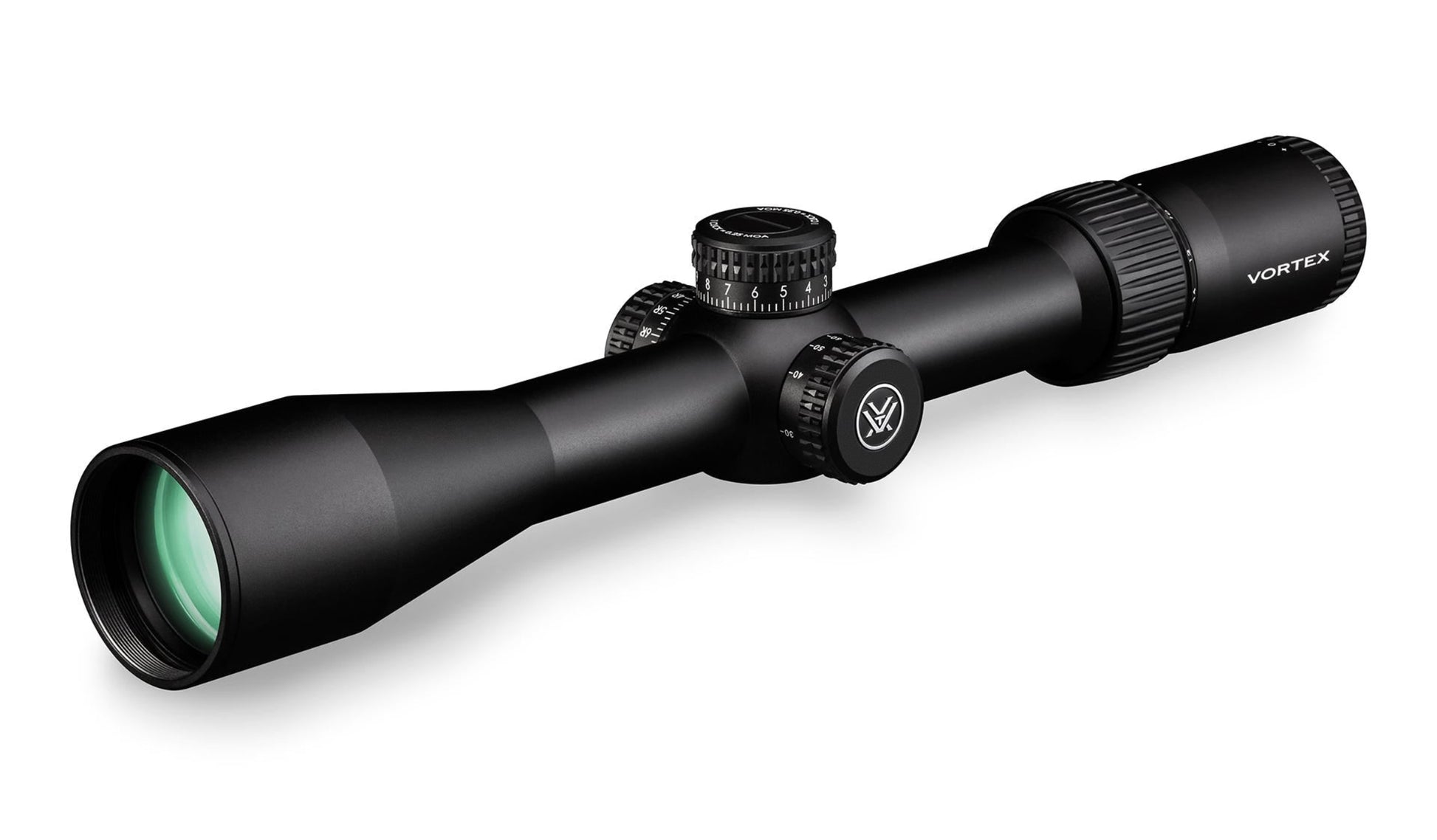

Vortex Optics Diamondback Tactical 4-16x44 FFP First Focal Plane Riflescope EBR-2C (MRAD) Reticle 30 mm Tube - DBK-10027
The Diamondback Tactical is a long-range wolf in sheep's clothing. Rather than cramming features in at the expense of turret performance and optical quality, the Diamondback Tactical dials it back, putting the focus where it counts. Exposed turrets bring tracking performance previously unheard of at this price point, while its optical system delivers sharp image quality even at extended range. Its relatively simple design places you firmly in the driver's seat with the potential to take on that 1,000 yard mark and beyond, all at a price that's easy to justify for new shooters, your training rifle, as well as experienced shooters looking for a back-to-basics optic on their fun gun. Opt for one of the first focal plane models on a sweet shooting rifle and you've got yourself a perfectly capable competition rig without breaking the bank.
-
Magnification:Â 4-16x
-
Objective Lens Diameter:Â 44 mm
-
Eye Relief :3.8 inches
-
Field of View:Â 26.9-6.7 ft/100 yds
-
Tube Size:Â 30 mm
-
Turret Style:Â Tall Exposed Tactical
-
Adjustment Graduation:Â .1 MRAD
-
Travel Per Rotation:Â 6 MRAD
-
Max Elevation Adjustment:Â 25 MRAD
-
Max Windage Adjustment:Â 25 MRAD
-
Parallax Setting:Â 20 yards to infinity
-
Length:Â 14.06 inches
-
Weight:Â 23.1 oz
OPTICAL FEATURES
- XD Lens Elements Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
- Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
- First Focal Plane Reticle Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
- Glass-Etched Reticle Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
CONSTRUCTION FEATURES
- Tube Size 30 mm diameter provides maximized internal adjustment and strength.
- Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
- Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
- Fogproof Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
- Shockproof Rugged construction withstands recoil and impact.
- Hard Anodized Finish Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
INTERNAL MECHANISM DESIGN FEATURES
- Precision-Force Spring System Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment.
- Precision-Glide Erector System This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.
CONVENIENCE FEATURES
- Fast Focus Eyepiece Allows quick and easy reticle focusing.
- Magnification Rib The raised rib on the magnification ring facilitates fast magnification changes in the heat of action.
RETICLE
-

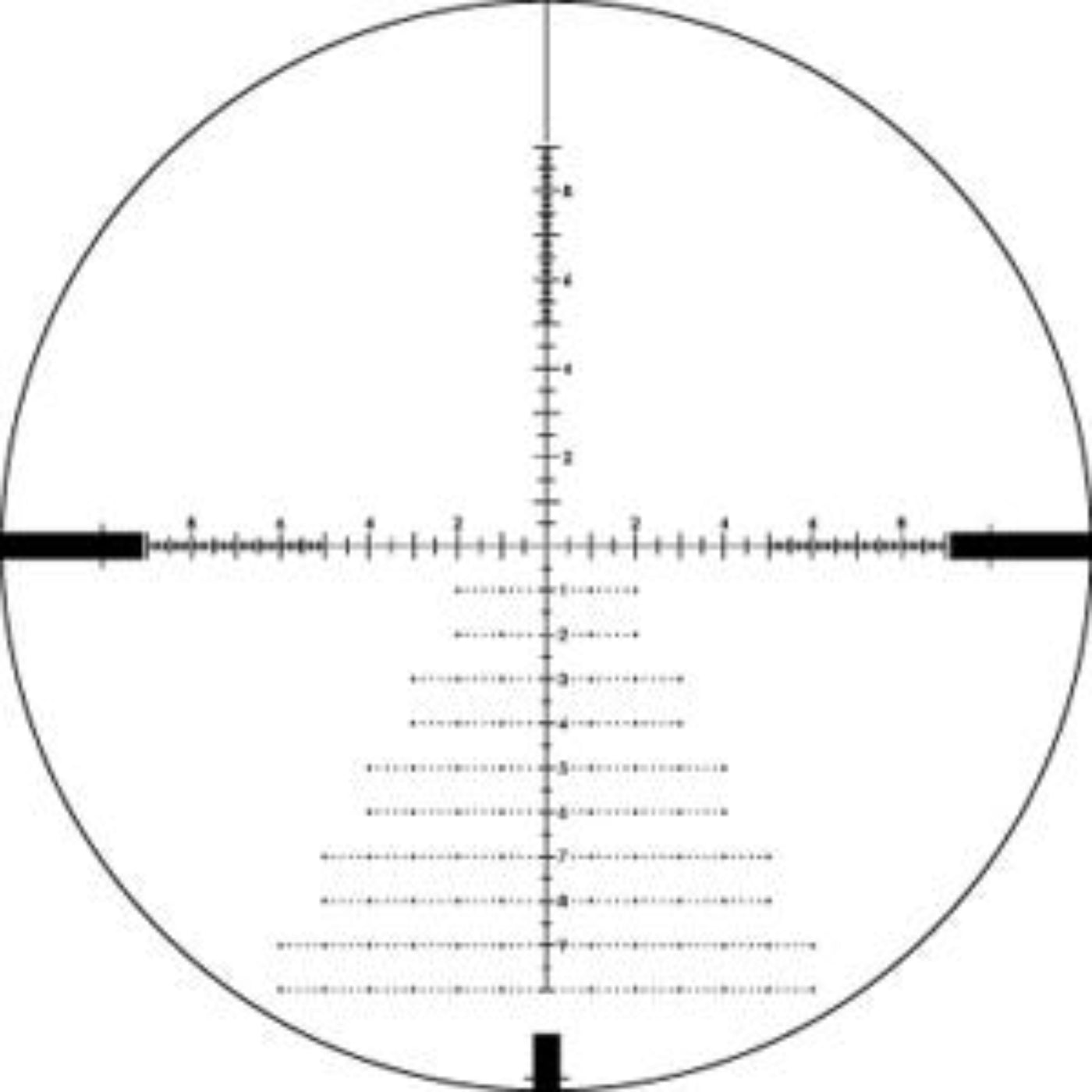

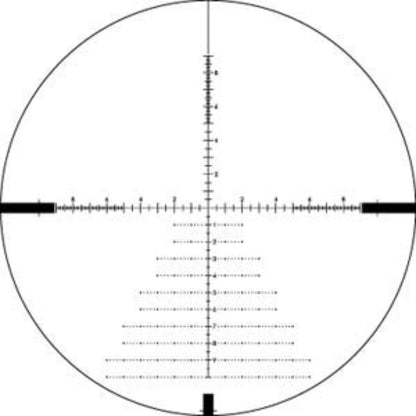

EBR-2C (MRAD). Hash-marked ranging reticle using MRAD based subtension lines for ranging, holdover, and windage corrections. Letters refer to reticle subtensions listed in chart below.
What Our Experts Think
-
4-16x magnification range provides flexibility for medium to long-range shooting scenarios
-
First focal plane (FFP) EBR-2C MRAD reticle maintains accurate subtensions at any magnification for precise holdovers and ranging
-
XD lens elements and fully multi-coated optics deliver sharp, bright, and color-accurate images
-
Exposed tactical turrets with crisp adjustments and zero-reset functionality allow for reliable long-range dialing
-
30 mm tube construction increases adjustment range and durability for demanding use
-
Rugged, shockproof, fogproof, and waterproof build ensures consistent performance in the field
-
Protected by Vortex’s VIP Lifetime Warranty for lasting confidence
Q&A
-
Q: What makes this riflescope unique?
A: Its FFP MRAD reticle and tactical turret system deliver advanced precision at a competitive price
-
Q: Who is this riflescope best suited for?
A: Precision shooters, long-range hunters, and tactical marksmen looking for reliable performance and accuracy
-
Q: Can it handle heavy recoil rifles?
A: Yes, it’s designed to withstand recoil from magnum-caliber rifles without losing zero
-
Q: How does the MRAD reticle help?
A: The MRAD reticle allows shooters to make accurate range estimations, holdovers, and wind corrections with consistency
Maintenance Tips
-
Clean lenses gently with a microfiber cloth and lens solution to maintain clarity
-
Keep the riflescope stored in a padded, dry case when not in use
-
Check and tighten mounting hardware periodically for consistent zero
-
Avoid overexposure to extreme heat, cold, or moisture to preserve optical integrity
-
Verify turret adjustments regularly to ensure reliable tracking and accuracy
