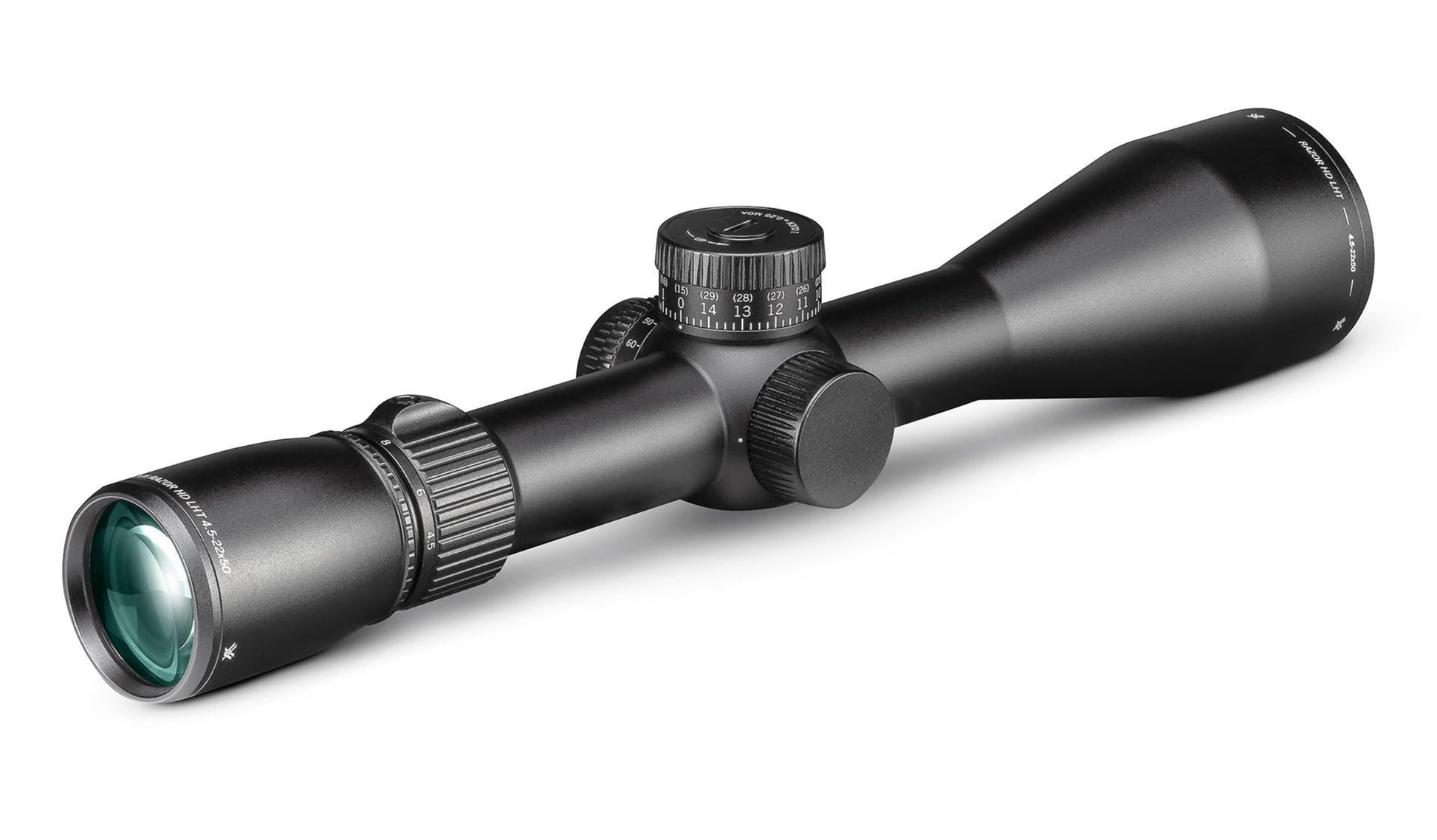

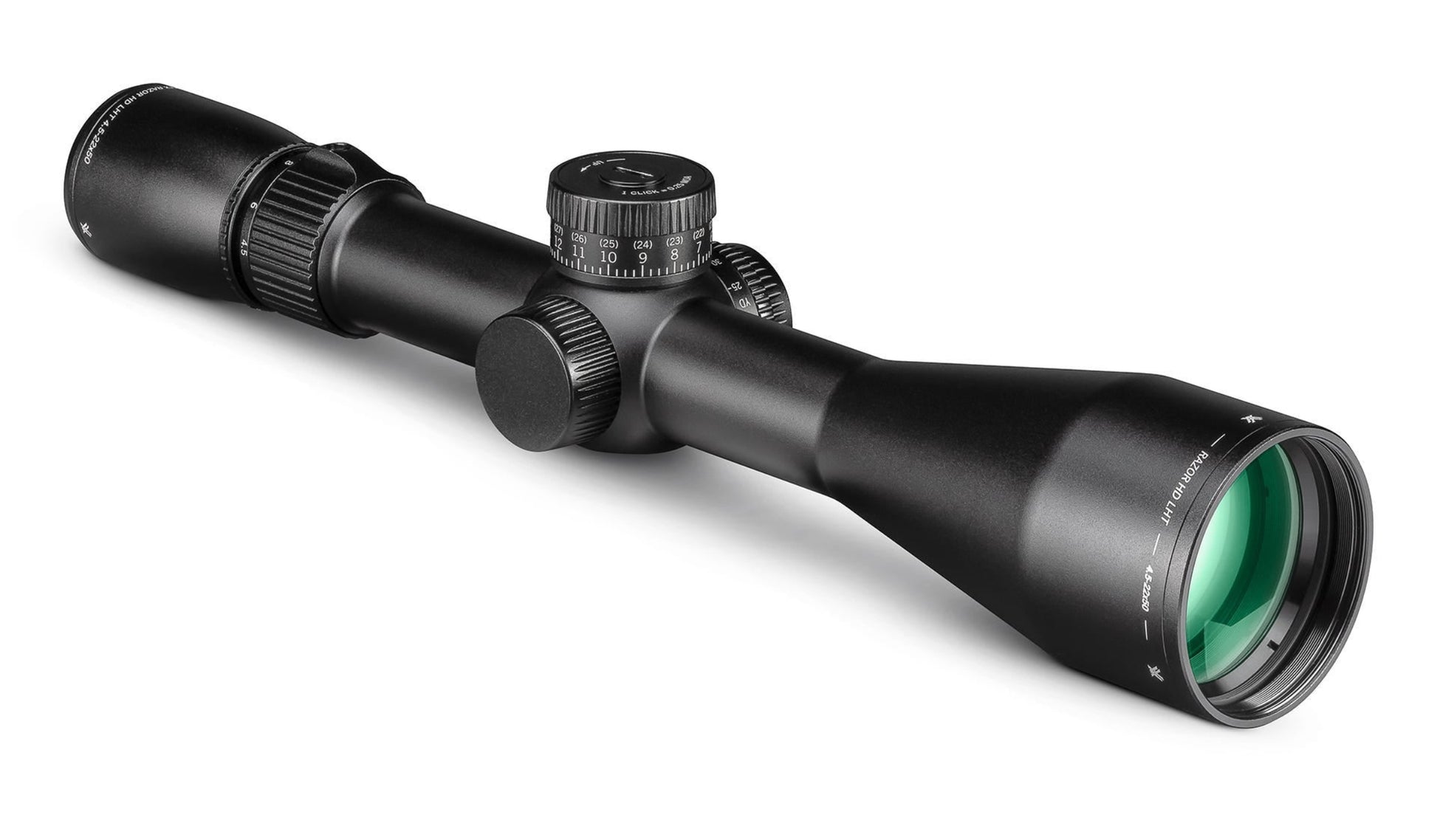

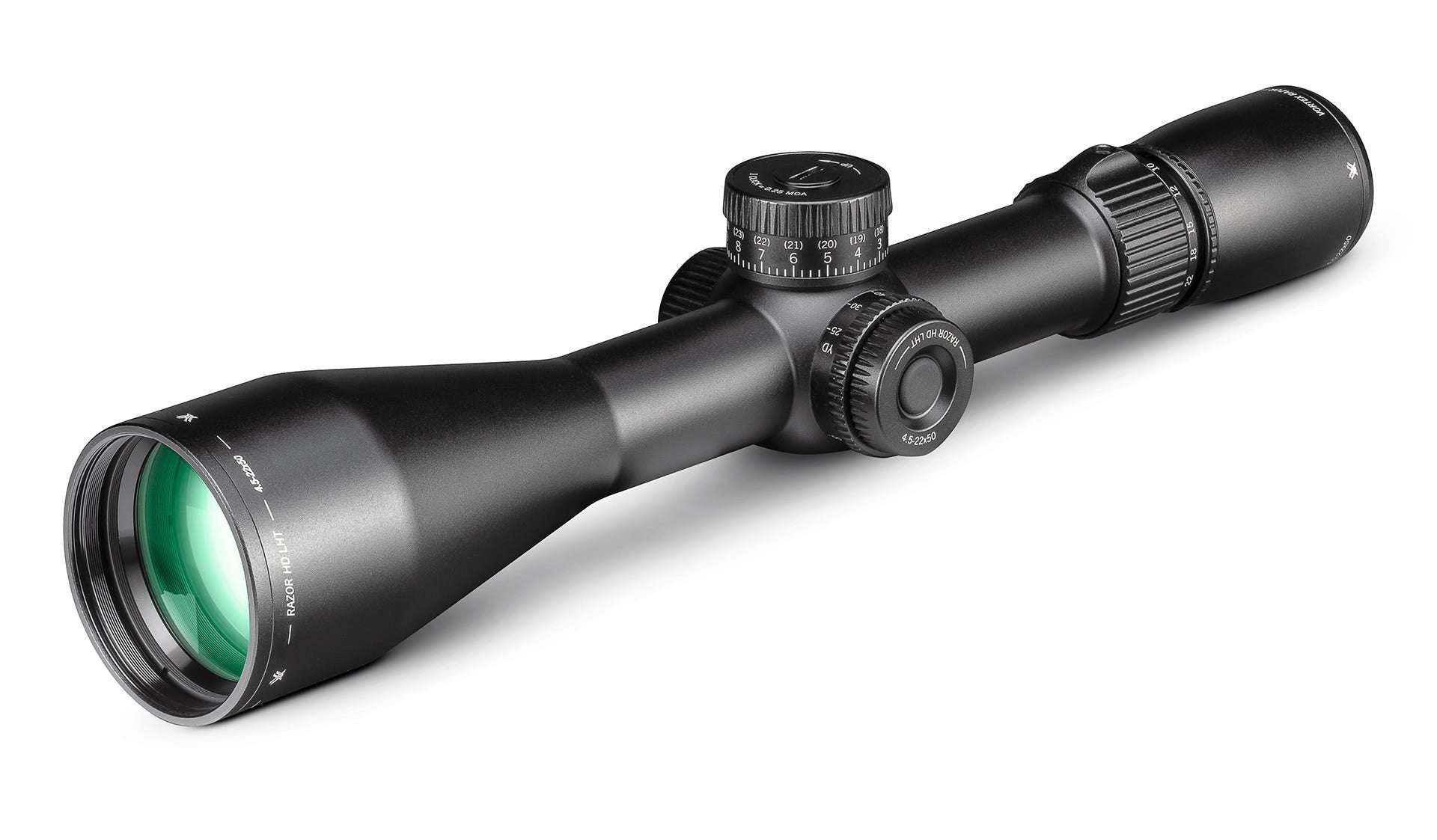

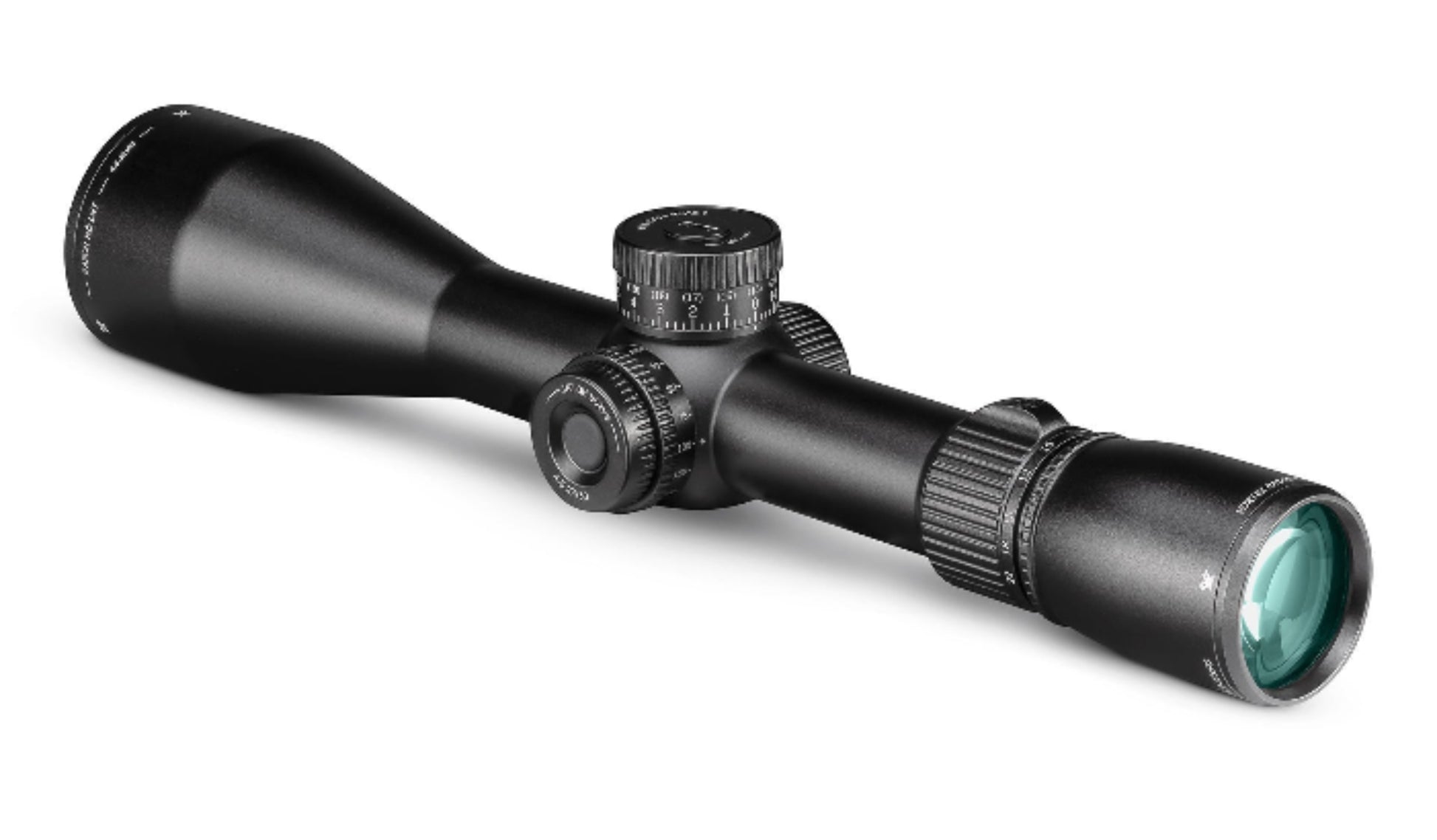

Vortex Optics Razor HD LHT 4.5-22x50 First Focal Plane Riflescope XLR-2 (MOA) Reticle, 30 mm Tube- RZR-42201
Western hunting demands an optic built for long range and the long haul, and the Razor HD LHT 4.5-22x50 FFP delivers. You still get the core of the Razor HD LHT, including a stunning HD optical system and rugged build in a hunting scope that’s among the lightest in its class. Where the Razor HD LHT 4.5-22x50 FFP distances itself is in offering more magnification, and a first focal plane reticle featuring the XLR-2 reticle system, which is intuitive, easy to use, and illuminated. You also get our RevStop Zero System for a reliable return to zero, and a locking elevation turret keeps your zero safe.
First Focal Plane Reticle

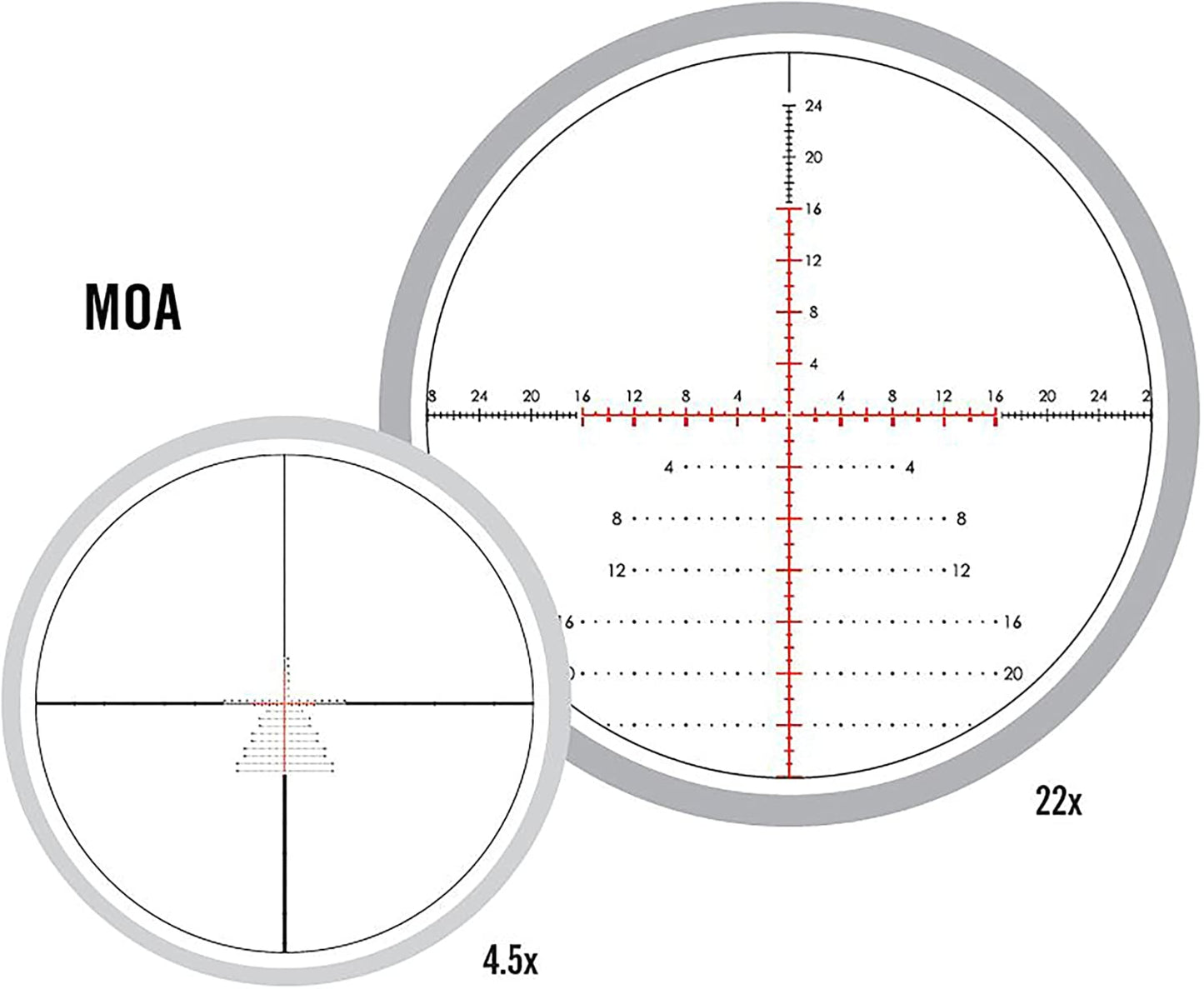

The first focal plane XLR-2 reticle is optimized for long range. The scale of the reticle remains in proportion to the zoomed image making for accurate holdovers and ranging at all magnifications.
HD Optical System
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.
Locking Elevation Turret
Integrated locking mechanism prevents accidental adjustments. Elevation turret provides fast, accurate, easily read elevation adjustments.
RevStop Zero System
Patented streamlined design offers an easy to set, rock-solid return to zero after turret adjustments.
Fully Multi-Coated
Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
APO System
Index-matched lenses correct color across the entire visual spectrum.
Waterproof
O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof
Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof
Rugged construction withstands recoil and impact.
Single-Piece Tube
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Key Features
- First Focal Plane Reticle
- HD Optical System
- Locking Elevation Turret
- RevStop Zero System
- Aircraft-Grade Aluminum
- Waterproof
- Fogproof
- Shockproof
- Fully Multi-Coated
- Single-Piece Tube
- Low-Glare Matte Black Anodized

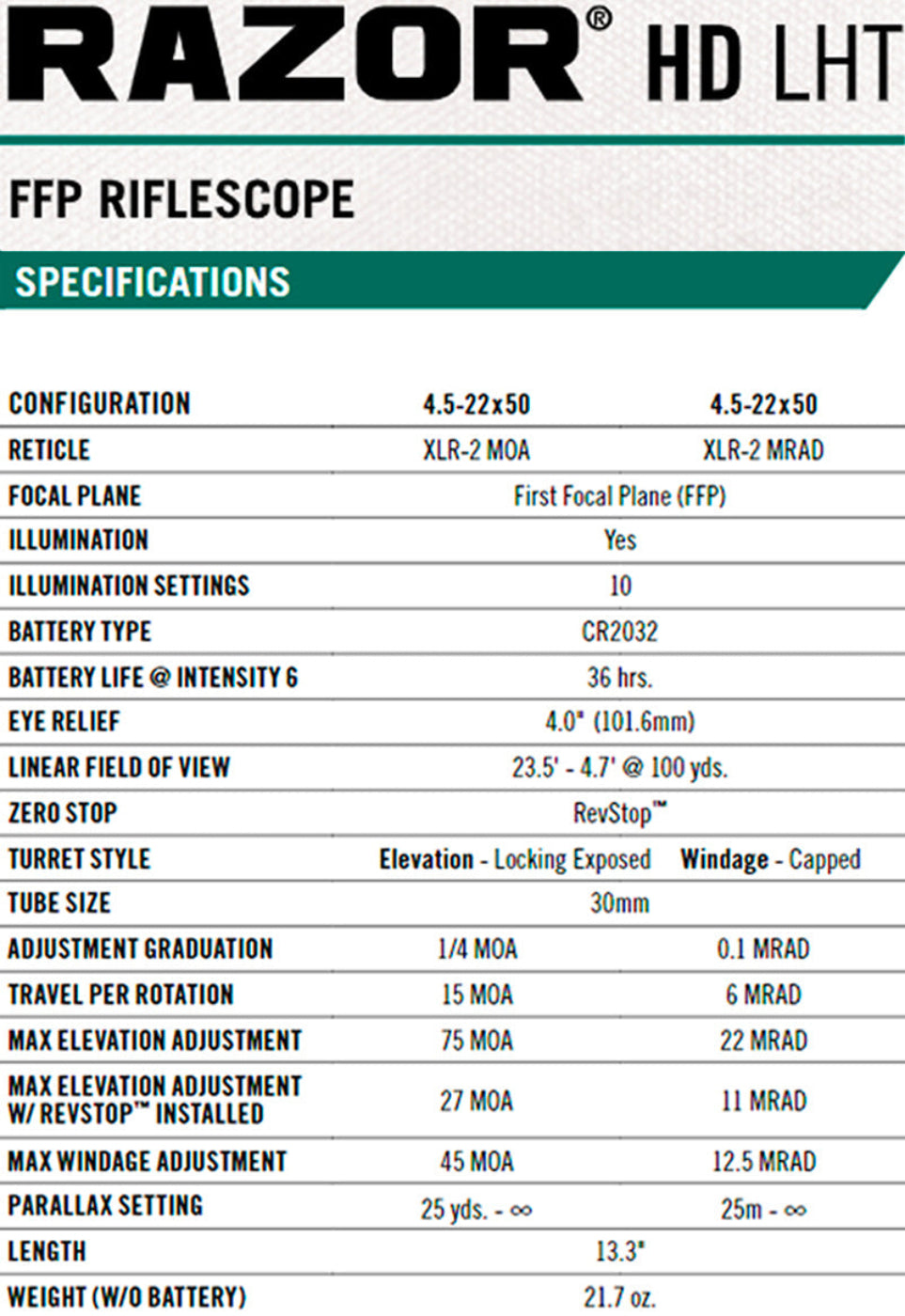

Specifications
- Magnification: 4.5-22x
- Objective Lens Diameter: 50 mm
- Eye Relief: 4.0 inches
- Field of View: 23.5-4.7 ft/100yds
- Tube Size: 30 mm
- Elevation Turret Style: Locking - Exposed
- Windage Turret Style: Capped
- Elevation Adjustment Graduation: 1/4 MOA
- Windage Adjustment Graduation: 1/4 MOA
- Elevation Travel Per Rotation: 15 MOA
- Windage Travel Per Rotation: 15 MOA
- Max Elevation Adjustment: 75 MOA
- Max Windage Adjustment: 45 MOA
- Parallax Setting: 25 yards to infinity

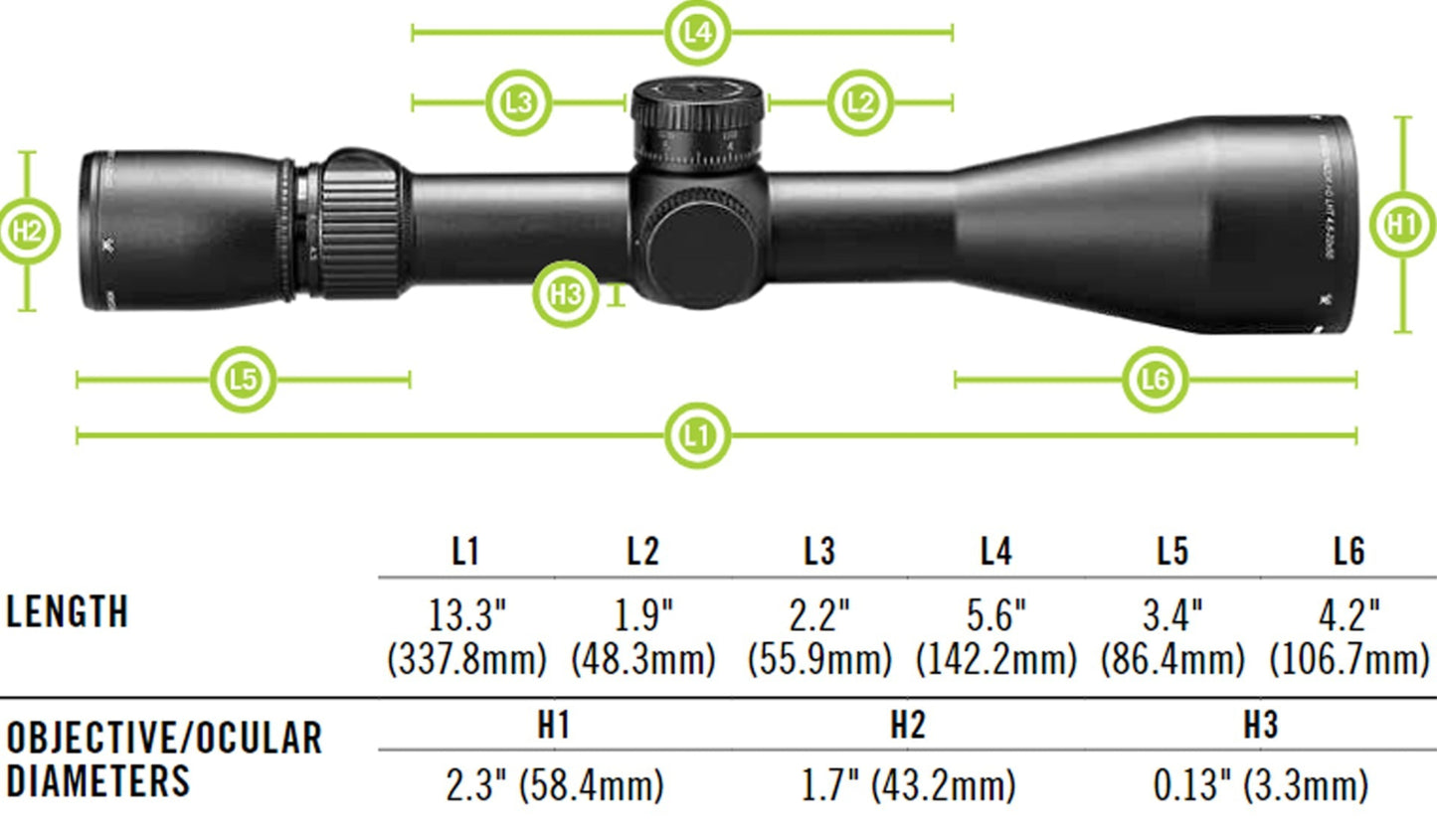

- Length: 13.3 inches
- Weight: 21.7 oz
What Our Expert Thinks
-
Tailored for long-range hunting and precision shooting while keeping weight manageable.
-
4.5–22x magnification with a 50mm objective lens offers versatility from mid- to extreme-range engagements.
-
XLR-2 MOA reticle in FFP ensures accurate holdovers and ranging at all magnifications.
-
HD optical system with XRâ„¢ Plus coatings provides exceptional clarity and brightness, even in low light.
-
RevStop Zero System allows for fast, repeatable return to zero after elevation adjustments.
-
Lightweight yet rugged 30mm tube construction maintains strength without adding unnecessary bulk.
-
Fully waterproof, fogproof, and shockproof for reliable performance in the field.
-
Backed by the Vortex VIP Lifetime Warranty.
 Q&A
Q: Is this scope designed for hunting or tactical use?
A: Primarily for hunters, thanks to its lightweight build, but also well-suited for long-range precision shooting.
Q: Does the reticle stay accurate at all magnifications?
A: Yes — being First Focal Plane (FFP), subtensions remain true across the zoom range.
Q: How does it handle low-light conditions?
A: The HD glass and XRâ„¢ Plus coatings deliver bright, sharp images during dawn and dusk hunts.
Q: What’s special about the RevStop Zero System?
A: It provides a fast, reliable zero reset, making elevation adjustments stress-free.
Q: How heavy is it compared to tactical scopes?
A: At about 21 oz, it’s lighter than most tactical optics of similar magnification, ideal for hunters covering long distances.
 Maintenance Tips
-
Always clean lenses with a microfiber cloth or lens pen.
-
Keep lens caps on during storage and travel to protect from dust/scratches.
-
Follow torque specifications when mounting to avoid damage.
-
Wipe dry after exposure to rain or moisture before storing.
-
Periodically check mounting screws to ensure it holds zero.
