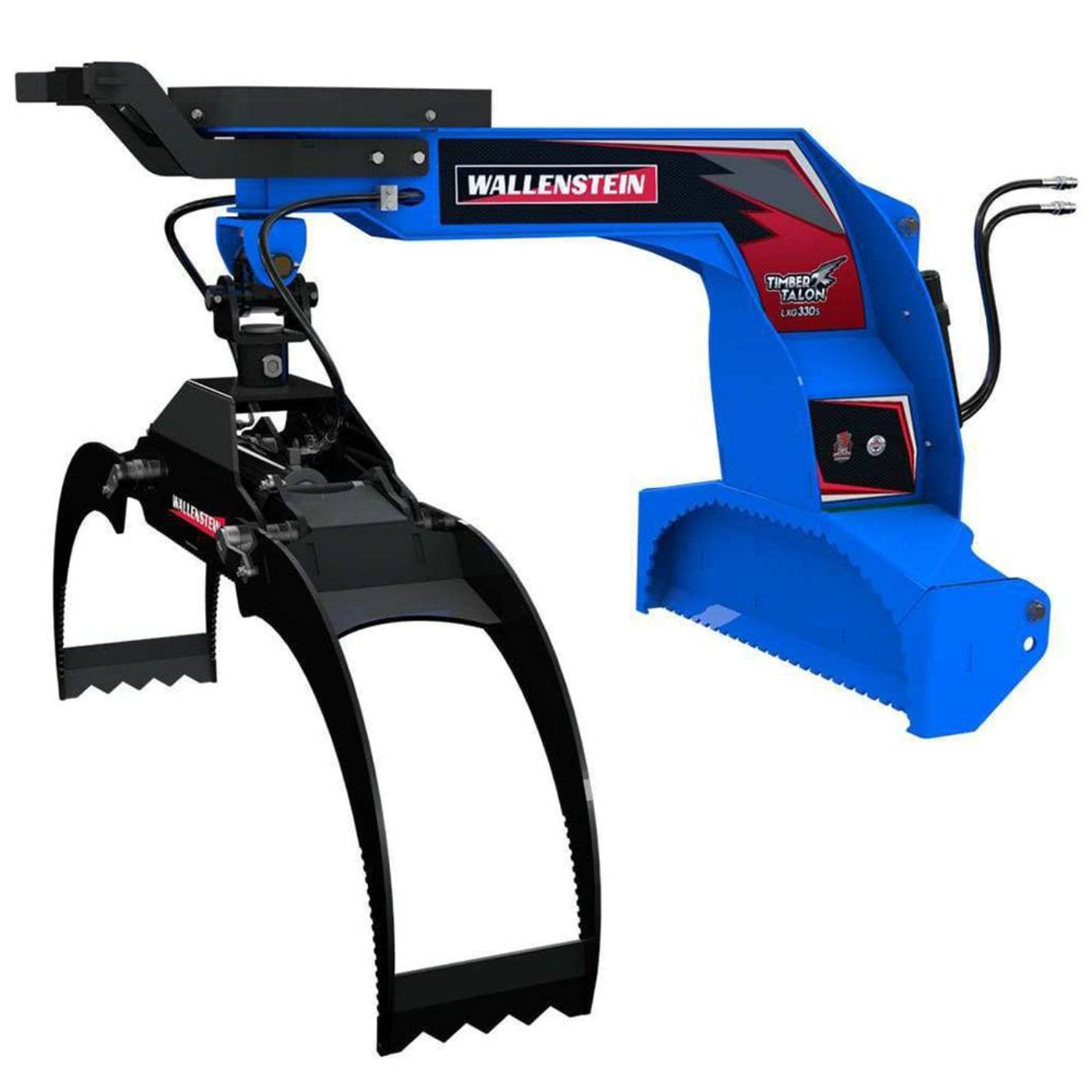

Wallenstein LXG330S Three Point Hitch Log Grapple - LXG330S
This is the Wallenstein LXG330S log grapple that is designed to operate off a three-point hitch. When looking at the log grapple it is great for farmers, rural property owners and logging contractors for daily use.
- Bypass grapples
- Spring centered grapple with locking positions
- Cantilever cradle
- Push bar
- 4500 lbs Lift capacity
- 3"-72" Grapple opening
- 21,000 lbs Clamp force
- Cat II & cat III mounting system
What Our Experts Think
-
The Wallenstein LXG330S Three-Point Hitch Log Grapple delivers 21,000 lb clamp force, ideal for logging, land-clearing, and heavy material handling.
-
Features a 72‑inch maximum opening with 180° grapple rotation for excellent control and flexibility in tight terrain.
-
Designed for tractors in the 55‑120 HP range, with low hydraulic flow requirements (~5 gpm), making it compatible with many mid-sized machines.
-
Built tough with Cat II/III hitch compatibility, serrated cantilever cradle, 19″ push bar, and a total weight of ~836 lbs for stability and durability.
Q&A
Q: What is the clamp force of this grapple?
A: Approximately 21,000 lbs.
Q: What is the opening width range of the grapple?
A: From 3″ up to 72″.
Q: What size tractor is suitable for the LXG330S?
A: Tractors rated between 55 and 120 HP.
Q: What hydraulic flow is required?
A: Approximately 5 gpm.
Q: Can this grapple rotate?
A: Yes — it offers 180° rotation with spring-return centering.
Maintenance Tips
-
Grease all pivot points and bushings regularly to prevent wear under high loads.
-
Inspect hydraulic hoses, couplers, and rotation mechanism for leaks or damage.
-
Check the teeth, serrated cradle, and push bar; replace worn components for effective gripping.
-
Ensure the tractor’s hydraulics, hitch setup, and lift capacity are within specifications to avoid structural damage.
