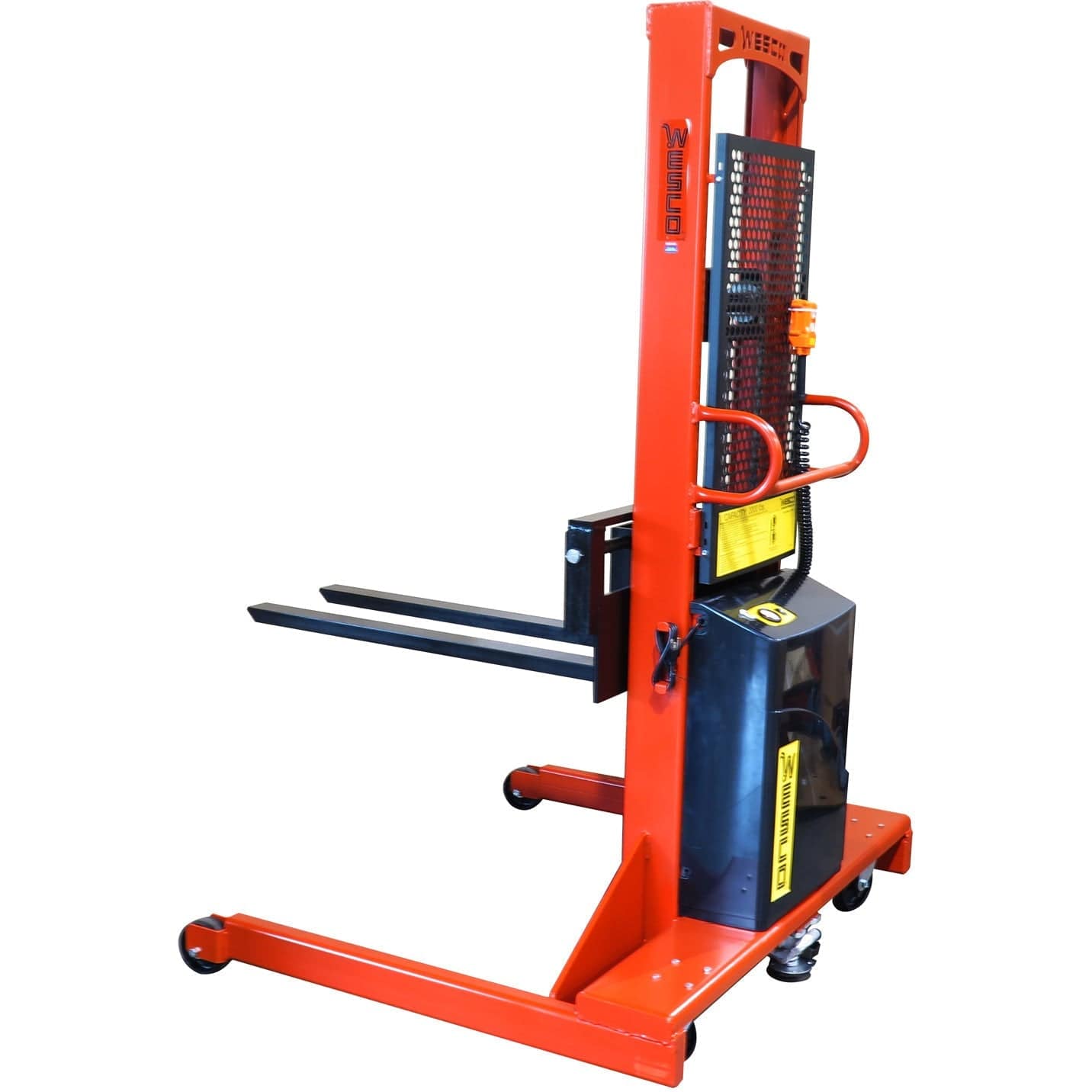

Wesco 3" X 30" FORK / 36" O.D. FIXED BASE POWERED STACKER- 261059

• 1-year warranty.
• Proven quality: Wesco® manufactured Hydraulic Cylinder.
• Meets ANSI B56.10 specifications.
• Battery and charger included.
• Forks lower to floor on all models.
• Reinforced frame and fixed base.
• Double chain, lift support.
• Heavy-duty pump.
• Ergonomic "D" handles.
• 5th wheel and power drive options available.
• 110V AC models available (Special order no cancellations or returns).
• To order add AC to the end of the battery powered stacker part #.
  Example:
  Battery Powered #261059
  110V AC Powered #261059AC

• Drawing for 1,500 & 2,000 lb Capacity Powered Stacker - Fork Model (261059)
• Power Drive & Lift Option
• 261059 Operating Instructions and Parts Manual

• Strong Capacity: Handles up to 1,500 lbs, ideal for medium-duty lifting and material handling.
• Versatile Forks: 30" forks offer flexibility for a wide range of pallet sizes and other loads.
• Moderate Lift Height: 64" lift height allows for efficient stacking and retrieval within standard shelving heights.
• Hydraulic Operation: Hydraulic system ensures smooth, controlled lifting with minimal effort.
• Durable Build: Sturdy construction designed for industrial environments and heavy use.

Q: What is the weight capacity of this fork stacker?
A: The Wesco 261059 can lift up to 1,500 lbs.

Q: What is the maximum lift height?
A: This stacker offers a lift height of up to 64 inches.

Q: What are the fork dimensions?
A: The forks are 30 inches in length.

Q: Is this stacker hydraulic-powered?
A: Yes, it features a hydraulic power lift for efficient lifting.

Q: What are the primary applications for this stacker?
A: Ideal for lifting heavy loads, pallets, and material handling in warehouses and factories.

Q: Is it easy to maneuver?
A: Yes, it’s designed for smooth and precise control.

Q: Does it require assembly?
A: Minimal assembly may be needed, with clear instructions provided.

Q: Is it durable?
A: Yes, it is built with heavy-duty materials for long-term reliability.

• Regular Inspections: Check forks, base legs, and hydraulic components for wear or damage monthly.
• Lubricate Moving Parts: Grease rollers, hinges, and chains every 3 months to ensure smooth operation.
• Hydraulic Fluid Check: Monitor fluid levels and look for any signs of leaks in the hydraulic system.
• Battery Maintenance: Fully charge the battery before use and check cables for any damage or corrosion.
• Clean Thoroughly: Wipe down the forks, frame, and base legs after each use to prevent rust and buildup.
• Check Fasteners: Tighten bolts and screws regularly to ensure stability and safety.
• Test Functionality: Verify that the lift, lowering, and braking systems are functioning properly.
• Respect Load Limits: Do not exceed the 1,500 lb. capacity or 64" lift height to ensure safe operation.
