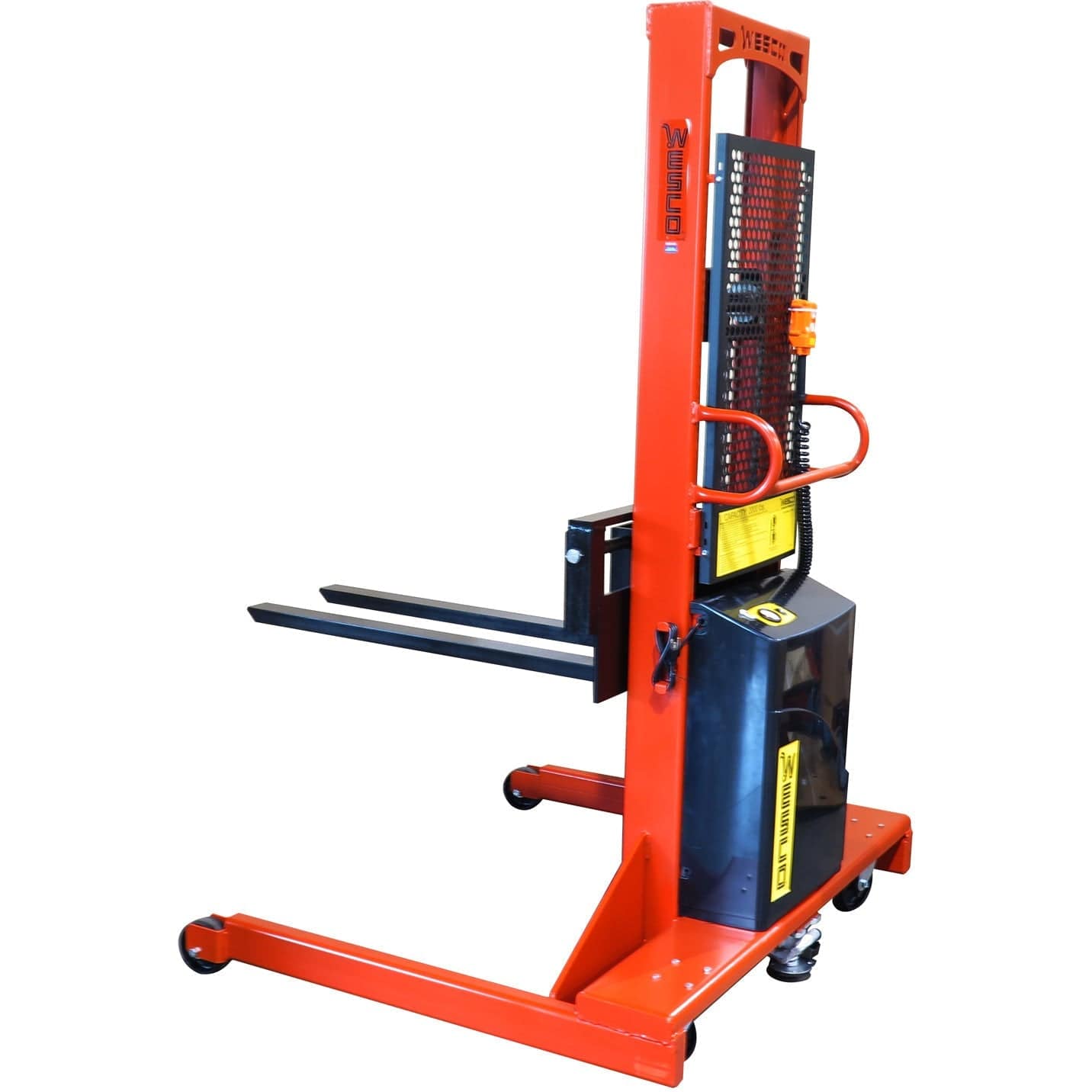

Wesco Industrial Products 1,500 lb. Hydraulic Power Lift Fork Stacker with 30" Forks and 76" Lift Height 261060

Wesco 3" X 30" FORK / 36" O.D. FIXED BASE POWERED STACKER - 261060

• 1-year warranty.
• Proven quality: Wesco® manufactured Hydraulic Cylinder.
• Meets ANSI B56.10 specifications.
• Battery and charger included.
• Forks lower to floor on all models.
• Reinforced frame and fixed base.
• Double chain, lift support.
• Heavy-duty pump.
• Ergonomic "D" handles.
• 5th wheel and power drive options available.
• 110V AC models available (Special order no cancellations or returns).
• To order add AC to the end of the battery powered stacker part #.
  Example:
  Battery Powered #261060
  110V AC Powered #261060AC

• Drawing for 1,500 & 2,000 lb Capacity Powered Stacker - Fork Model (261060)
• Power Drive & Lift Option
• 261060 Operating Instructions and Parts Manual

• Reliable Capacity: Supports up to 1,500 lbs, ideal for medium-duty material handling tasks.
• Longer Forks: 30" forks provide increased versatility for a wide range of pallet sizes and loads.
• High Lift Range: 76" lift height offers ample reach for efficient stacking and retrieval of materials.
• Hydraulic Lift: Smooth, easy operation with a hydraulic system for controlled lifting.
• Sturdy Design: Built to endure heavy-duty industrial use, ensuring long-term durability and stability.

Q: What is the weight capacity of this fork stacker?
A: The Wesco 261060 can lift up to 1,500 lbs.

Q: What is the maximum lift height?
A: This stacker provides a lift height of up to 76 inches.

Q: What are the fork dimensions?
A: The forks measure 30 inches in length.

Q: Is this stacker hydraulic-powered?
A: Yes, it features a hydraulic power lift for smooth and efficient lifting.

Q: What are the primary applications for this stacker?
A: Ideal for lifting heavier loads, pallets, and material handling in warehouses and factories.

Q: Is it easy to maneuver?
A: Yes, designed for smooth mobility and precise control.

Q: Does it require assembly?
A: Minimal assembly may be needed, with easy-to-follow instructions included.

Q: Is it durable?
A: Yes, it is built with heavy-duty materials for long-lasting reliability

• Inspect Components: Regularly check forks, base legs, and hydraulic system for any signs of wear or damage.
• Lubricate Moving Parts: Apply grease to rollers, chains, and hinges every 3 months to ensure smooth operation.
• Hydraulic Fluid Check: Verify fluid levels and inspect for leaks monthly to maintain optimal performance.
• Battery Care: Fully charge before use, and inspect cables for corrosion or wear.
• Clean Thoroughly: Wipe down forks, frame, and legs to prevent dirt buildup and corrosion.
• Secure Fasteners: Tighten bolts and screws regularly to ensure everything is properly fastened.
• Test Functionality: Ensure lift, lowering, and braking functions are working correctly.
• Adhere to Load Limits: Never exceed the 1,500 lb. capacity or 76" lift height for safe operation.
