Vinotemp Wine-Mate 4500SSH Split Central-Ducted Wine Cooling System - WM-4500SSH

Vinotemp Wine-Mate 4500SSH Split Central-Ducted Wine Cooling System - WM-4500SSH

The Wine-Mate 4500SSH cooling unit is a split system design with a capacity of 1000 cubic feet. This cooling unit is designed to provide a subtle temperature between 50~65 °F for a properly insulated wine cellar. The humidity range of the refrigerated space can be maintained within 50~75%. With this split system, the condensing unit can be placed up to 75 feet away from the fan coil to allow for extremely quiet operation. SSH split central-ducted cooling system can also be used for frameless glass cellars.

Wine-Mate cooling systems are also perfect for storing fine fur, cigars, leather goods, chocolate and salami! For an additional cost, Wine-Mate systems can be customized for your exact storage needs - please call for more information!

Find the best cooling system for your wine cabinet or wine cellar by calculating the heat load using one of our calculators.

Quieter Operation with Condensing Unit & Easy-To-Use Control Panel
This condensing unit can be placed up to 75ft away, providing for a much quieter operation. Changing the settings is also a cinch with the easy-to-use control panel on the evaporator unit.
Add The Wine Bottle Probe & Wi-Fi Thermostat
The probe provides an accurate reading of the temperature of your wine, and the thermostat helps maintain a wine cellar at perfect temperature for long term storage of wine.

Compare Sound Levels: dBA in Cellar vs 3 Feet from the Cooling Unit

(Click image to enlarge PDF)

• SPLIT SYSTEM COOLING UNIT - central-ducted design

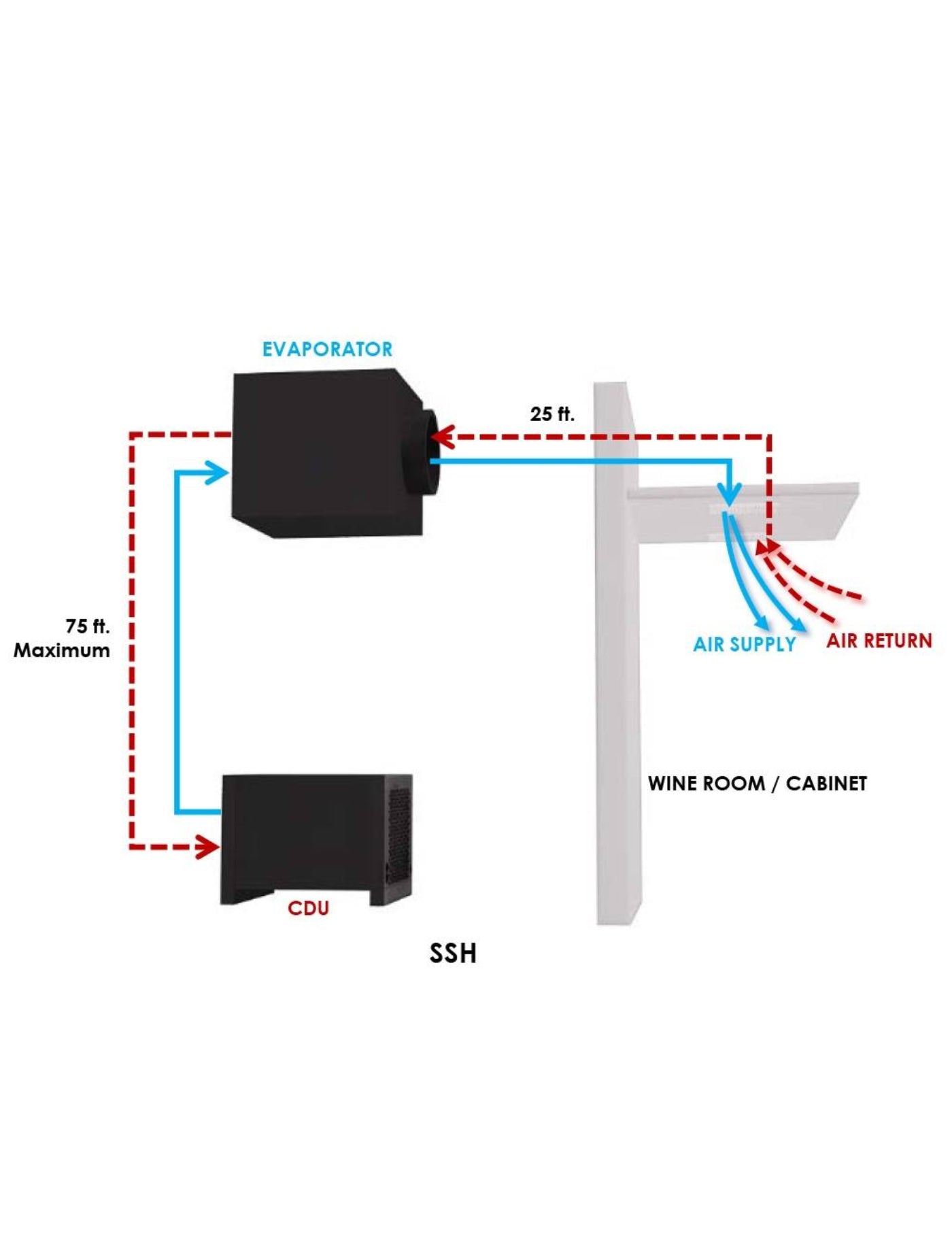

• SSH cooling systems consist of a remote condensing unit and an evaporator unit, and they are connected by a liquid line and an insulated suction line.
• SSH cooling systems have a secondary drain pan for optional condensate pump.
• SSH evaporator/fan units have a special coil coating. Coil dipped and baked with LRCCoat anti-corrosion coating.

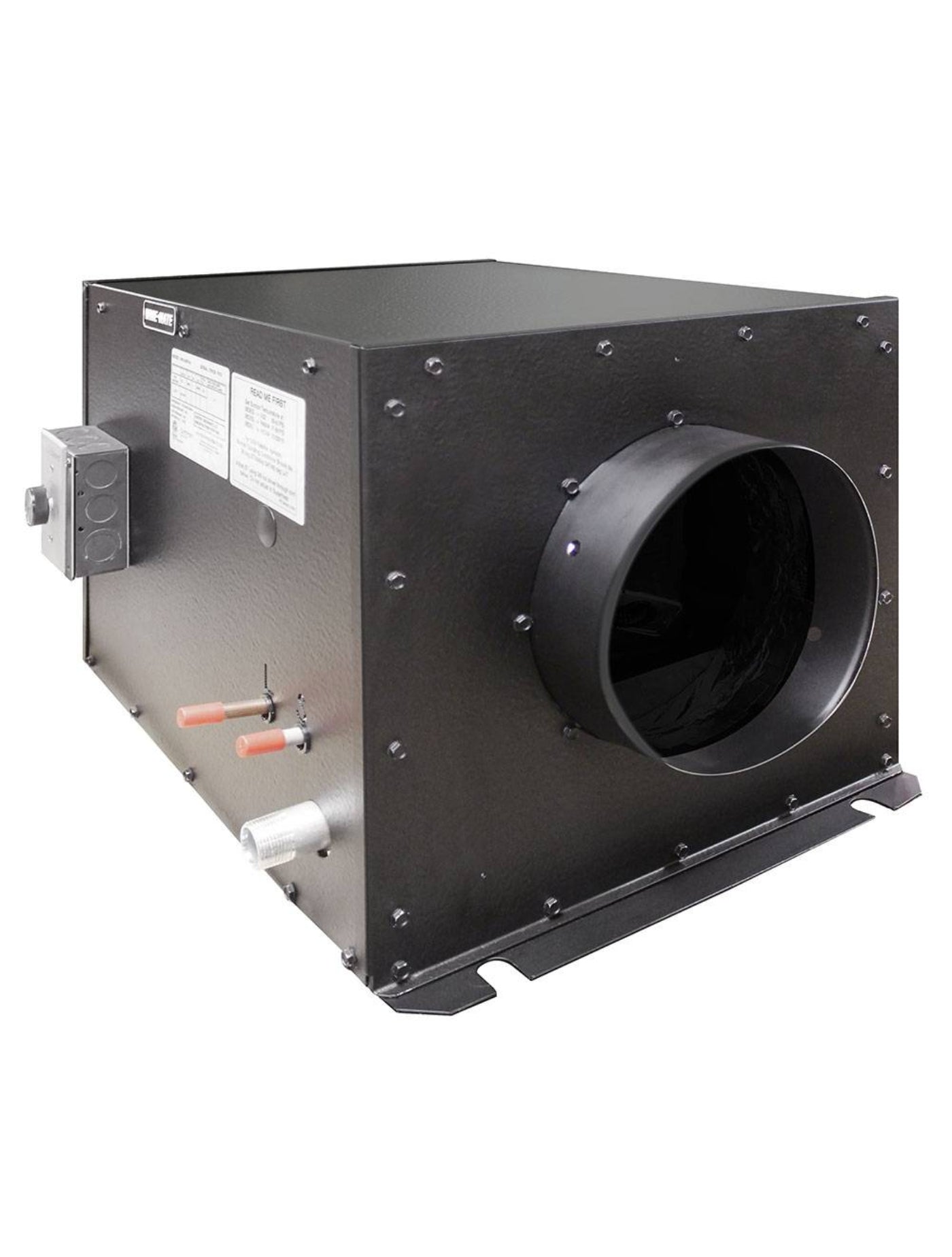

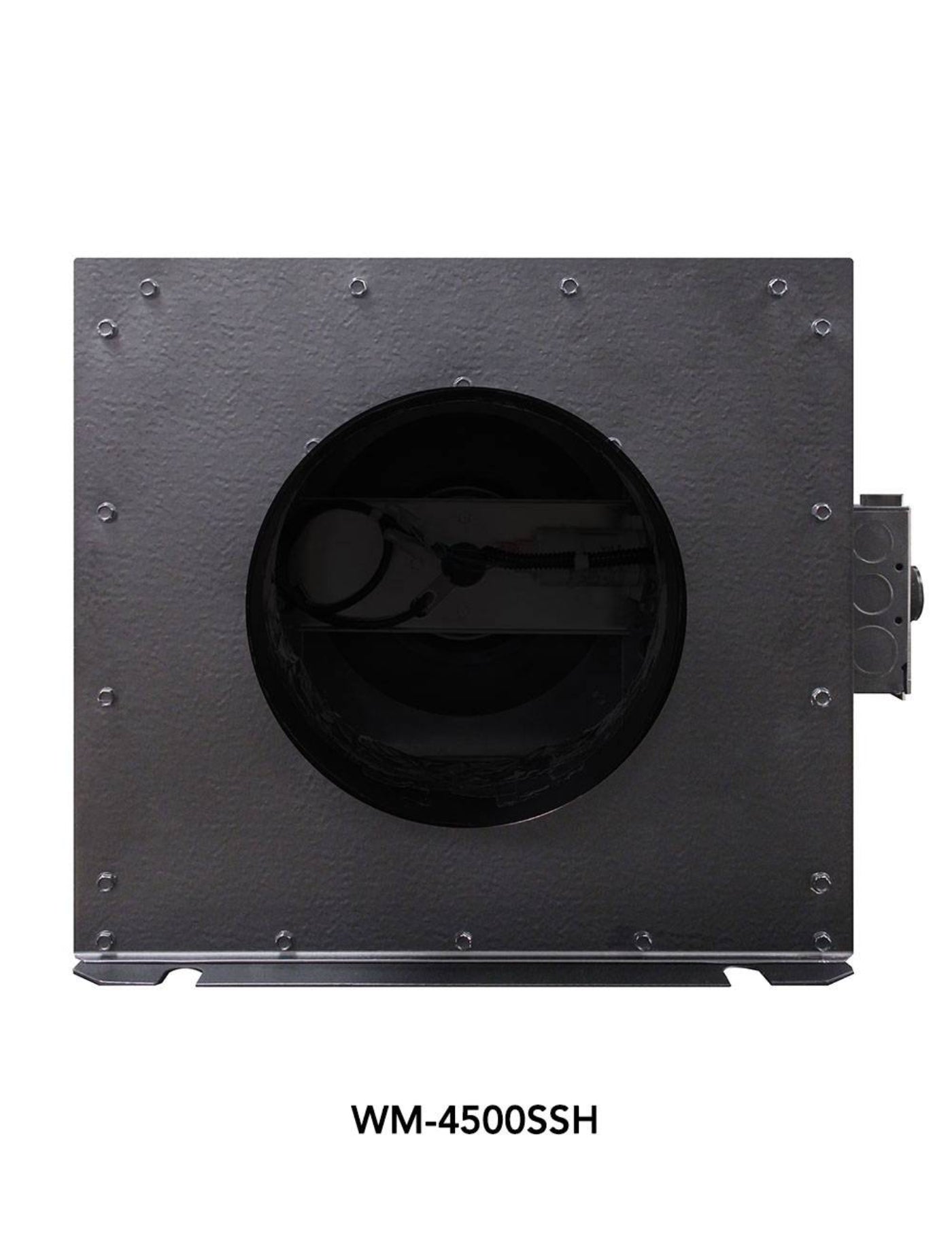

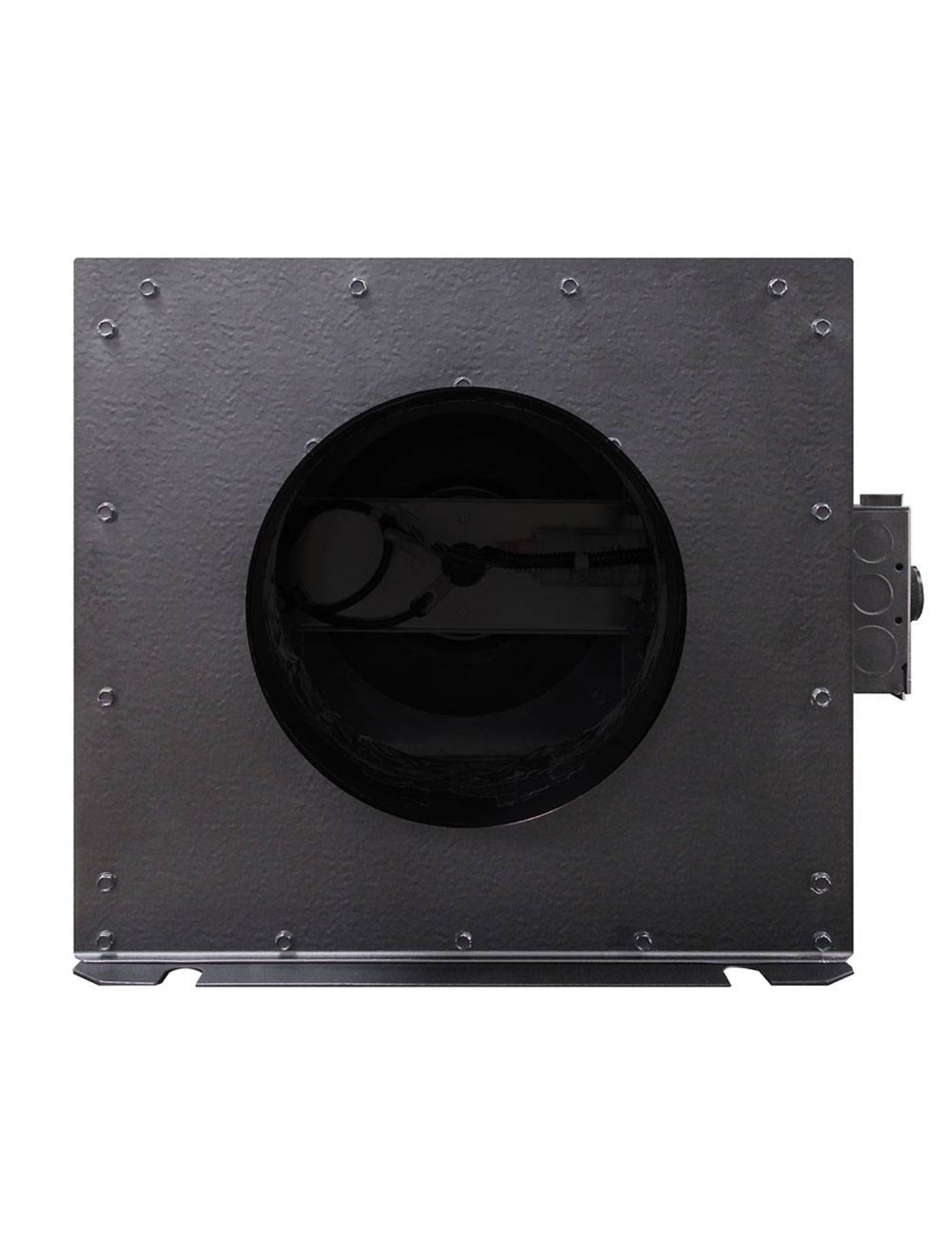

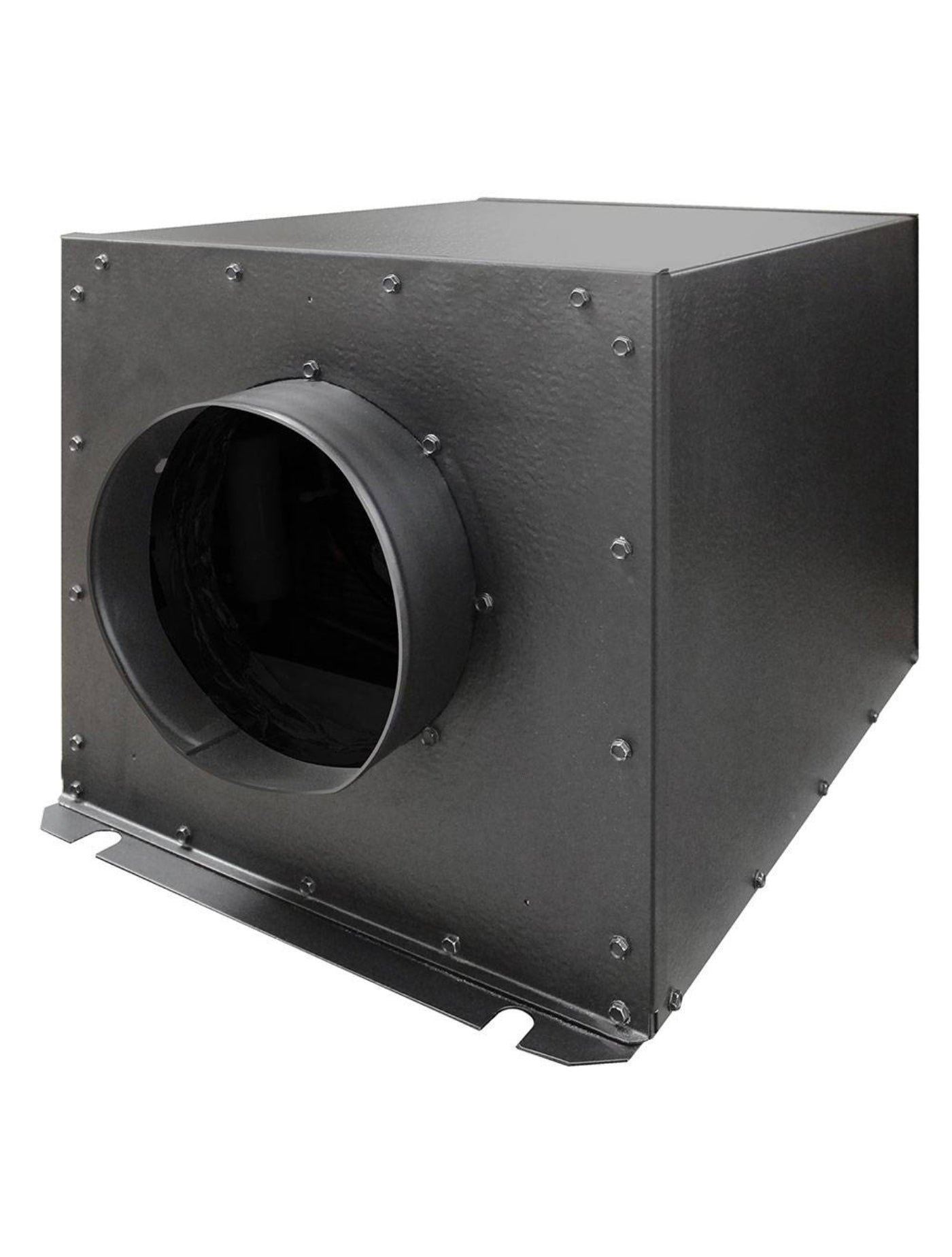

• SSH evaporator/fan units are designed to provide chilled air to a wine cellar through ducts. Backward-curved impeller fully ducted up to 25 ft away from wine cellar to reduce noise. It also provides better flexibility of installation.

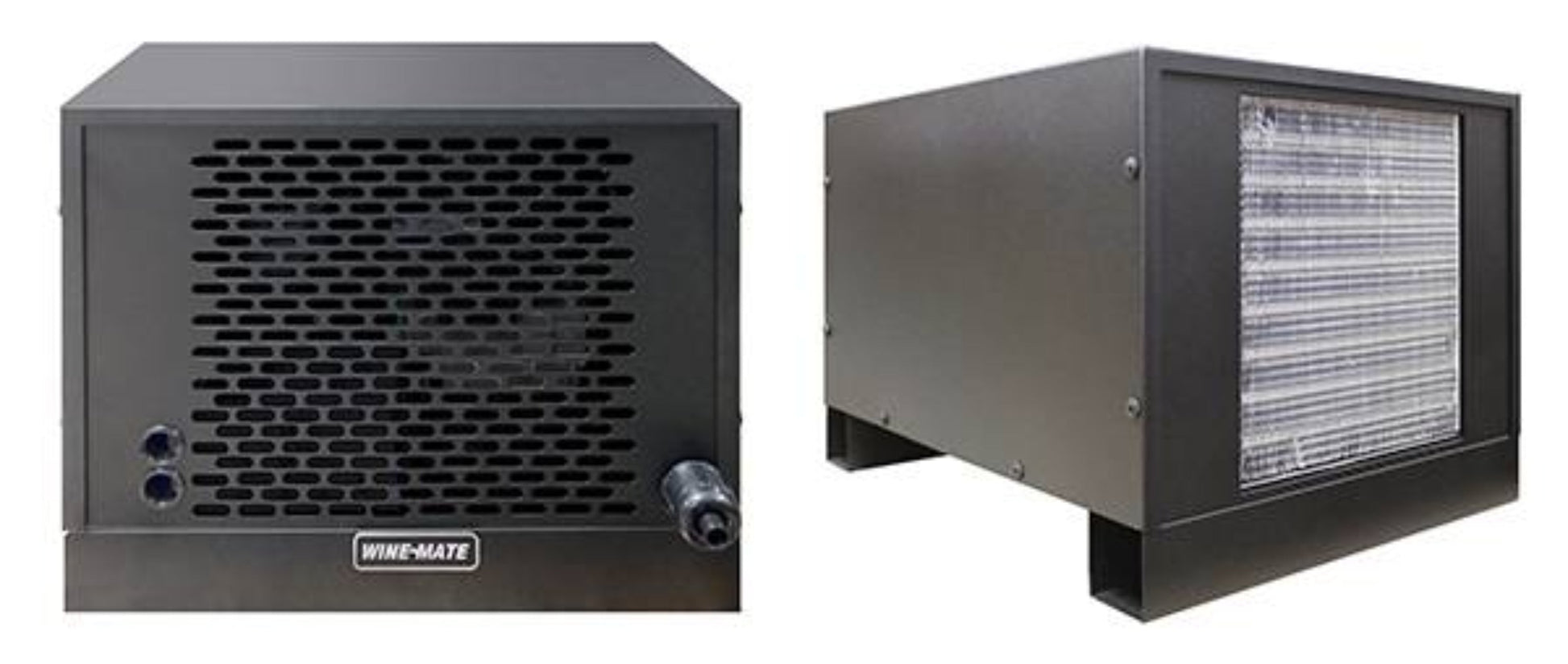

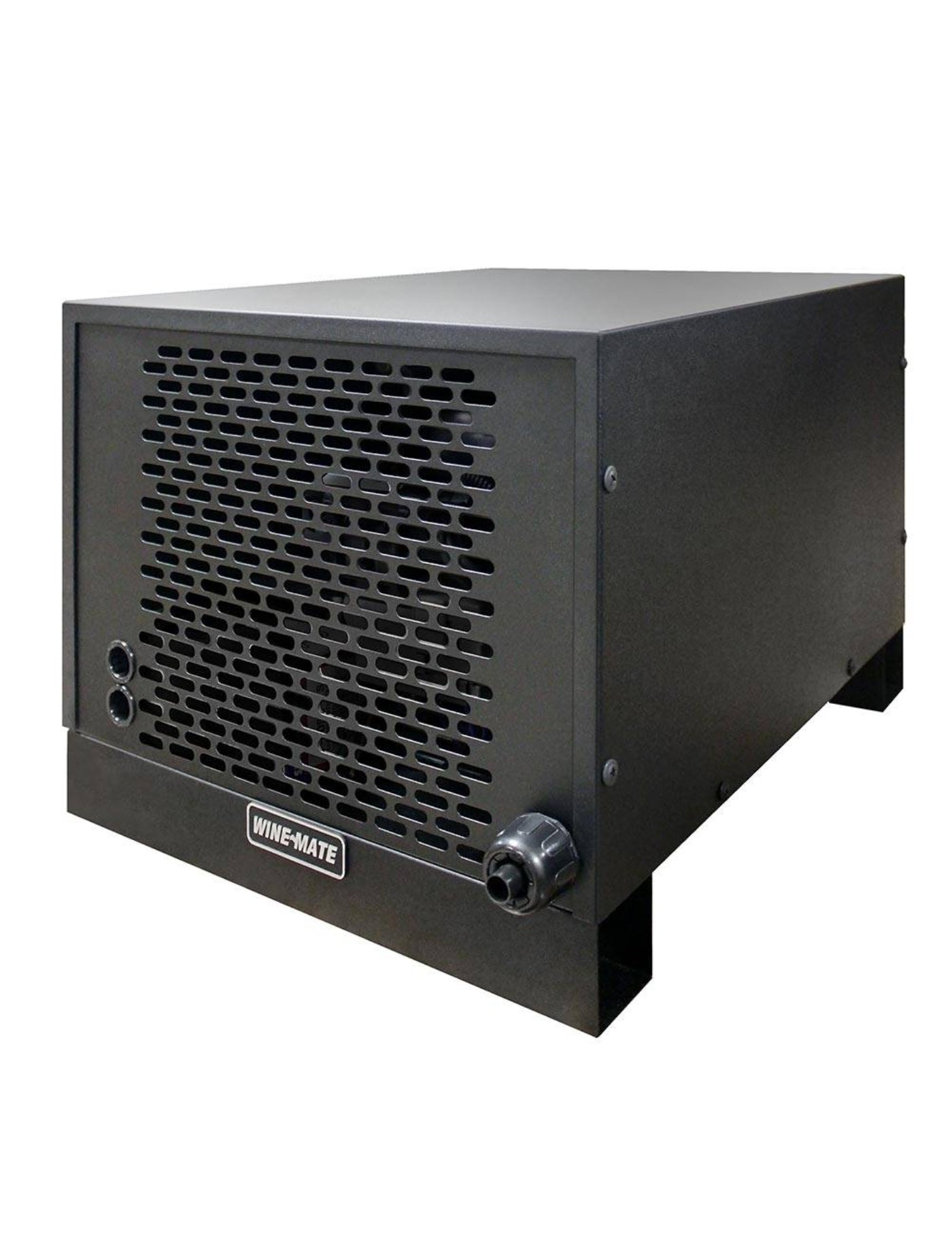

• SSH condensing units can be located away from the wine cellar up to 75 ft so that noise and compressor vibrations are isolated.
• SSH condensing units shall not be exposed to temperatures higher than 110°F or lower than 50°F.
• If the exhaust ambient temperature exceeds 110 °F, one size larger unit must be used.

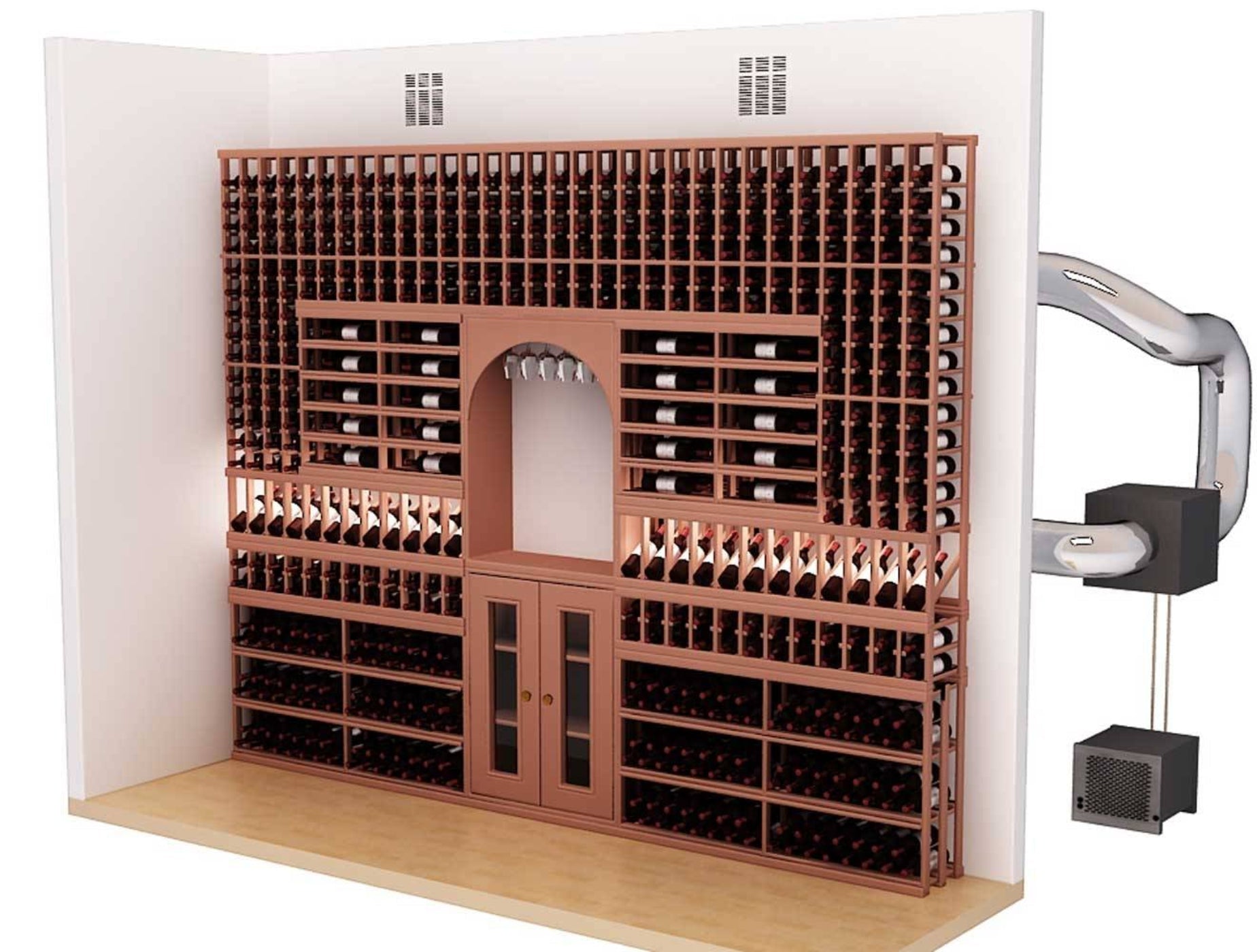

• SSH split central-ducted cooling system can be mounted remotely anywhere available (floor, ceiling or attic) for concealed, quiet and flexible installation.
• SSH split cooling systems have adjustable evaporator condenser fans. Fan speed is adjustable because they use speed controllers that are wired in line with the blower motors. Fan speed control regulates flow of current to the fan.

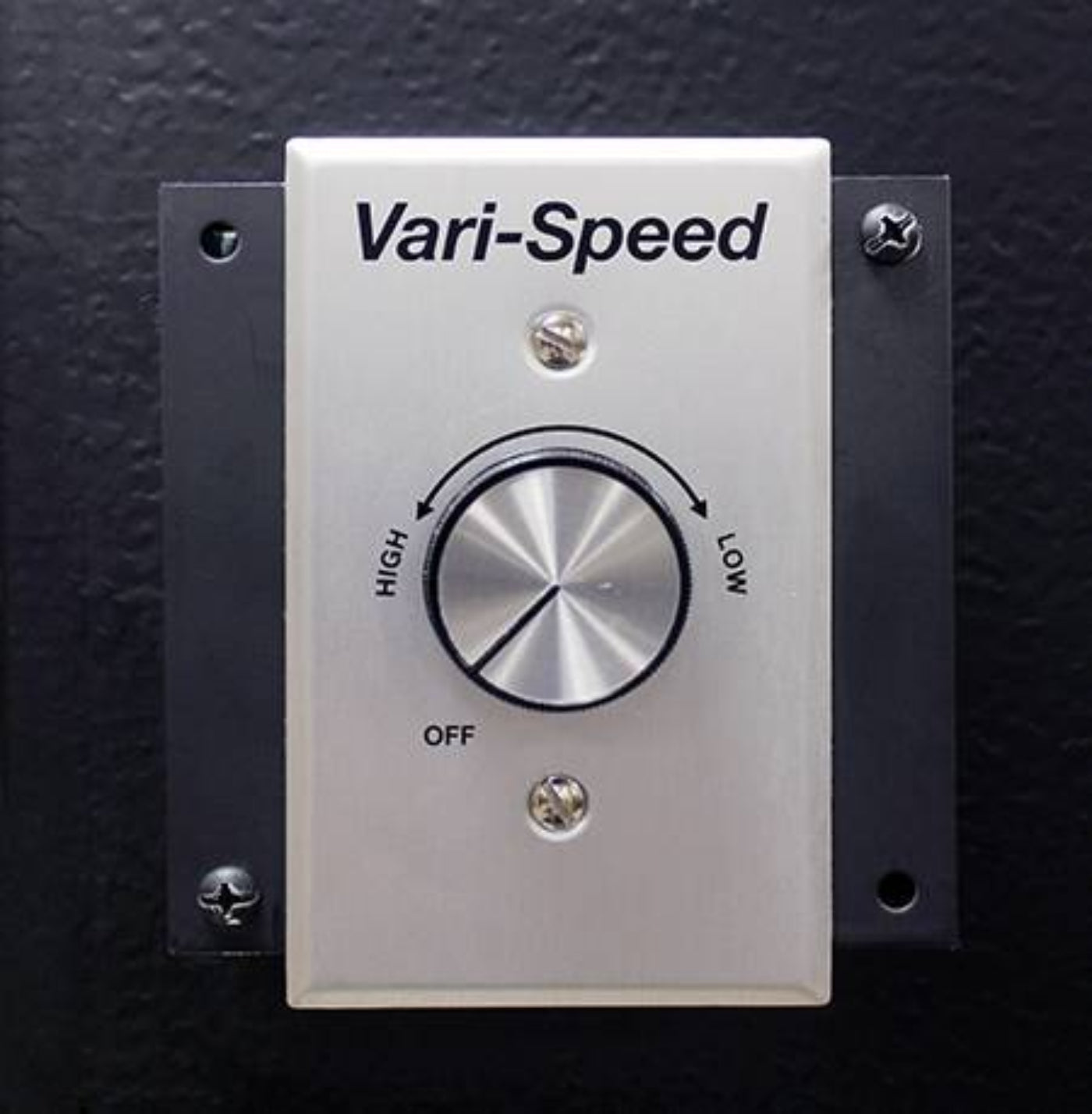

• Adjust evaporator fan speed through the knob to work with various length ducts
• Adjust condenser fan speed through the knob to work with low and high ambient temperatures
• Pump-down refrigeration system for easy service
• Automatic expansion valve for better humidity control
• Low ambient kit for below 50°F cold weather operation
• TEMPERATURE: The WM-4500SSH cooling unit is designed and used to provide a stable temperature between 50~65°F for a properly insulated and sized space.
• AMBIENT TEMPERATURE RANGE: The ambient temperature range for WM-4500SSH should not exceed the temperature of the cellar by more than 25°F. Cellar walls should not receive direct sun or strong wind. Lighting should be low wattage and installed on a timer to ensure that lights are not left on when the cellar is unoccupied.
• HUMIDITY CONTROL: The refrigerated space will maintain humidity within the range of 50~75% RH. We use an innovative method to provide additional humidity.
• DISPLAY: Digital display with easy push-button controls
• NOTIFICATIONS: Display notifications provide alerts help to protect your wine cellar and alert you when maintenance is required.
• CONTROL PANEL: Control panel includes digital display, manual defrost button, up and down arrows to adjust temperature as well as browse parameters, power button, and SET button.
• Outdoor enclosure is included with condensing unit
• 2500~12000 Btu/h cooling capacities
• Only 45 dBA noise level in the wine cellar
• WARRANTY: 1 year warranty on parts, 1 year labor.

• Optional Low Ambient Kit: Recommended for applications where the low ambient temperatures in the condensing unit mounting area will be between 0 and 50°F. Feature is factory-installed.
• Temperature Control Panel with Heating Function: Works in conjunction with your home's air forced electric heater to ensure that your cellar never goes below the programmed temperature.
• Touch button temperature controller with bottle probe or touch screen WiFi thermostat with humidity monitoring
• Optional Wine Bottle Probe: Provides the most accurate reading of your wine's temperature. The probe measures the temperature of the liquid inside the bottle to ensure your wine is kept at the ideal temperature and plugs directly into your cellar cooling system.
• Our new digital controller provides 3 connections. One of them can be used as bottle probe, the other can be used for the alarm. Both bottle probe and alarm feature can be available at the same time.
• Please call us at 1-800-777-8466 to order this unit with any of the above mentioned options or non-standard configurations.
• Note: The bottle probe, heating, and quick chill functions are not compatible with WI-FI thermostat.

Click links to view

• Owner's Manual (PDF)
• Spec Sheet (PDF)
• Quick Chilling & Energy Saving Instructions (PDF)

• Powerful Cooling Capacity – Effectively cools wine cellars up to 1,000 cubic feet.
• Split System Design – Reduces noise and vibration by placing the condenser in a separate location.
• Central-Ducted Cooling – Evenly distributes cool air throughout the wine cellar.
• Precise Temperature Control – Digital controls ensure stable and consistent cooling.
• Humidity Management – Helps maintain the perfect environment for long-term wine storage.
• Quiet & Efficient Operation – Engineered for minimal noise while maximizing performance.
• Durable & Reliable – High-quality materials for long-lasting, professional-grade cooling.

Q: What is the Vinotemp Wine-Mate 4500SSH Split Central-Ducted Wine Cooling System - WM-4500SSH?
A: It’s a split central-ducted wine cooling system designed for precise temperature and humidity control in wine cellars up to 1,000 cubic feet.

Q: How does a split system work?
A: The evaporator and condenser are installed separately to minimize noise and vibration inside the wine cellar.

Q: What type of ventilation does it require?
A: It is a ducted system that allows for flexible installation with proper ventilation for efficient cooling.

Q: Can the temperature be adjusted?
A: Yes, it features digital temperature controls for precise climate management.

Q: Does this system regulate humidity?
A: Yes, it helps maintain proper humidity levels to protect wine corks and labels.

Q: Is professional installation required?
A: Yes, this system should be installed by a qualified HVAC technician for optimal performance.

Q: Is this suitable for residential and commercial use?
A: Yes, it is ideal for both home wine cellars and commercial wine storage applications.

Q: Does it operate quietly?
A: Yes, its split design reduces noise inside the wine cellar, making it a quiet cooling solution.

• Clean Air Filters Regularly – Check and clean filters every 3-6 months for optimal airflow.
• Inspect Ductwork – Ensure ducts are clear and properly sealed to prevent leaks.
• Monitor Temperature & Humidity – Keep within recommended settings for wine preservation.
• Check for Refrigerant Leaks – Look for signs of reduced cooling efficiency and have leaks repaired by a professional.
• Keep Condenser Coils Clean – Dust and debris can reduce performance; clean every 6 months.
• Ensure Proper Ventilation – Maintain adequate airflow around the unit for efficiency.
• Schedule Professional Maintenance – Have a technician inspect the system annually.
• Use a Surge Protector – Protect the unit from power fluctuations to extend its lifespan.
